The “ICY Vision-A” cooler contains 5 power heatpipes in a unique heatpipe constellation. The
heatpipes are interlaced into 85 optimized high-quality Aluminium fins. Together with a flat stack fin
soldered Copper base, they enable the most efficient heat transmission and dissipation from GPU
in its class. Besides the heatsink, two 92mm UV-reactive fans with 11
blades in S-shape generate 20% additonal air flow than traditional
fans. The fan contains a high-quality ball bearing to ensure a longer
lifetime in high temperature environments.

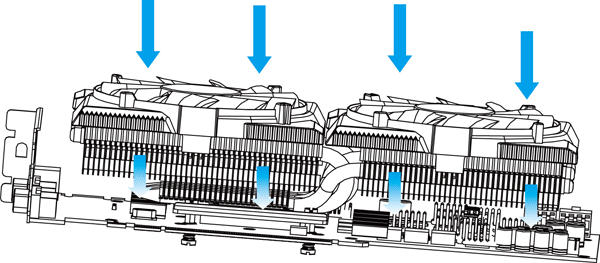

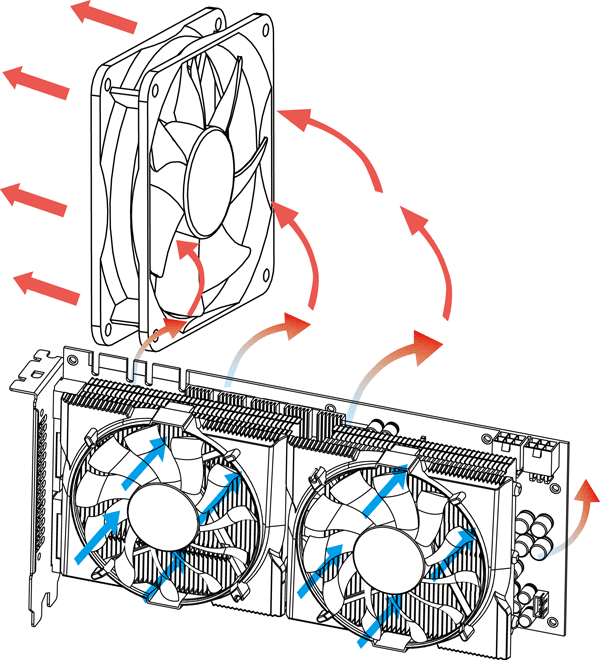

Both VGA fans blow cold air directly to the card
while case fans draw hot air from the PC case.
- 5 High Performance Power Heatpipes
- Premium Aluminum Fins & Pure Copper Base
- 2 x 92mm S-Shape Fans for 20% additional Air Flow
- Ball Bearing for Long Life Time
|Air Flow rate (CFM/CMH):||67.14 / 114.13|
|Bearing:||1 Ball & 1 Sleeve|
|Cable Length (mm):||200|
|Current (A):||0.5 (0.25 / fan)|
|DC Voltage (V):||12|
|Fan Speed (RPM):||2000 (+/- 10%)|
|Fan:||2 x 9215 S-Shape UV Blue Fan|
|Heat Sink Dimensions (mm):||216 L x 95 W x 52 H|
|Life Time MTTF at 40C (h):||50'000|
|Noise Level (dBA):||max. 26|
|Static Pressure (mmAq):||1.3|
- Heatsinks for Ram & VRM
- High Quality GC-2 Thermal Compound
- Case Fan cable to power supply or motherboard
This cooler is RoHS, WEEE compatible and has a warranty of 5 years.
AMD™: HD5850, HD5870, HD6850, HD6870, HD6950, HD6970, HD7850, HD7870, HD7950, HD7970
The compatibility list is based on AMD™
reference board layout ONLY. GELID Solutions holds no responsibility
for incompatibility on non-standard cards. Please refer to the height restriction drawing. Installation manual for AMD cards to download.
