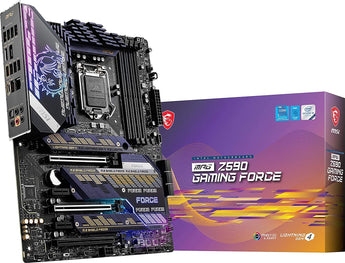

MSI MPG Z590 Gaming Force ATX Motherboard

MSI

MSI-Z590FORCE

The MPG series brings out the best in gamers by allowing full expression in color with advanced RGB lighting control and synchronization. Experiment on another level of personalization with a front LED strip that provides convenient in-game and real time notifications. With the MPG series, transform your equipment into the center of attention and top leaderboards in style.

Found a better price? Let us know and we'll try and match it!
Estimación de envío
$299.99 Agotado
Los gastos de envío se calculan en la pantalla de pago.

Retiro no disponible actualmente en Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details
/

MPG Z590 GAMING FORCE Motherboard

Smart Design, Smart Cooling

The MPG Z590 GAMING FORCE delivers a powerful Intel Core 11th Gen ready platform that supports a broad spectrum of the state-of-the-art system processors and gaming hardware. For gaming connoisseurs looking to upgrade their motherboard without Wi-Fi deadweight, the MSI MPG Z590 GAMING FORCE is the smart choice.

width=300
Features

/
Specifications




PROCESSOR





  • Supports 10th Gen Intel® Coreâ?¢Â Processors, 11th Gen Intel® Coreâ?¢Â Processors, Pentium® Gold and Celeron® Processors 1

  • Processor socket LGA1200



  1. Please go to intel.com for compatibility information.


See supported processors






CHIPSET




Intel® Z590 Chipset






MEMORY





  • 4x DDR4 memory slots, support up to 128GB1

  • Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)

  • Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)

  • Max overclocking frequency:

    • 1DPC 1R Max speed up to 5333 MHz

    • 1DPC 2R Max speed up to 4700+ MHz

    • 2DPC 1R Max speed up to 4400+ MHz

    • 2DPC 2R Max speed up to 4000+ MHz



  • Supports Dual-Channel mode

  • Supports non-ECC, un-buffered memory

  • Supports Intel® Extreme Memory Profile (XMP)



  1. Please refer to www.msi.com for more information on compatible memory



See supported memory







EXPANSION SLOTS





  • 3x PCIe x16 slots

    • Support x16/x0/x4, x8/x8/x4, x8/x4+x4/x4

    • PCI_E1 & PCI_E3 slots (From CPU)

      • Support PCIe 4.0 for 11th Gen Intel® CPU

      • Support PCIe 3.0 for 10th Gen Intel® CPU



    • PCI_E5 slot (From Z590 Chipset)

      • Supports PCIe 3.0





  • 2x PCIe 3.0 x1 slots (From Z590 Chipset)






ONBOARD GRAPHICS





  • 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz1/ 2

  • 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz1/ 2



  1. Available only on processors featuring integrated graphics.

  2. Graphics specifications may vary depending on the CPU installed.






MULTI-GPU





  • Supports 3-Way AMD® CrossFireâ?¢Â Technology






STORAGE





  • 6x SATA 6Gb/s ports (From Z590 Chipset)

  • 3x M.2 slots (Key M)

    • M2_1 slot (From CPU)

      • Available only on 11th Gen Intel® CPU

      • Supports PCIe 4.0 x4

      • Supports 2242/ 2260/ 2280/ 22110 storage devices



    • M2_21 & M2_32 slot (From Z590 Chipset)

      • Supports PCIe 3.0 x4

      • Supports SATA 6Gb/s

      • Supports 2242/ 2260/ 2280 storage devices

      • Intel® Optaneâ?¢ Memory Ready3





  • Supports Intel® Smart Response Technology for Intel Coreâ?¢Â processors



  1.  SATA2 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.

  2. SATA5 & SATA6 will be unavailable when installing M.2 SATA/PCIe SSD in the M2_3 slot.

  3. Before using Intel® Optane� memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.






RAID





  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices






USB






Intel® Z590 Chipset



  • 1x USB3.2 Gen2x2 20Gbps port (Type-C port on the back panel)

  • 4x USB 3.2 Gen 2 10Gbps ports (3 Type-A port on the back panel, 1 Type-C available through the internal connector)

  • 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 Type-A ports available through the internal connector)


Hub-GL850G



  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through internal connectors)








AUDIO




Realtek® ALC4080 Codec



  • 7.1-Channel High Definition Audio






LAN





  • 1x Intel® I225V 2.5Gbps LAN controller






INTERNAL CONNECTORS





  • 1x 24-pin ATX main power connector

  • 2x 8-pin ATX 12V power connectors

  • 1x 6-pin PCIE power connector

  • 6x SATA 6Gb/s connectors

  • 3x M.2 slots (M-Key)

  • 1x USB 3.2 Gen 2 10Gbps Type-C port

  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

  • 2x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

  • 1x 4-pin CPU fan connector

  • 1x 4-pin water-pump fan connector

  • 6x 4-pin system fan connectors

  • 1x Front panel audio connector

  • 2x System panel connectors

  • 1x Chassis Intrusion connector

  • 1x Clear CMOS jumper

  • 1x TPM module connector

  • 1x TBT connector (supports RTD3)

  • 1x Tuning Controller connector






LED FEATURE





  • 1x EZ LED Control switch

  • 4x EZ Debug LED

  • 1x 2-Digit Debug Code LED

  • 1x 4-pin RGB LED connector

  • 2x 3-pin RAINBOW LED connectors

  • 1x 3-pin CORSAIR LED connector






BACK PANEL PORTS







  1. USB 2.0

  2. DisplayPort

  3. USB 3.2 Gen 1 5Gbps Type-A

  4. 2.5G LAN

  5. Audio Connectors

  6. Flash BIOS Button

  7. HDMI

  8. USB 3.2 Gen 2 10Gbps Type-A

  9. USB 3.2 Gen 2x2 20Gbps Type-C

  10. Optical S/PDIF Out



MPG






DIMENSIONS





  • ATX Form Factor

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)






MOUNTING




9 mounting holes






OPERATING SYSTEM





  • Support for Windows® 10 64-bit






BOX CONTENT



MPG

  1. MSI® does not guarantee the risks or damages caused by changing the cover.

  2. These pictures are for reference only and may vary without notice.
