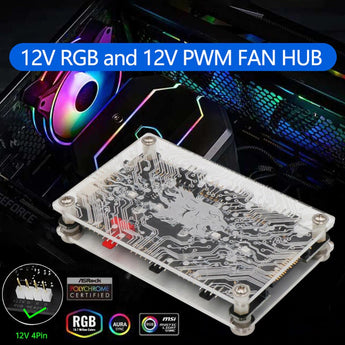

1 to 6 Multi Way Fan Splitter HUB 2 in 1 4 Pin 12V RGB LED Strip 12V PWM

AE-FAN-HUB-6WAY-RGB

This 4-Pin RGB and 4-Pin PWM HUB can simultaneously expand any 12V addressable RGB products and It only occupies one RGB connector on the motherboard.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
12 in stock, ready to ship
$17.99
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

This 4-Pin RGB and 4-Pin PWM HUB can simultaneously expand any 12V addressable RGB products and It only occupies one RGB connector on the motherboard.

This HUB is only compatible with 4Pin 12V addressable RGB headers or controllers. Do not connect to a 5V 3-pin aRGB component, please make sure that the connector are aligned the arrows on the header.

Features

6x PWM 4-pin header connector, compatible with 3-pin cable (Speed control function is not applicable to 3-pin fan), the red 4-pin 90° connector is only connected to CPU fan.
Expand the 4-pin fan interface to solve the problem of insufficient motherboard fan interface. Specially designed for 12V 4-Pin 3-Pin fans, supporting up to 10 channels of fans to be activated at the same time.
 In the HUB interface, the RED CPU interface is a dedicated interface for the CPU fan (with speed detection function). Since the motherboard can only receive one speed signal, the remaining 9 conventional fan interfaces have PWM function, but no speed signal.
 Suitable for 4-pin and 3-pin fans. Please note that the speed of the 4Pin fan can be adjusted by temperature control. Also can be used for 3Pin fan, but because 3Pin has no PWM function, it is at a fixed speed after plugging in.
The magnetic bracket design can easily fix the HUB in the chassis.

Specifications

Specification:
Product Size: 100 X 62 X 16mm/3.94 X 2.44 X 0.63
RGB Cable Length: 60cm/23.62
