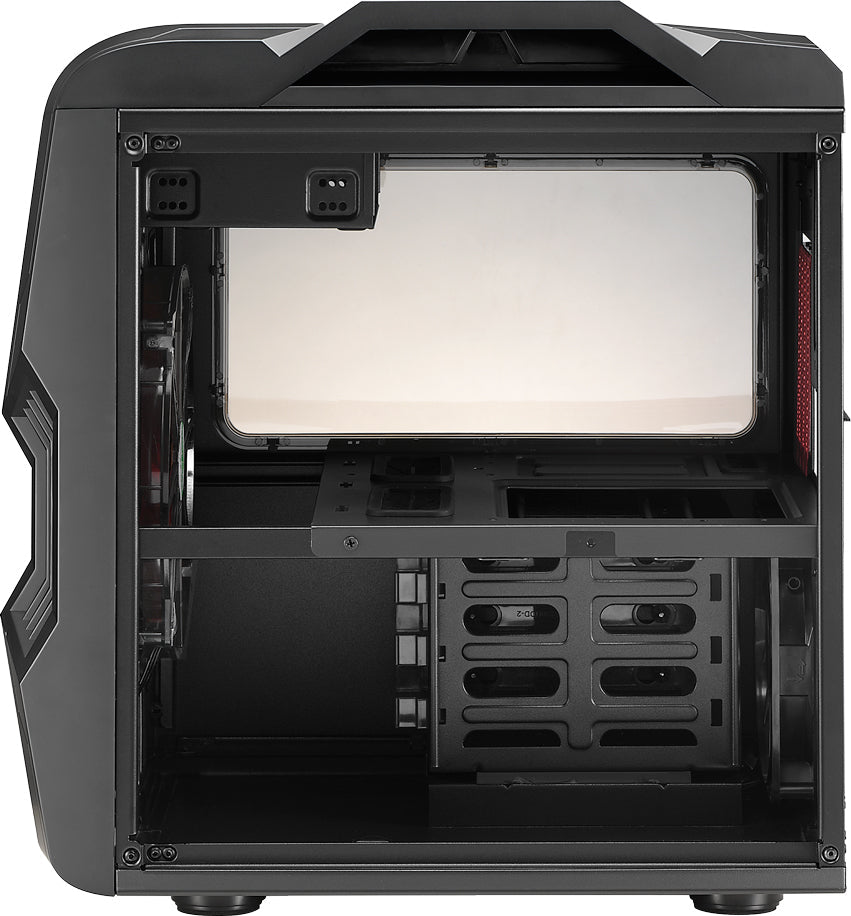

Aerocool StrikeX Cube Case Black Red Edition

• Super cube gaming case solidly built with 0.7mm Steel.


• Unique side bar design to take the strength of chassis to the next level.


• PSU bracket makes installation of PSU easier.


• Largely increased airflow front and top panels.


• Completely removable ODD rack for ease of installing water cooling system.


• Supports DUAL 240/280mm water cooling radiators.


• Pre-drilled holes for cable management to reduce cable mess.


• Pre-drilled holes for water cooling tubes.

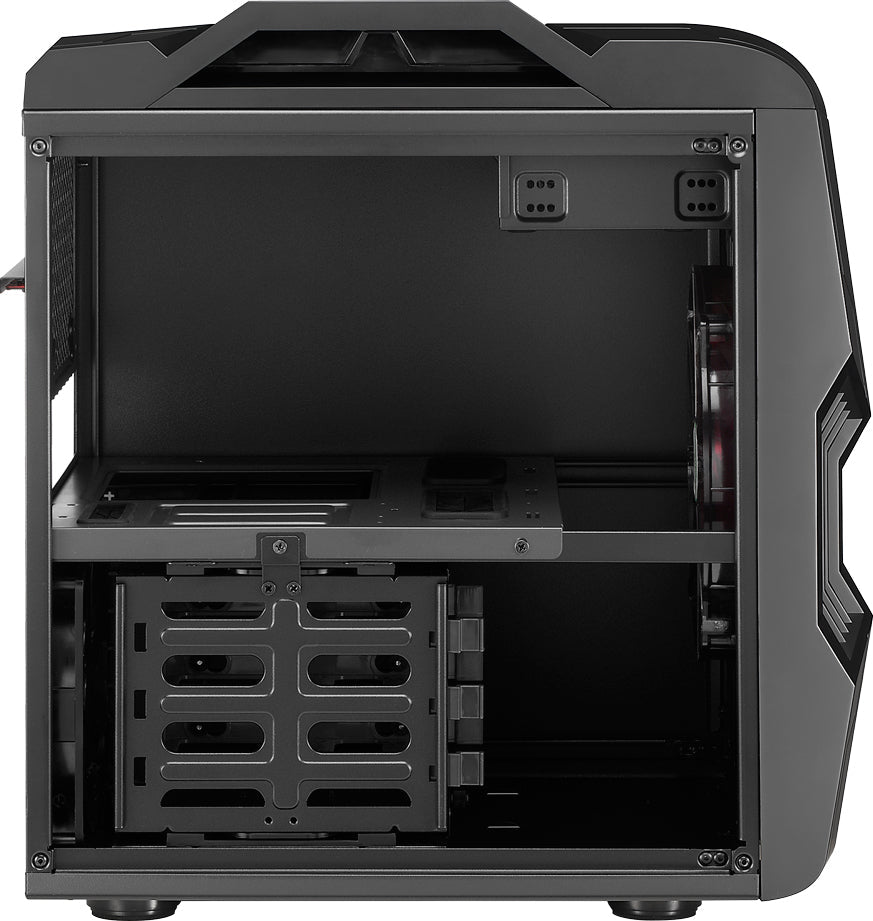

• Supports internal 3x3.5HDD (also compatible with 2.5?) and 2x2.5HDD/SSD under ODD rack.


• Supports dual high-end graphic cards up to 320mm ( 345mm when front 20cm fan removed).


• Supports max. CPU cooler height of 187mm.


• Supports all PSU lengths.

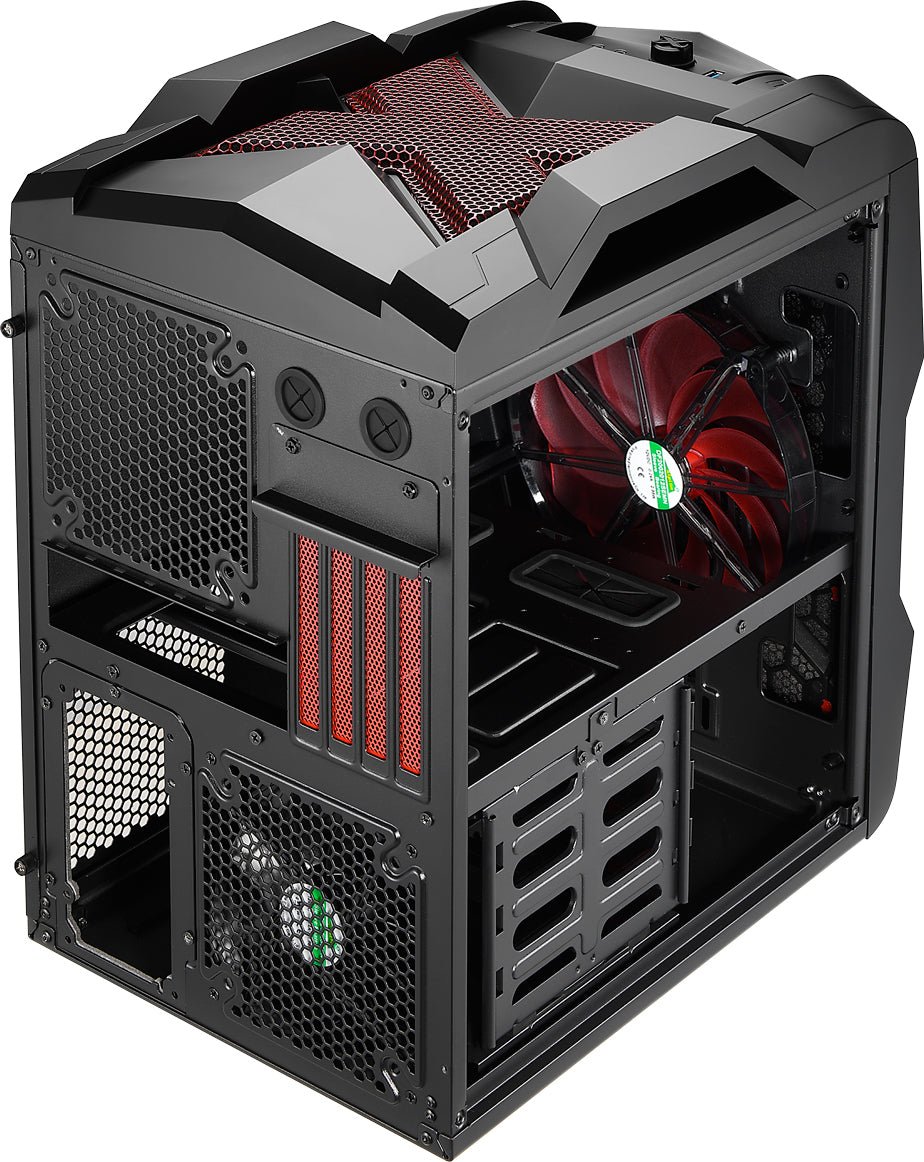

• Super-silent 20cm fan and 14cm fan included for front and rear cooling.


• Supports up to 1 x 20cm, 2x12cm, or 2x14cm fans on top panel.

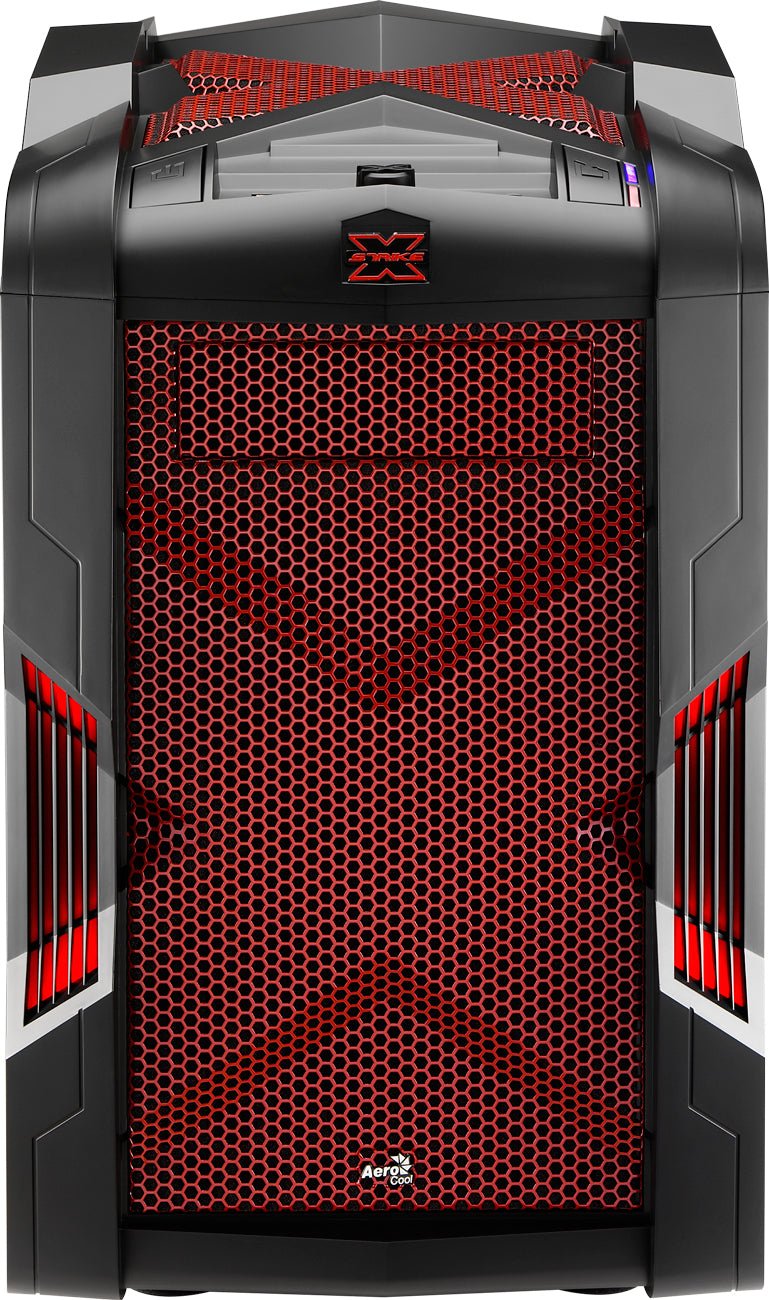

• Supports up to 1x 20cm, 2x12cm or 2x14cm fans on front panel  ( 1x20cm pre-installed).

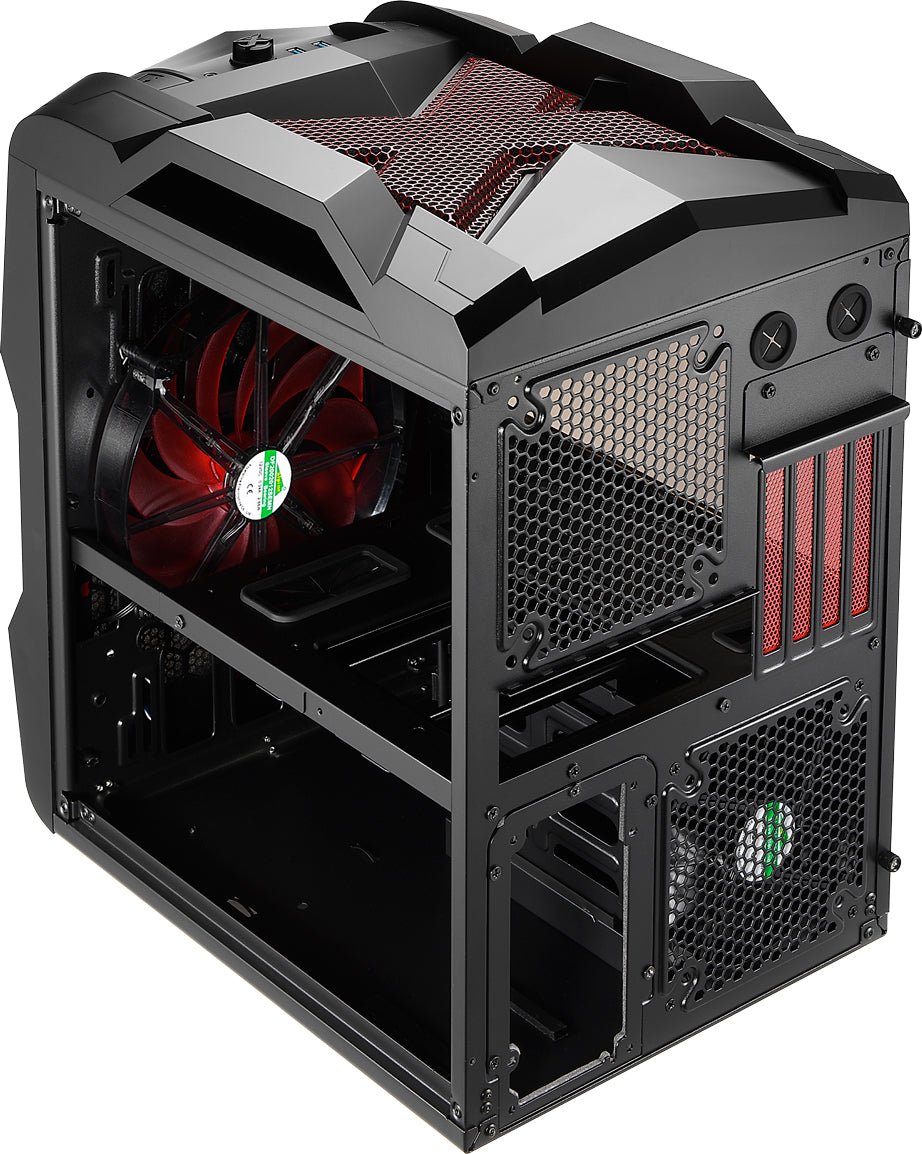

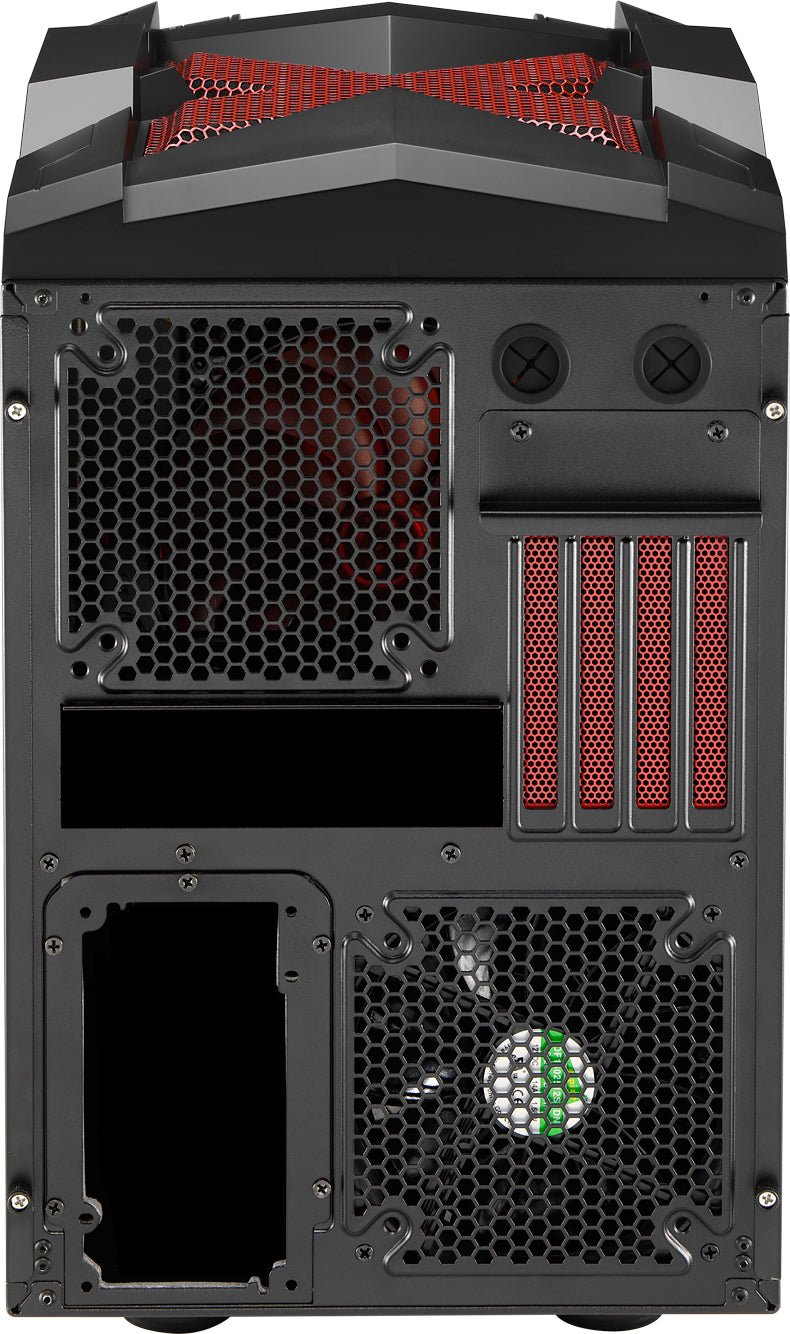

• Supports up to 2x12cm or 2x14cm fans on rear panel (1x 14cm pre-installed).


• Magnetic PSU dust filter can be easily removed for cleaning.


• HDD rack is double-secured by 2 screws to ensure the precious data don?t get damaged during transportation.


• Shock-proof rubber pads for 3.5 HDDs and PSU.

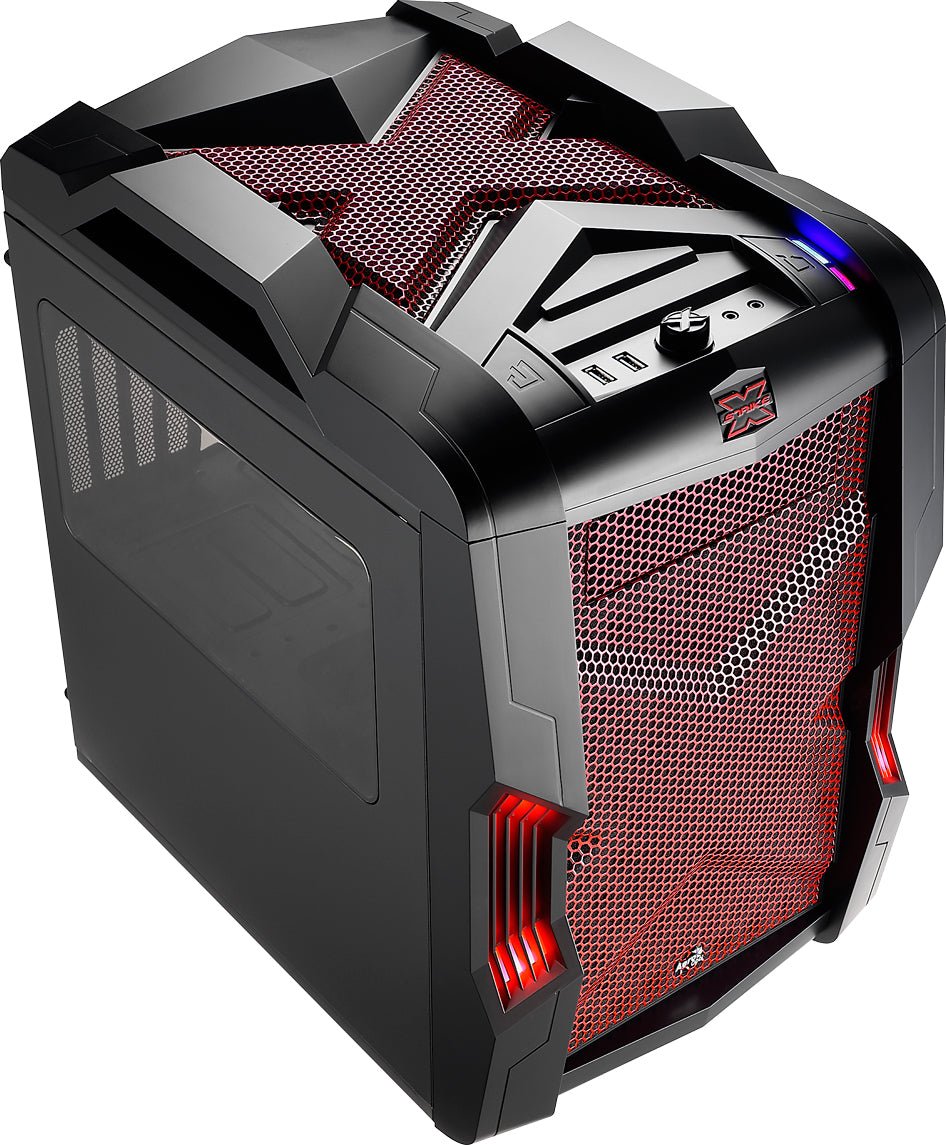

• 2x USB3.0/ HD Audio & MIC.


• Separate fan positions for exhausting the heat from HDD and motherboard.

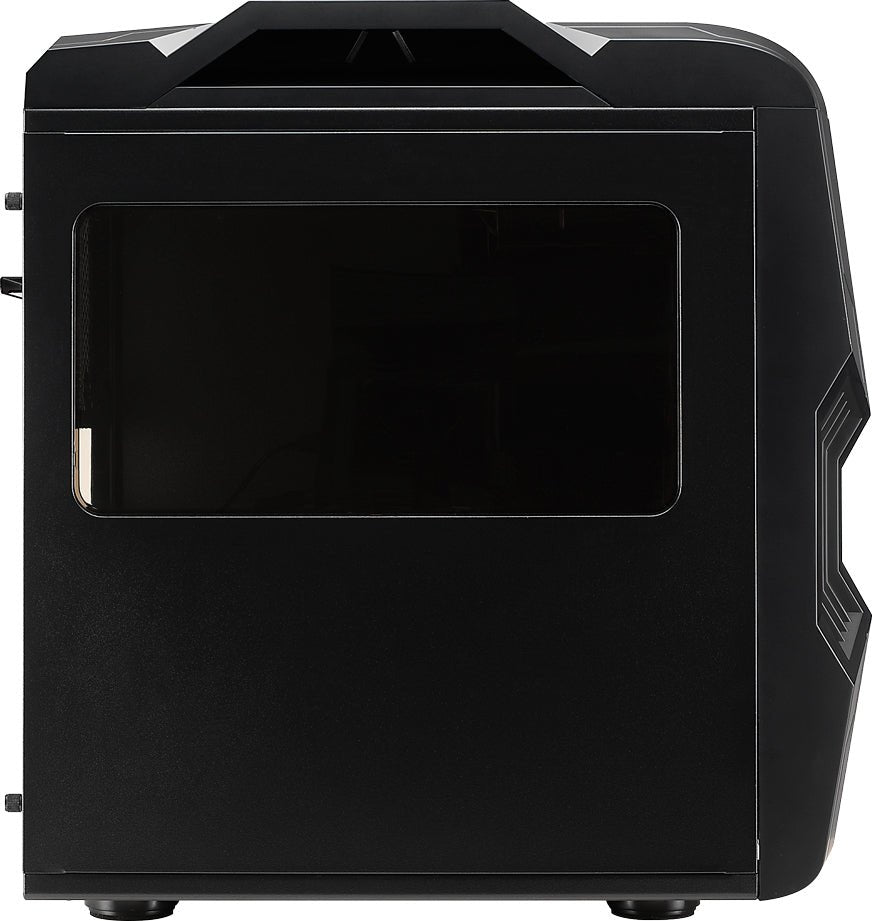

• Large Acrylic window for clear viewing.


• Includes fan controller knobs controls fan/s up to max. 15W/channel.

	Case Type	Cube Case
	Material	0.7mm
	Motherboards	Micro ATX / Mini ITX
	Chassis Dimensions (W x H x D)	280 x 380x 350 mm
	5.25? Drive Bays	1 (Exposed)
	3.5? Drive Bays	3 (Hidden, Internal 3.5? HDD Tray)
	2.5? Drive Bays	5 (Hidden, Internal 3.5? HDD Tray and Under ODD rack)
	Expansion Slots	4 Slots
	Max length space available for PCI slots	320mm (345mm ? Without Front Fan)
	I/O Ports	2 x USB3.0 , HD Audio+ MIC, 1 x Fan Controller
	Height limit for CPU coolers	Support Max. Height Of 162mm For CPU Cooler (187mm- Without Top Fans)
	Fans	Front : 1 x 200mm Red LED Fan Included Rear : 1 x 140mm Black Fan Included

Cooling System

	[ Front - Red LEDs ]		[ Rear ]
Fan	200 x 200 x 20 mm		140 x 140 x 25 mm
Rated voltage	12V		12V
Operating Voltage Range	7~13.2V		7~13.2V
Starting voltage	7V		7V
Power consumption	2.88W+10%Max		1.68W+10%Max
Locked Current	0.26A+10%Max		0.3A+10%Max
Rated current	0.24A+10%Max		0.14A+10%Max
Speed	800+-10% RPM		1200+-200RPM
Air Flow (CFM)	53.4CFM		59.48CFM
Air Pressure	0.49mm-H2O		0.95mm-H2O
Noise (dBA)	26.5dBA		27.6dBA
MTBF	30,000/hrs		30,000/hrs
