Socket type |
Intel LGA775, LGA1155, LGA1156, LGA1366 & LGA2011
AMD Socket AM2, AM2+, AM3, AM3+ & FM1 |

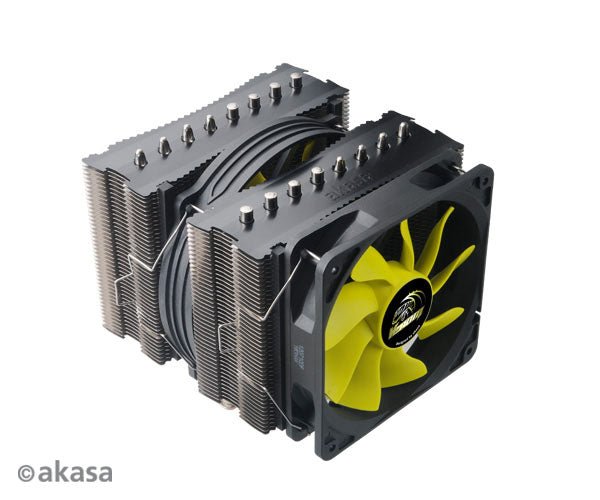

Heatsink material |

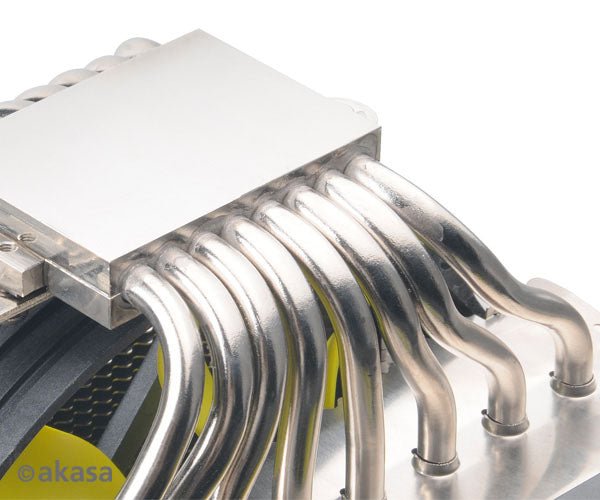

8 heatpipes, copper base, aluminium fins |
Cooler weight |
1300g |
Heatsink dimensions |
163 x 144 x 129.5mm (H x W x D) |
[12cm Fan] |
|
Fan dimensions |
120 x 120 x 25mm |
Fan speed |
600-1900 RPM |
Fan speed with reduction cable |
500-1400 RPM |
Max airflow |
83.63 CFM |
Max airflow with reduction cable |
61.62 CFM |
Max air pressure |
2.98 mmH2O |
Max air pressure with reduction cable |
1.62 mmH2O |
Noise level |
6.9-28.9 dB(A) |
Noise level with reduction cable |
6.9-22.3 dB(A) |
[14cm Fan] |
|
Fan dimensions |
145 x 145 x 25mm |
Fan speed |
600-1600 RPM |
Fan speed with reduction cable |
500-1000 RPM |
Max airflow |
109.55 CFM |
Max airflow with reduction cable |
68.47 CFM |
Max air pressure |
2.91 mmH2O |
Max air pressure with reduction cable |
1.14 mmH2O |
Noise level |
7-21.7 dB(A) |
Noise level with reduction cable |
7-11.5 dB(A) |
Voltage rating |
12V DC |
Bearing type |
HDB (Hydro Dynamic) |
Fan connector |
4pin PWM |
Product code |
AK-CC4010HP01 |
