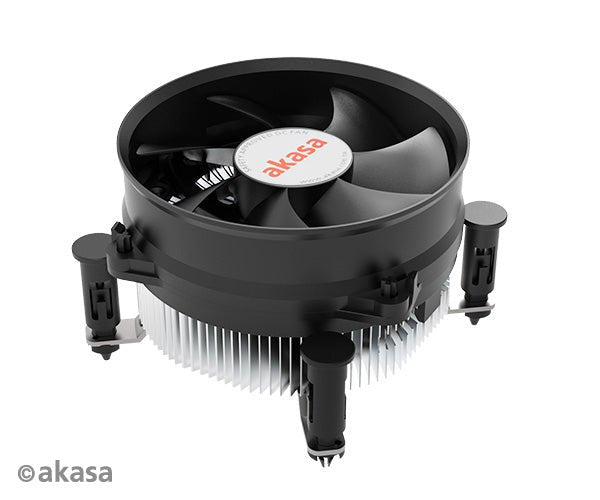

Akasa Lo-Noise Intel® LGA1700 Cooler, up to 77W TDP

AK-CC6603EP01



AK-CC6603EP01

Designed for Intel® Core� processors up to 77W


Found a better price? Let us know and we'll try and match it!
Estimate shipping
3 in stock
$19.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details
AK-CC6603EP01
Designed for Intel ® Coreâ?¢ processors up to 77W
Features


Lo-Noise and Efficient Cooling
Combines lo-noise, efficient cooling with great value. Designed to work with CPUâ??s up to 77W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.


Intelligent and Optimised Design
Hi-performance and engineered aluminium heatsink with bi-ped fins, coupled with 95mm fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.

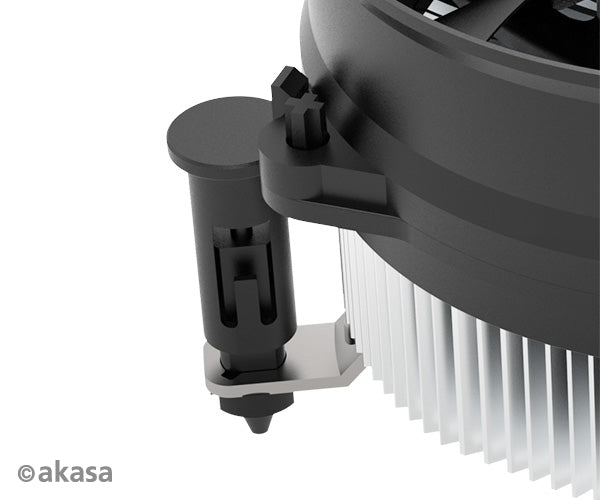

New and Easy Mounting Design
New push-pin design to cater for the Intel® LGA1700.


Array of Compatibility
Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.


� Height of the cooler is only 59.2mm
� Compatible with Intel® LGA 1700
� Intelligent PWM and silent fan

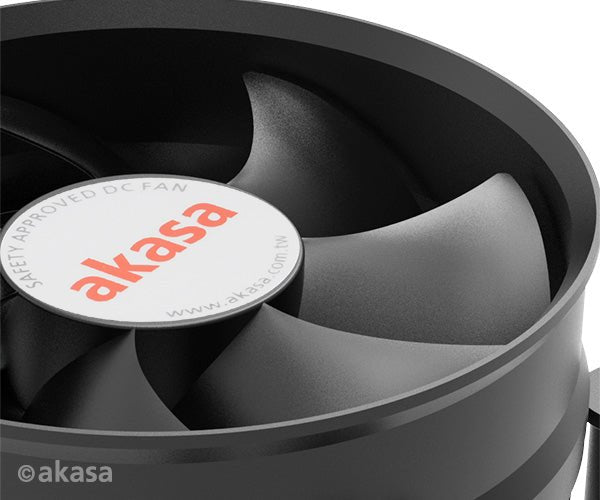

� 95mm low noise PWM fan






width=735

Specifications








































































Socket Type Intel® LGA 1700
Cooler Dimension 95 x 95 X 59.2mm
Heatsink Material Aluminium
Thermal Design Point (TDP) Support 77W
Weight 299.8g
Installation Push Pins
Fan Dimension â??95 x 25mm
Fan Speed 600-3000 RPM (PWM controlled)
Max Airflow 53.62 CFM
Max Air Pressure 4.87 mm H2O
Max Noise Level 36.6 dB(A)
Current Rating 0.26A
Voltage Rating 12V DC
Bearing Type EBR (Enter Bearing)
Fan Life Expectancy 40,000 hours
Fan Connector 4-Pin PWM
Product Code AK-CC6603EP01
