Akasa K12 Low Profile Cooler for Mini-ITX and HTPC Cases

The thin sickle-shape fan blades of the fan along with the radial aluminium heatsink deliver outstanding cooling performance. With a height of only 31.8mm this low profile cooler is optimised to fit in Mini-ITX, HTPC or other small form factor cases. The intelligent PWM fan delivers as much air as needed at any given time to cool the CPU. The spring-loaded screws with backplate mounting design ensure maximum stability and ideal mounting pressure. Thermal compound is pre-applied.

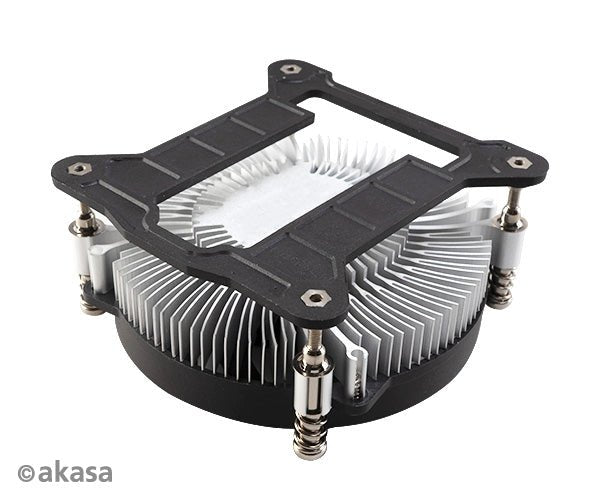

• High engineered radial aluminium heatsink for effective cooling performance



• 95 mm low noise intelligent PWM fan

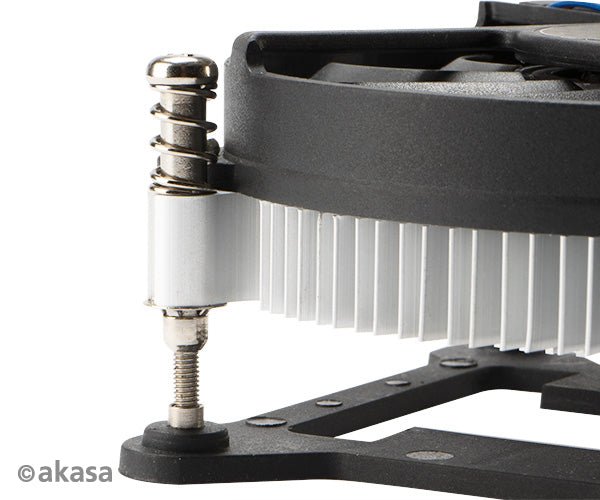

• Spring-loaded screws and backplate mounting design ensure maximum stability and ideal mounting pressure


• Hi-grade thermal interface pre-applied

Socket type	LGA115X
Cooler dimensions	95 x 95 x 31.8 mm
Heatsink material	Aluminium
Weight	184g
Installation	Screws and retention backplate
Fan dimensions	95 x 95 x 16.8 mm
Fan speed	800-2800 RPM
Fan airflow	36.28 CFM
Fan air pressure	1.7mm H20
Noise level	37.6 dB(A)
Current rating	0.2A
Voltage rating	12V DC
Bearing type	EBR Bearing
Fan life expectancy	25,000 hours
Fan connector	4pin PWM
Product code	AK-CC6308EP01
