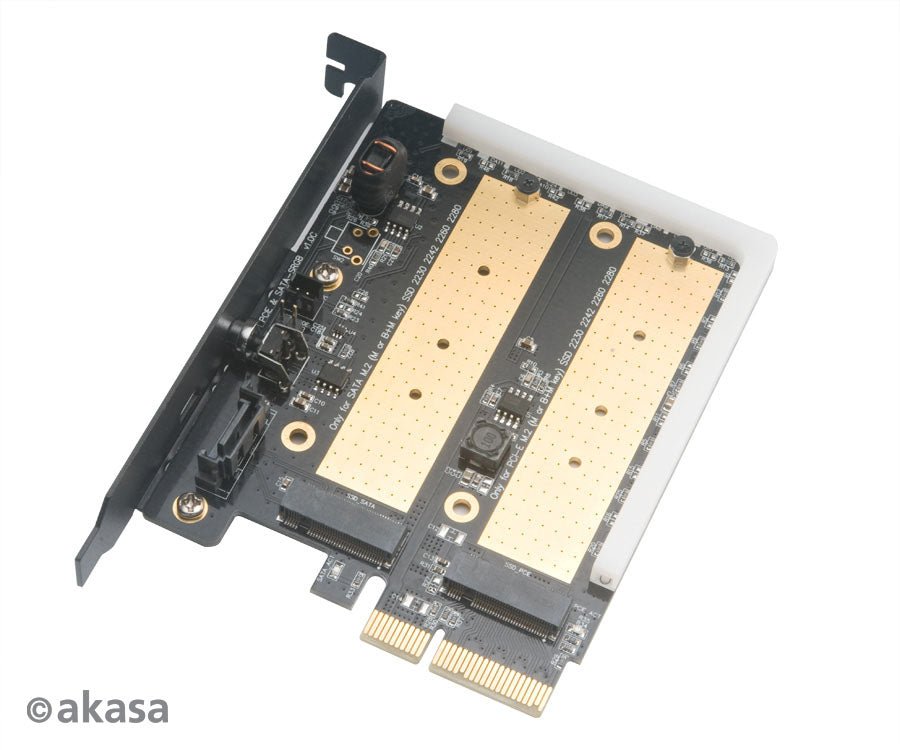

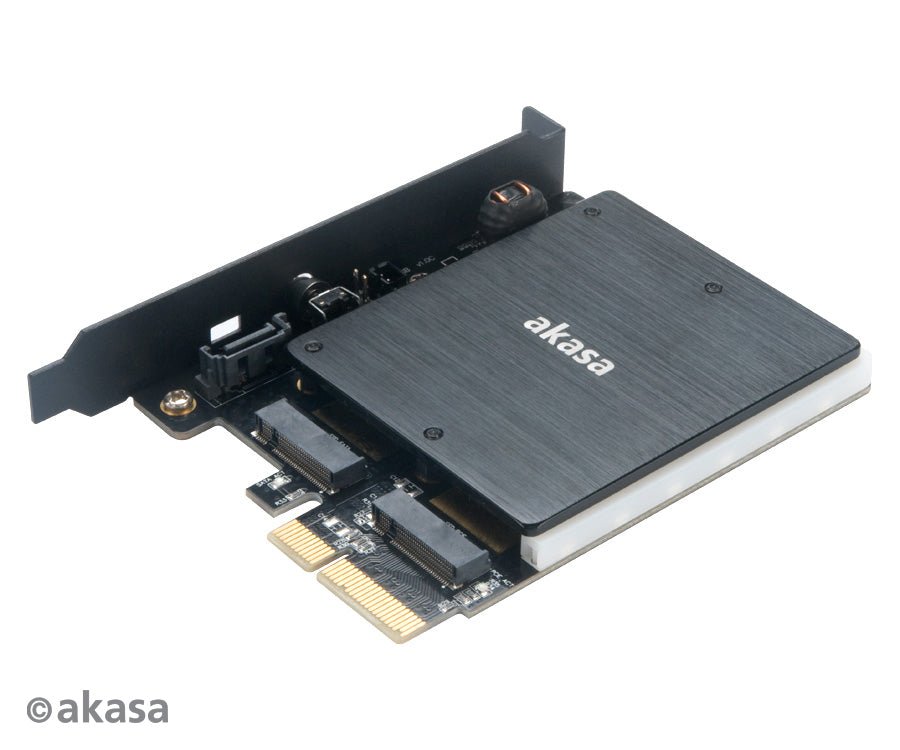

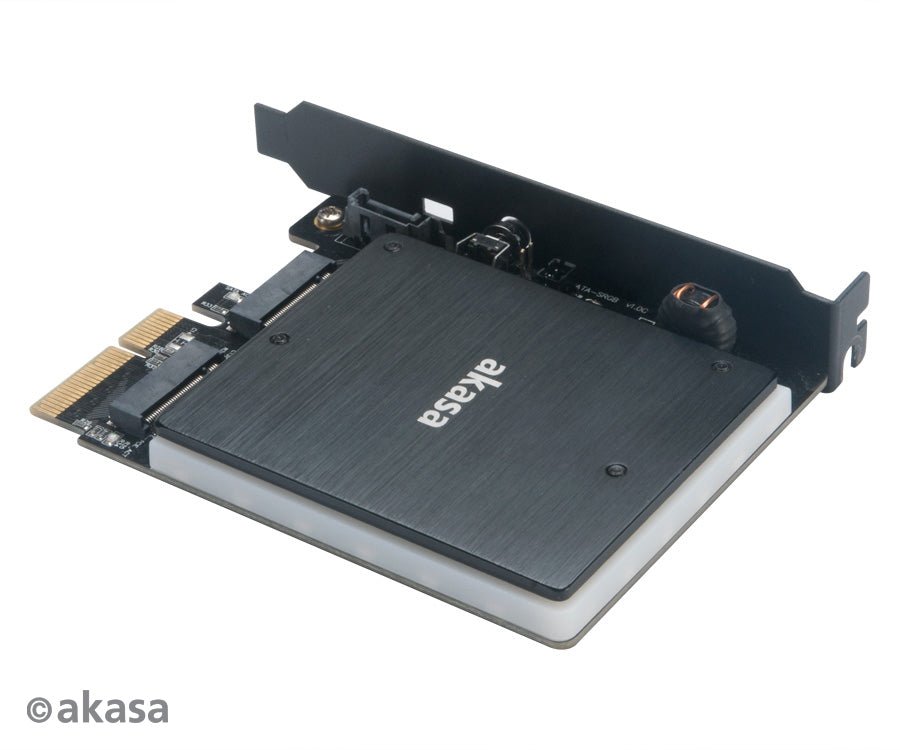

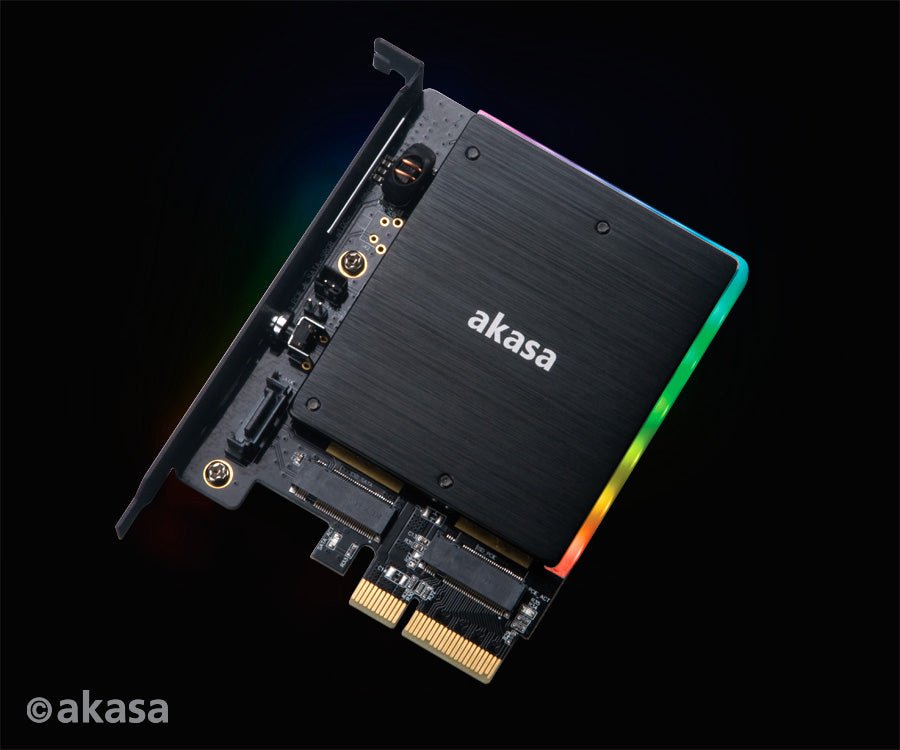

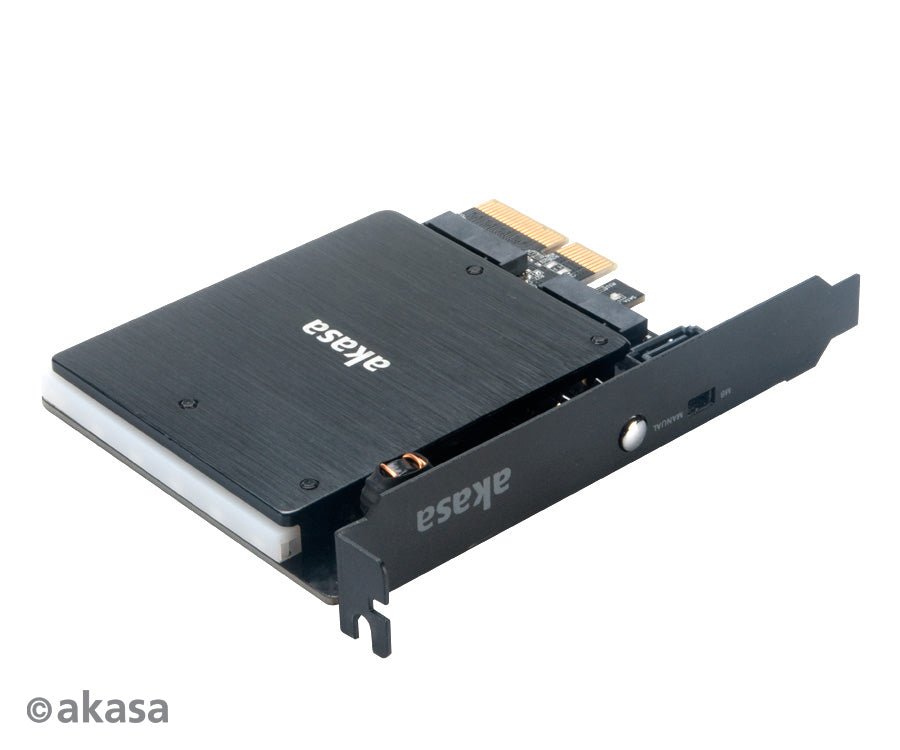

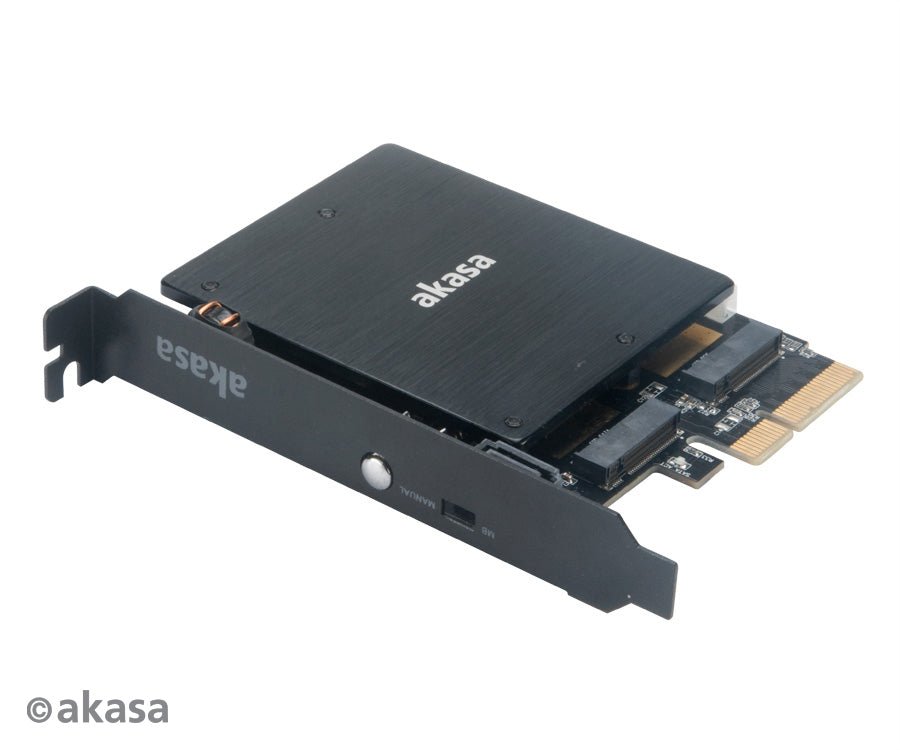

Akasa M.2 PCIe and M.2 SATA SSD adapter card with RGB LED light and heatsink

#3 Best Seller
in PCI Express I/O Cards
Akasa

AK-PCCM2P-03

The Akaa M.2 PCIe and M.2 SATA SSD adapter card heatsink has addressable RGB LED lights and supports M.2 drive lengths of 2230,2242,2260 and 2280.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
1 in stock
$26.95 USD
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Akaa M.2 PCIe and M.2 SATA SSD adapter card heatsink has addressable RGB LED lights and supports M.2 drive lengths of 2230,2242,2260 and 2280.
Features


  • Illuminate M.2 SSDs with over 16.7 million colours

  • PCB exposed copper coupled with an additional heatsink design - reduces SSD heat and enhances performance

  • Superior mechanical design for easy installation

  • M.2 PCIe 3.0 x 4 NVMe to PCIe x 4 host adapter

  • Easily fits in a PCIe Gen3 x4, x8 or x16 slot

  • Supports 5V addressable LED pin
Specifications

















































Application

Add addressable RGB LED lighting and cool M.2 PCIe SSD and M.2 SATA SSD

Designed for

M.2 PCIe/NVMe (M Key) SSD & M.2 SATA (B+M Key) SSD
2230, 2242, 2260, 2280 and 22110 M.2 form factor lengths
5V addressable RGB LED pin headers

Material

Metal bracket, printed circuit board, exposed copper, aluminium heatsink

Voltage rating for LED

5V DC

Current rating for LED

0.48A

Connector

3-pin addressable RGB connector
4-pin addressable RGB connector

Certification

Gigabyte RGB Fusion, MSI Mystic Light, ASUS AURA and AsRock Polychrome

Operating temperature

0°- 55° C

Operating system compatibility

OS independent; no additional drivers or software required

Contents

M.2 SSD to PCIe adapter card, silicon thermal pads (x2), 2.54mm 3-pin to RGB 4-pin male cable, 2-pin to RGB 4-pin female cable, mounting screws x 4, screwdriver, user manual

Product code

AK-PCCM2P-03
