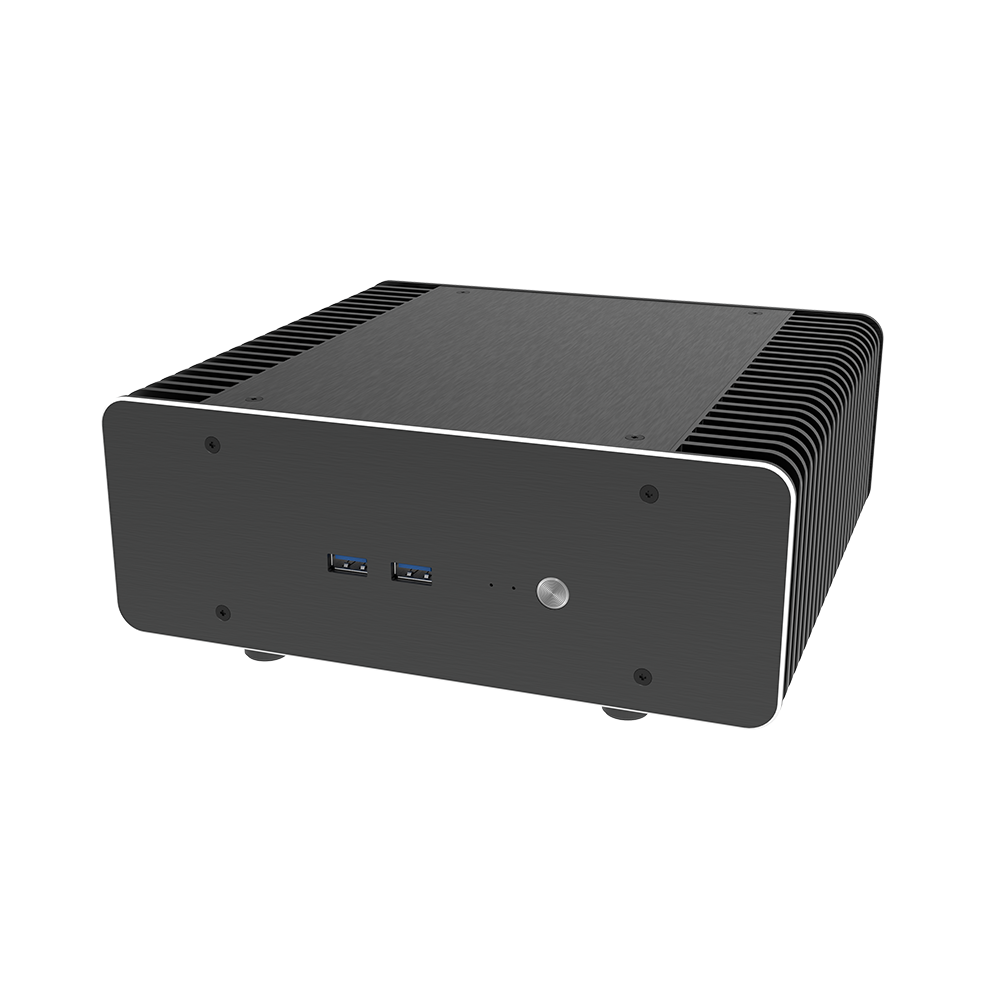

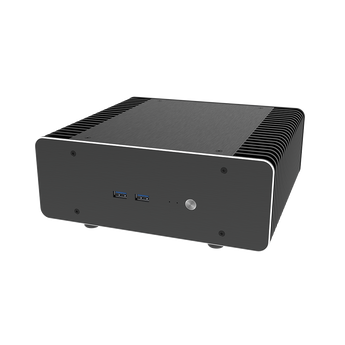

Akasa Maxwell RC Pro

Premium Fanless Case for ASUS NUC 14 Pro (Revel Canyon)

Blending advanced passive cooling engineering and modern design to create a premium, silent and compact case for ASUS NUC 14 Pro (Revel Canyon). The perfect choice for home, office, HTPCs & audiophile environments.

Features:

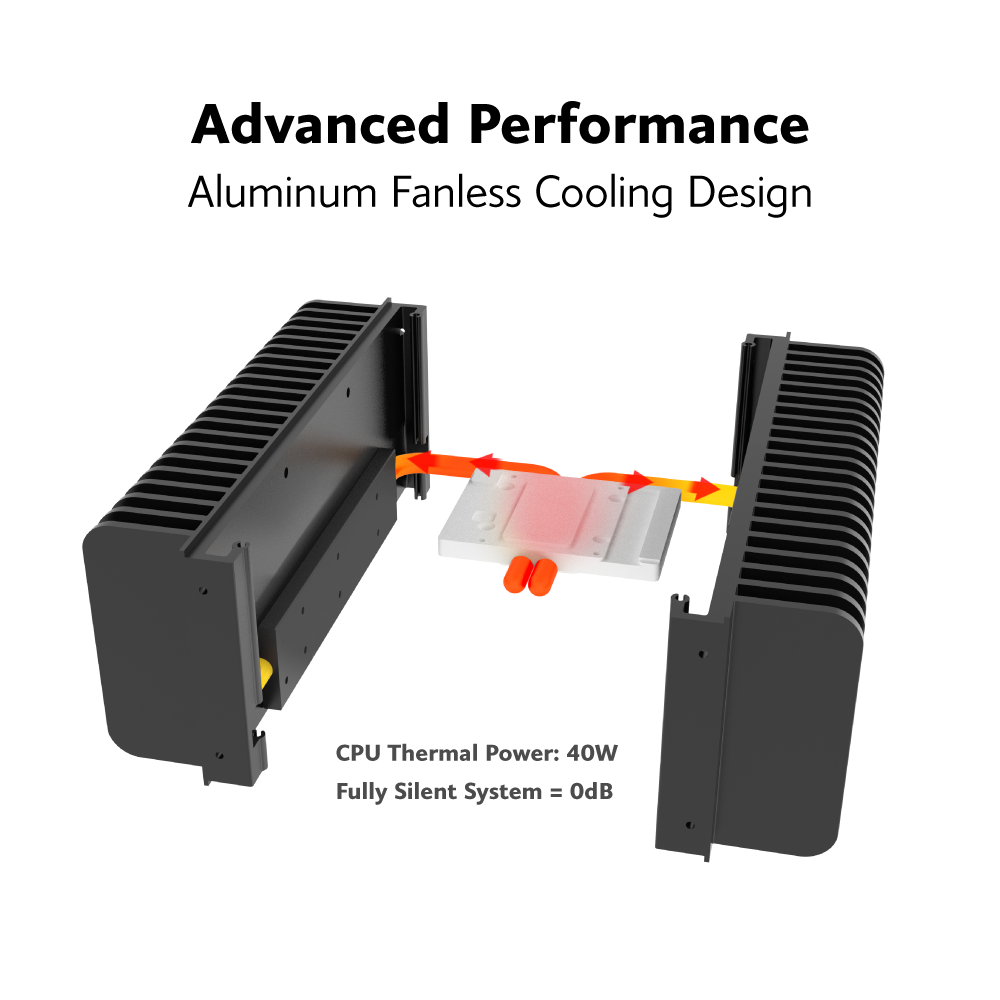

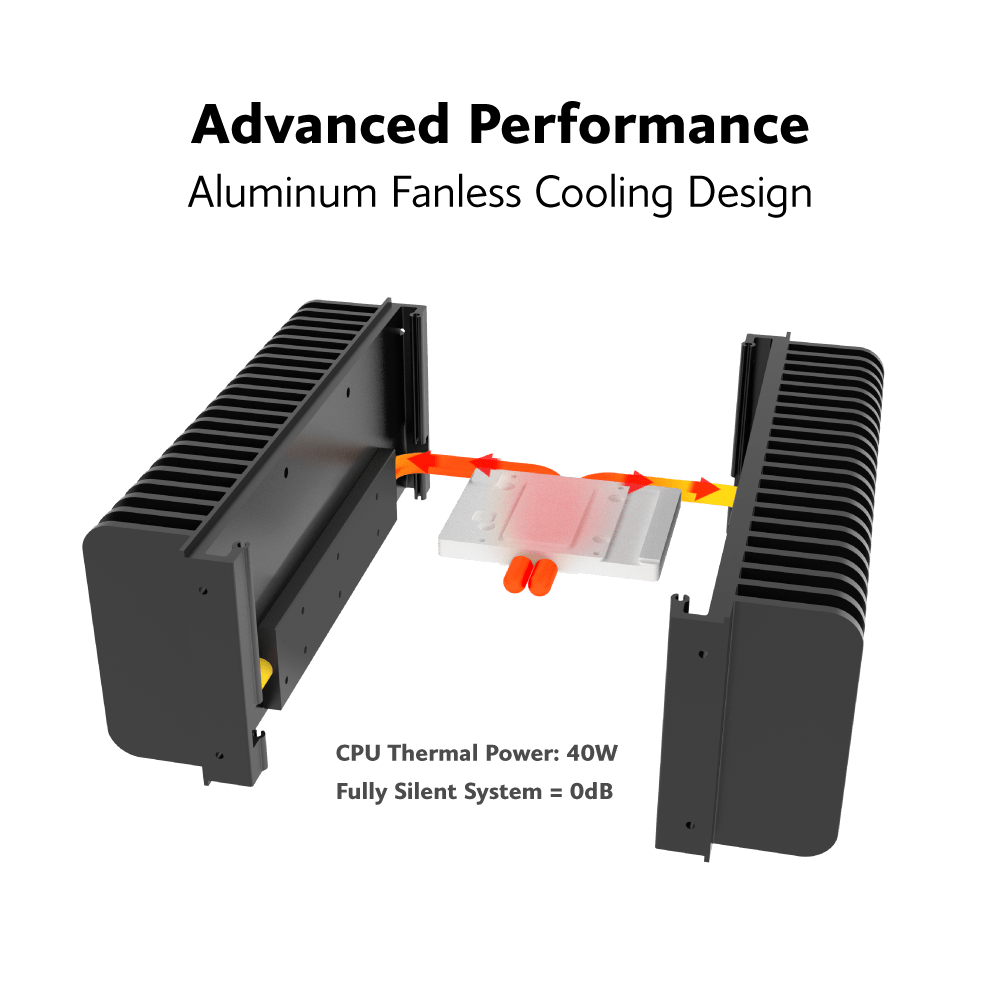

• Solid aluminium fanless cooling design

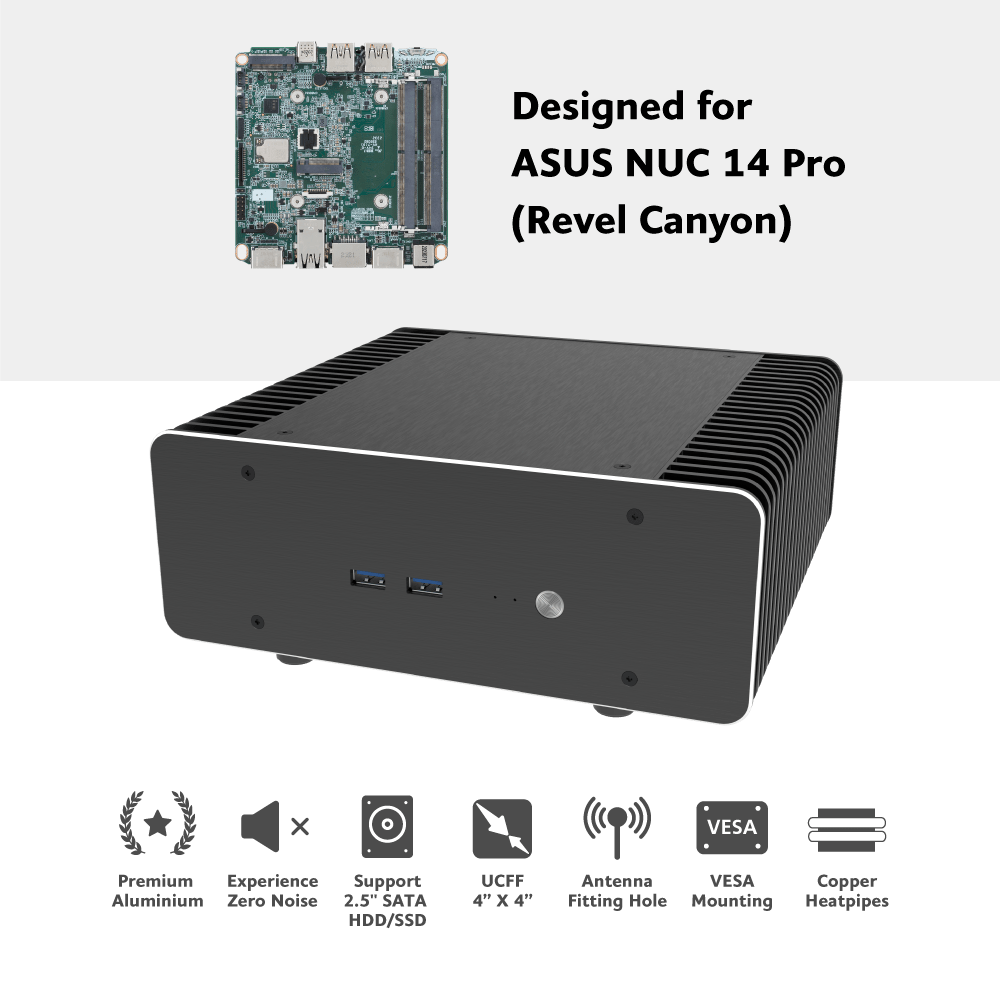

• Designed for the ASUS NUC 14 Pro up to Core™ i7

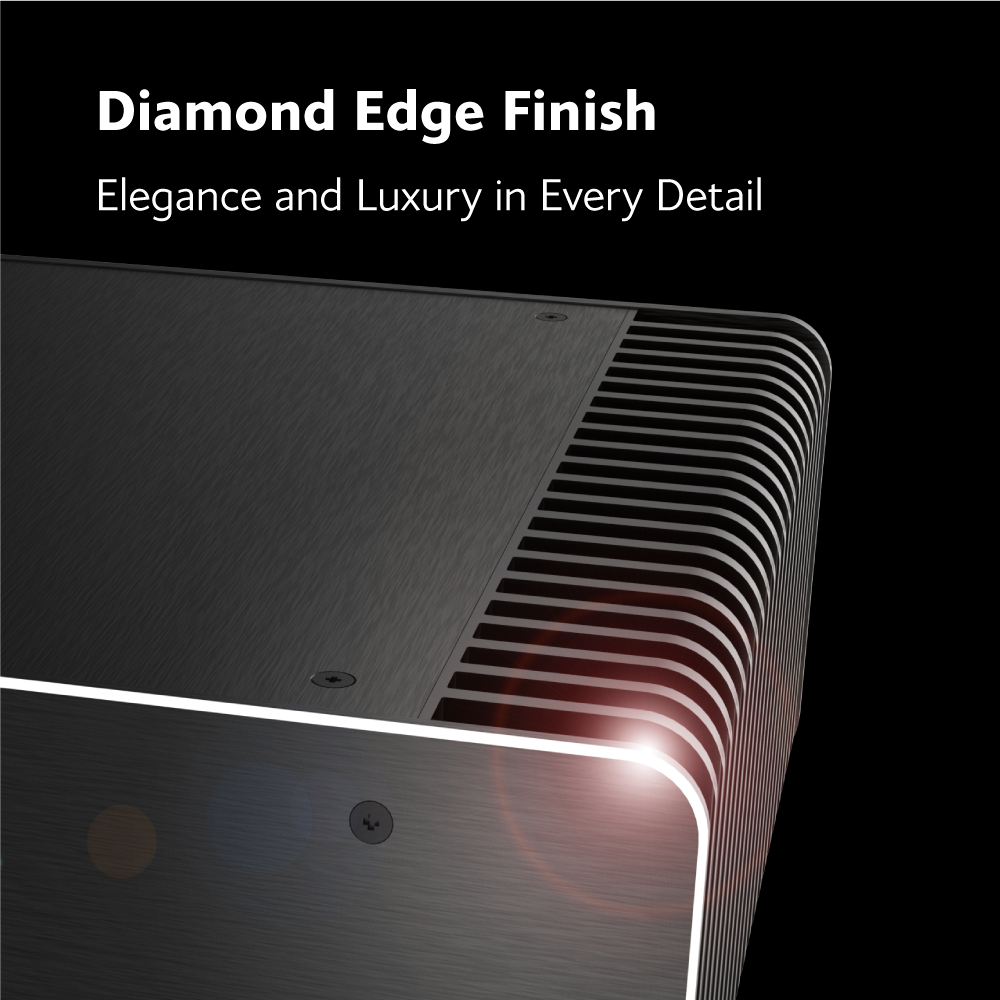

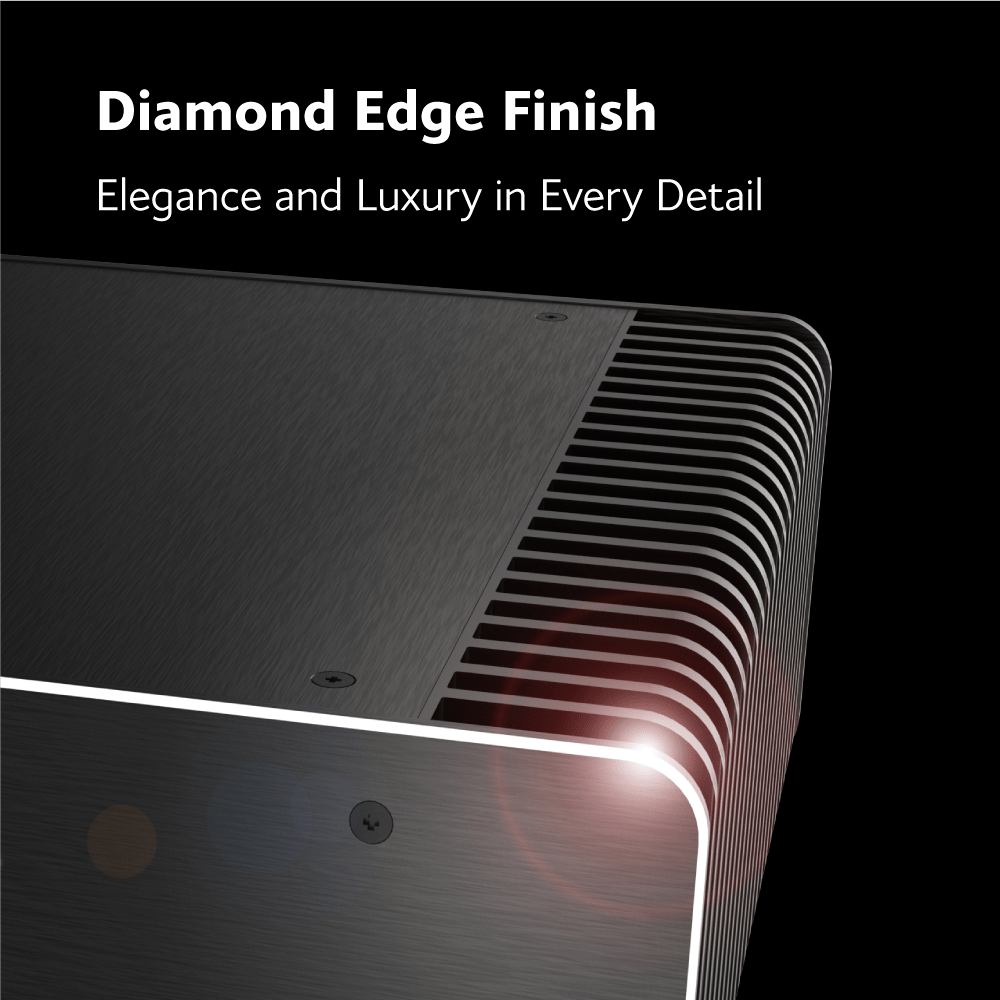

• Stylish cover panels with diamond effect
• Perfect for home, business and commercial applications
• Lay it or hang it with optional VESA mount

General Information

Material	Aluminium 8mm Copper heatpipes
Motherboards Types	UCFF 4" X 4"
Motherboard Support	ASUS NUC 14 Pro (Revel Canyon) Kit/Board/Mini-PC: NUC14RVK, NUC14RVH, NUC14RVS, NUC14RVB, NUC14RVKC3, NUC14RVHC3, NUC14RVBC3, NUC14RVKU5, NUC14RVHU5, NUC14RVSU5, NUC14RVBU5, NUC14RVKv5, NUC14RVHv5, NUC14RVSv5, NUC14RVBv5, NUC14RVKU7, NUC14RVHU7, NUC14RVSU7, NUC14RVBU7, NUC14RVKv7, NUC14RVHv7, NUC14RVSv7, NUC14RVBv7,
Maximum TDP Support	40W

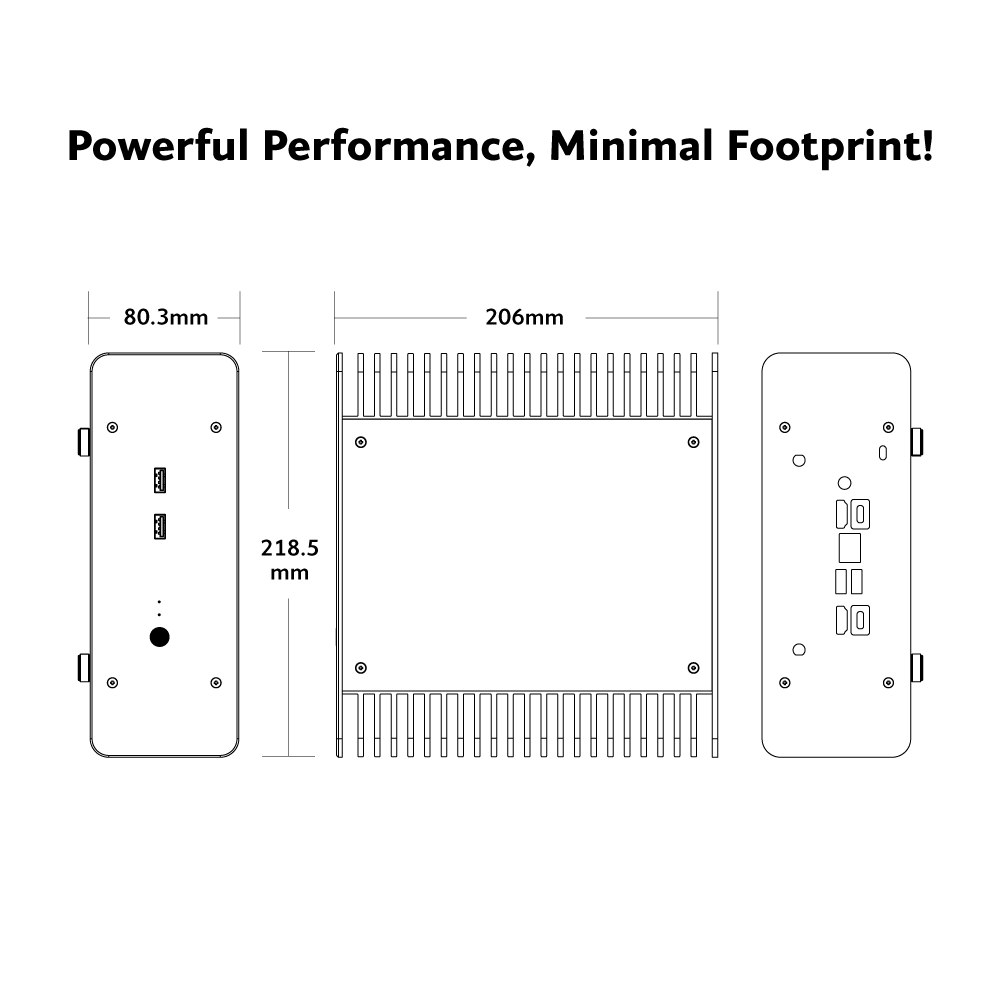

Dimensions	218.5 x 206 x 80.3 mm (W x D x H)
Internal Bays	One for 2.5" SSD/HDD (max height 9.5mm)

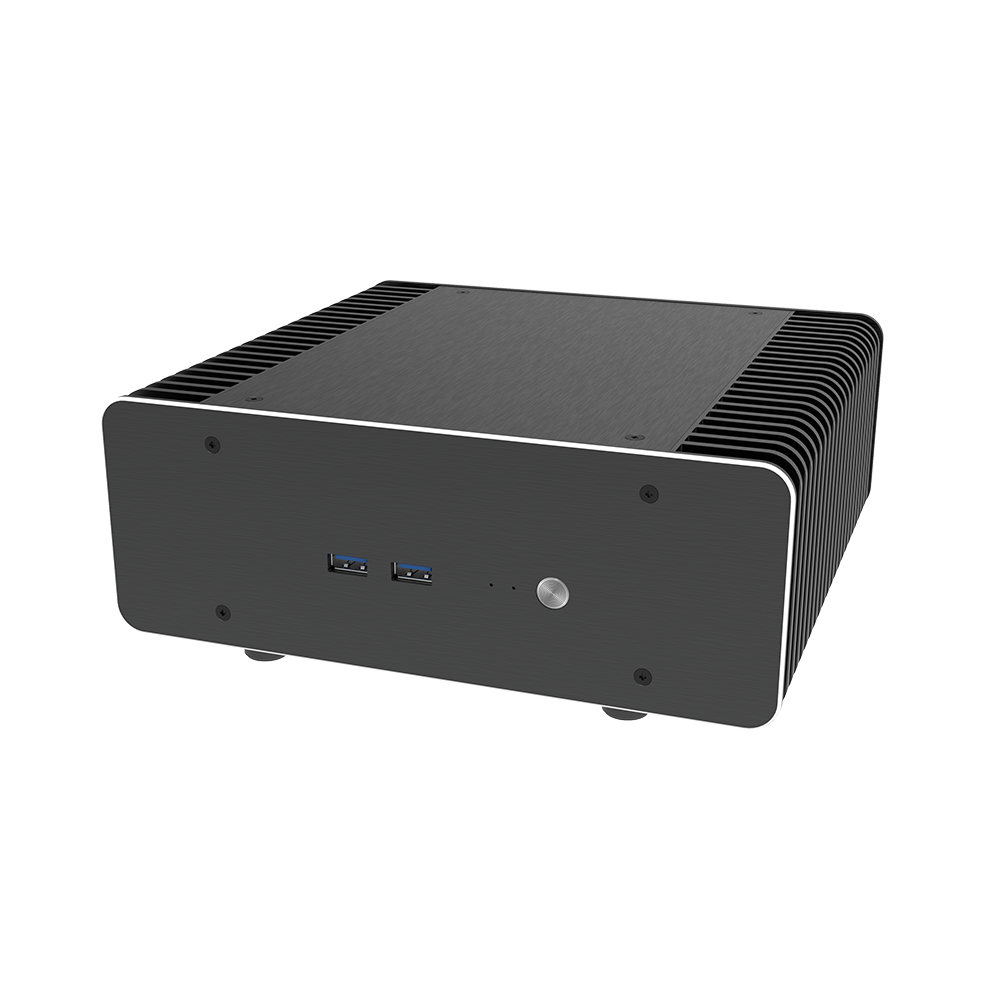

Front I/O Opening	Power button, Power and HDD LED, USB 3.2 port x2 *Note: The USB 3.2 Gen 2x2 Type-C port on the front of the NUC 14 Pro board will not be functional with the fanless case.

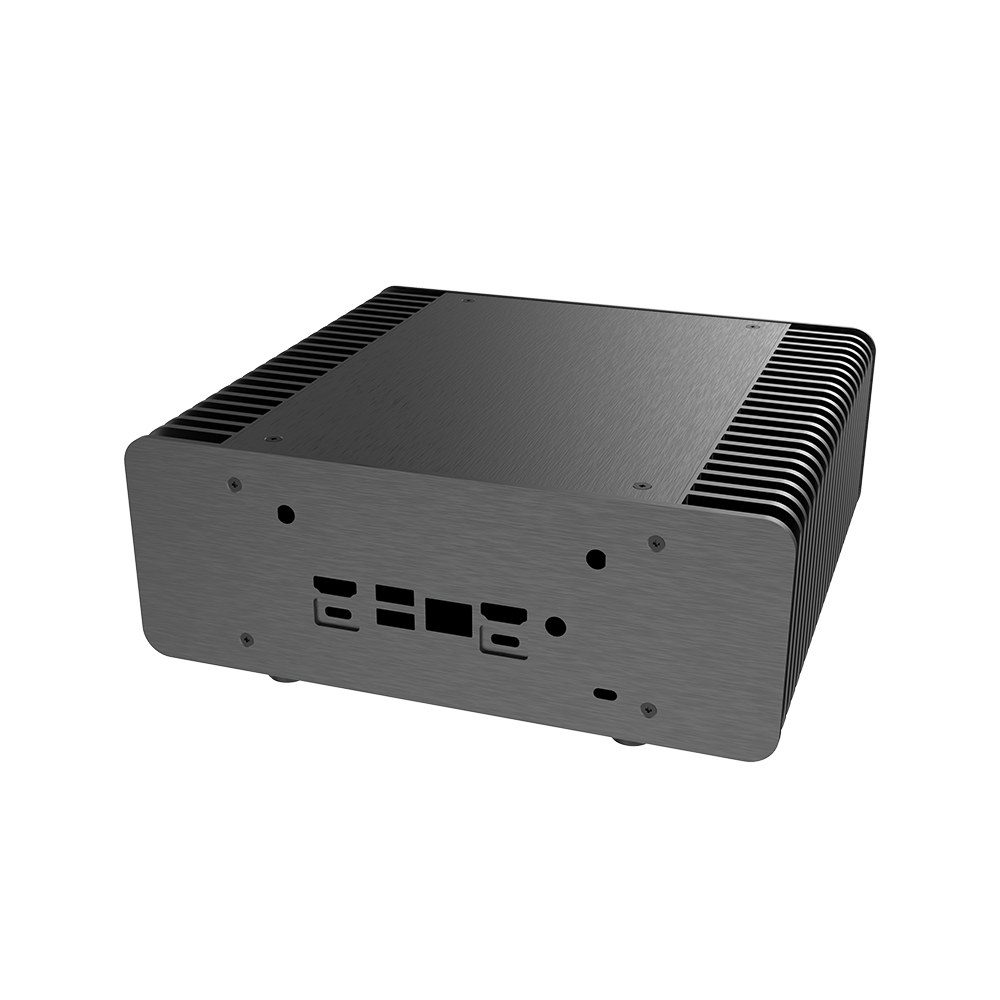

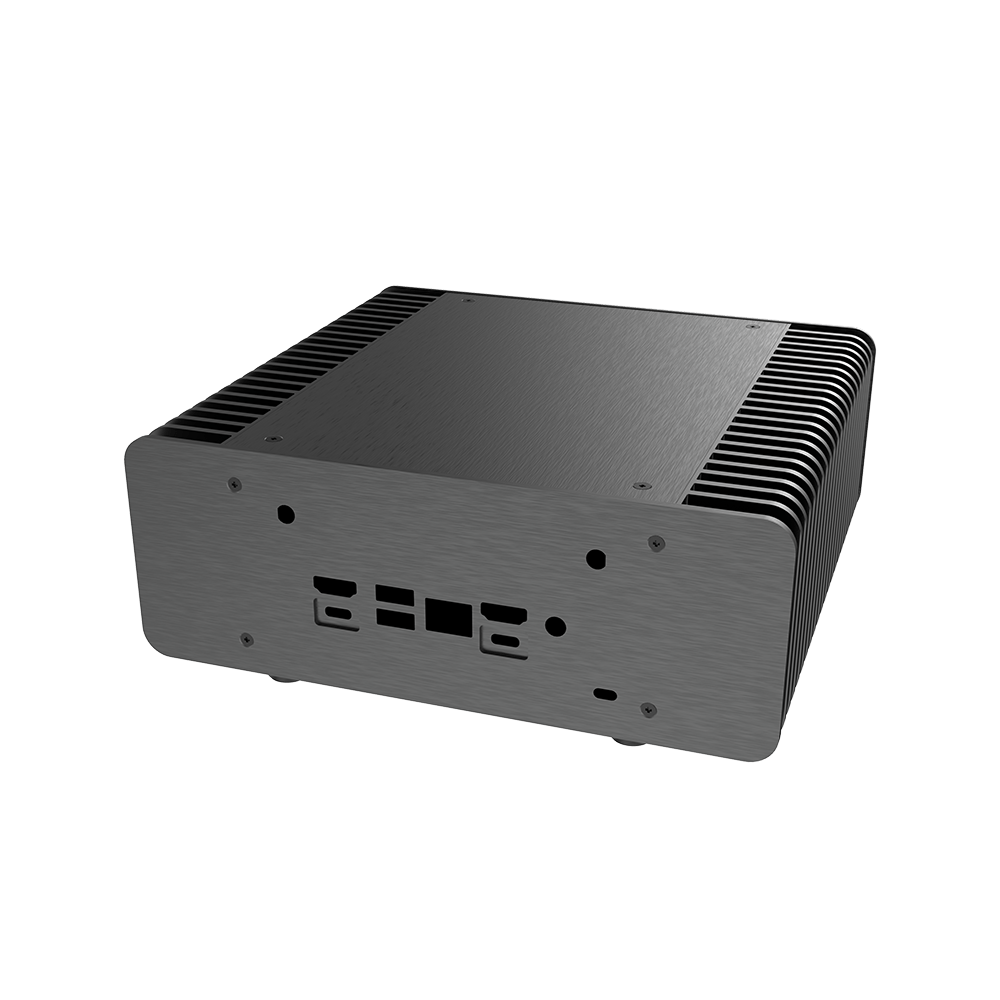

Rear I/O Opening	DC-In port, HDMI port x2, USB Type-A port x2,USB Type-C x2, LAN port x1

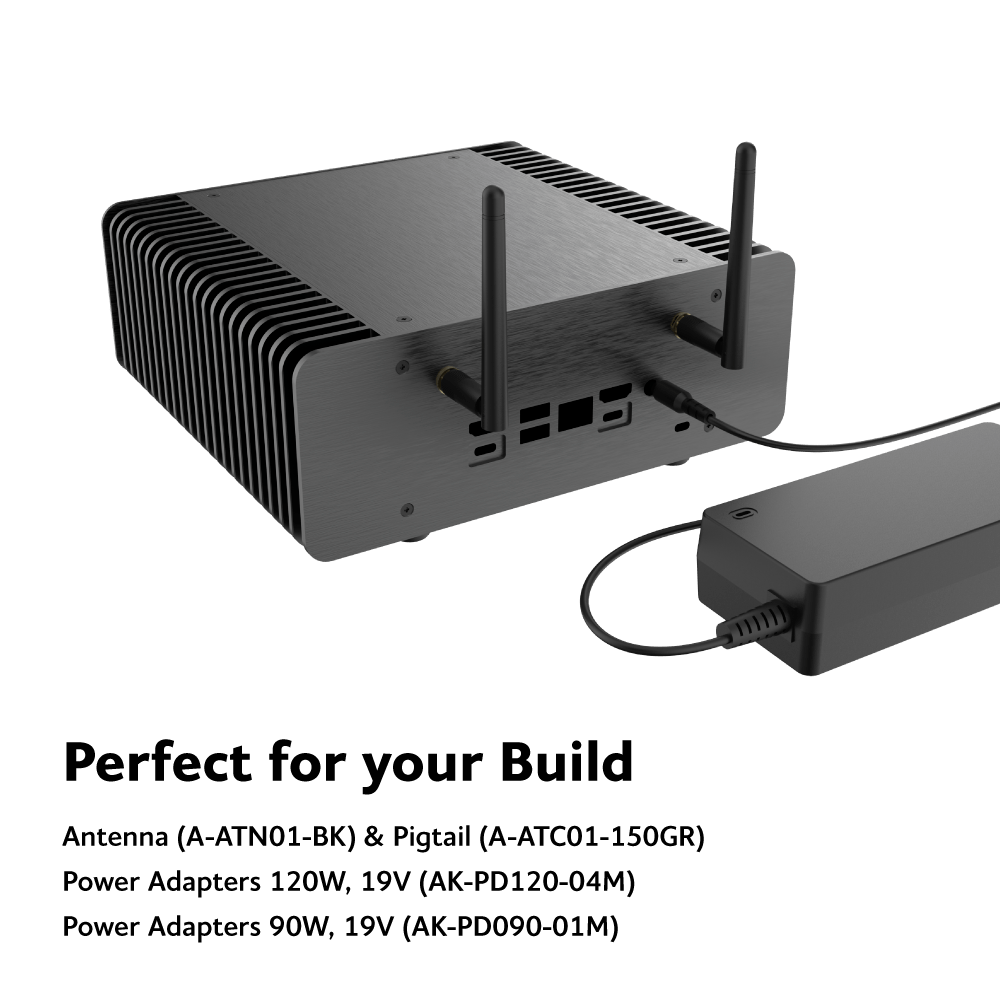

External Power Adapter (Optional)	120W, 19V for the Core i7 and i5 90W, 19V for the Core i3
Antenna Fitting Holes	2
Security	Kensington lock
Product Code	A-NUC102-M1B
