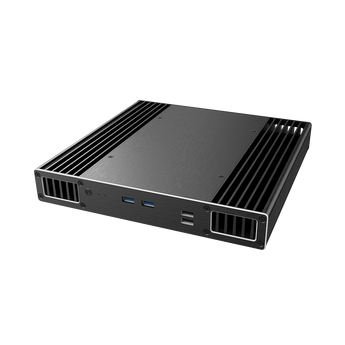

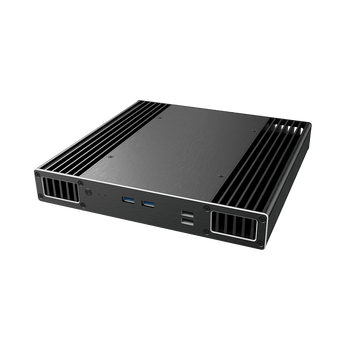

Plato RC

Slim fanless case for ASUS NUC 14 Pro (Revel Canyon)



Compact Power, Intelligent Performance

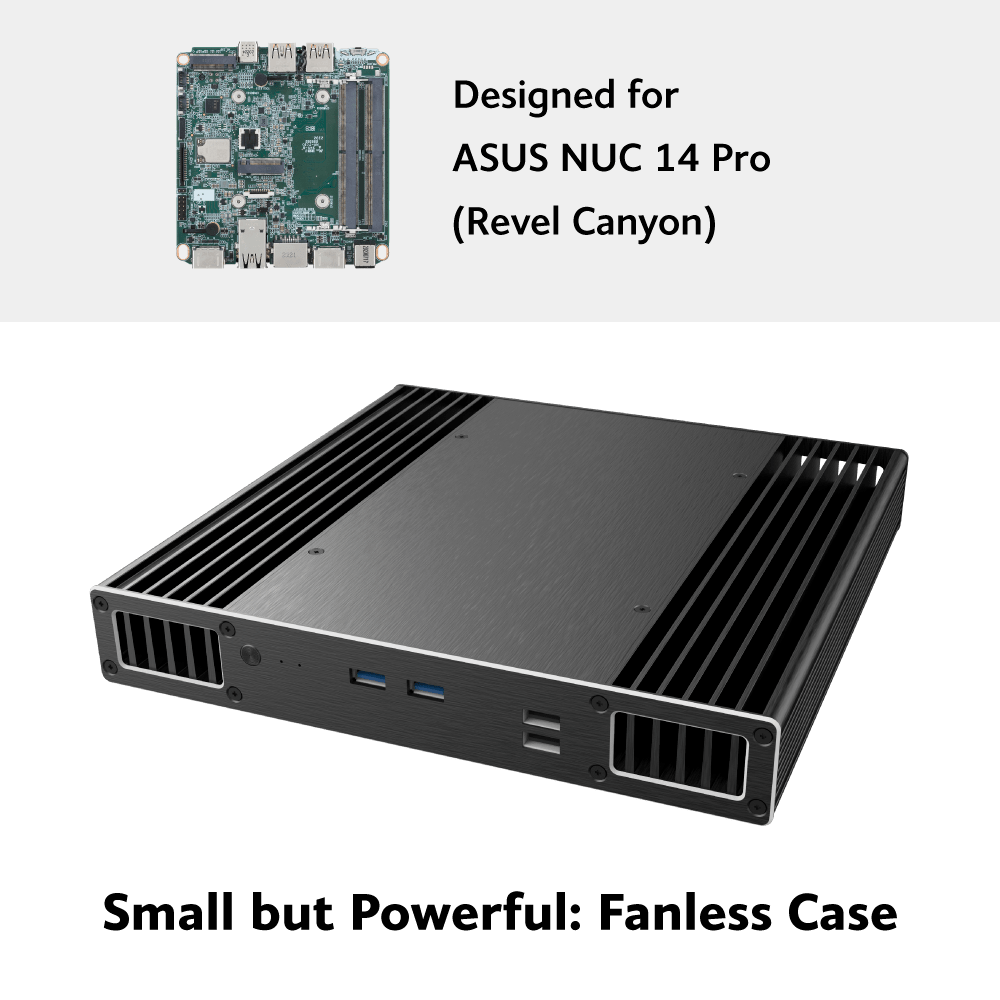

Designed for the ASUS NUC 14 Pro (Revel Canyon) which delivers best-in-class performance thanks to the all-new Intel® Core™ Ultra processor family. It is the most comprehensive mini-PC built with Intel vPro® Enterprise for exceptional security, manageability, and stability. Harness the prowess of Intel® Core™ Ultra processors' three AI engines – GPU, NPU, and CPU – for high throughput, low power, and fast response. Unleash your full potential with the ultimate compact computing solution today.

Learn more about the ASUS NUC 14 Pro (Revel Canyon)>>

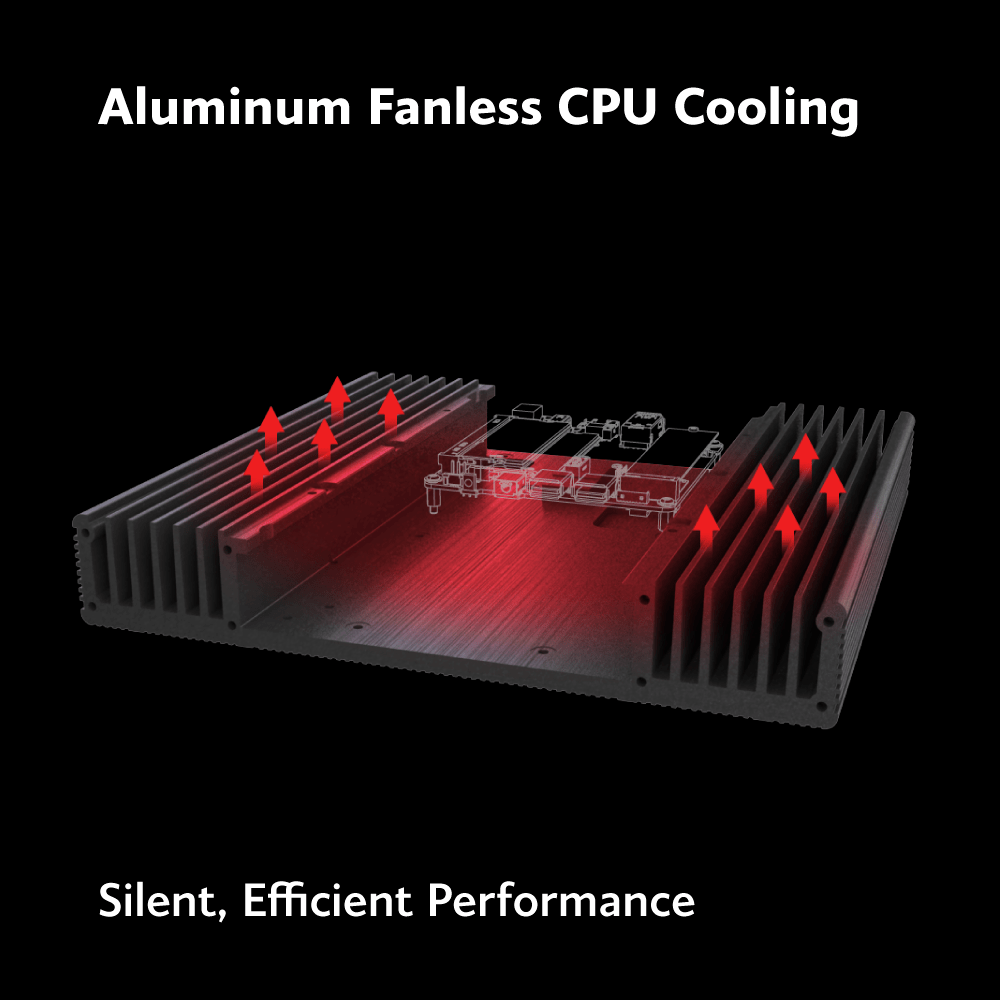

Fanless Cooling Design

Featuring a cutting-edge aluminum fanless CPU cooling design, ensuring silent and efficient operation. This advanced cooling solution combines exceptional heat dissipation with a sleek, modern aesthetic, delivering both performance and style for your fanless system setup.

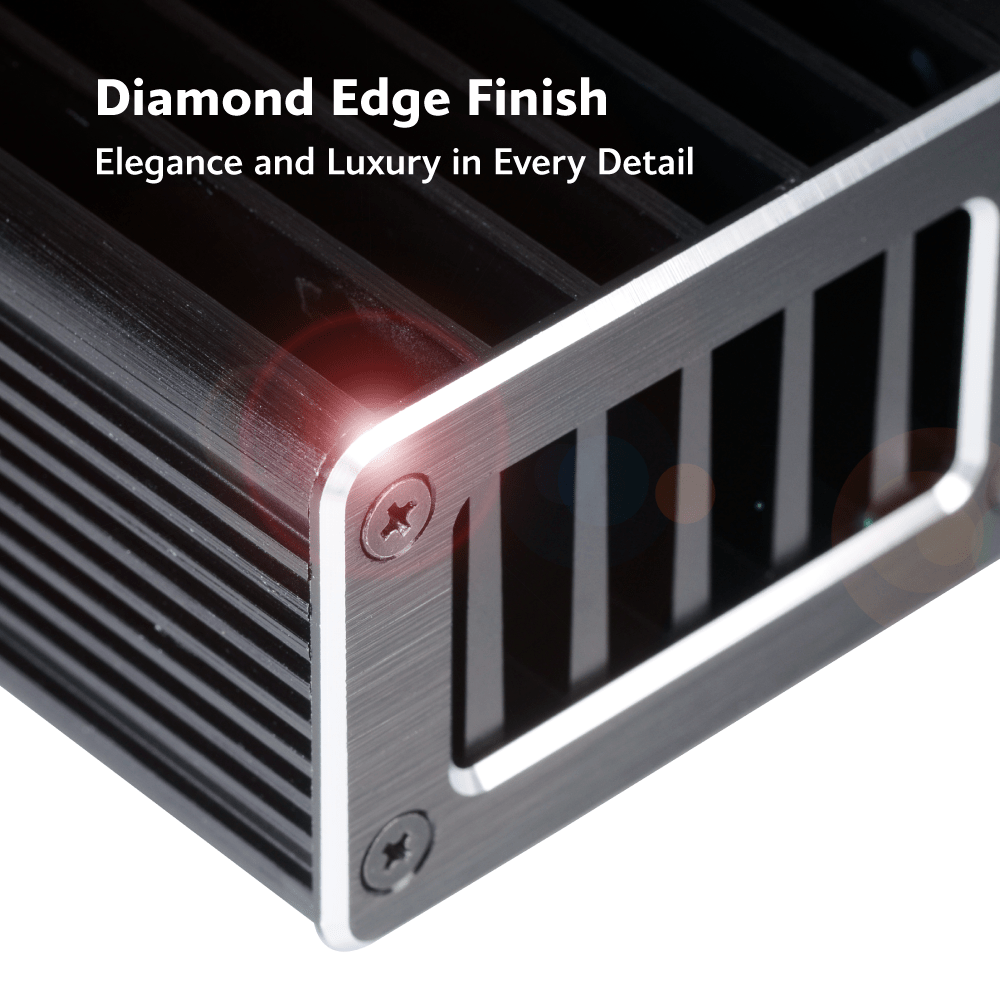

Elegant Diamond Edge Finish

Unparalleled elegance with stylish front panel, meticulously crafted with a diamond edge finish. Reflects the superior quality and sophistication of the design. The diamond edge front panel adds a touch of luxury, making the Plato RC case a standout piece in any setup, seamlessly blending form and function for the discerning user.

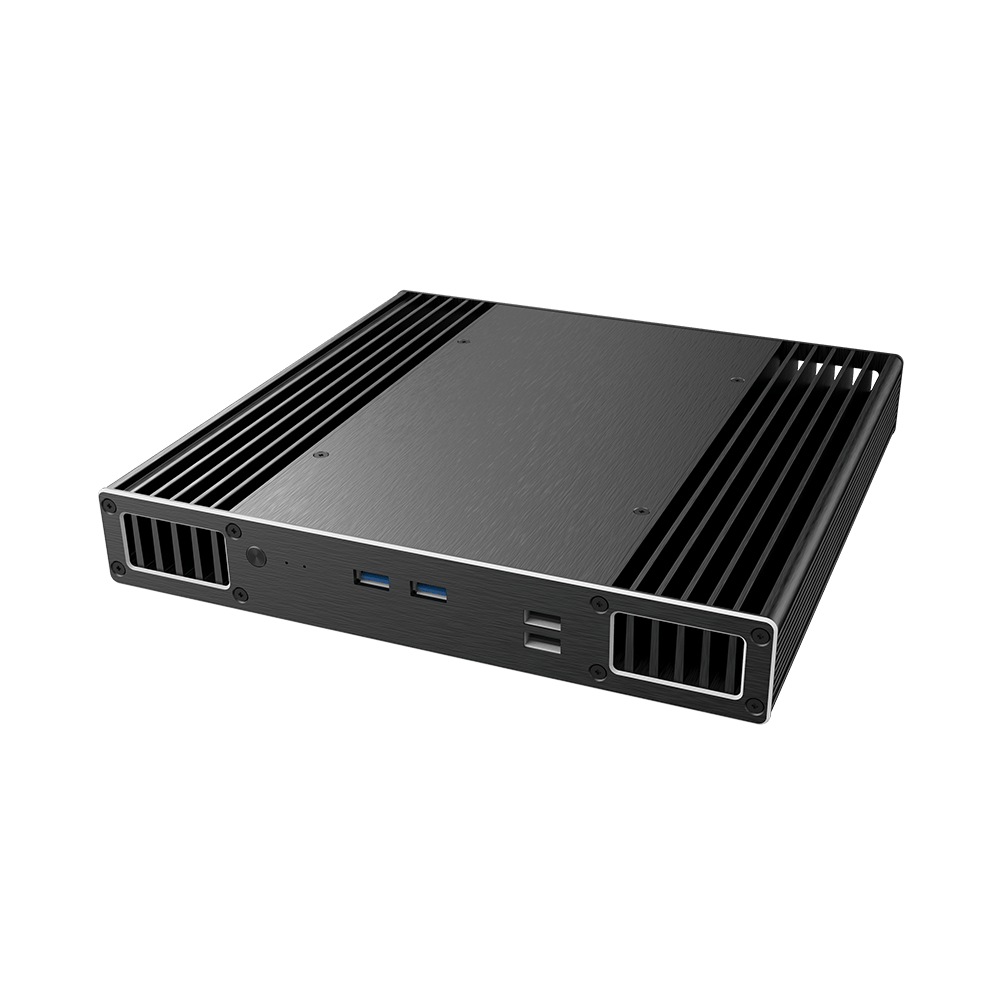

Wide USB Connectivity

The front panel features extended USB connectivity, providing convenient access and rich connectivity options in addition to the standard rear interfaces of the ASUS NUC 14 Pro boards.

Note, the USB 3.2 Gen 2x2 Type-C port on the NUC 14 Pro board would not be accessible with the case

Supports up to Four 4K Displays

The Plato RC case provides connector openings for connectivity for up to four 4K displays. Perfect for an array of business applications such as security and digital signage.

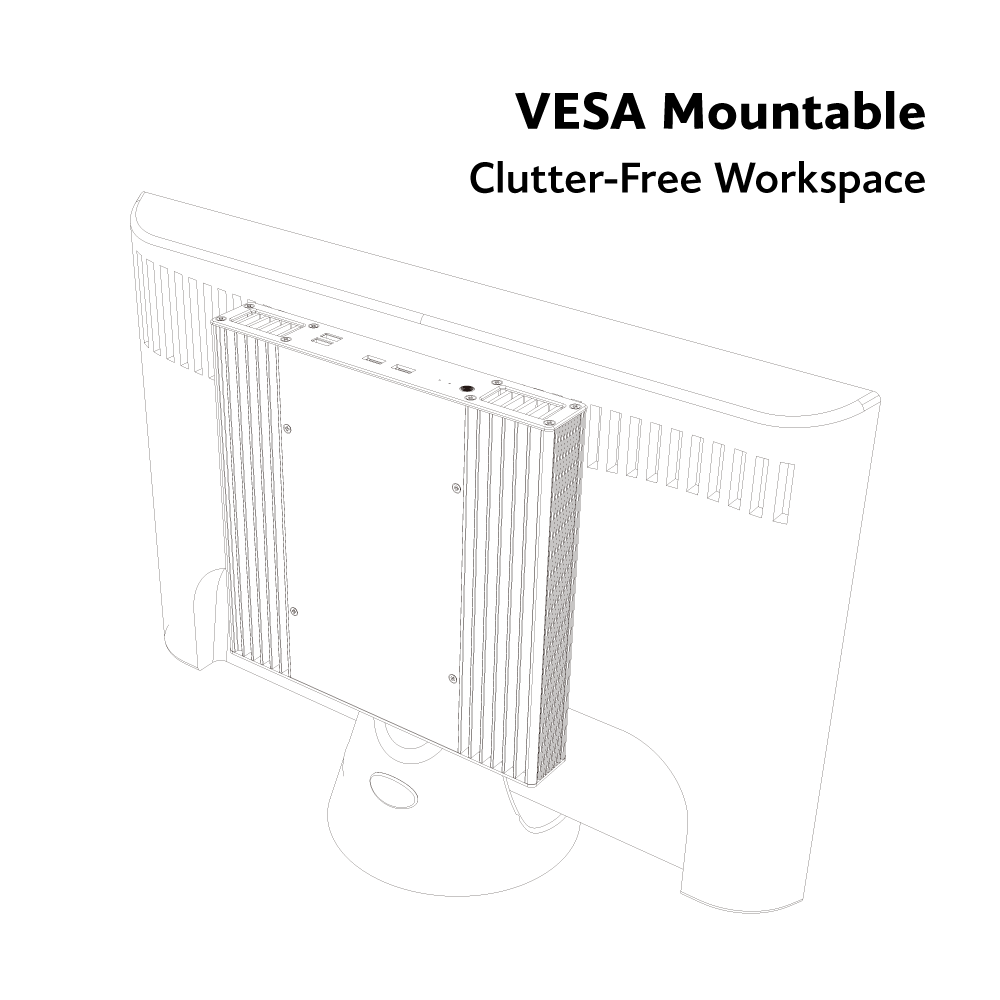

VESA Mountable

Designed for easy integration with VESA mounting standards, allowing seamless attachment to monitors, stands, and wall mounts. This ensures optimal space utilisation and a clutter-free workspace.

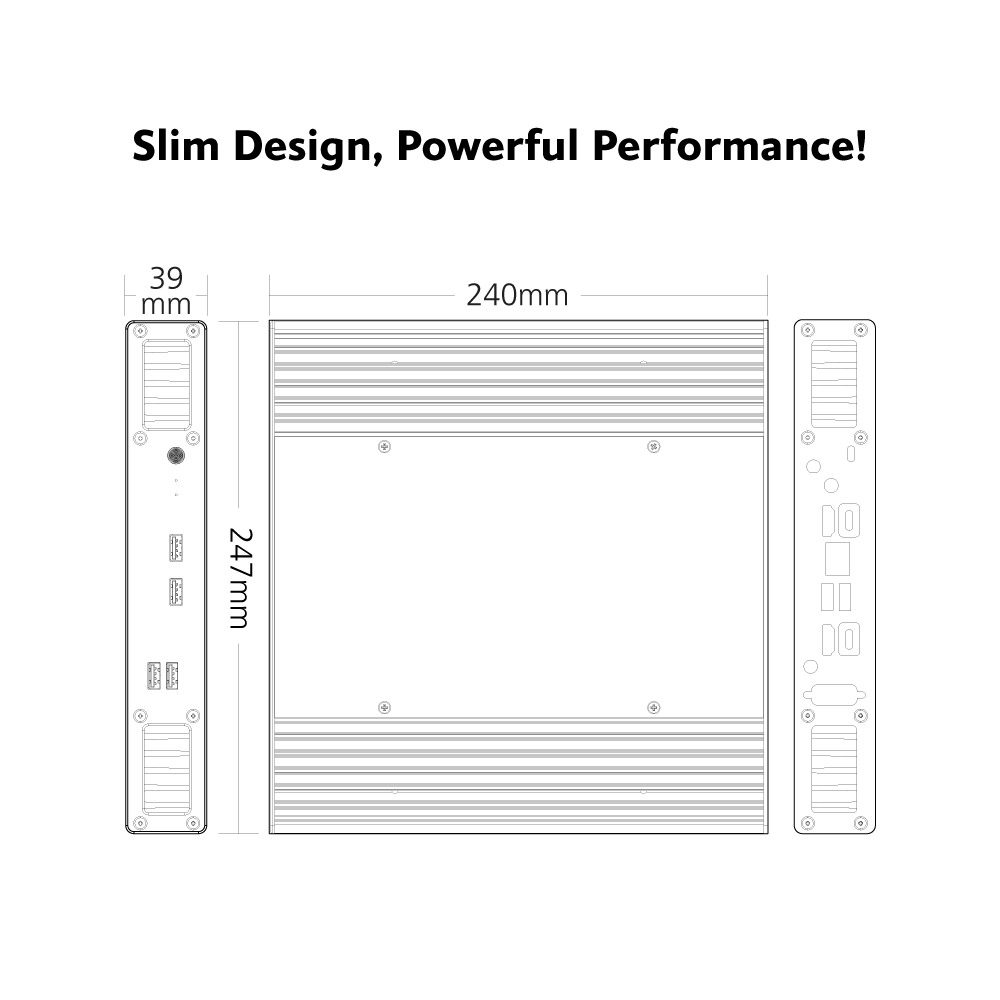

Slim Design

Measuring just 240mm in depth, 39mm in height, and 247mm in width, the Plato RC boasts a slim profile that seamlessly fits into any environment. Its compact size makes it an ideal choice for space-constrained areas, ensuring that you get powerful performance without the bulk.

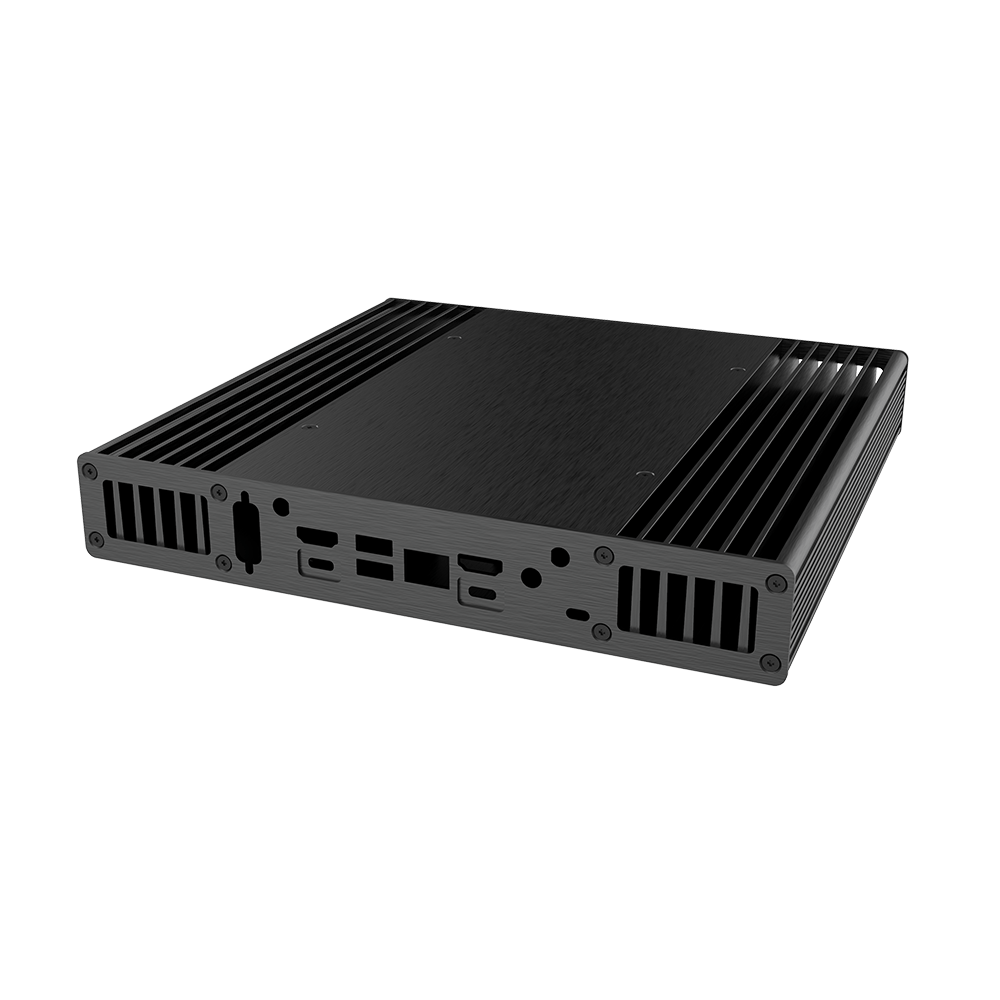

Access to Rich Connectivity

Full rear connectivity support from the NUC board including dual Thunderbolt 4 Type-C ports, HDMI and LAN.

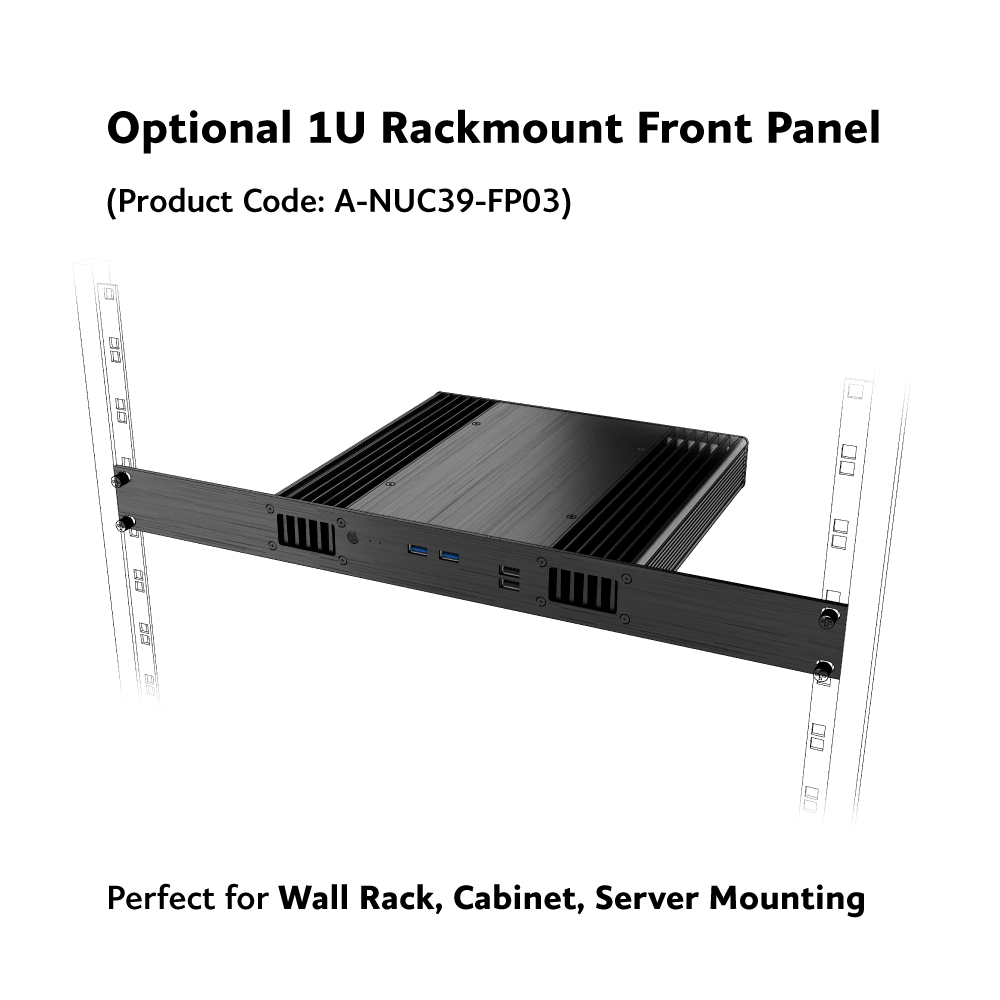

Optional Rackmount Front Panel

1U Rackmount front panel (Product Code: (A-NUC39-FP03) available to mount the Plato RC case on a wall rack, cabinet and appliance server applications.

Express Your Branding & Identity

Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.

Contact Us >



General Information

Material	Aluminium
Motherboards Types	UCFF 4" X 4"
Motherboard Support	ASUS NUC 14 Pro (Revel Canyon) Kit/Board/Mini-PC NUC14RVK, NUC14RVH, NUC14RVS, NUC14RVB, NUC14RVKC3, NUC14RVHC3, NUC14RVBC3, NUC14RVKU5, NUC14RVHU5, NUC14RVSU5, NUC14RVBU5, NUC14RVKv5, NUC14RVHv5, NUC14RVSv5, NUC14RVBv5, NUC14RVKU7, NUC14RVHU7, NUC14RVSU7, NUC14RVBU7, NUC14RVKv7, NUC14RVHv7, NUC14RVSv7, NUC14RVBv7
Dimensions	247 x 240 x 39mm (W x D x H)
Maximum TDP Support	28W
Drive Bays	2.5" SSD/HDD (up to 9.5mm high)
Front I/O	Power button, power and HDD LED, USB 3.2 port x2, USB 2.0 port x2 *The USB 3.2 Gen 2x2 Type-C port on the front of the NUC 14 Pro board will not be functional with the fanless case
Rear I/O	DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1, Serial port x1
Serial Port Support	*NUC 14 Pro (Revel Canyon) does not have an internal serial header so this interface opening will not be utilised
Antenna Fitting Holes	2
Security	Kensington lock
VESA Mounting	Support
Optional Power Adapter	• Core™ 3 models - 90W 19V adapter: AK-PD090-01M • Core™ Ultra 5, Core*TM* Ultra 7 - 120W 19V adapter: AK-PD120-04M
Product Code	A-NUC106-M1B
