Alphacool Apex Manifold 360mm

Alphacool Apex Manifold 360mm

The control center for your custom loop.

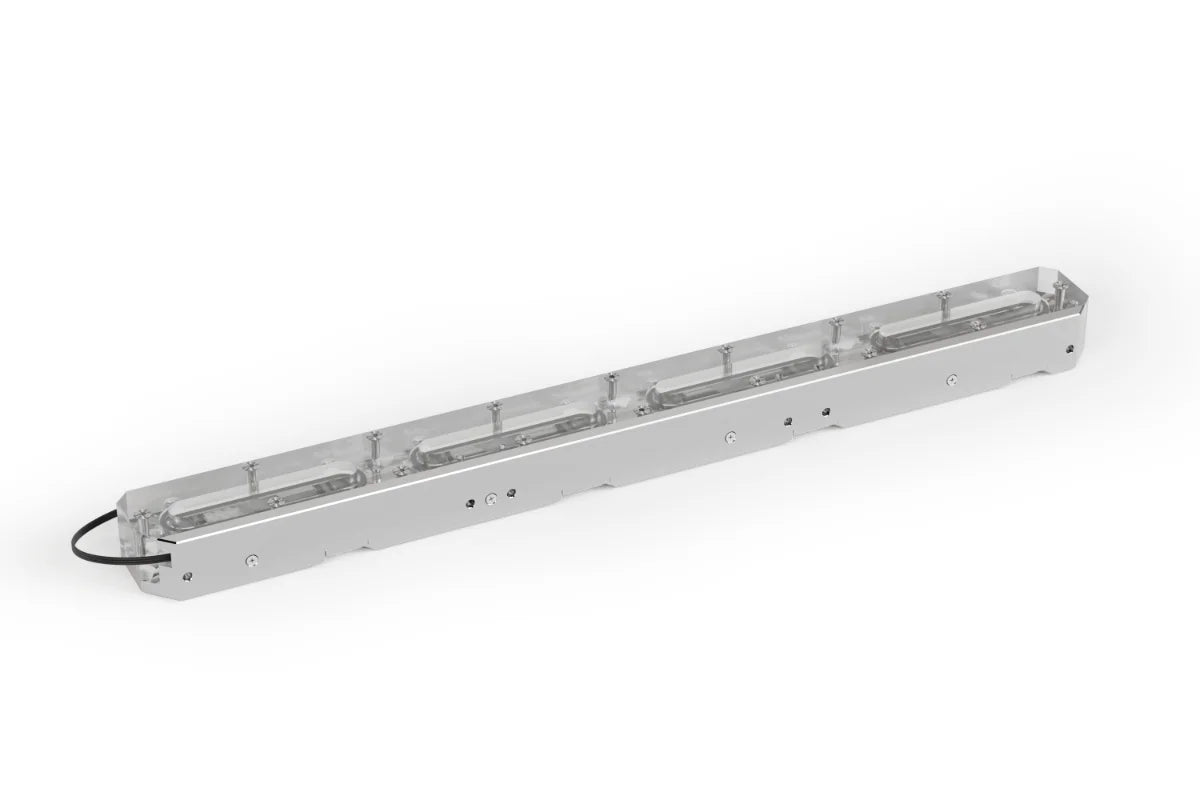

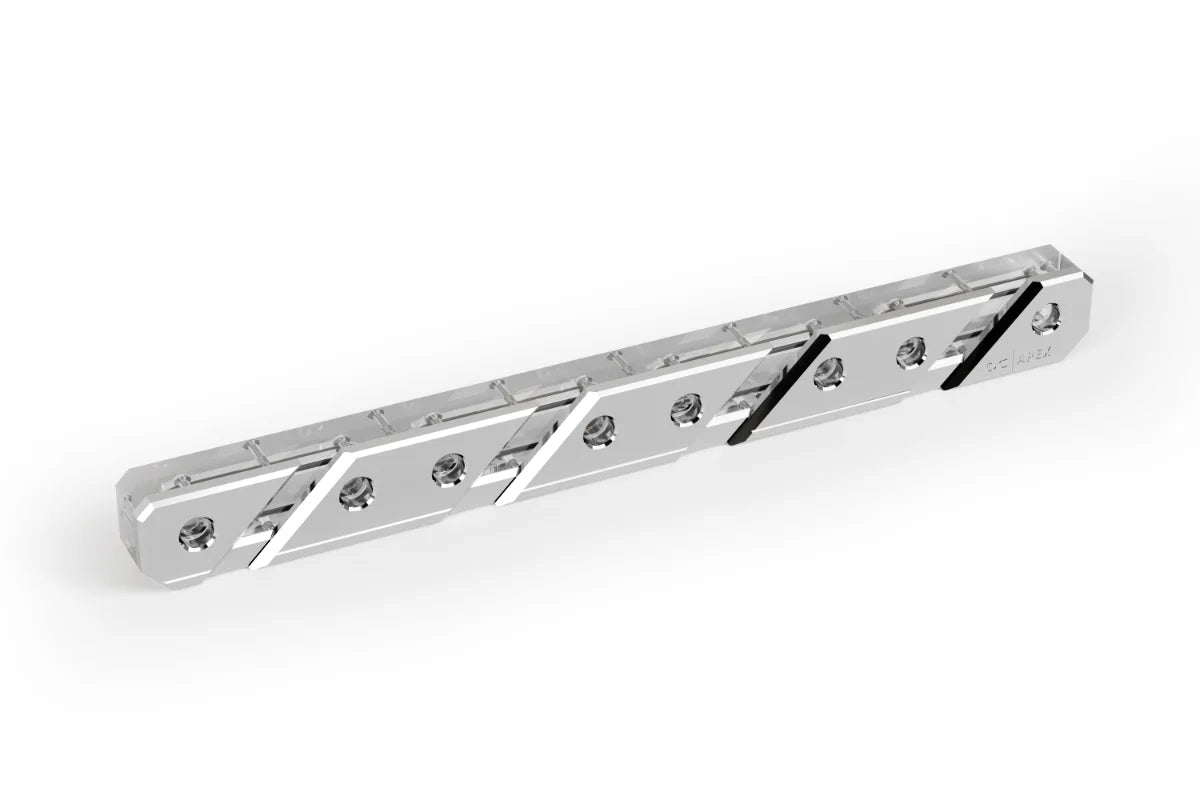

The Apex Manifold 360mm is the ultimate solution for a clean and organized system. Featuring four chambers and eight G1/4" ports, it allows for perfect tube routing without unnecessary crossovers.

Key Benefits:

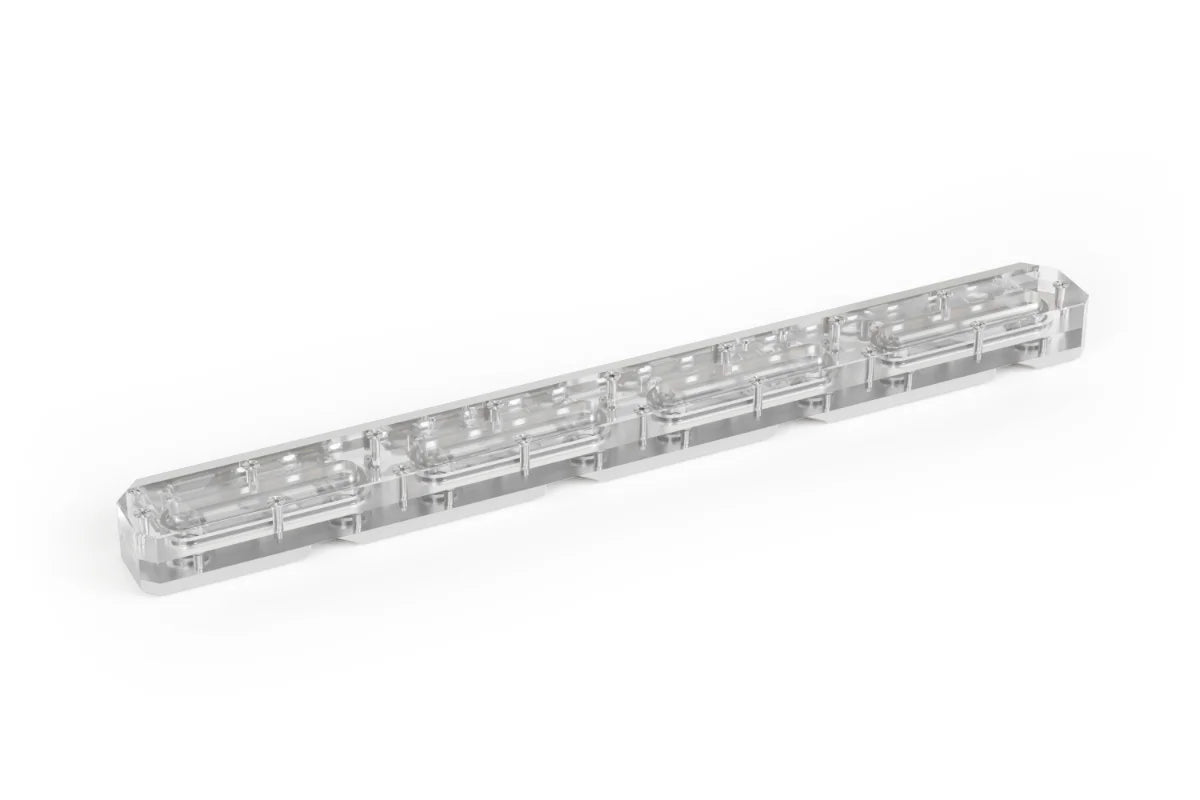

• Apex Design: Elegant aesthetics with chrome-plated brass and transparent acrylic.

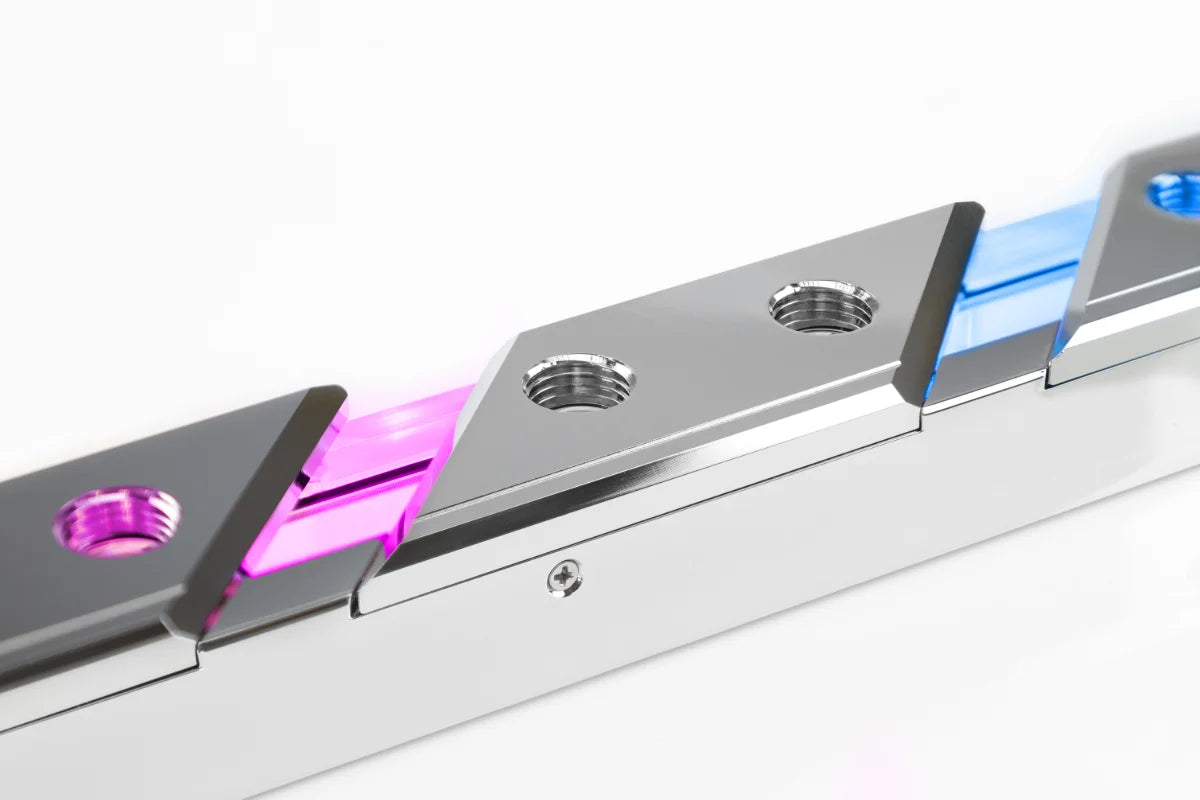

• Secure Fittings: High-quality brass threads effectively prevent cracks and leaks.

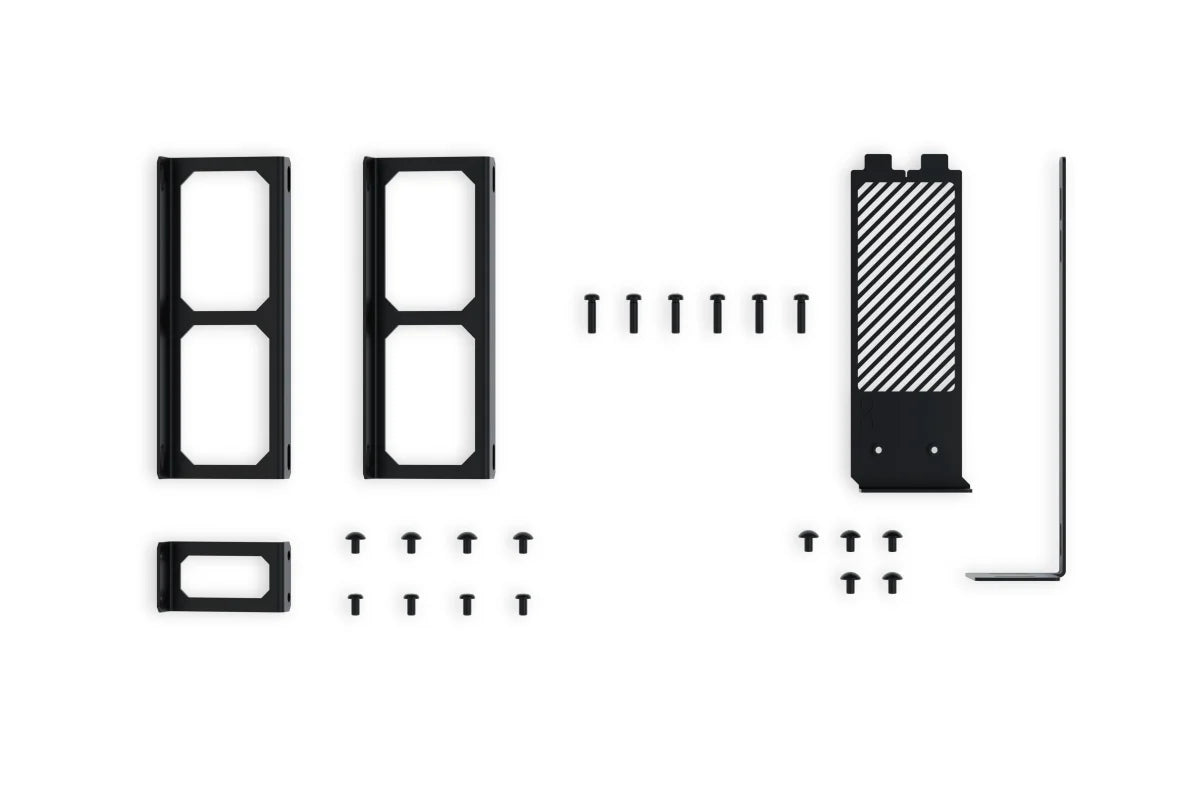

• Versatile Mounting: Can be installed on radiators, fan slots, or even the PCIe bracket.

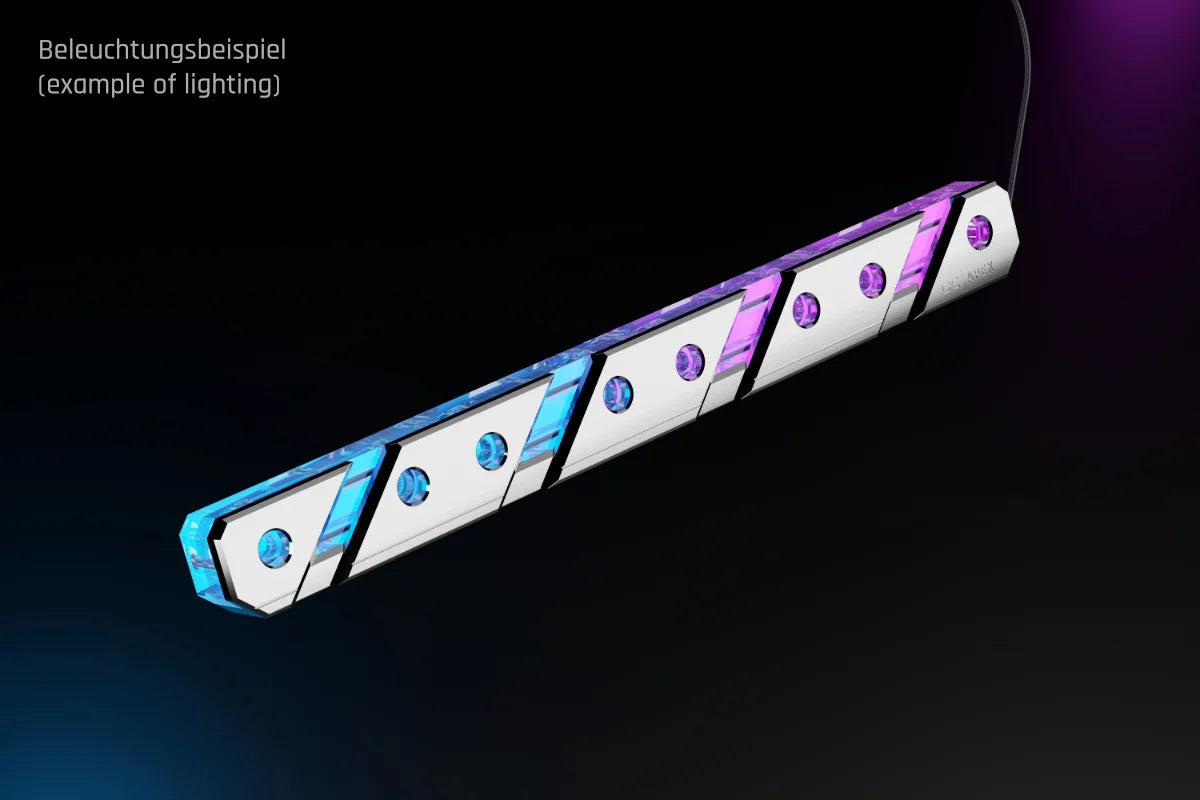

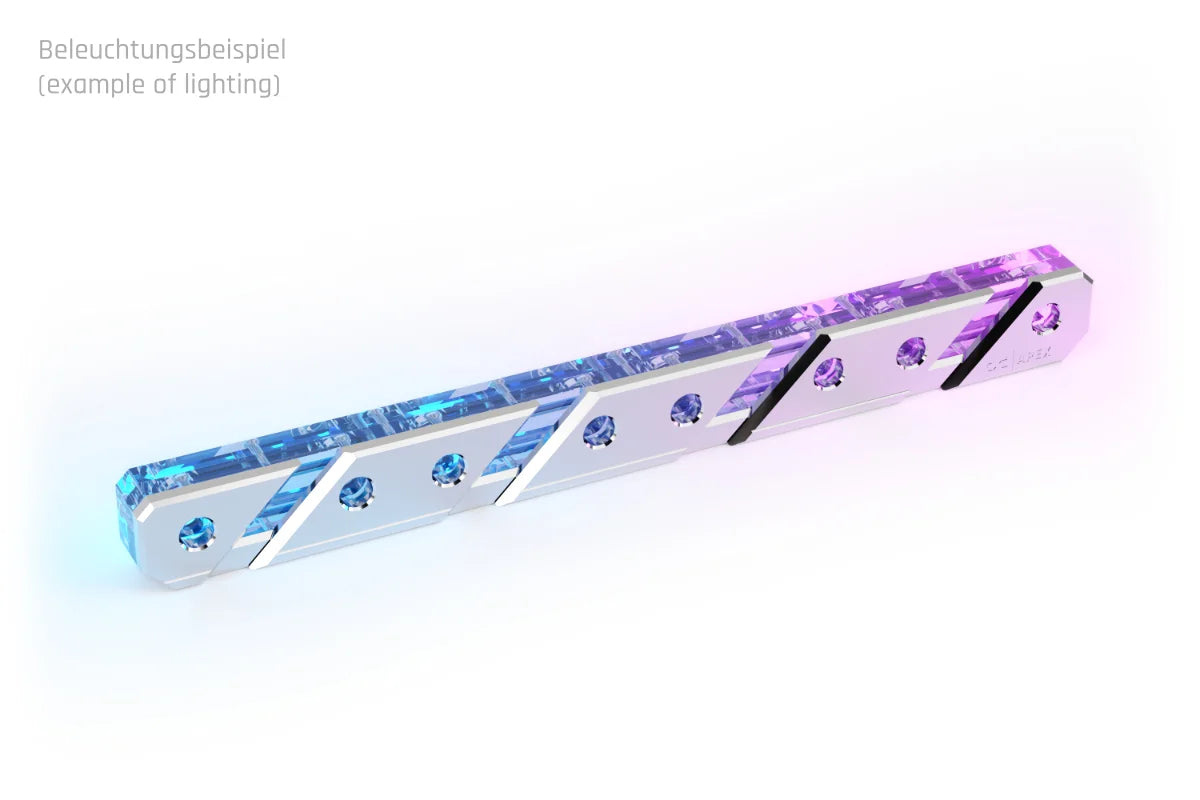

• Brilliant Lighting: 18 digitally addressable aRGB LEDs for custom effects (5V 3-pin).

• Flexibility: Can be mounted front-facing or rotated by 90°.

Technical Specifications:

Dimensions:	360 x 36 x 24 mm
Material:	Acrylic / Brass
Ports:	8x G1/4" internal threads
Lighting:	18x aRGB LEDs (5V)
Pressure Tested:	Up to 2.0 Bar (Test pressure 0.8 Bar)

Important Note: Use with clear fluids only. Not suitable for pastel coolants!
