CFRP

Alphacool Carbon HardTube 13mm 4x 80cm

AC-18657

HardTubes are very popular. Those who prefer clear and clean lines in their computer, choose them for tubing the water circuit. The majority of HardTubes are clear and transparent. Alphacool offers an interesting alternative to the common variants made of PETG or acrylic with the Carbon HardTube.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
2 in stock
$47.95
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

HardTubes are very popular. Those who prefer clear and clean lines in their computer, choose them for tubing the water circuit. The majority of HardTubes are clear and transparent. Alphacool offers an interesting alternative to the common variants made of PETG or acrylic with the Carbon HardTube.

Features

Material

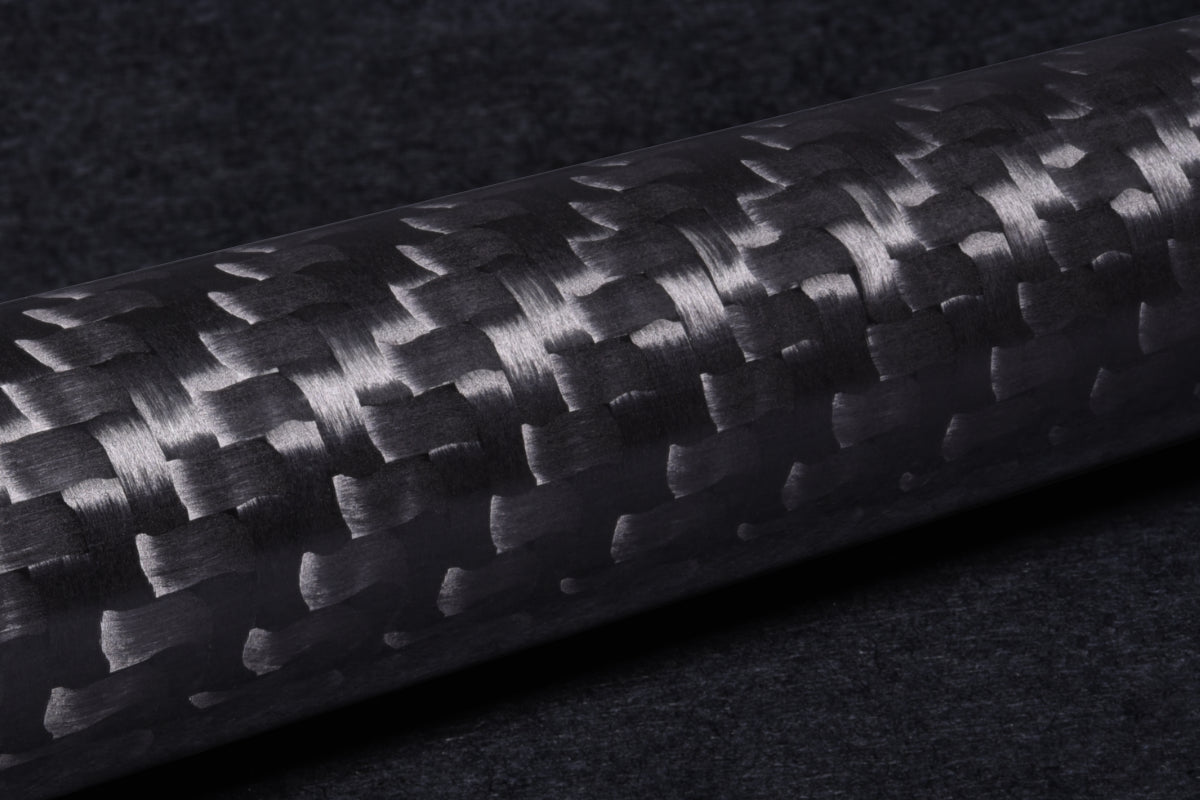

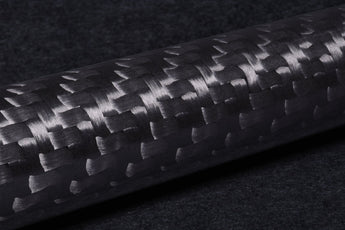

The HardTubes are made of CFRP (carbon laminate). The smooth surface and the structure of the carbon laminate give every water cooling system a unique appearance.

Assembly

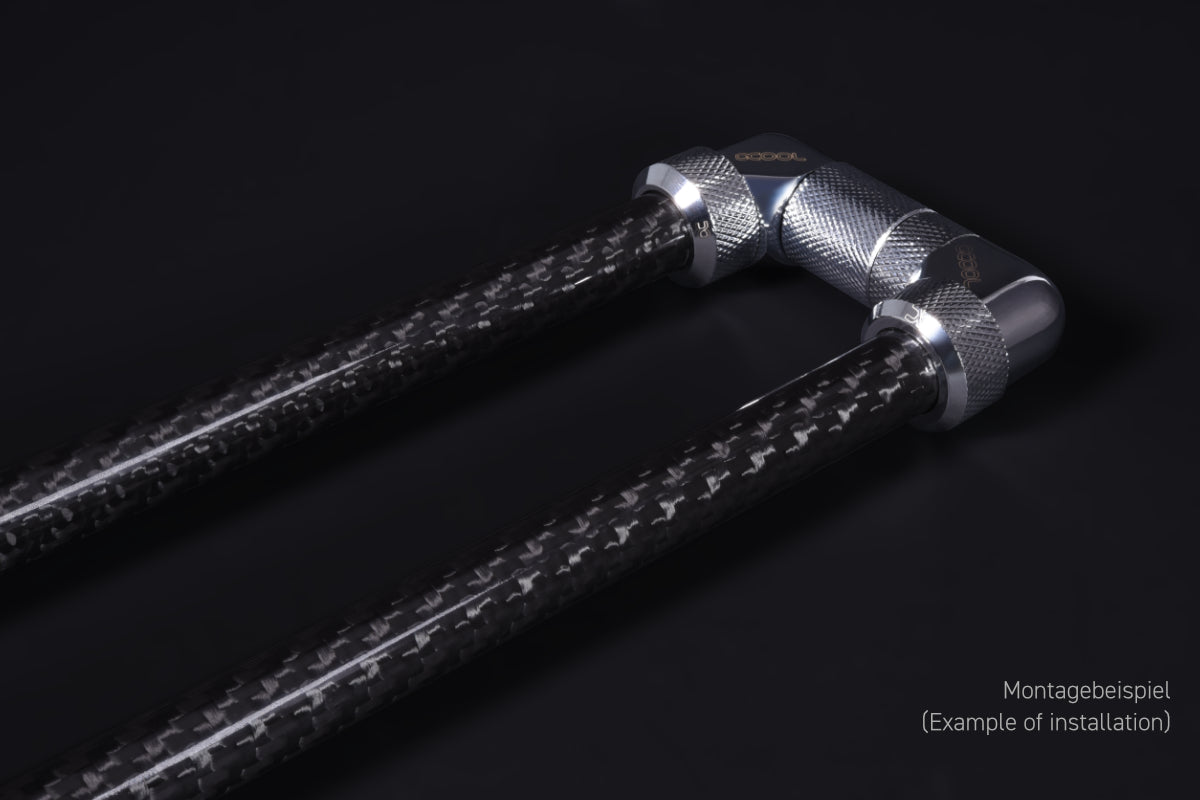

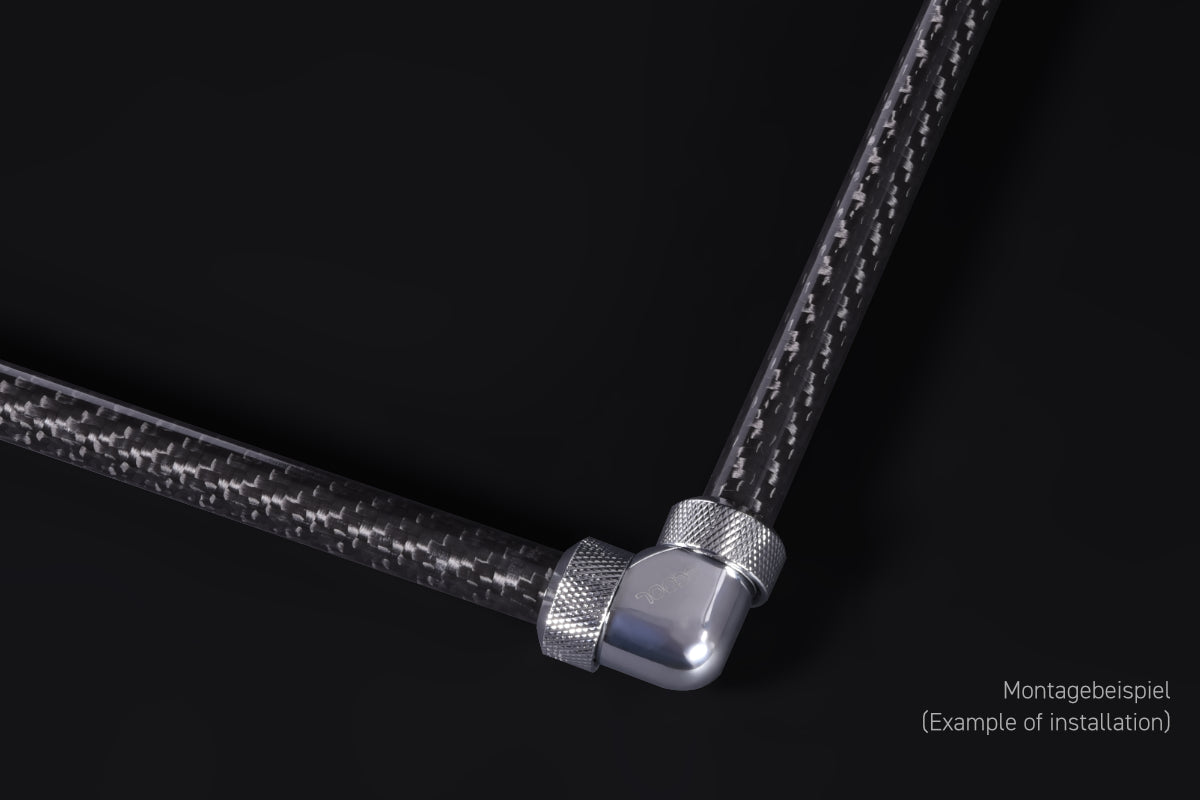

The HardTubes made of carbon (CFRP) cannot be bent. For the exact installation, the tubes must be sawed to the appropriate length. To do this, you should use a pit saw that is suitable for processing carbon (CFRP). To ensure straight cut edges, the use of a saw jig is advisable. When shortening the tubes, care should be taken to smooth the cut edges with a fine file or sandpaper, as sharp edges can damage the O-rings of fittings. Alphacool's Eiszapfen HardTubes fittings of the appropriate size are suitable for connecting the tubes. After assembly, the tubes should be rinsed for cleaning. It is best to use distilled water for this purpose.

Note
When working on the carbon tubes (sawing & filing), it is important to wear protective equipment. The use of safety glasses, FFP2 mask and gloves is advisable here. In addition, work on the HardTubes should only be carried out in well-ventilated rooms or outdoors.

Specifications











































Technical data
Material carbon (CFRP)
Outer diameter 13mm (1/2) (tolerance +/- 0.2mm)
Inner diameter 10mm (3/8) (tolerance +/- 0.2mm)
Length 80cm
Maximum operating pressure (pressure tested) 0,8 Bar
Maximum working temperature 60°C
Possible temperature range from/to -20°C to 60°C
Weight 47g
Color black











































Color: black
Manufacturer: Alphacool
UV - color: Non UV-active
Service temperature: -20°C bis 60°C
Outer diameter: 13mm (1/2)
Inner diameter: 10mm (3/8)
Length: 0,80m
Material: Carbon Fibre
Max. Operating pressure: 0,8 bar (bei 20°C)






Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
