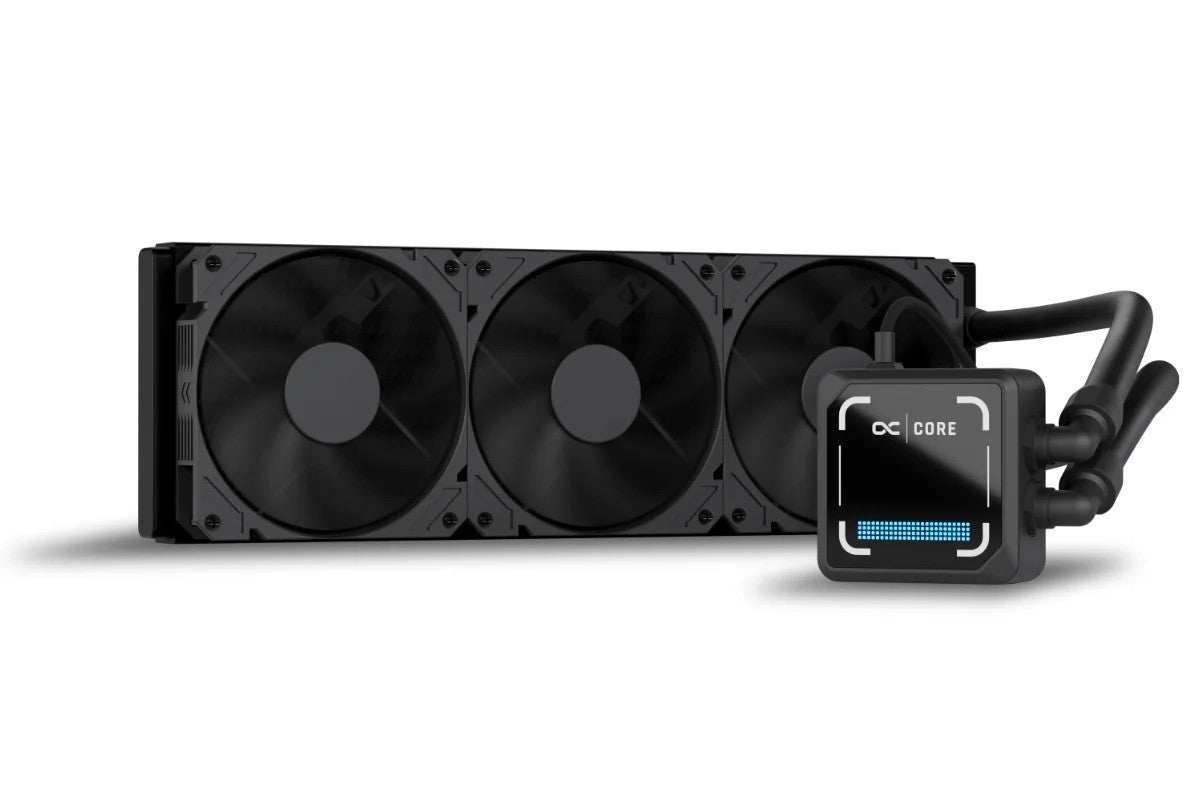

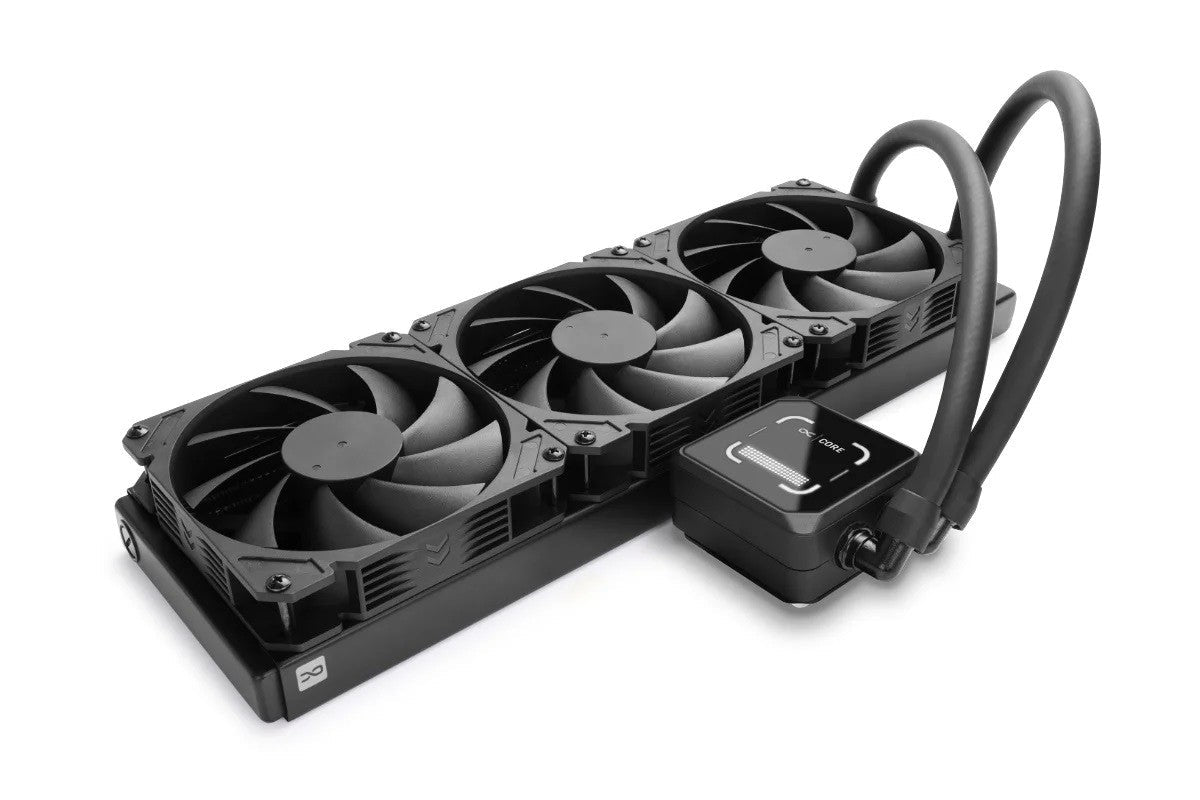

Alphacool Core 2 LT 360mm CPU AiO

Alphacool Core 2 LT 360mm CPU AiO – All-in-one liquid cooler for the processor

Alphacool Core 2 LT 360mm CPU AiO is a closed-loop liquid cooler: pump, cold plate, tubing and radiator come pre-filled and sealed. That takes the filling and bleeding work out of liquid cooling while still moving the CPU heat to where there is room for a large radiator.

The dimensions are 120 x 120 x 25 mm. The pump delivers up to 2100 ml/min ±10% with a maximum head of 1.4 m ±10%.

Key Features

• PWM control: Speed can be matched to system load via the PWM signal from the motherboard or a controller.

• Pre-filled and maintenance-free: The loop is filled and sealed at the factory – no filling, no bleeding, no topping up.

• Radiator instead of a tower above the CPU: Heat travels through the tubing to the radiator and is released there rather than building up above the socket.

• PWM-controlled fans: Speed, and with it noise, follows the actual load via the motherboard.

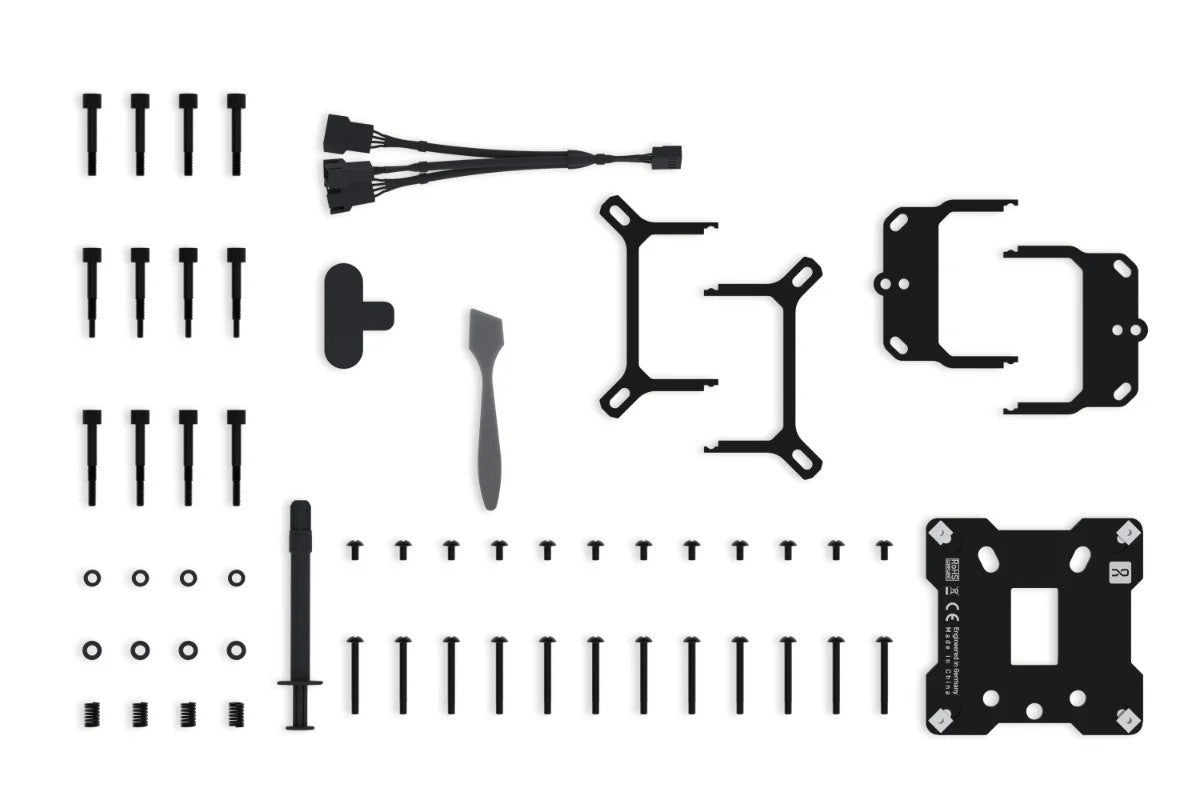

• Fits common sockets: The supplied brackets cover the widespread Intel and AMD sockets.

Technical Specifications

Type	Alphacool Core 2 LT 360mm CPU AiO
Manufacturer	Alphacool
Manufacturer P/N	14622
Series	Alphacool Core

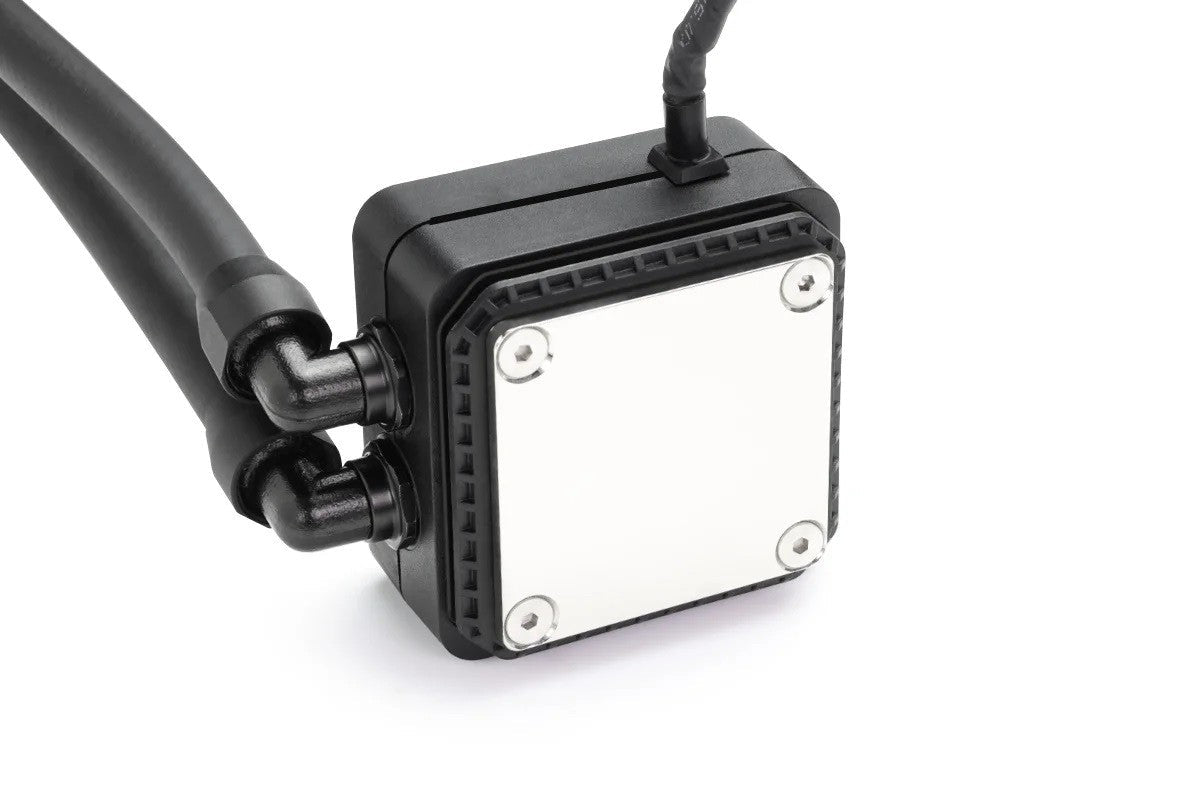

Base Material	Verchromtes Copper (Cu-HCP)
Maximum Operating Temperature	60 °C
Minimum Operating Temperature	-20 °C
Maximum Tested Pressure	2,00 bar
Cooling Channels	12
Pump Rated Voltage	12 V
Pump Power Consumption	3.6 W (max. 4.32 W)
Pump Speed	3800 U/min ±10%
Max. Flow Rate	2100 ml/min ±10%
Max. Head	1.4 m ±10%
Pump Noise Level	25 dB(A) (max. 30 dB(A))
Fan Connector	4-Pin PWM
Dimensions	120 x 120 x 25 mm
Warranty	3 years

Important notes

• Use only with clear, transparent coolants. Particles from pastel fluids can clog pumps, blocks and radiators.
