Alphacool Core 2 XT 360mm CPU AiO

Alphacool Core 2 XT 360mm CPU AiO – All-in-one liquid cooler for the processor

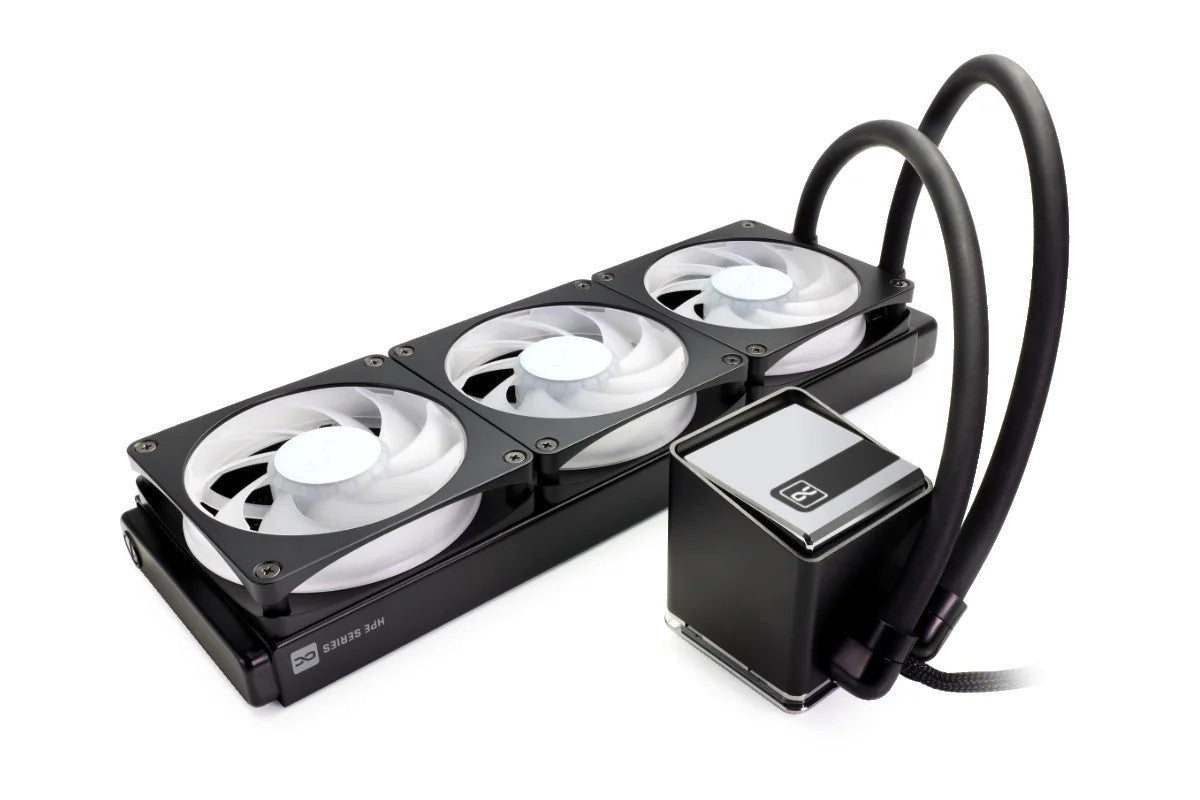

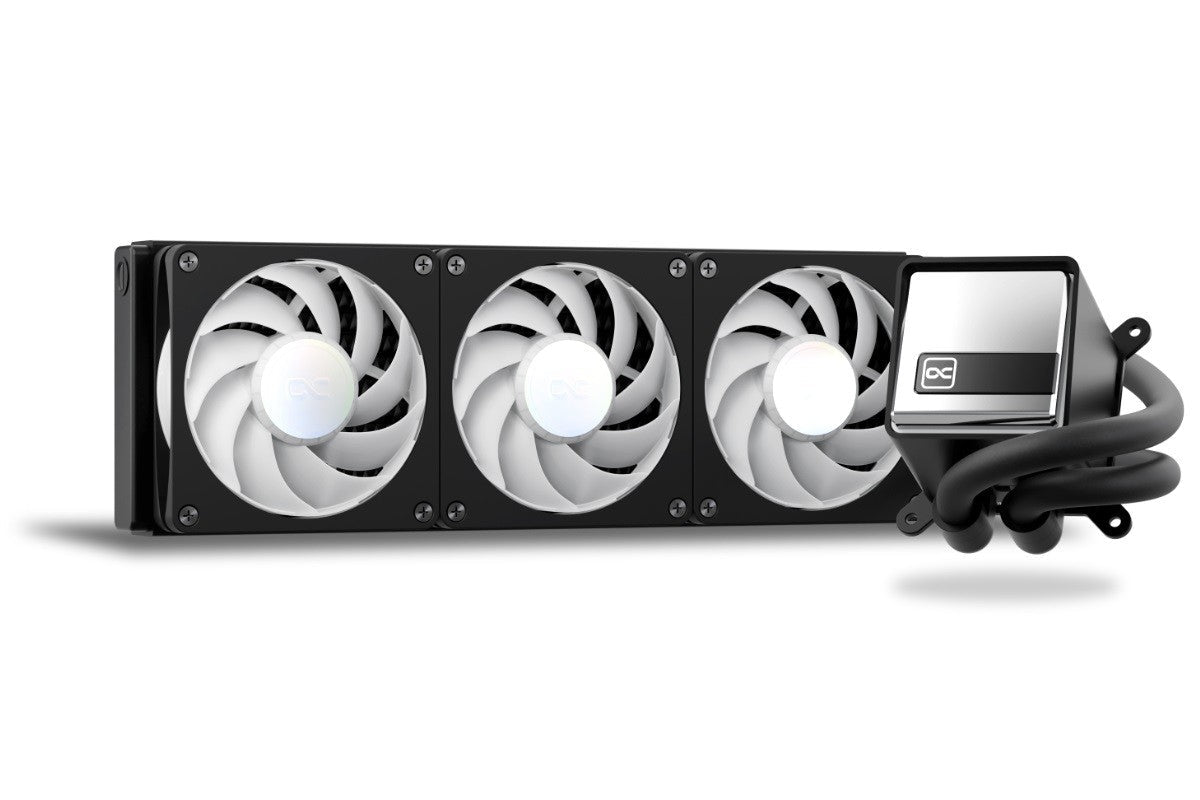

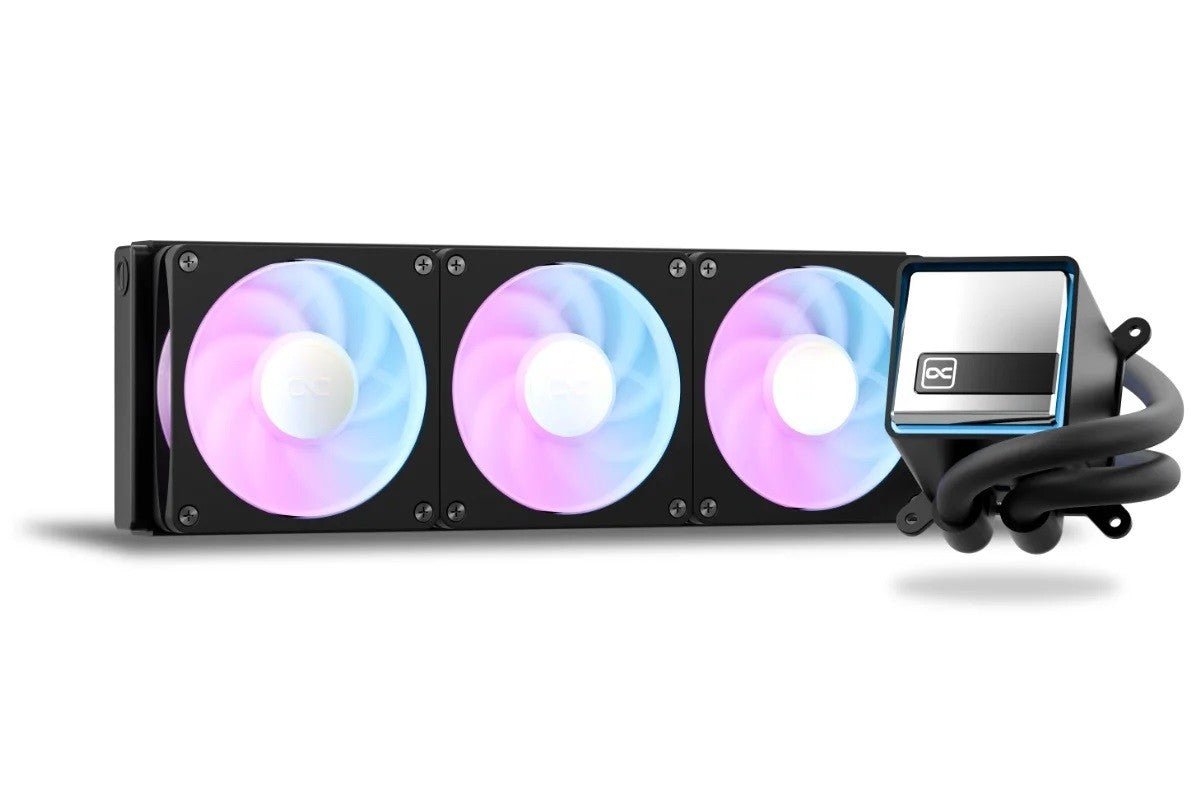

Alphacool Core 2 XT 360mm CPU AiO is a closed-loop liquid cooler: pump, cold plate, tubing and radiator come pre-filled and sealed. That takes the filling and bleeding work out of liquid cooling while still moving the CPU heat to where there is room for a large radiator.

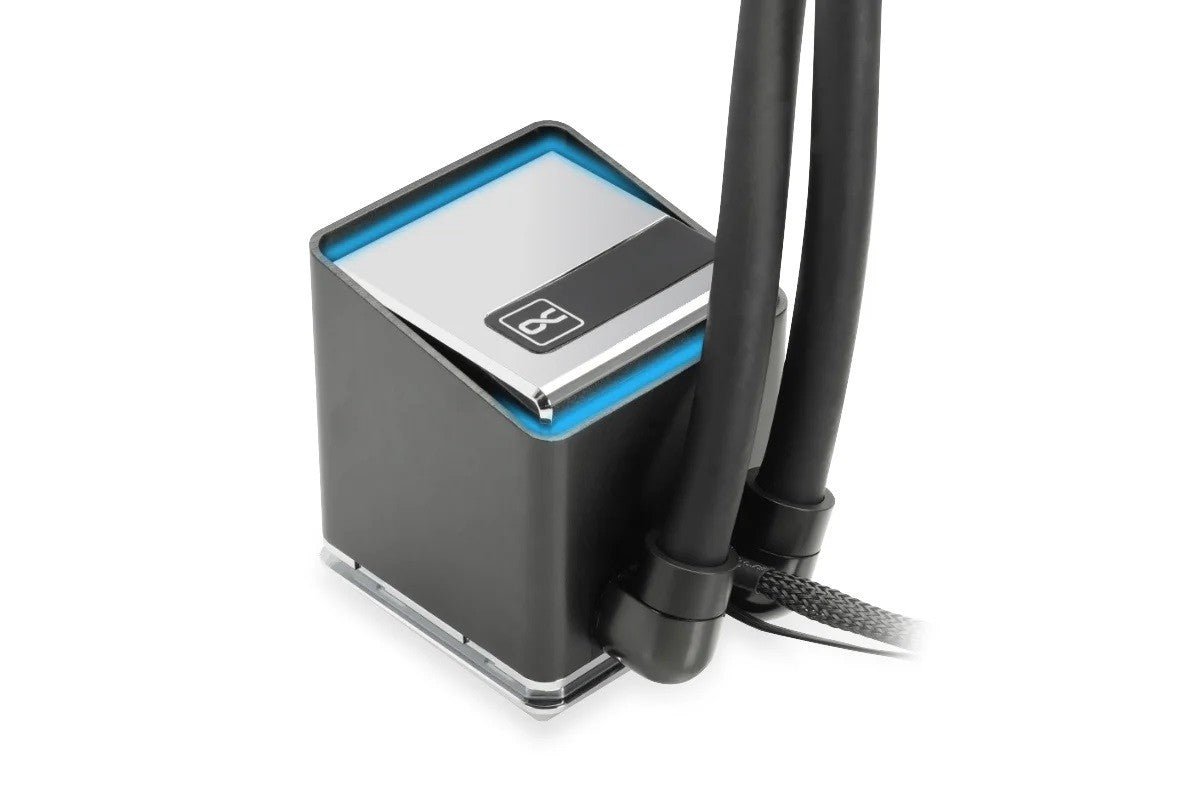

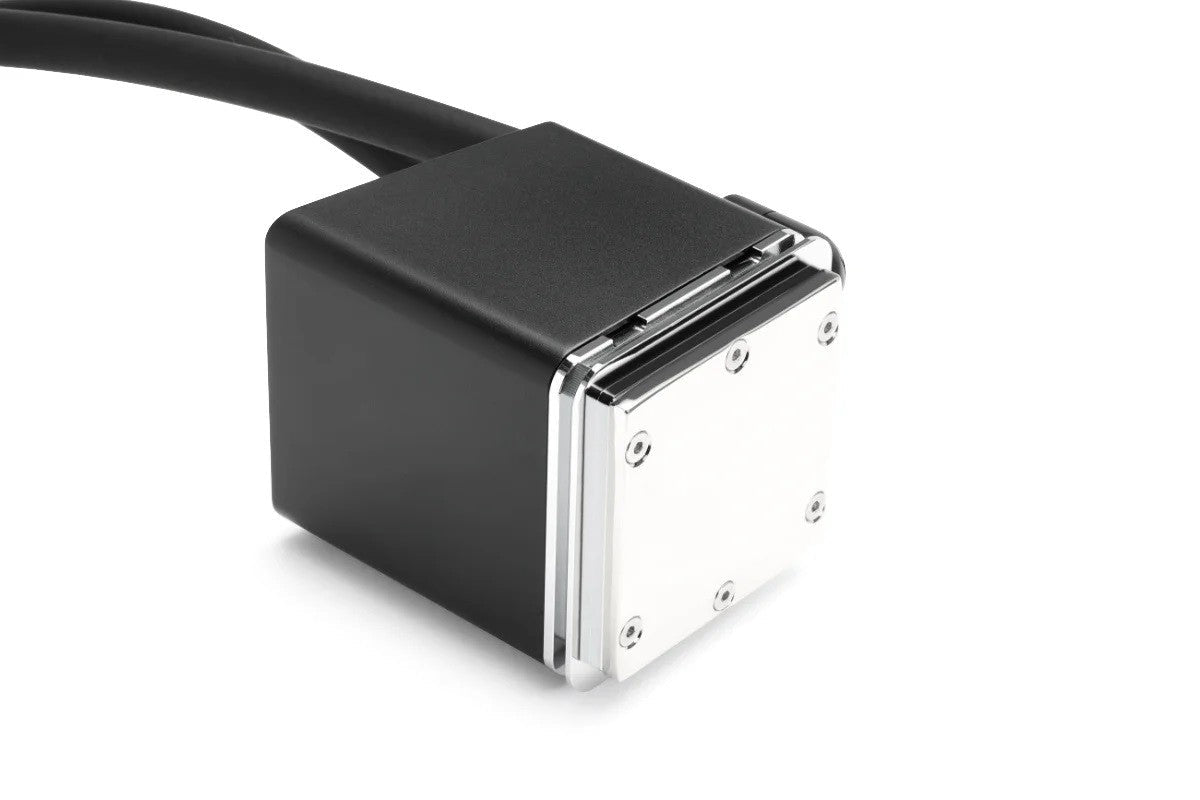

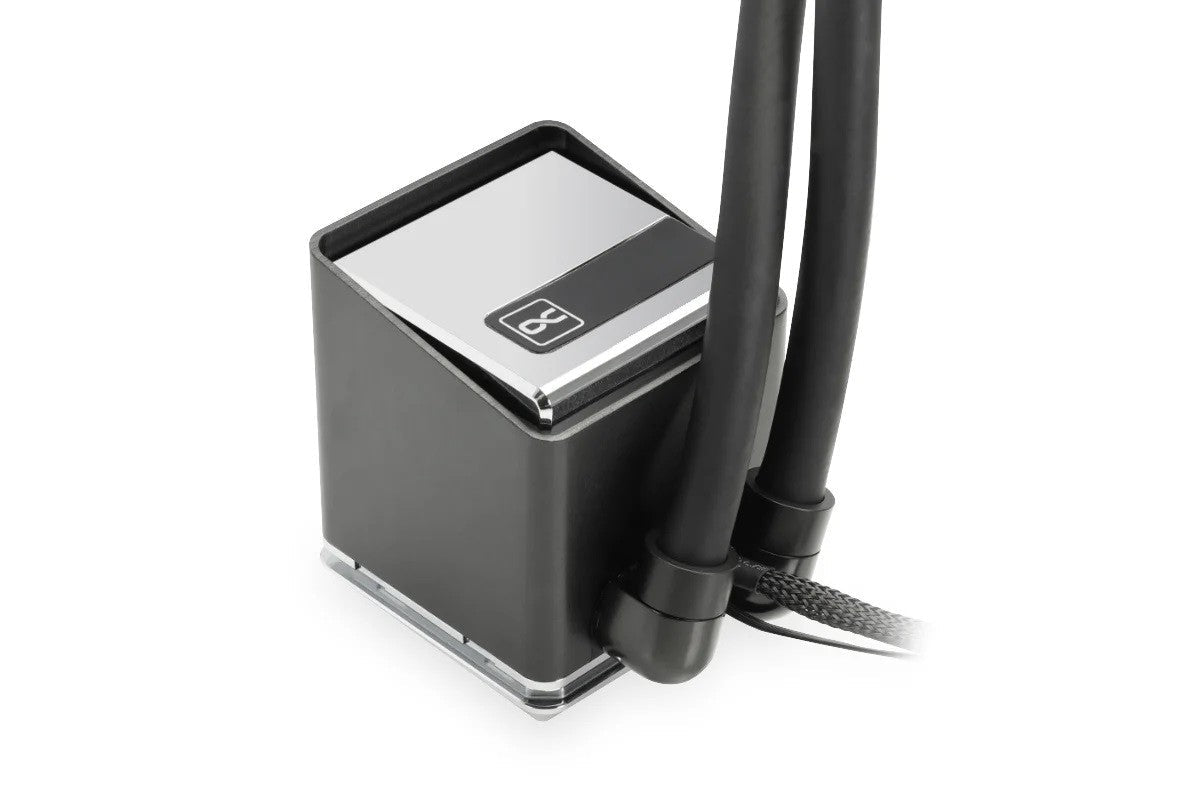

The cold plate is chrome-plated copper and the housing above it aluminium – the coolant only ever touches the copper base. The pump delivers up to 2100 ml/min ±10% with a maximum head of 1.4 m ±10%.

Key Features

• PWM control: Speed can be matched to system load via the PWM signal from the motherboard or a controller.

• Pre-filled and maintenance-free: The loop is filled and sealed at the factory – no filling, no bleeding, no topping up.

• Radiator instead of a tower above the CPU: Heat travels through the tubing to the radiator and is released there rather than building up above the socket.

• PWM-controlled fans: Speed, and with it noise, follows the actual load via the motherboard.

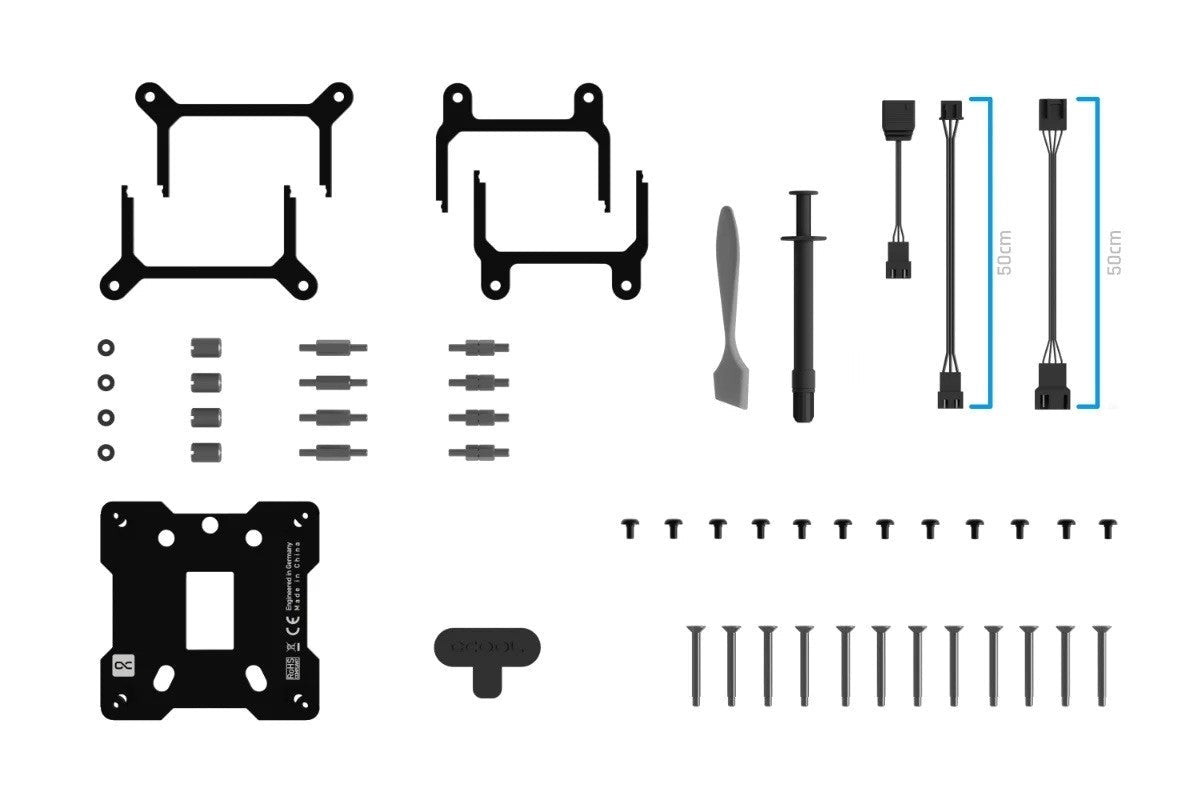

• Fits common sockets: The supplied brackets cover the widespread Intel and AMD sockets.

Technical Specifications

Type	Alphacool Core 2 XT 360mm CPU AiO
Manufacturer	Alphacool
Manufacturer P/N	14712
Series	Alphacool Core
Base Material	Verchromtes Copper (Cu-HCP)
Top Material	Aluminium (AlMg0,7Si)
Maximum Operating Temperature	60 °C
Minimum Operating Temperature	-20 °C
Maximum Tested Pressure	2,00 bar
LEDs (count/length)	12 pcs / 145,7 mm
Pump Rated Voltage	12 V
Pump Power Consumption	3.6 W (max. 4.32 W)
Pump Speed	3800 U/min ±10%
Max. Flow Rate	2100 ml/min ±10%
Max. Head	1.4 m ±10%
Pump Noise Level	25 dB(A) (max. 30 dB(A))
Fan Dimensions	120 x 120 x 25,5 mm
Fan Speed	380~2600±10% U/Min
Bearing Type	Gleitlager
Fan Connector	4-Pin PWM
Fan Rated Voltage	12 V DC
Fan Power Consumption	3,72 W (max.)
Airflow	59,79 CFM
Static Pressure	3,35 mmH₂O
Noise Level	36,4 dBA
Lifetime (MTTF)	100,000 h
Fan Lighting	5 V aRGB
Radiator Dimensions	391,5 x 124 x 30 mm (+/- 3%)
Cooling Channels	14
Radiator Material	Copper
Warranty	3 years

Important notes

• Use only with clear, transparent coolants. Particles from pastel fluids can clog pumps, blocks and radiators.
