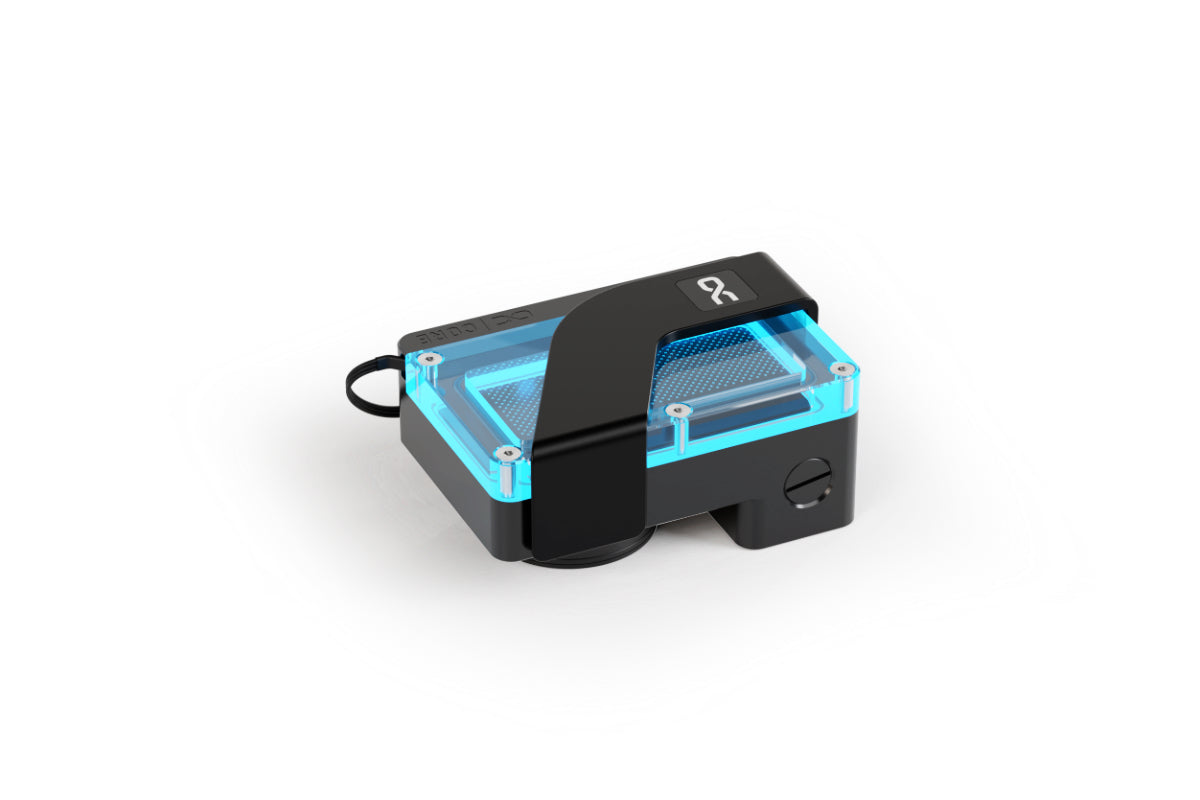

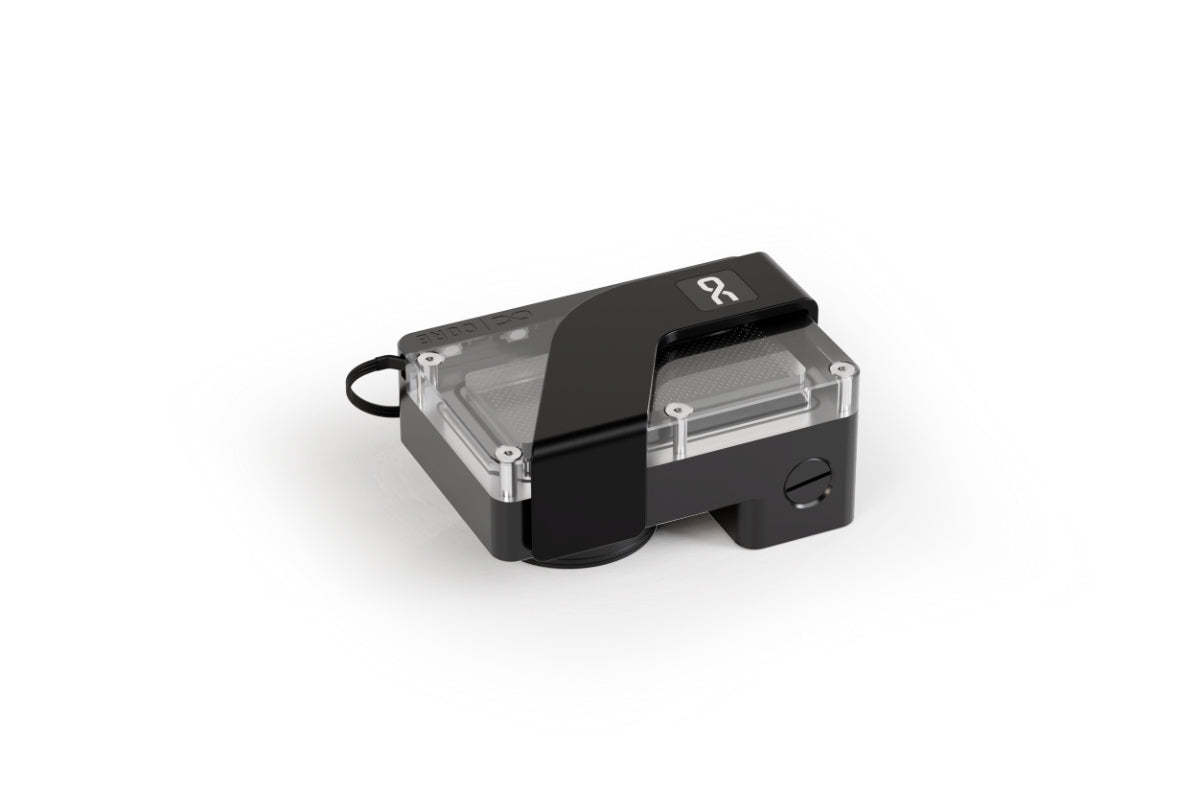

Alphacool Core DDCzero Flat Reservoir 90 with Pump

The Alphacool Core DDCzero Flat Reservoirs combine a compact reservoir with the powerful Alphacool DDCzero PWM pump. Thanks to their flat
design, they are particularly well suited for small-form-factor systems. The series is available in various sizes, allowing flexible adaptation to different
case layouts and cooling concepts.
The base of the Core DDCzero Flat Reservoirs is made of durable acetal. The transparent top is manufactured from high-quality acrylic and provides
an unobstructed view inside the reservoir.
The G1/4" connection threads are integrated directly into the robust acetal base. This avoids delicate threads in the acrylic and ensures a stable and
reliable connection. Five G1/4" ports provide numerous options for integrating the reservoir into the cooling loop. The inlet, outlet, filling and draining
ports can be flexibly adapted to the tubing layout of the respective cooling system.

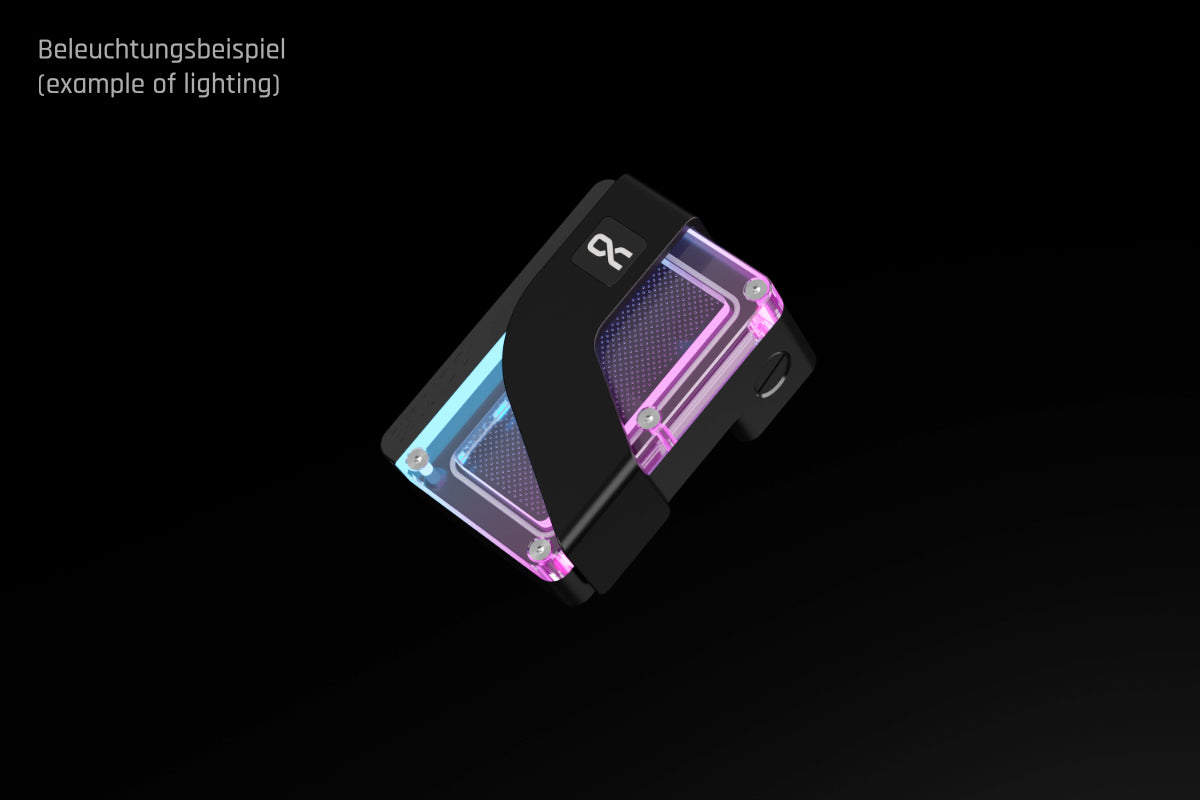

The integrated digitally addressable aRGB lighting effectively highlights the coolant and provides even illumination throughout the reservoir. The
lighting can be controlled via a compatible digital aRGB header on the motherboard or a suitable aRGB controller (Art.-No. 15360).
The clean, linear design and the carefully considered positioning of the ports integrate seamlessly into the Alphacool Core series.
The 90 variant is the most compact model in the series. Thanks to its small dimensions, it is particularly suitable for small cases and systems with
severely limited installation space.

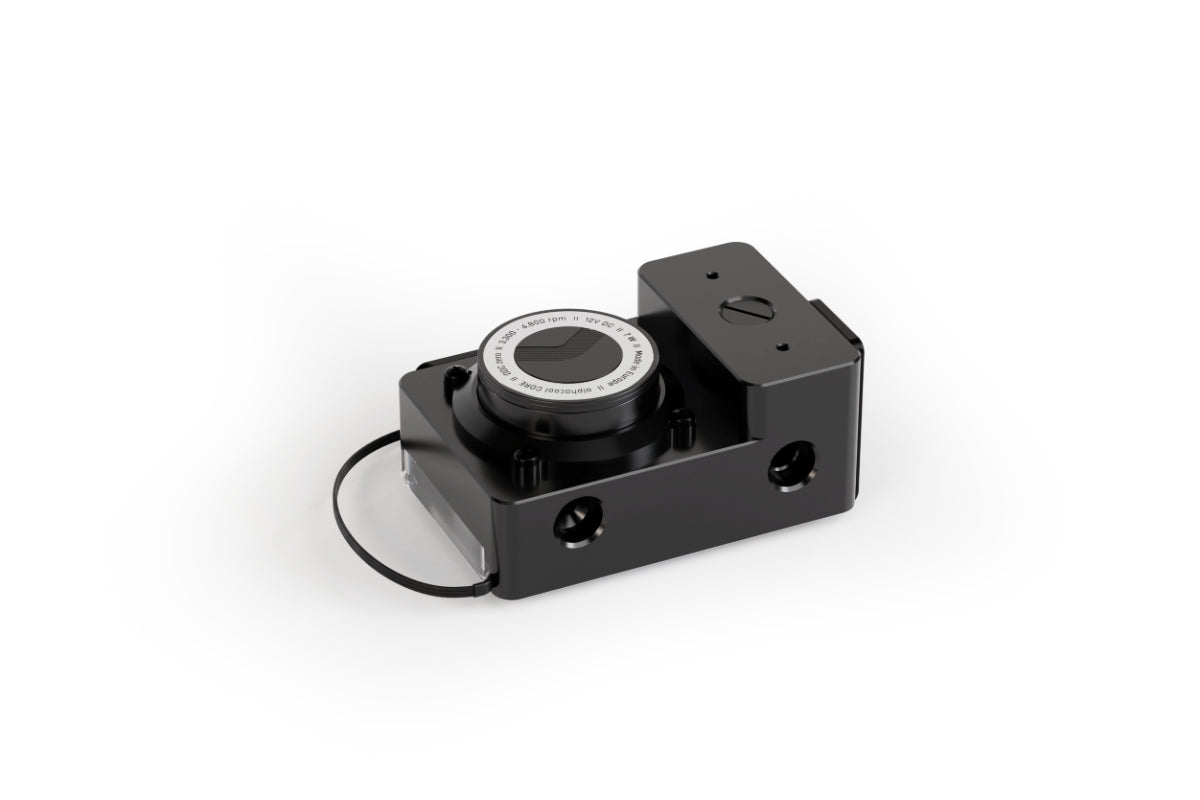

The integrated Alphacool DDCzero PWM pump is a compact and powerful circulation pump for PC water-cooling systems, datacenter systems and
industrial applications. A robust ceramic shaft, combined with the durable plastic housing, ensures reliable and long-lasting operation. The pump
offers strong performance and ensures a dependable coolant flow. Its speed can be flexibly adjusted across a wide control range to meet the
individual requirements of the system.
The Alphacool DDCzero PWM pump is connected to the motherboard or a suitable controller via a 4-pin fan connector. This connector supplies power
to the pump, enables PWM control and transmits the speed signal. PWM control allows the pump performance to be adjusted specifically to the
current system load. This enables a balanced operation between high cooling performance and the lowest possible noise level.

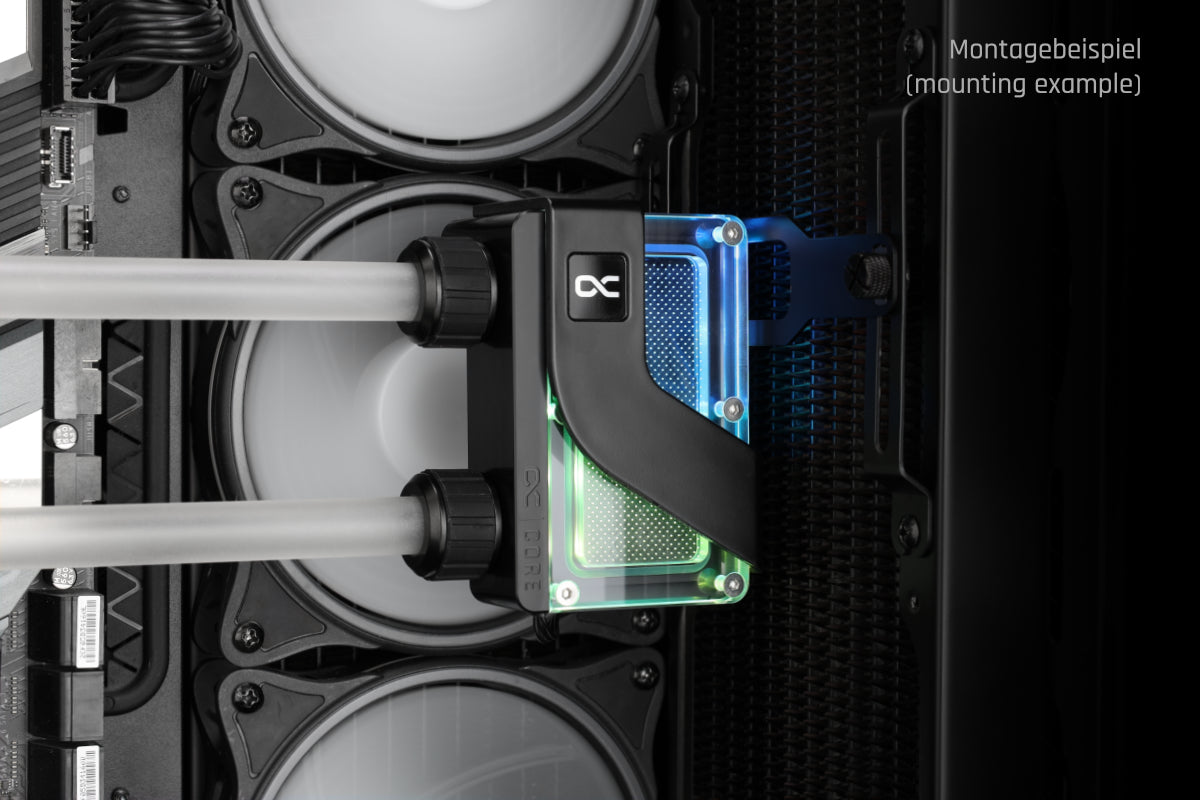

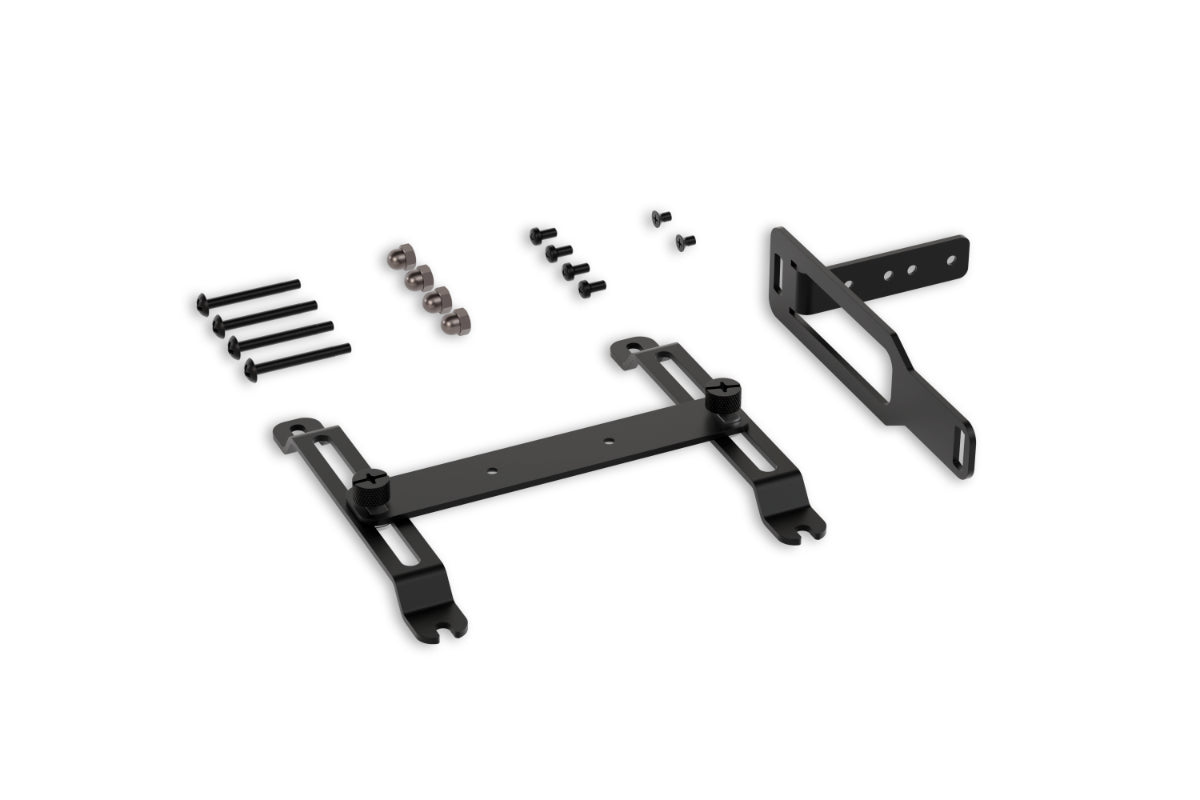

The Alphacool Core Universal Mounting Kit is included in the scope of delivery. It enables easy installation and securely holds the Core DDCzero Flat
Reservoirs on radiators or fan mounting positions in the 120 mm format. Using the Alphacool Core Universal Mounting Kit, the reservoirs can be
installed in two different orientations: straight or rotated by 90°.

• Acrylic Reservoirs

• Includes Core DDCzero PWM pump

• Low-profile design, ideal for small-form-factor systems

• Stunning digital aRGB lighting

Scope of delivery:

•
  1x Alphacool Core 2x DDCzero Flat Reservoir 90
•
  1x Alphacool Core DDCzero 3300-4800rpm PWM Pump
•
  1x Alphacool Core universal bracket set for DDCzero reservoir
•
  3x G1/4 Plug
•
  1x Plug Tool

•
  1x aRGB Adapter



  Technical data

•
  Dimensions (L x W x H) (in mm) 93,00 x 63,00 x 44,10
•
  Material base Acetal
•
  Material top Acetal
•
  Number of connections 5x
•
  Material connection thread Acetal
•
  Threads G 1/4
•
  Maximum torque G1/4 thread (in Nm) 1,00
•
  Maximum torque M2 thread (in Nm) 0,13
•
  Maximum torque M2,5 thread (in Nm) 0,27
•
  Maximum torque M3 thread (in Nm) 0,48
•
  Maximum torque M4 thread (in Nm) 1,12
•
  Maximum operating temperature (in °C) 60
•
  Minimum operating temperature (in °C) -20
•
  Recommended working temperature (in °C) 20
•
  Maximum tested pressure (in bar) 2,00
•
  Recommended working pressure (in bar) 0,0 - 1,0
•
  Maximum filling volume (in ml) 26
•
  LED quantity and length 5pc. / 81,00mm
•
  LED Voltage 5V DC
•
  LED Ampere 0,06A
•
  LED Power 1,5W

Technical data pump

•
  Dimensions (D x H) 46,00 x 24,20mm
•
  Material pump housing Plastic
•
  Material pump cover Plastic
•
  Material axle Ceramic
•
  Connections 4-Pin PWM
•
  Power 6,2W
•
  Rotational speed 3000 - 4800 RPM
•
  Cable lengths 4-Pin PWM - 48cm
•
  Operating voltage 8-13V DC / 14W IP32
•
  Starting voltage 12V DC
•
  Maximum pumping head 1,4m
•
  Maximum flow rate 220L/h
•
  Maximum working temperature 60°C
•
  Weight 50g
•
  Color Black
