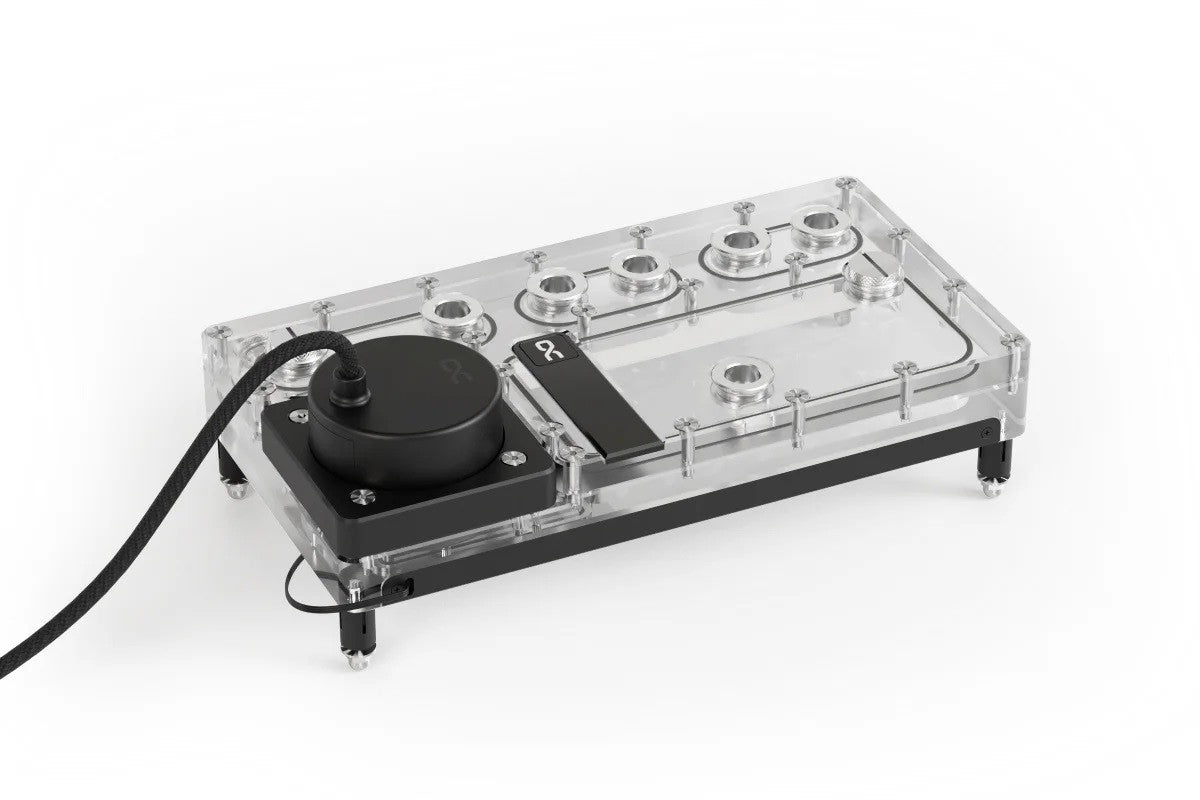

Alphacool Core Distro Plate 240 Left D5/DDC V.2 with D5 Apex Pump

The Alphacool Core Distro Plate V.2 with VPP Apex pump is the ideal solution for custom water cooling systems. The redesigned platform offers significantly greater installation flexibility and simplifies the planning, assembly, and maintenance of even complex water loops.

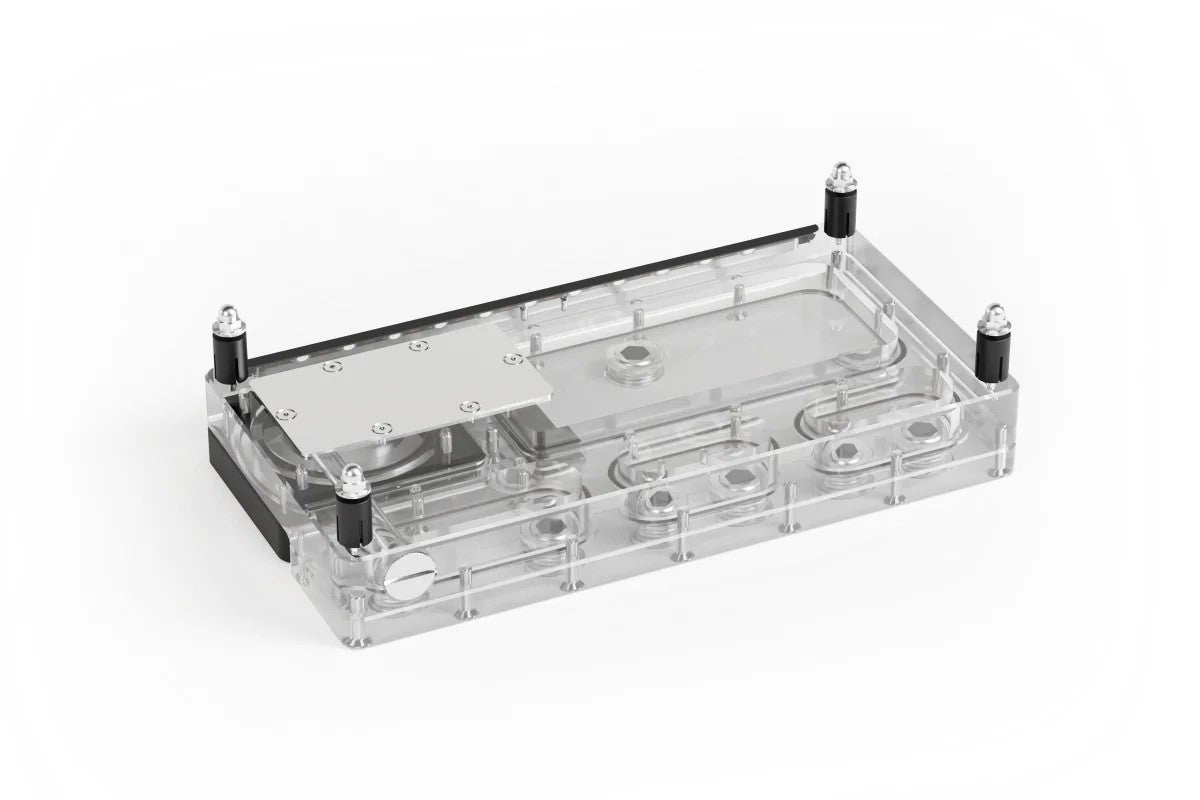

The core element of the Core Design series is the chrome-plated G1/4" brass fittings. On the Core Distro Plate V.2, these are directly embedded in the acrylic, effectively eliminating the risk of leaks caused by cracking. The two-piece fittings, equipped with O-rings, interlock within the acrylic, ensuring maximum sealing and a clean, high-quality appearance.

Thanks to its reduced depth and optimized G1/4" fitting arrangement, the Distro Plate allows for particularly short and clean tubing runs. A side drain port also enables easy and controlled draining of the loop. This makes the Core Distro Plate V.2 ideal for custom water loops that simultaneously cool the CPU and one or more graphics cards.

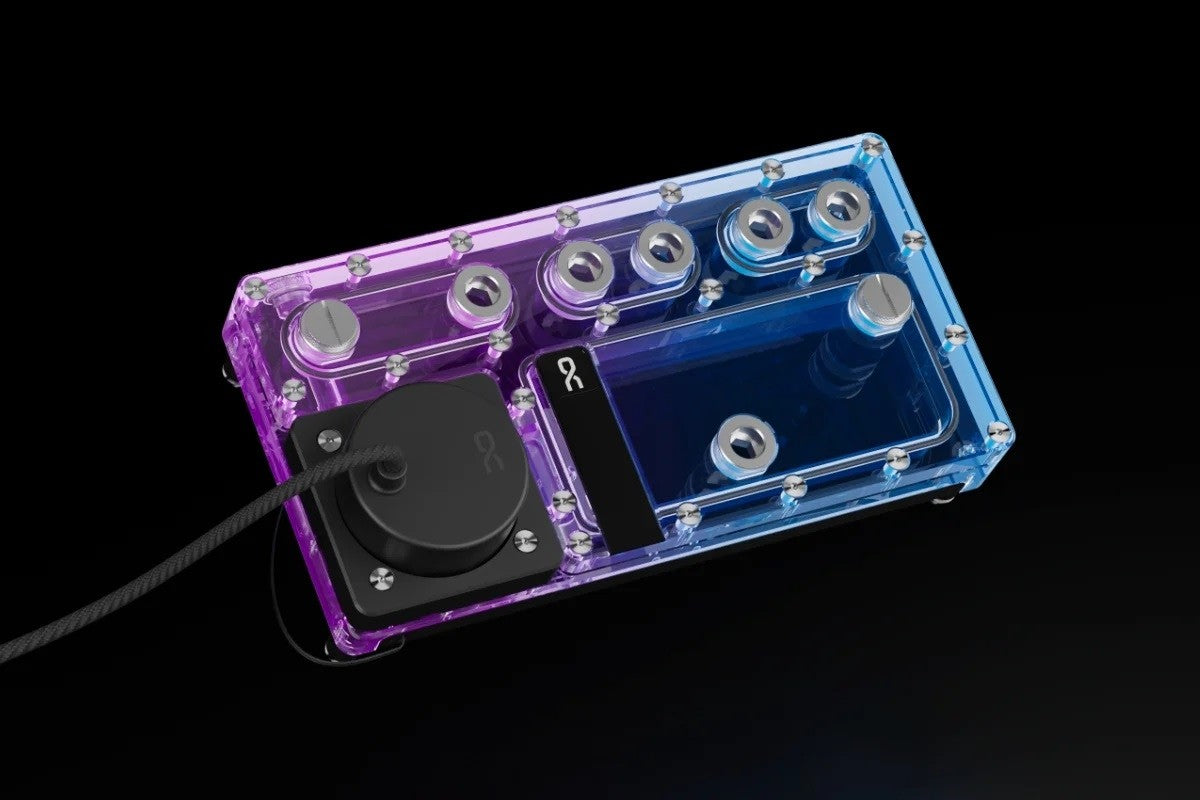

Made of high-quality acrylic glass, the Distro Plate offers a clear view of the coolant. The integrated digital aRGB lighting provides a brilliant display of colors and can be controlled via a digital aRGB header on the motherboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (part no. 15360).

Thanks to a redesigned pump bracket, either VPP/D5 or DDC pumps can be installed. The included Alphacool VPP Apex features a ceramic shaft and an optimized motor design, resulting in exceptionally quiet, low-vibration, and efficient operation. Speed control is achieved via a 4-pin PWM connector, which connects to the motherboard or an external controller. The pump is powered via a SATA connector on the power supply.

The Alphacool Core Push Mounting Kit is included. This significantly simplifies installation, ensures a secure fit of the distribution plate to the case panel or radiator, and allows for easy removal for maintenance or upgrades.

The Core Distro Plate V.2 is available in 240mm or 360mm versions, each with left or right positioning of the pump top.

Highlights at a Glance:

• Innovative Brass Fittings: Chrome-plated G1/4" threads are embedded directly into the acrylic. The two-piece counter-locking design prevents cracks and ensures maximum leak protection.

• Optimized Layout: Short tubing paths and a dedicated lateral drain port allow for a clean build and stress-free system draining.

• VPP Apex Power: The pre-installed pump offers exceptional smoothness thanks to its ceramic shaft and optimized motor. Precision control via PWM, powered safely by SATA.

• Core Push Mounting: The included kit enables tool-free mounting and removal on radiators or chassis panels – perfect for regular maintenance or upgrades.

• Stunning aRGB Lighting: 11 digital aRGB LEDs perfectly illuminate the premium acrylic glass and are fully compatible with standard motherboard controllers.

Technical Specifications:

• Dimensions (incl. pump): 240 x 125 x 62.2 mm

• Ports: 8x G1/4“ female thread | 1x Drain port

• Pump: VPP Apex (2500 - 4500 RPM, 4.25m head, 340L/h)

• Material: Premium Acrylic, Brass (Fittings)

• Lighting: 3-pin JST + 3-pin 5V (11 LEDs)

Note: Please use only with clear coolants. Pastel fluids may clog the channels and void the manufacturer's warranty.

Article no:	1025033
Manufacturer no:	13872
EAN:	4250197334372
Weight:	1,46 kg
Available:	There are still more than 5 items available

manufacturer:	Alphacool
manufacturer:	China
colour:	Transparent
voltage:	12V DC
water outlet:	G1 / 4 "female thread
water inlet:	G1 / 4 "female thread
material:	Acetal, Acrylic
