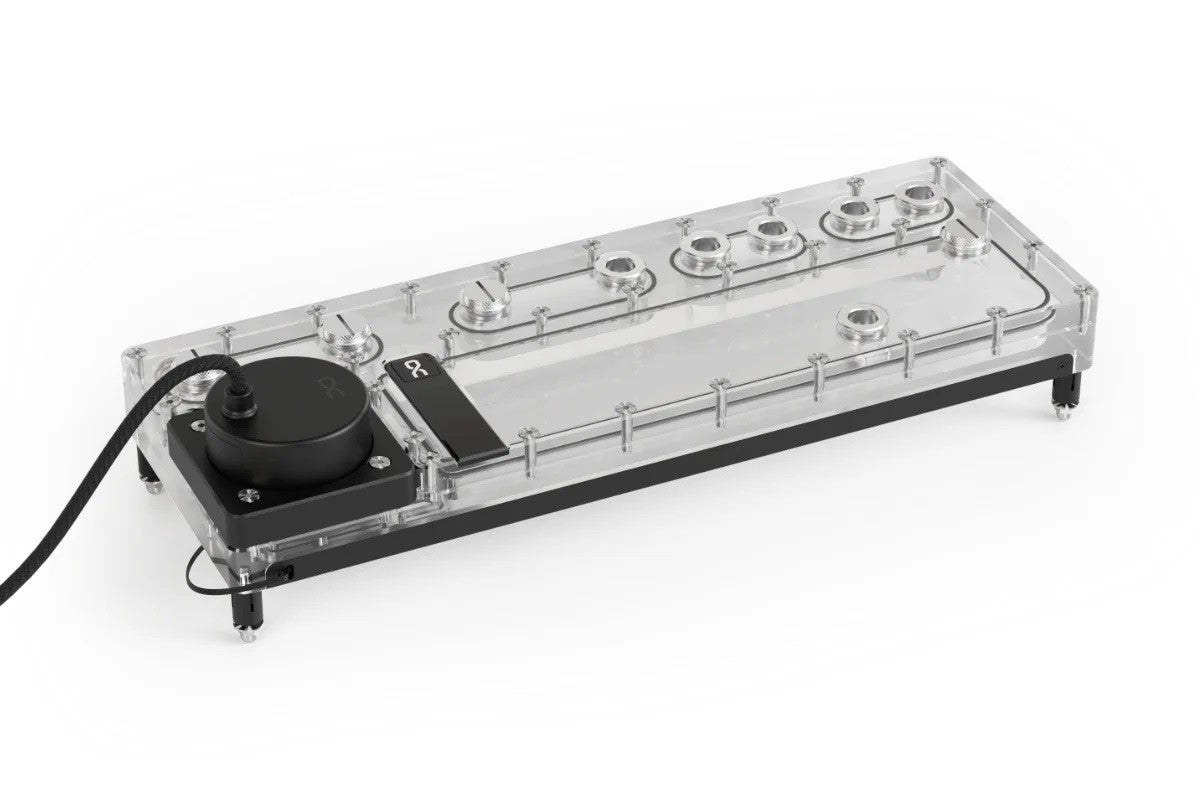

Alphacool Core Distro Plate 360 Left D5/DDC V.2 with D5 Apex Pump

The Alphacool Core Distro Plate V.2 with VPP Apex pump is the ideal solution for custom water cooling systems. The redesigned platform offers significantly greater installation flexibility and simplifies the planning, assembly, and maintenance of even complex water loops.

The core element of the Core Design series is the chrome-plated G1/4" brass fittings. On the Core Distro Plate V.2, these are directly embedded in the acrylic, effectively eliminating the risk of leaks caused by cracking. The two-piece fittings, equipped with O-rings, interlock within the acrylic, ensuring maximum sealing and a clean, high-quality appearance.

Thanks to its reduced depth and optimized G1/4" fitting arrangement, the Distro Plate allows for particularly short and clean tubing runs. A side drain port also enables easy and controlled draining of the loop. This makes the Core Distro Plate V.2 ideal for custom water loops that simultaneously cool the CPU and one or more graphics cards.

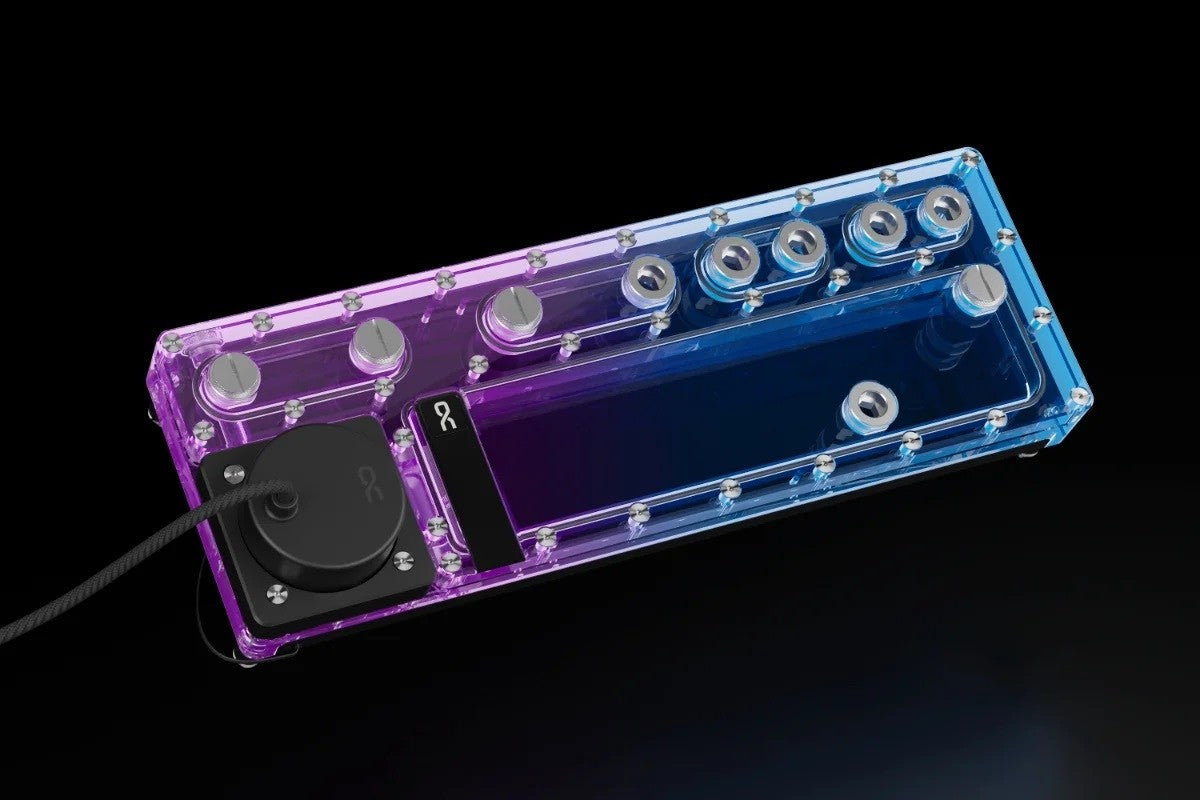

Made of high-quality acrylic glass, the Distro Plate offers a clear view of the coolant. The integrated digital aRGB lighting provides a brilliant display of colors and can be controlled via a digital aRGB header on the motherboard or optionally via the Alphacool Aurora Eiscontrol aRGB controller (part no. 15360).

Thanks to a redesigned pump bracket, either VPP/D5 or DDC pumps can be installed. The included Alphacool VPP Apex features a ceramic shaft and an optimized motor design, resulting in exceptionally quiet, low-vibration, and efficient operation. Speed control is achieved via a 4-pin PWM connector, which connects to the motherboard or an external controller. The pump is powered via a SATA connector on the power supply.

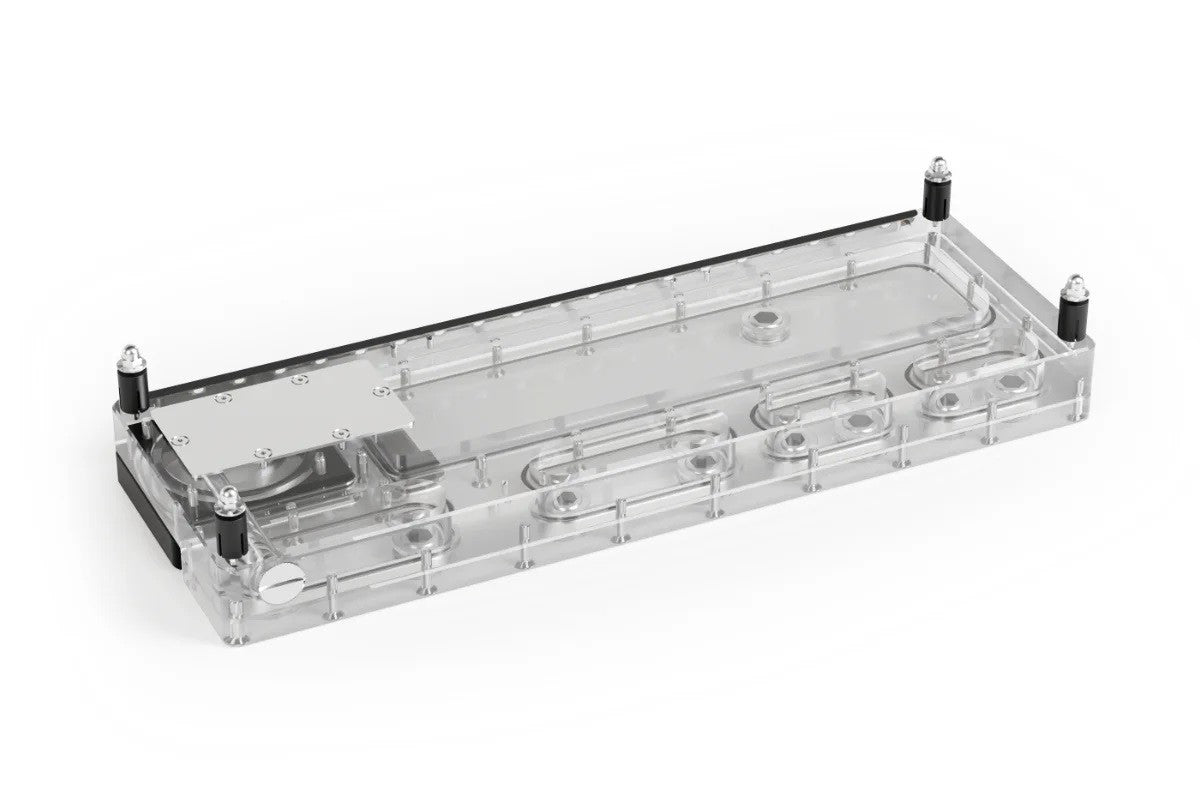

The Alphacool Core Push Mounting Kit is included. This significantly simplifies installation, ensures a secure fit of the distribution plate to the case panel or radiator, and allows for easy removal for maintenance or upgrades.

The Core Distro Plate V.2 is available in 240mm or 360mm versions, each with left or right positioning of the pump top.

Highlights at a Glance:

• Innovative Brass Fittings: Chrome-plated G1/4" threads are embedded directly into the acrylic and counter-locked. This prevents cracking and ensures maximum leak protection.

• Optimized Layout: Slim design and 10 strategically placed ports allow for exceptionally short and clean tubing paths.

• VPP Apex Performance: The high-efficiency pump with a ceramic shaft operates with low vibration and features precise PWM control.

• Core Push Mounting: The included kit enables tool-free installation on radiators or chassis panels and quick removal for maintenance.

• Stunning aRGB Lighting: 19 digital aRGB LEDs perfectly illuminate the premium acrylic glass.

• Easy Maintenance: A dedicated lateral drain port allows for controlled and easy draining of the entire loop.

Technical Specifications:

• Dimensions (L x W x H): 360 x 125 x 34.5 mm (without pump)

• Ports: 10x G1/4“ female thread | 1x Drain port

• Volume: 190 ml

• Pump: VPP Apex (2500 - 4500 RPM, 4.25m head)

• Material: Acrylic, Brass (Fittings)

Important Note: Use only with clear, transparent coolants. Pastel fluids may damage components and void the 3-year warranty.

Article no:	1025036
Manufacturer no:	13875
EAN:	4250197138758
Weight:	2,1 kg
Available:	There are more than 10 units available

manufacturer:	Alphacool
manufacturer:	China
colour:	Transparent
water outlet:	G1 / 4 "female thread
water inlet:	G1 / 4 "female thread
material:	Acetal, Acrylic
voltage:	12V DC
