Features:

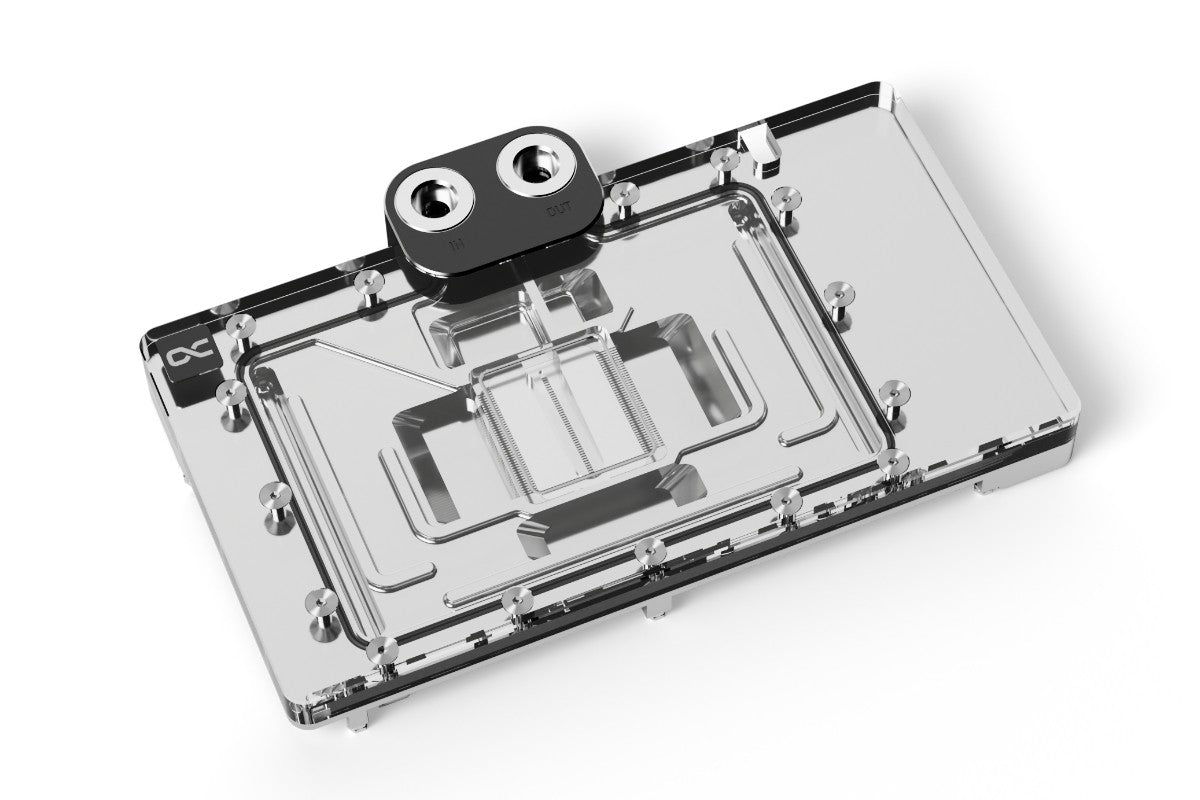

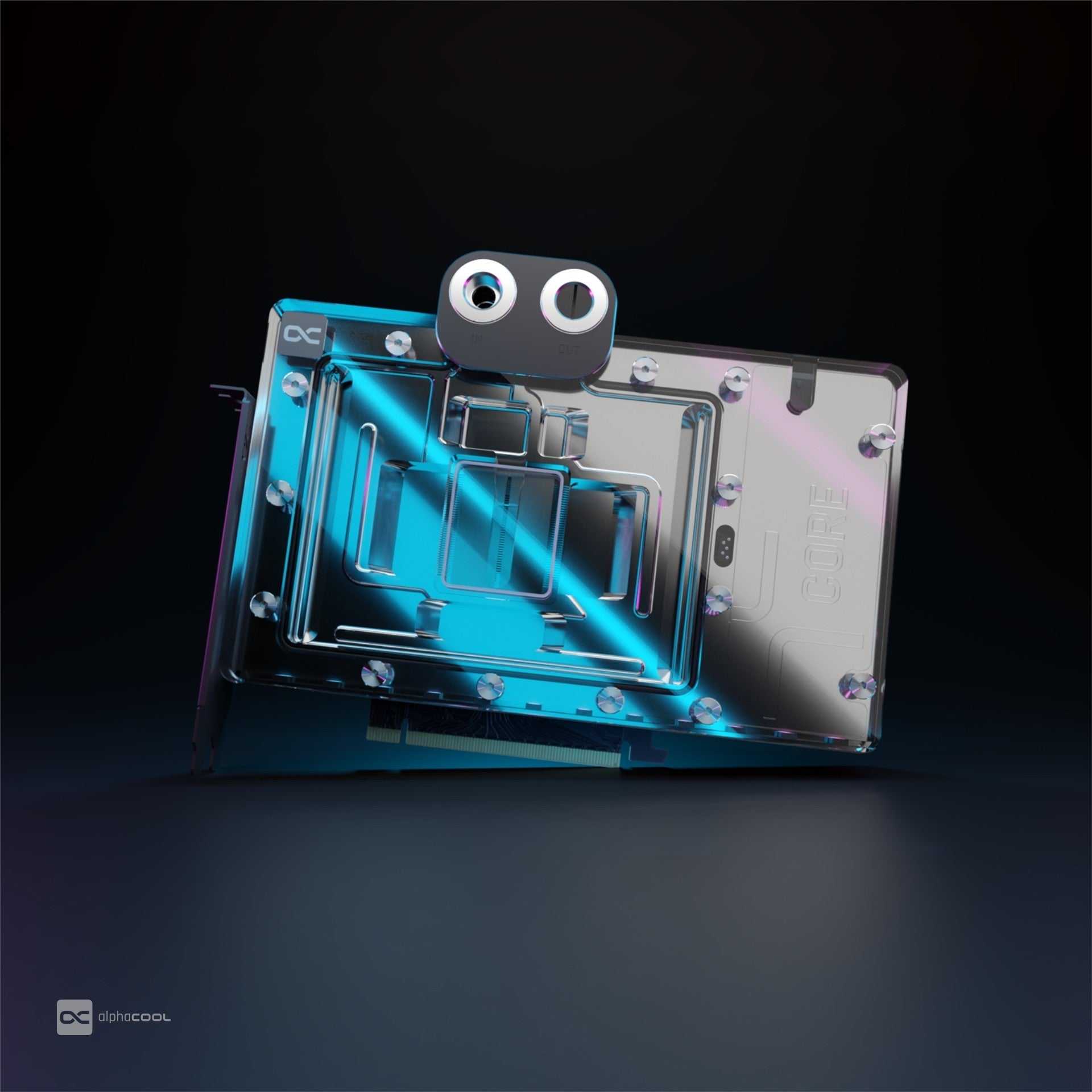

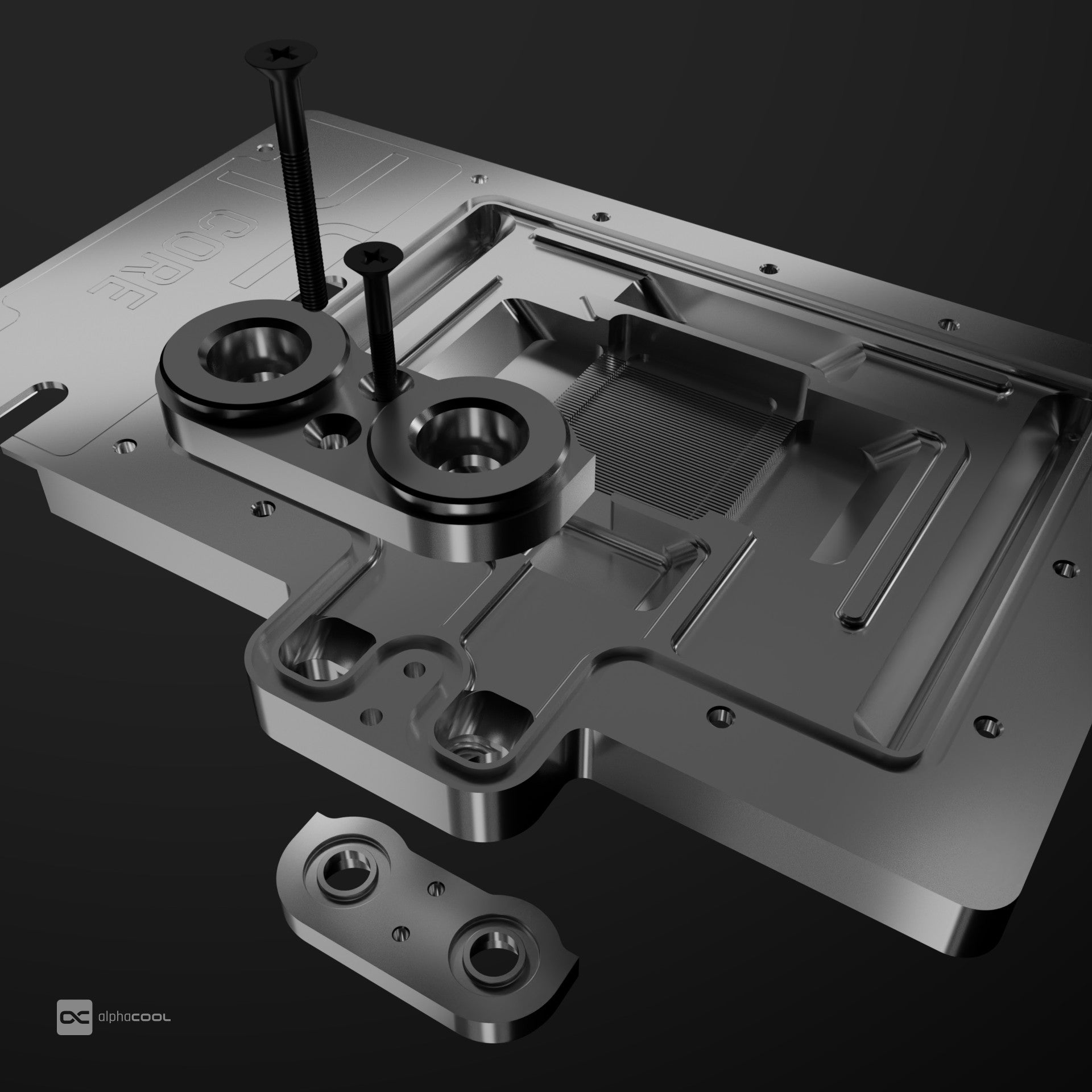

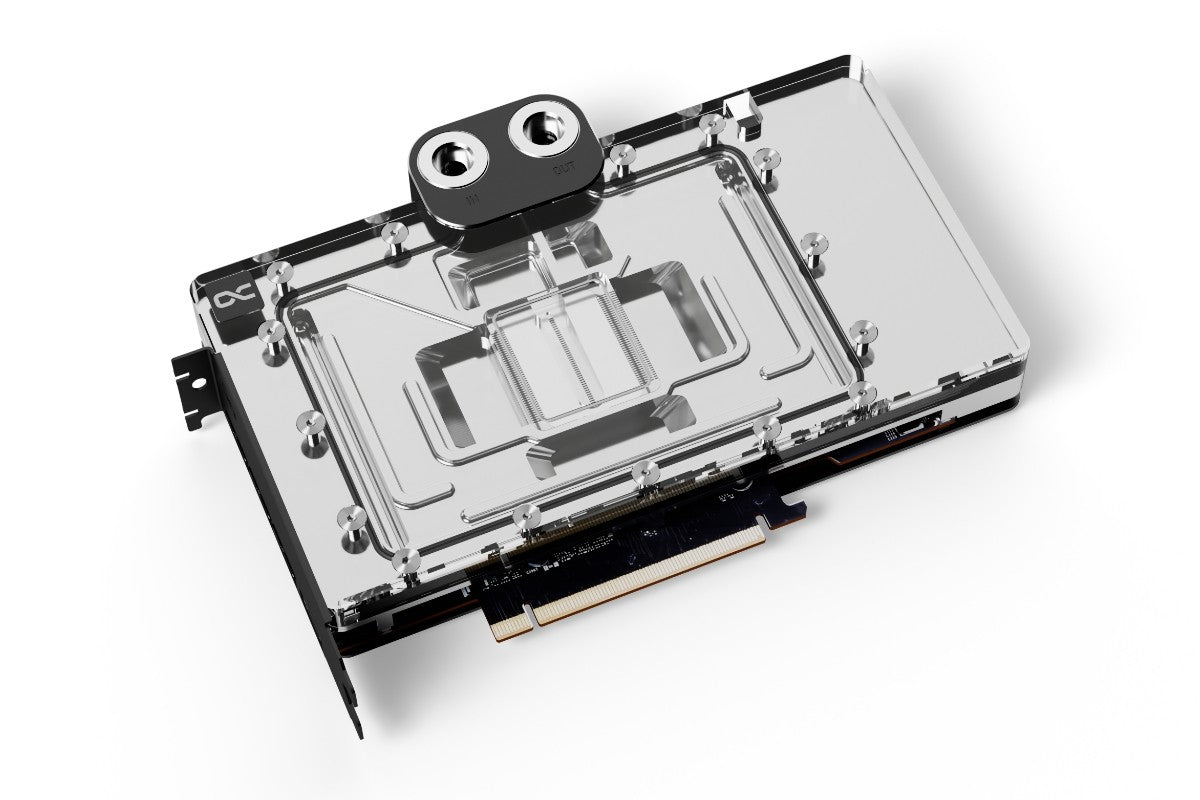

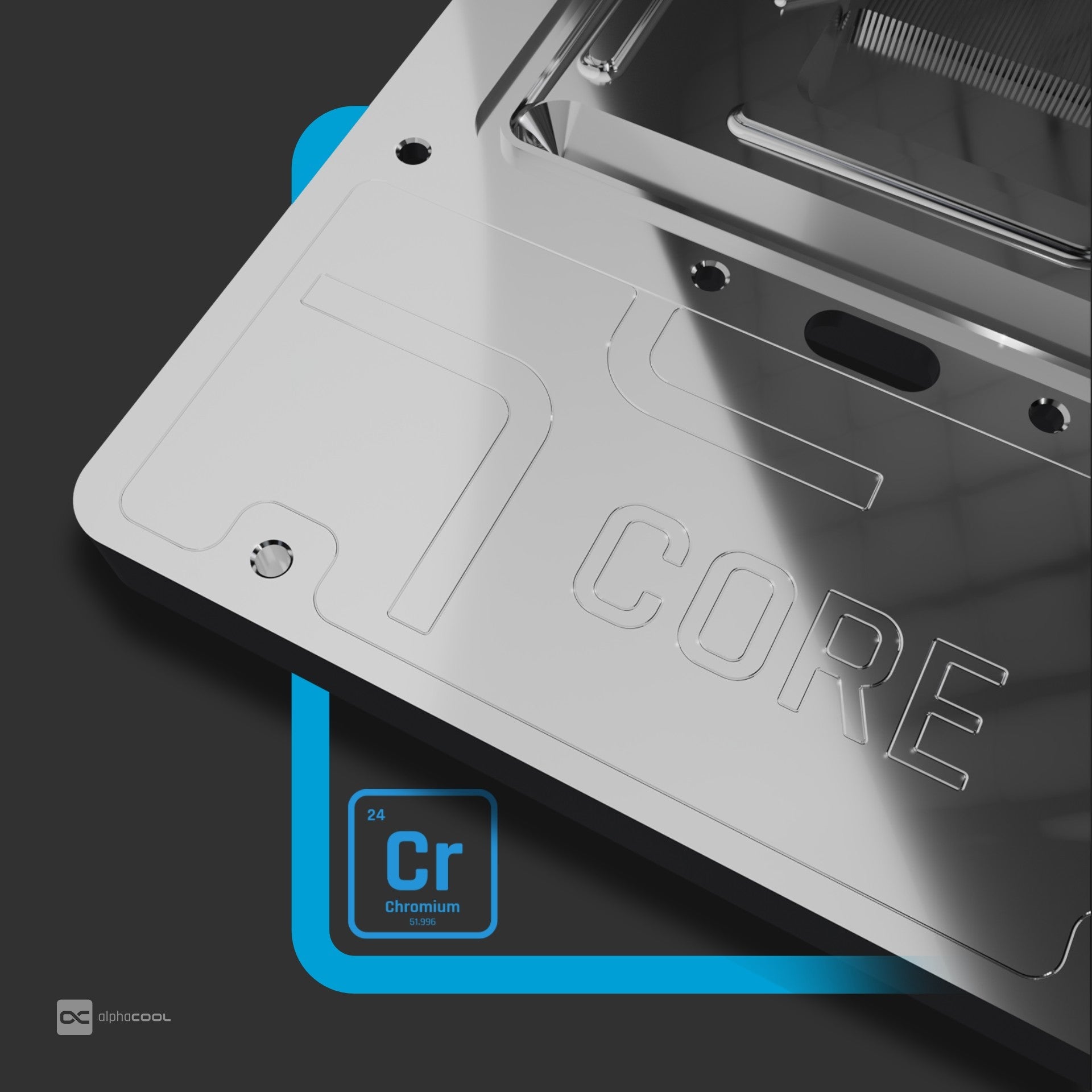

The copper cooler which, like the end terminal, is milled from a single piece of copper and is the core of this cooler. The fine workmanship, paired with the hard and resistant chrome plating covering the entire copper cooler, meet the highest quality standards. The chrome-plated brass G1/4 threads integrated on both sides stand out visually from the terminal. They are a central feature of the new design language that will be evident in all products in the Core series.

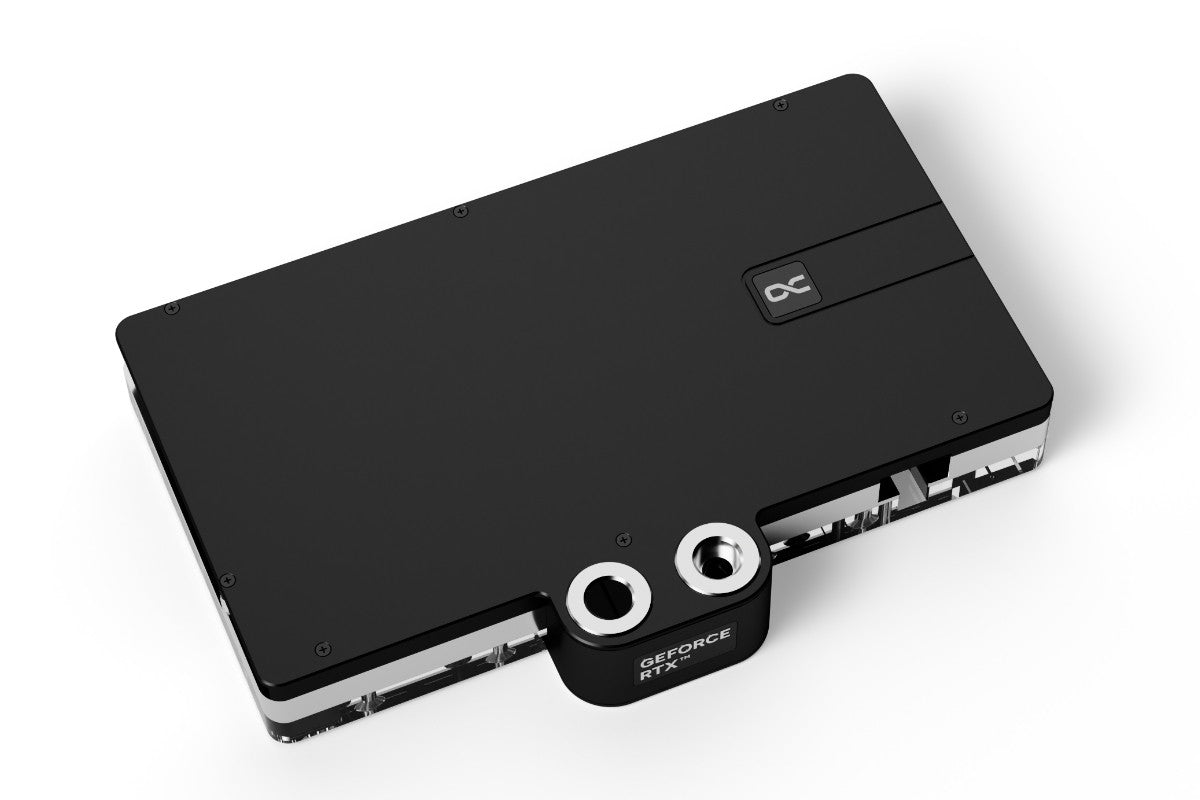

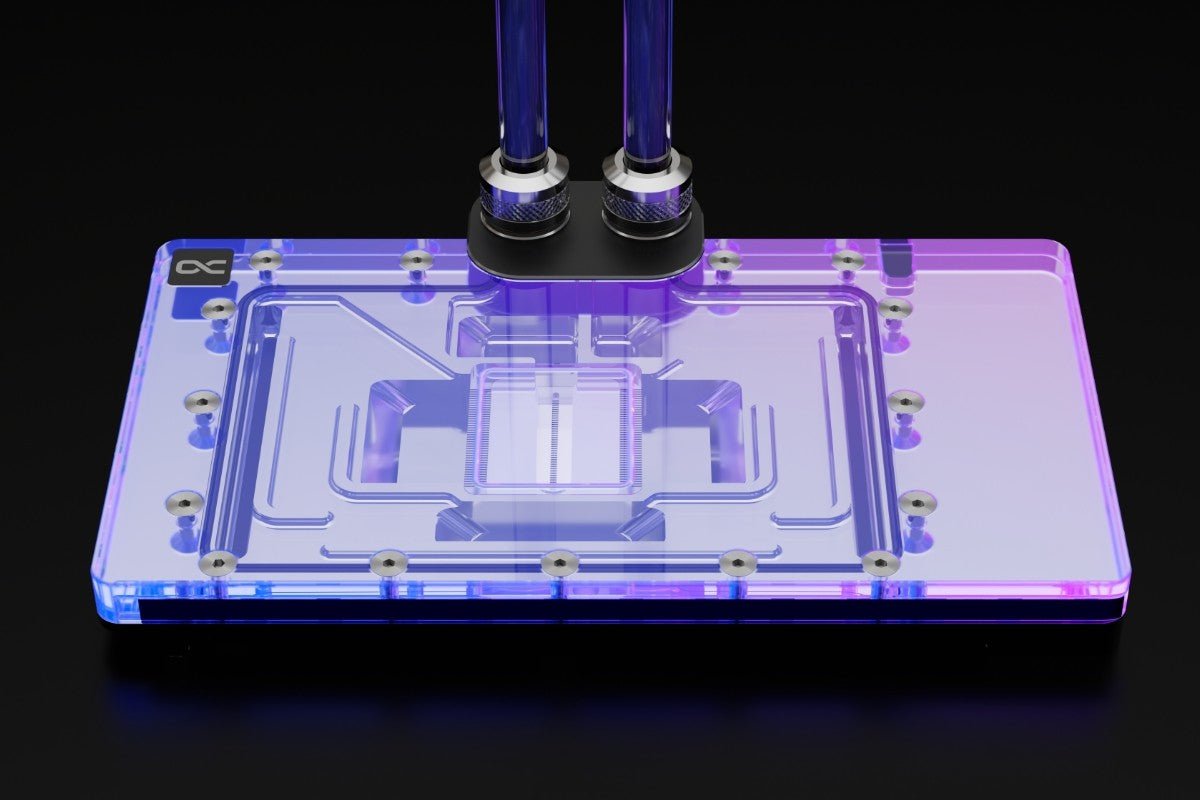

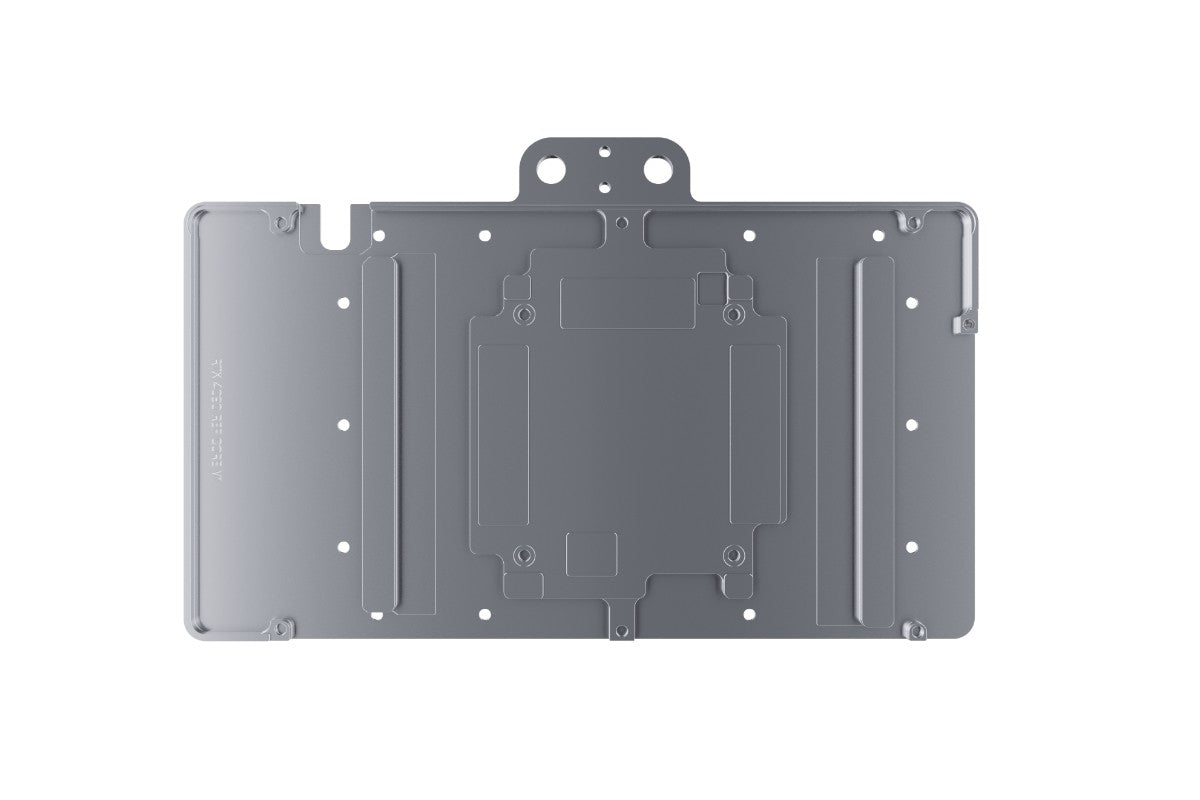

The aluminum backplate adapted to the design, together with the terminal, makes up the entire unit and enhances the back of the cooler with a clean and homogeneous look. The lighting consists of digitally addressable RGB LEDs, which illuminate the entire cooler evenly and effectively.
The technical advancements can be seen in the water supply to the jet plate as well as in the optimization of the jet plate itself. The jet plate has been completely redesigned based on many simulations and practical tests in cooperation with board partners. The fin thickness and spacing have been enhanced, the cooling surface has been increased and the water flow to the core components with the greatest heat output has been optimized. The enclosed special soft thermal pads with up to 7 W/mK adapt perfectly to even the smallest tolerances.
Important note:The RTX 4090 Core Reference cooler is not compatible with Nvidia's Geforce RTX 4090 Founders Edition. The RTX 4090 FE is compatible with the following cooler: Alphacool Core Geforce RTX 4090 Founders Edition with Backplate (Art. 13470).
Compatibility:
Attention: Please note that a part of the PCB is not covered from the water block
Attention: Unfortunately Inno3D is using two different PCB Layouts. Please check your serial number. If it looks like following, it is not compatible with our water blocks: 32-879-xxxx8xxxx
_________________________________
- Inno3D GeForce RTX 4090 iCHILL Black, 24GB GDDR6X (C4090-246XX-18330005)
- Inno3D GeForce RTX 4090 iCHILL Frostbite, 24GB GDDR6X (C4090-246XX-1833FB)
- Inno3D GeForce RTX 4090 iCHILL X3, 24GB GDDR6X (C40903-246XX-1833VA47)
- Inno3D GeForce RTX 4090 X3 OC, 24GB GDDR6X (N40903-246XX-18332989)
- KFA² GeForce RTX 4090 SG (1-Click OC), 24GB GDDR6X (49NXM5MD6DSK)
- PNY GeForce RTX 4090 XLR8 Gaming Verto Epic-X RGB Overclocked Triple Fan, 24GB GDDR6X (VCG409024TFXXPB1-O)
- PNY GeForce RTX 4090 XLR8 Gaming Verto Epic-X RGB Triple Fan, 24GB GDDR6X (VCG409024TFXXPB1)
