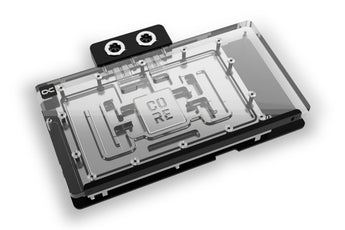

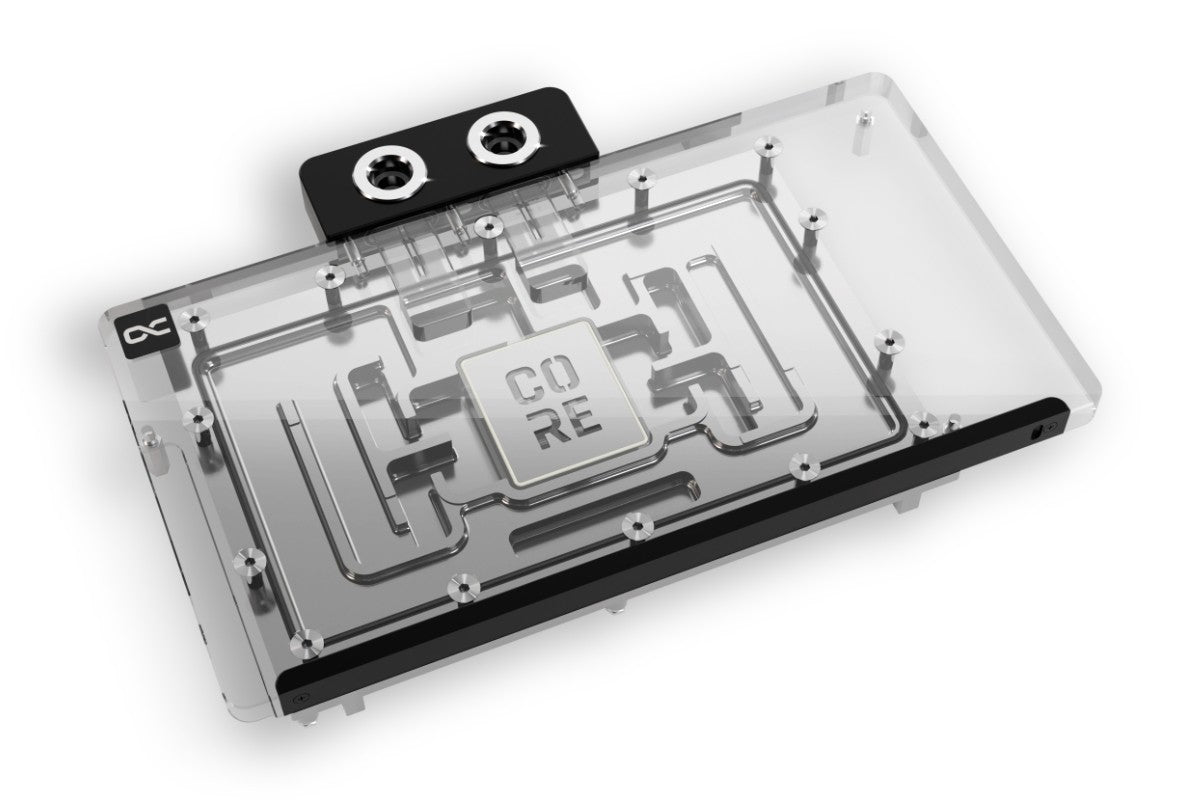

Alphacool Core Geforce RTX 5090 Gaming + Windforce with Backplate

Alphacool introduces its new series of graphics card water coolers for the latest Nvidia GeForce RTX generation. Part of the Core product series, these coolers combine the highest quality with exceptional performance. Thanks to an optimized technical design, these GPU coolers deliver outstanding cooling performance.

Compatibility:

- Gigabyte AORUS GeForce RTX 5090 MASTER 32G (GV-N5090AORUS M-32GD)

- Gigabyte GeForce RTX 5090 GAMING OC 32G (GV-N5090GAMING OC-32GD)

- Gigabyte GeForce RTX™ 5090 WINDFORCE OC 32G (GV-N5090WF3OC-32GD)

Technical data cooler
Dimensions total (L x W x H)	237,50 x 157,07 x 34,20mm
Material cooler	chrome-plated copper
Material cooler top	Acrylic
Material terminal	Nylon
Material Connection thread	Brass
Max working temperature	60°C
Pressure tested	0,8 bar
Threads	4 x G1/4"
Thickness cooler bottom	3,25mm
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	11
Color	transparent

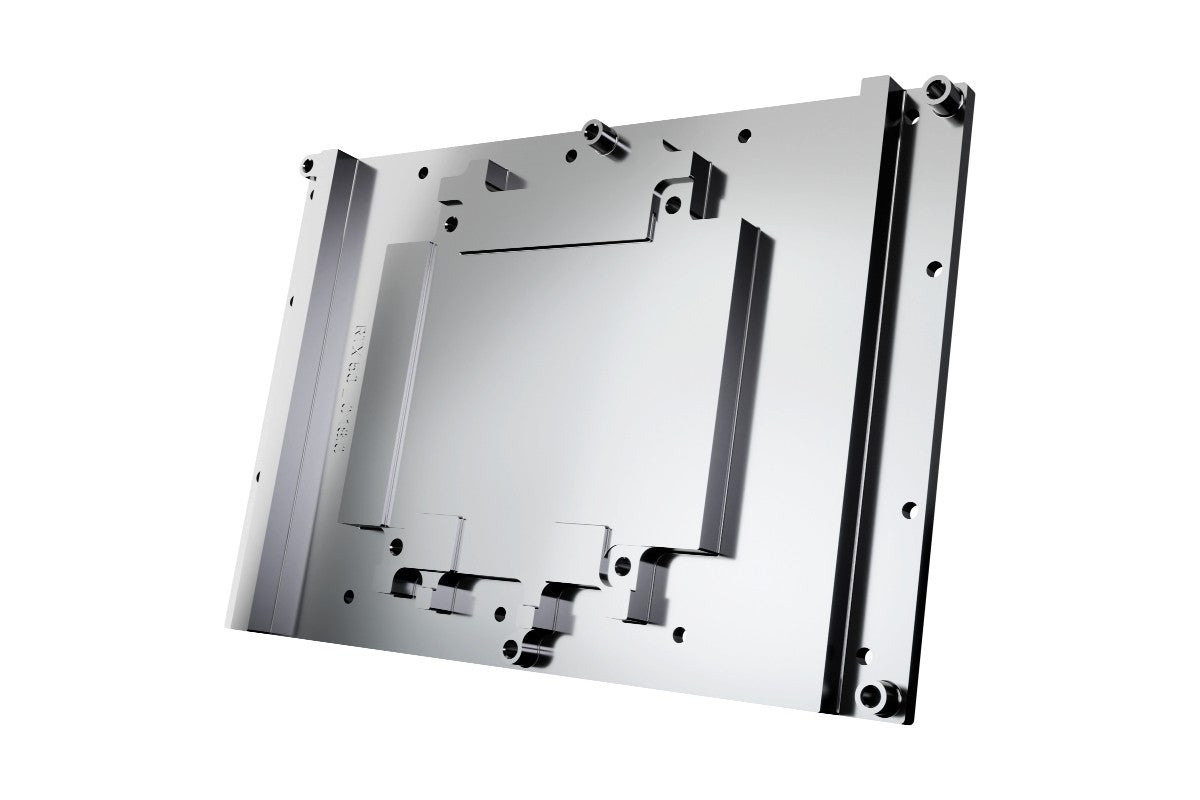

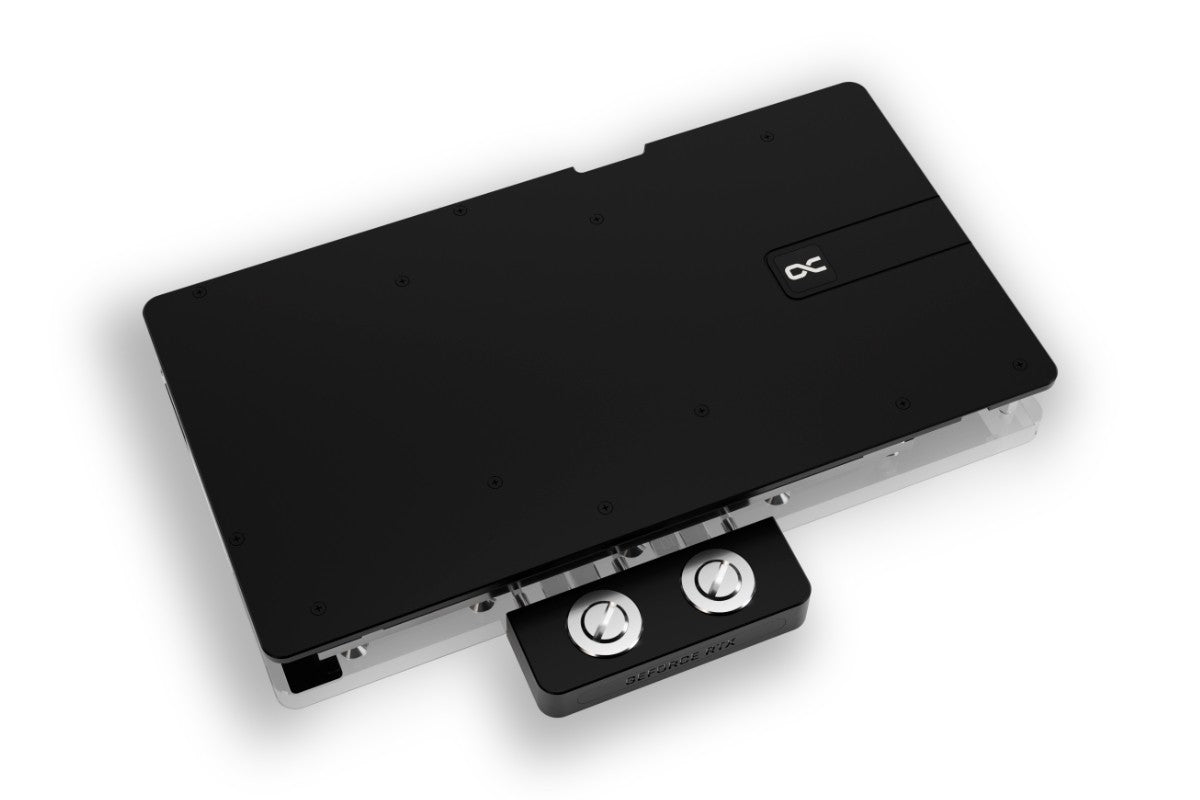

Technical data backplate
Dimensions (L x W x H)	237,50 x 128,50 x 6mm
Thick backplate without spacers	3mm
Material	Aluminum
