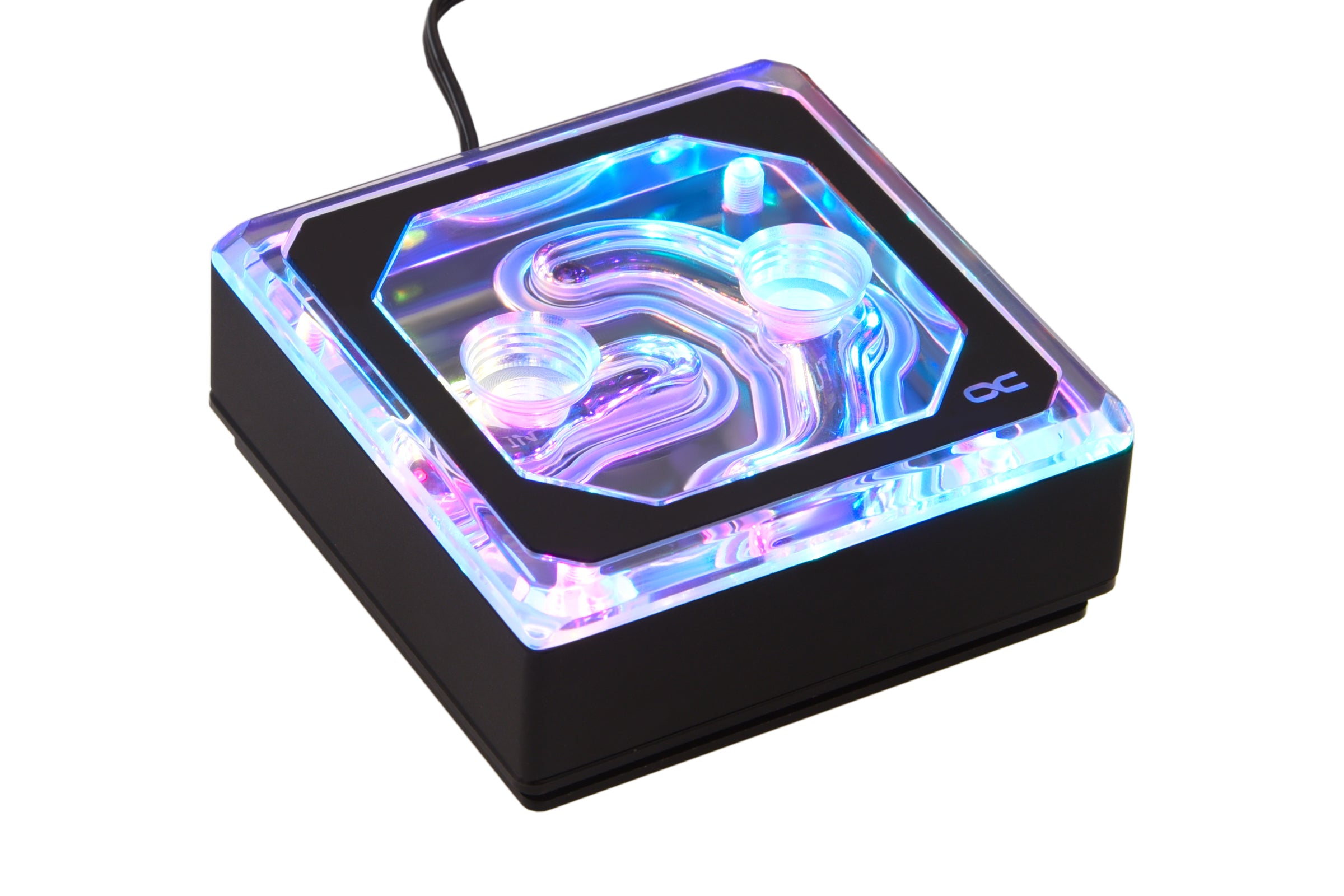

Eisblock XPX Aurora Edge CPU Cooler
Alphacool's Eisblock XPX Aurora Edge CPU water cooler offers the highest performance and impresses with its outstanding quality. The patented
ramp system ensures optimal water flow within the cooler as water is forced evenly through the jet plate. 81 cooling fins are distributed on the CPU
cooler base, occupying an area of 34 x 32mm and thus accommodating the ever-growing CPU DIEs. The Aurora design in combination with the 15
addressable digital aRGB LEDs provides many options for outstanding CPU water cooler illumination. The included mounting hardware makes the
CPU cooler compatible with popular mainstream sockets from AMD and Intel.

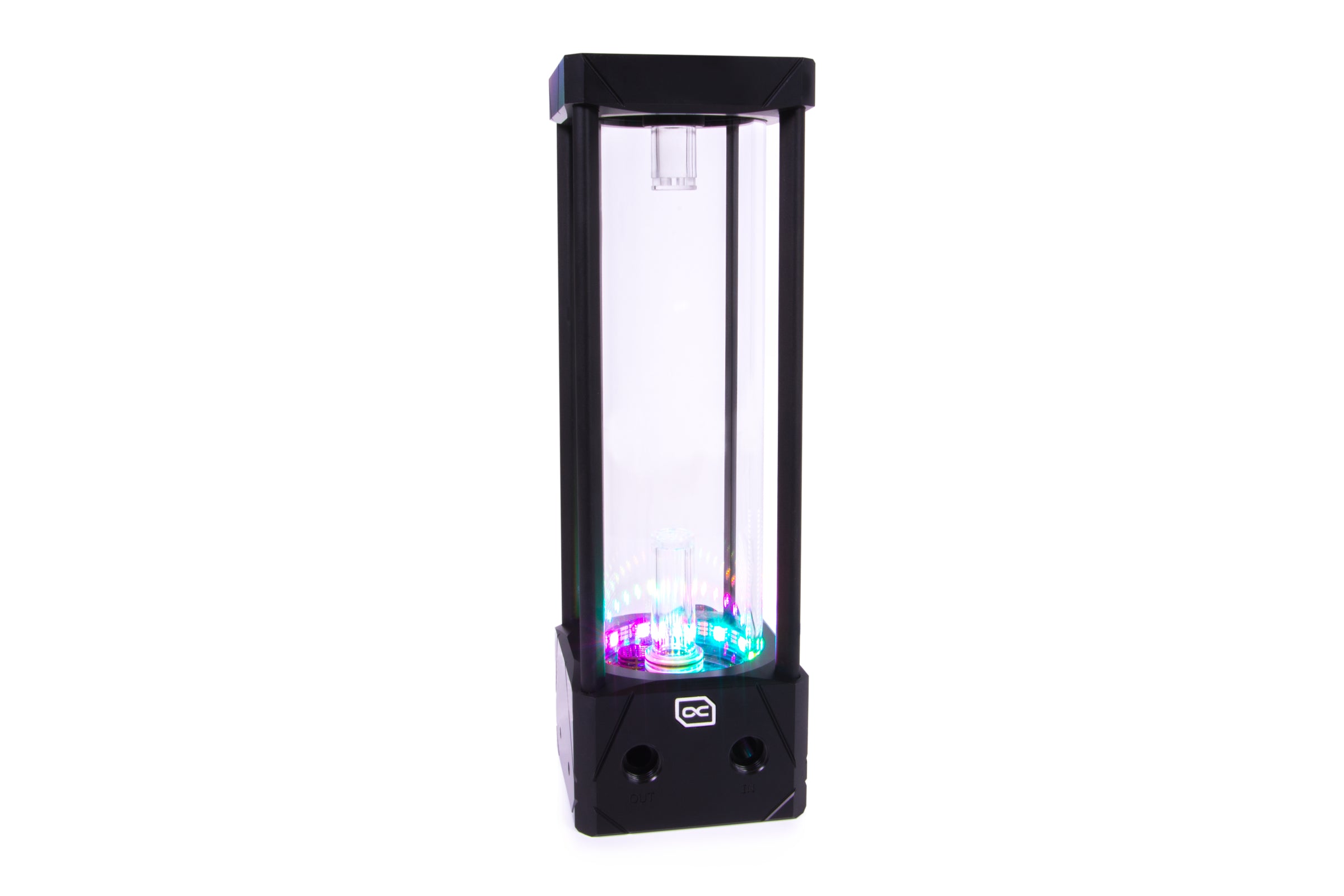

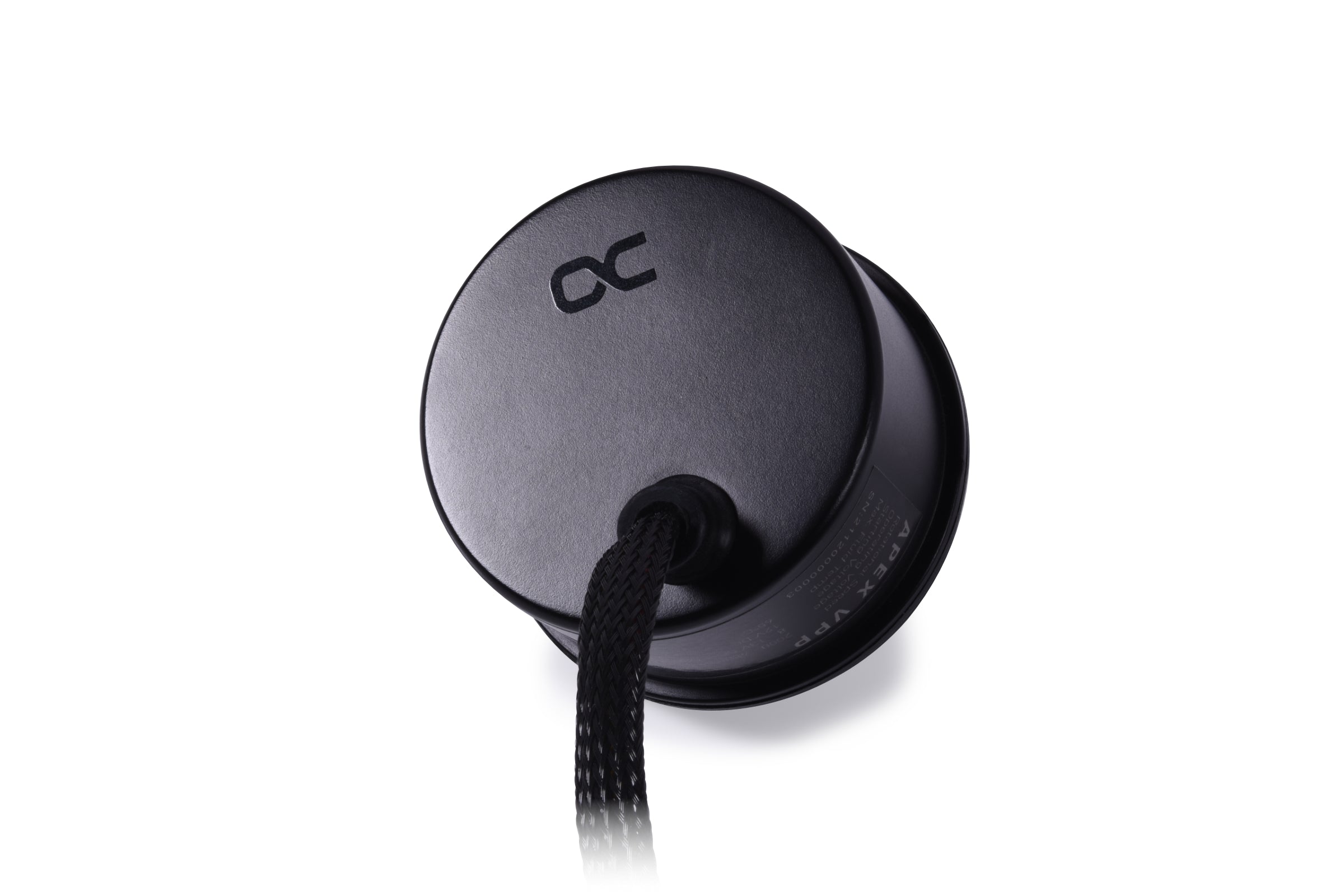

Eisbecher Aurora D5 250mm & VPP Apex Pump
The Alphacool Eisbecher Aurora glass reservoir uses a real glass tube rather than the usual plastic tube that Alphacool usually relies on. The
embedded 5V digital RGB LED ring and the new design makes the reservoir look magnificent. Of course, the Lighttower water effect is used again. The
mounting can be done via feet but also mounted on 120 or 140mm fan mounts or even directly to a radiator. The Apex VPP is a powerful pump that is
compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM
signal. The Apex VPP is supplied with power via the SATA connector.

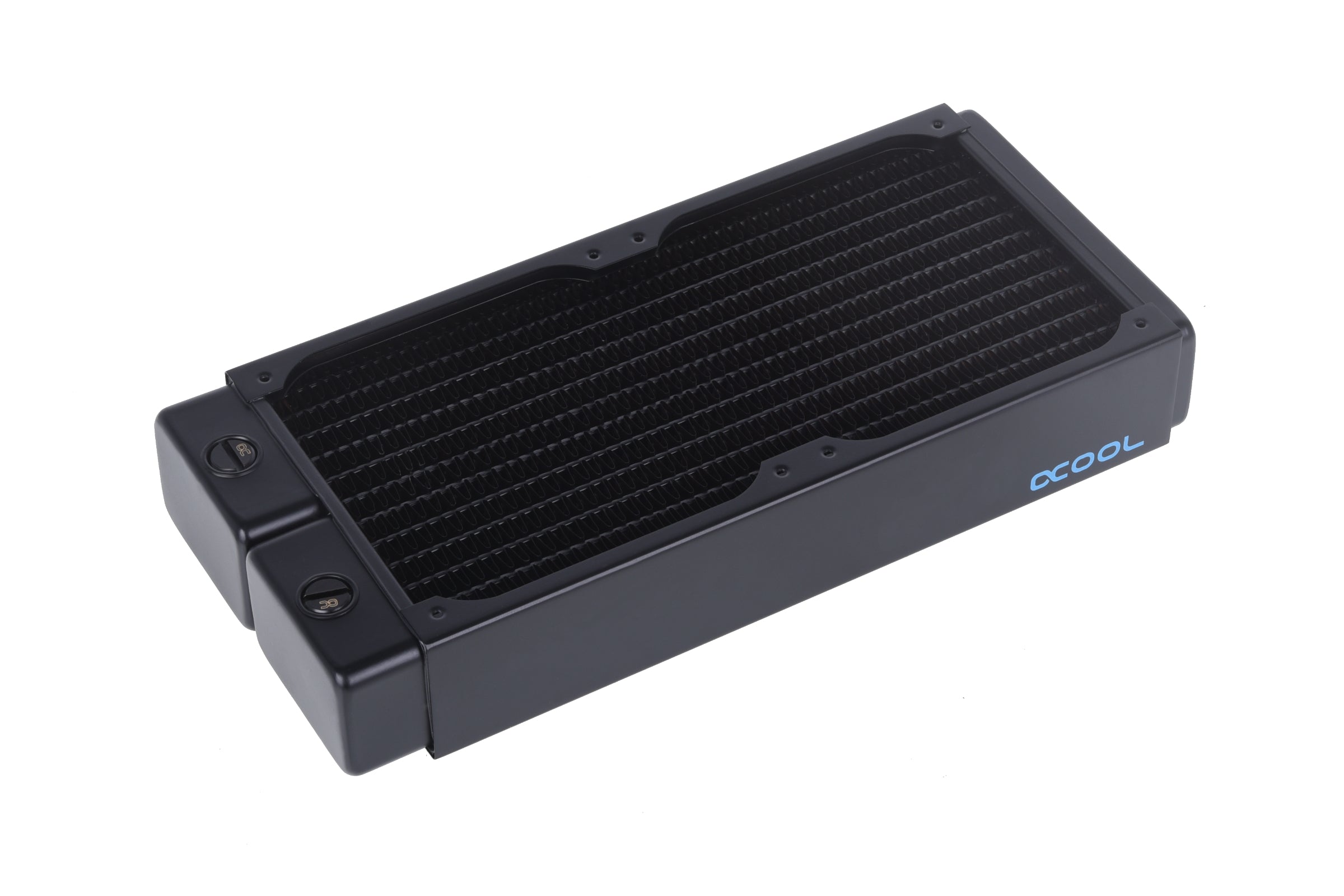

NexXxoS XT45 Full Copper 240mm Radiator V.2
All water-bearing parts and the cooling fins are made of pure copper. Thus, the NexXxoS XT45 achieves the highest thermal conductivity value of all
radiators on the market and can easily dissipate extremely high waste heat. The radiator has two IN or OUT connections with G1/4 threads in the prechamber area. On the opposite side is a fill or vent port, which can be used to fill and drain the water loop.

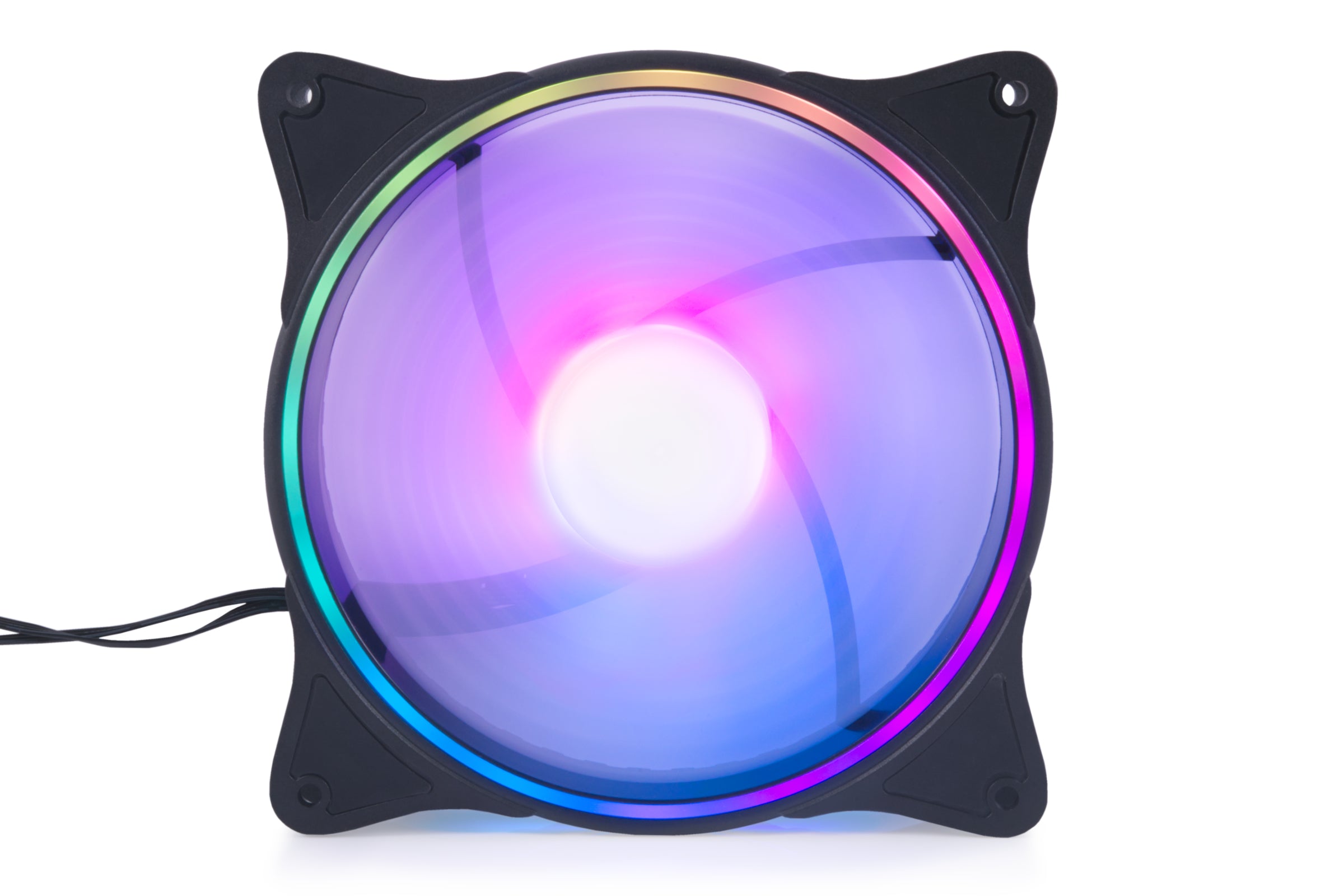

Rise Aurora 120mm fans
The fans can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9
m3/h) coupled with high static pressure (3.17mm/H2O). In addition to a wide control range, the Rise fan also offers superior digital aRGB lighting. The
frame and hub feature 20 digitally addressable 5V RGB LEDs that illuminate the entire fan.

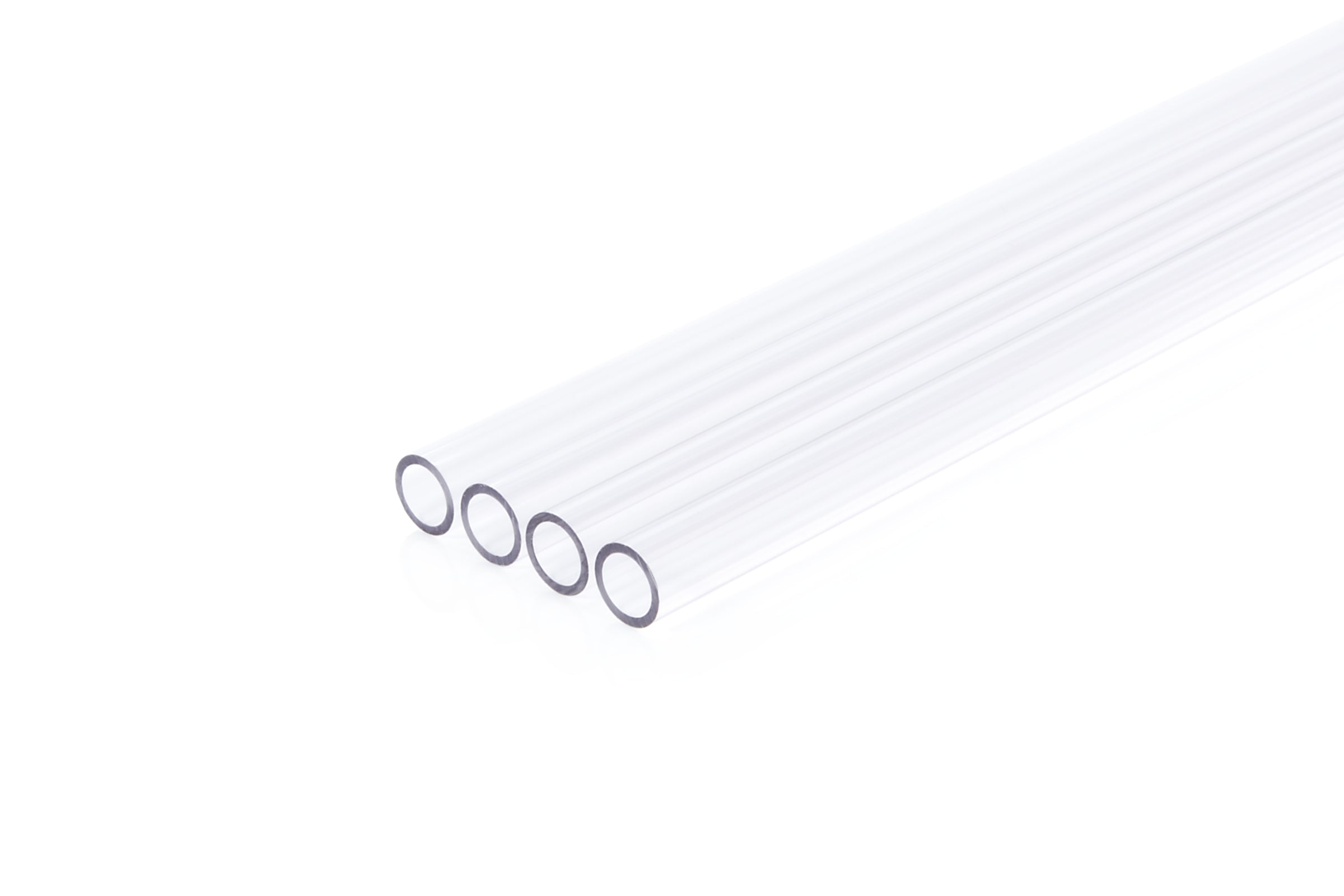

Eisrohr 16/13mm PETG HardTube
The Alphacool Eisrohr PETG HardTube givse the user the possibility to create a very special look. With a wall thickness of 3 mm, the tubes are very
strong, but can still be bent without great effort and they are easy to fit. The HardTubes are clear and will look great in almost every water cooling
loop. When cutting the tubes, make sure to chamfer the edges with fine file or a hose deburrer, as sharp edges can damage the O-rings of fittings.

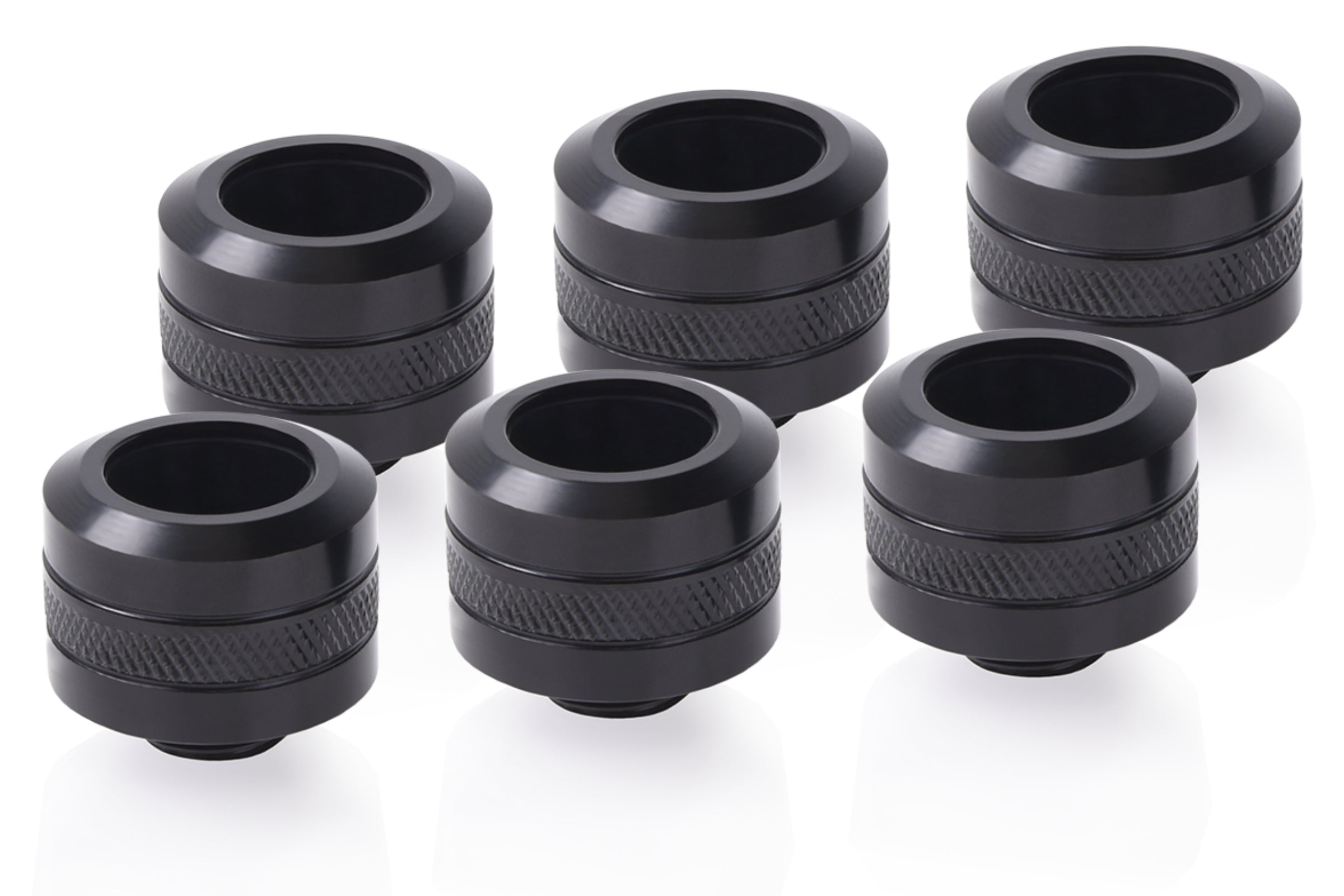

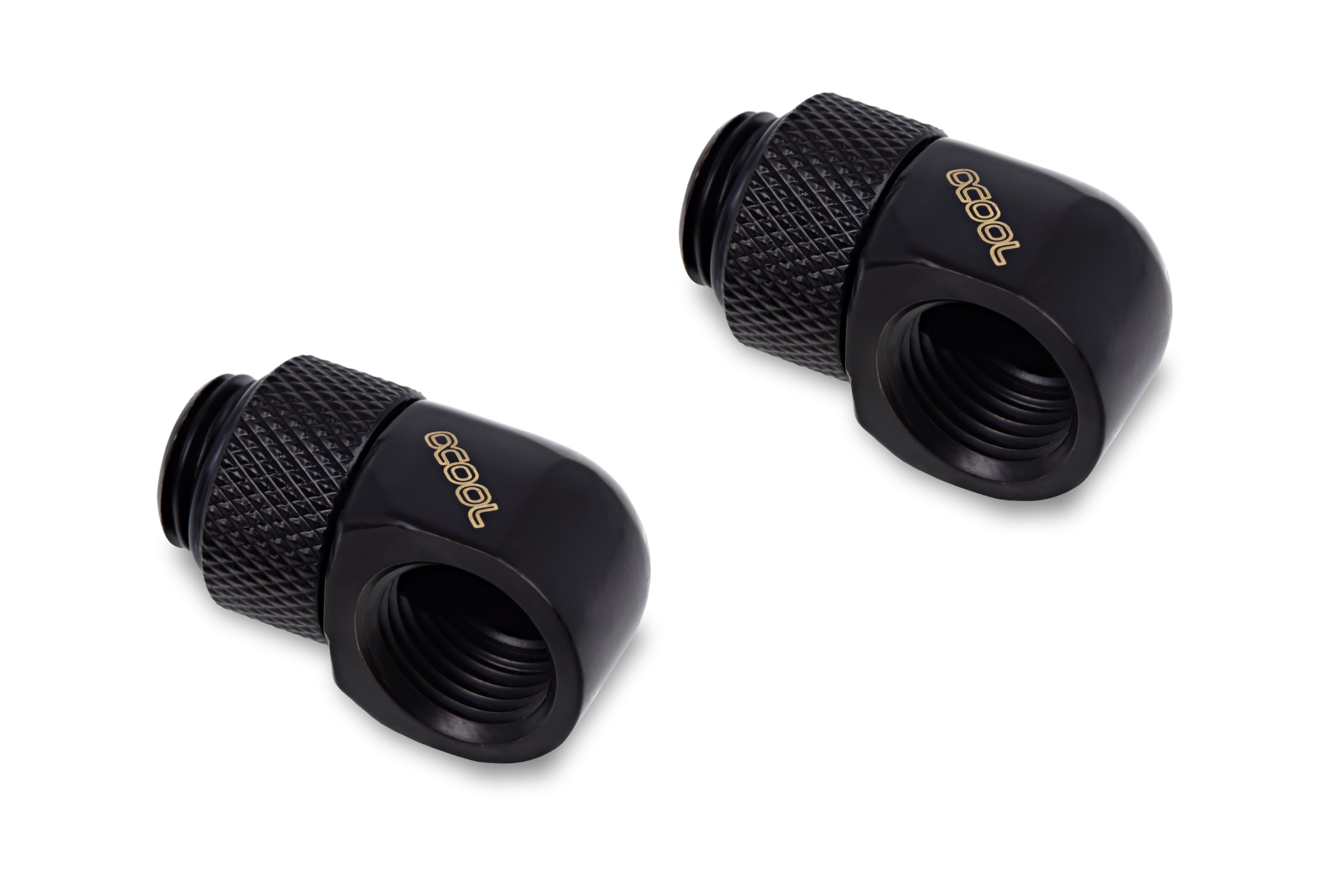

Eiszapfen 16/13mm G1/4 Connections
All the requirements for a connection are met here: Highflow, shape, machining and coloring. Special manufacturing processes firmly bond the coating
to the substrate. This increases the longevity of the color and prevents the coating from flaking off.

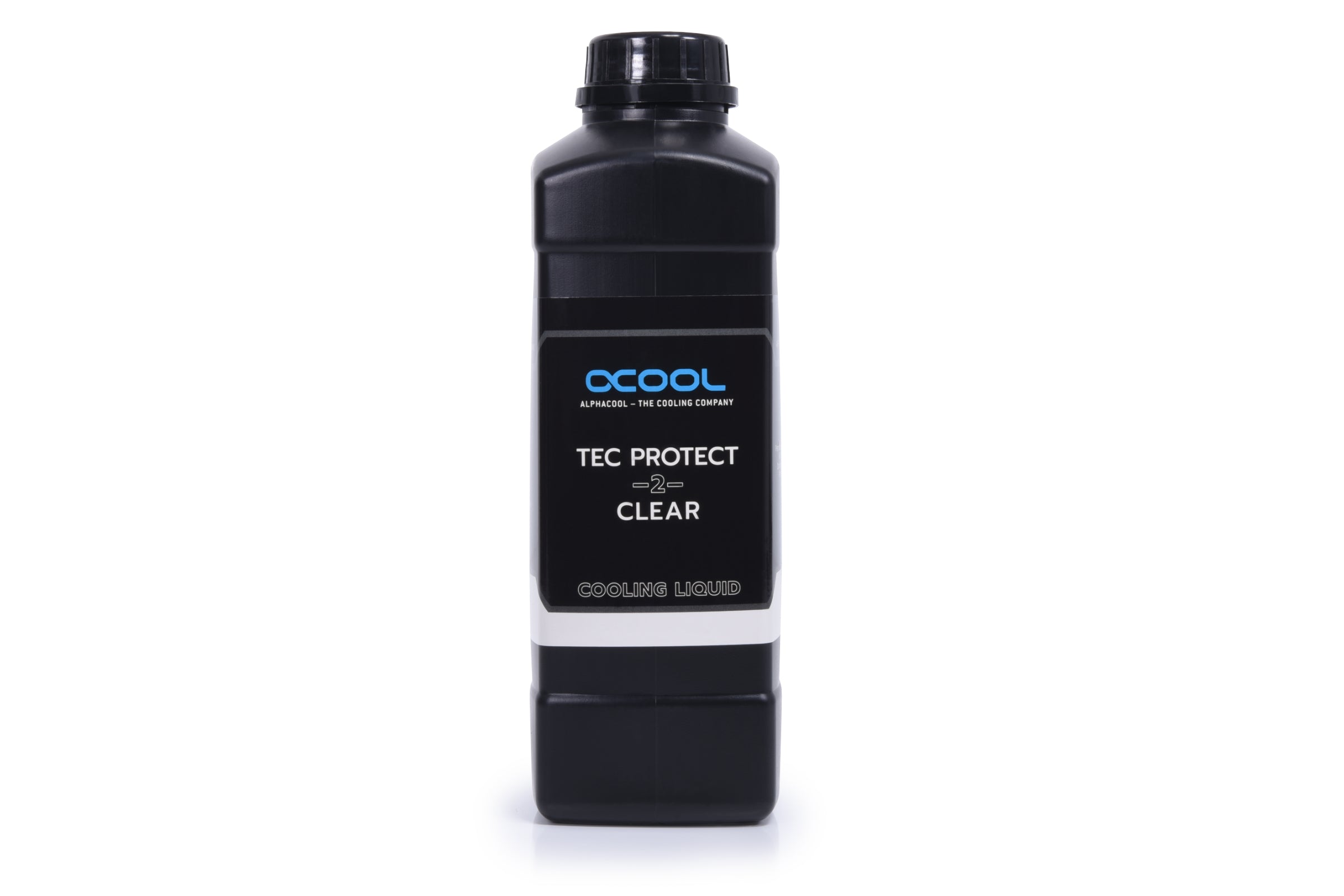

Thermal Paste & Coolant
The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive Thermal Grease is
particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Tec Protect 2 Clear in the 1
liter bottle is used as the coolant. Tec Protect 2 Clear is a ready-to-use mixture that already contains all the necessary additives and can be used
straight from the bottle.
aRGB Controller, Cables, Tools & Accessories
All cables (aRGB, PWM) and controllers needed to use & control the pump, fan and aRGB lighting are included. The accessory package also includes
important tools like filling bottle, deburrer and pit saw. Thus, the construction of the custom loop can be started out-of-the-box immediately
Â
Compatibility
Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5
Â

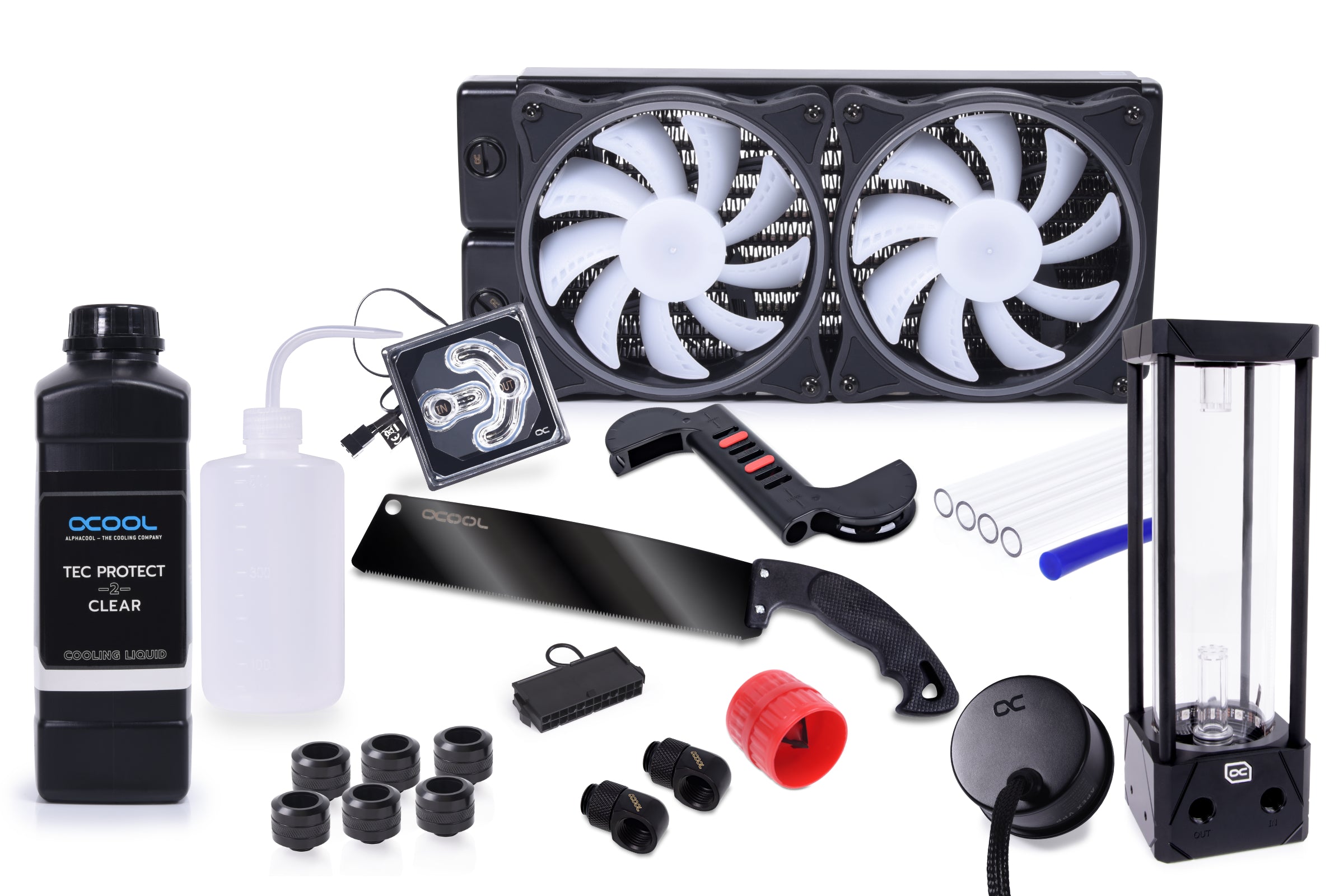

Scope of delivery
1x Eisblock XPX Aurora Edge CPU Cooler
6x Fitting Eiszapfen Pro 16mm G1/4
2x Fitting Eiszapfen L - Connector G1/4
1x Eisbecher Aurora D5 Acetal/Glas - 250mm
1x VPP Apex pump
1x aRGB Controller Aurora Eiscontrol
2x Digital RGB LED Y-splitter 3-times cable
1x PWM to 2x PWM connector cable
1x ATX 24-pin jumper plug
1x NexXxoS XT45 Full Copper 240mm Radiator V.2
2x Rise Aurora 120mm Fan (120x120x25mm)
1x HardTube Eisrohr 16/13mm PETG 60cm - 4pcs

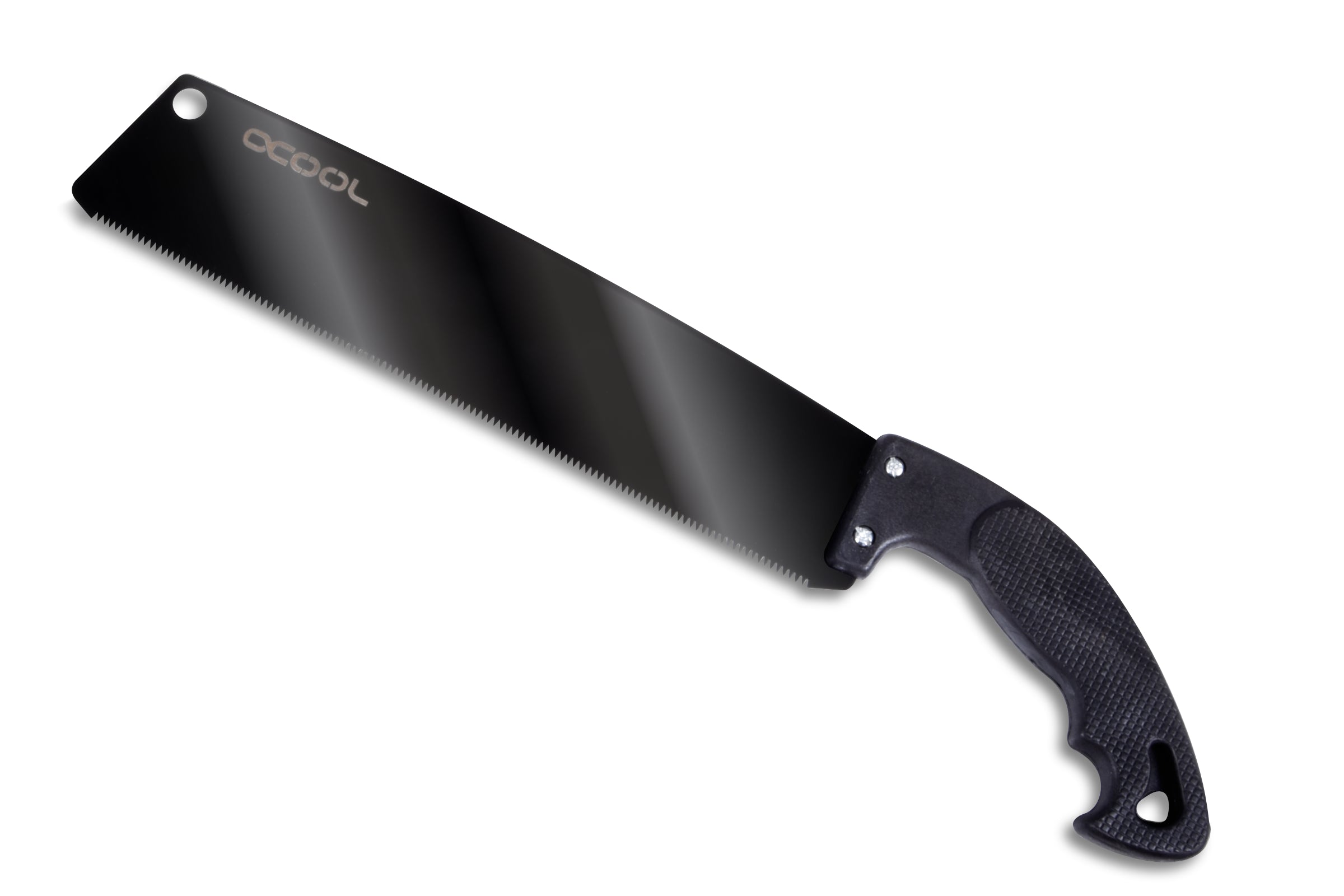

1x Pit saw

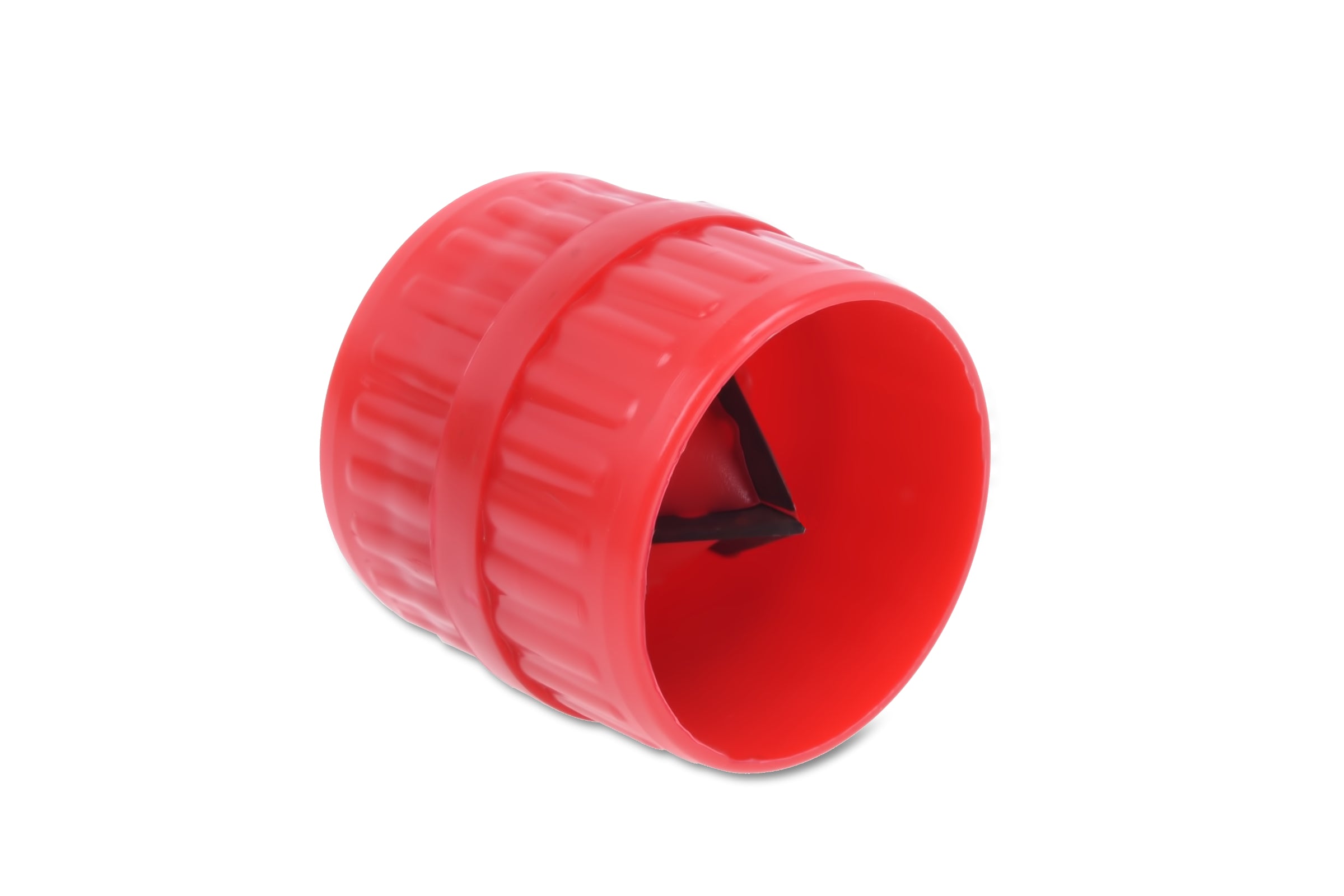

1x Tubing Pipe Reamer

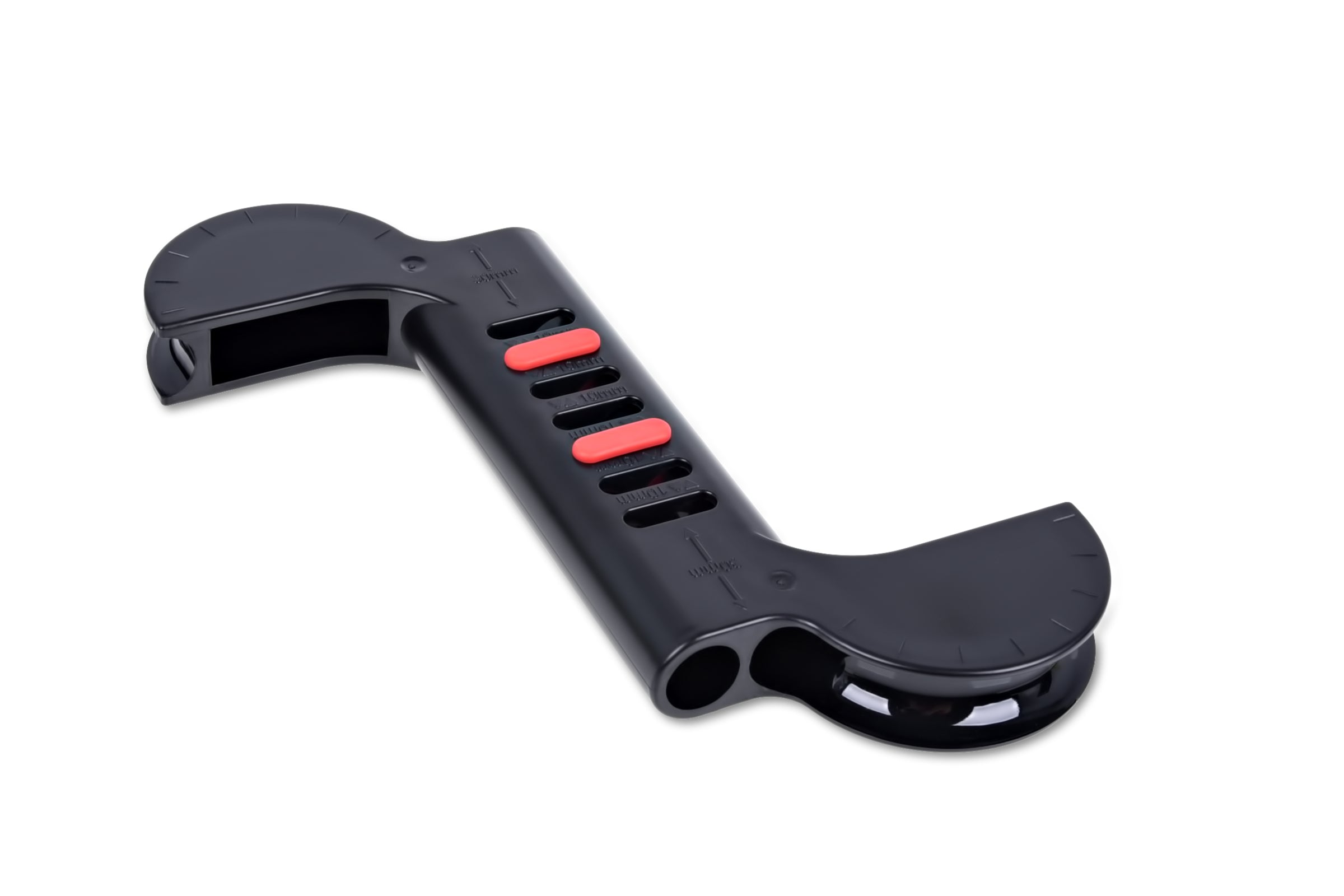

1x Double Bending Tool

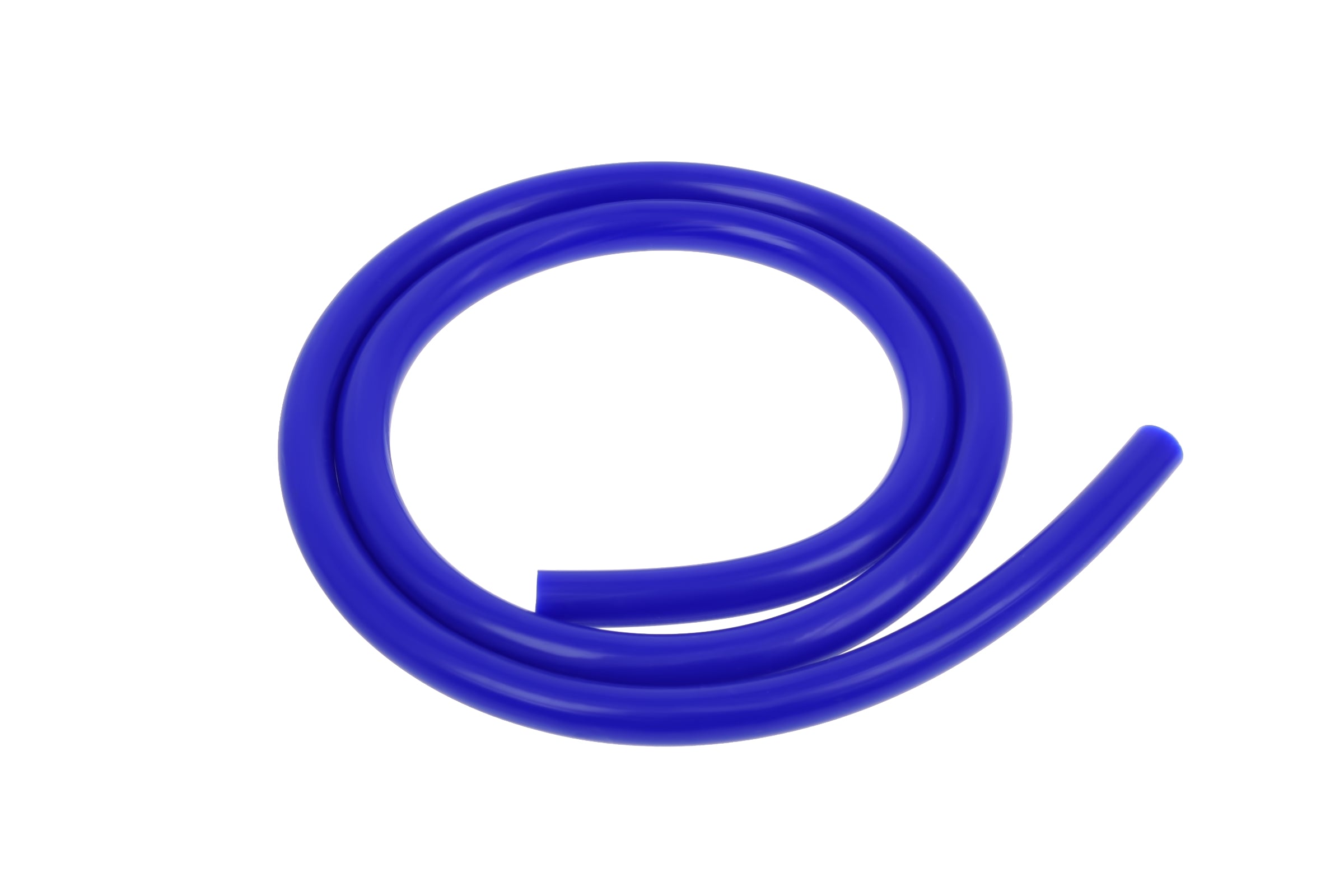

1x Silicon Bending Insert 100cm
1x Liquid Clear 1000ml

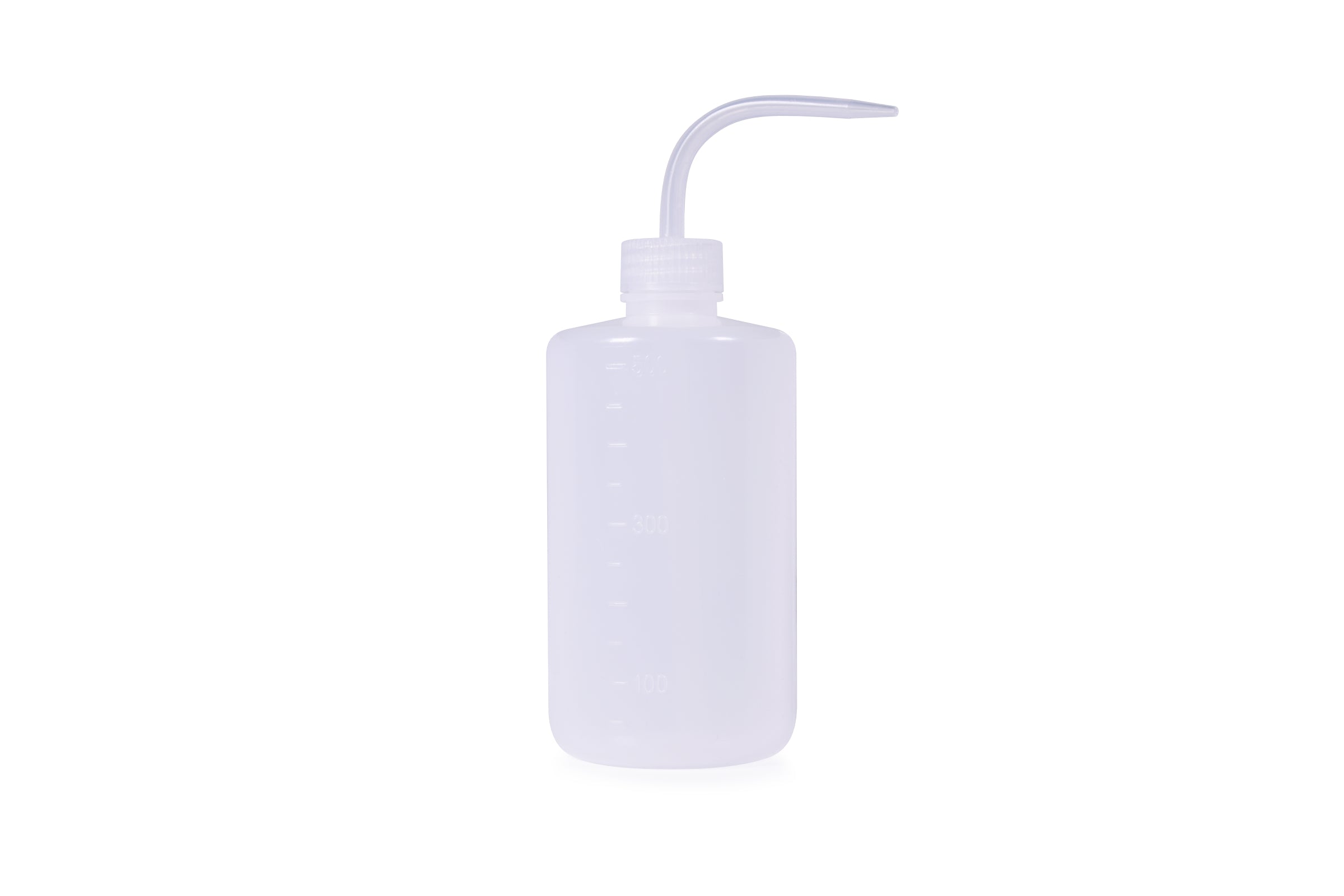

1x Filling bottle
