Alphacool Core Hurricane 420mm XT45 HardTube water cooling Set

With the Core Hurricane HardTube water cooling kit, Alphacool provides all the components needed to get started in the world of water cooling. The set
is aimed not only at beginners, but also at enthusiasts. The selected components are optimally matched and come from Alphacool's DIY program. The
choice of materials is still uncompromisingly based on copper or brass for all metals in order to guarantee performance-oriented CPU cooling.

Eisblock XPX Aurora Edge CPU Cooler

Alphacool's Eisblock XPX Aurora Edge CPU water cooler offers the highest performance and impresses with its outstanding quality. The patented
ramp system ensures optimal water flow within the cooler as water is forced evenly through the jet plate. 81 cooling fins are distributed on the CPU
cooler base, occupying an area of 34 x 32mm and thus accommodating the ever-growing CPU DIEs. The Aurora design in combination with the 15
addressable digital aRGB LEDs provides many options for outstanding CPU water cooler illumination. The included mounting hardware makes the
CPU cooler compatible with popular mainstream sockets from AMD and Intel.

Eisbecher Aurora D5 250mm & VPP Apex Pump

The Alphacool Eisbecher Aurora glass reservoir uses a real glass tube rather than the usual plastic tube that Alphacool usually relies on. The
embedded 5V digital RGB LED ring and the new design makes the reservoir look magnificent. Of course, the Lighttower water effect is used again. The
mounting can be done via feet but also mounted on 120 or 140mm fan mounts or even directly to a radiator. The Apex VPP is a powerful pump that is
compatible with the most popular D5/VPP tops and reservoirs. Via the 4-pin fan connector, the speed of the pump can be read and controlled via PWM
signal. The Apex VPP is supplied with power via the SATA connector.

NexXxoS XT45 Full Copper 240mm Radiator V.2

All water-bearing parts and the cooling fins are made of pure copper. Thus, the NexXxoS XT45 achieves the highest thermal conductivity value of all
radiators on the market and can easily dissipate extremely high waste heat. The radiator has two IN or OUT connections with G1/4 threads in the prechamber area. On the opposite side is a fill or vent port, which can be used to fill and drain the water loop.

Rise Aurora 120mm fans

The fans can be controlled from 0 to 2500 rpm via the 4-pin PWM connector. At 800 rpm, the fan is nearly silent, but still offers good airflow (118.9
m3/h) coupled with high static pressure (3.17mm/H2O). In addition to a wide control range, the Rise fan also offers superior digital aRGB lighting. The
frame and hub feature 20 digitally addressable 5V RGB LEDs that illuminate the entire fan.

Eisrohr 16/13mm PETG HardTube

The Alphacool Eisrohr PETG HardTube givse the user the possibility to create a very special look. With a wall thickness of 3 mm, the tubes are very
strong, but can still be bent without great effort and they are easy to fit. The HardTubes are clear and will look great in almost every water cooling
loop. When cutting the tubes, make sure to chamfer the edges with fine file or a hose deburrer, as sharp edges can damage the O-rings of fittings.

Eiszapfen 16/13mm G1/4 Connections

All the requirements for a connection are met here: Highflow, shape, machining and coloring. Special manufacturing processes firmly bond the coating
to the substrate. This increases the longevity of the color and prevents the coating from flaking off.

Thermal Paste & Coolant
The included thermal paste is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive Thermal Grease is
particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850,000 TF. Tec Protect 2 Clear in the 1
liter bottle is used as the coolant. Tec Protect 2 Clear is a ready-to-use mixture that already contains all the necessary additives and can be used
straight from the bottle.

aRGB Controller, Cables, Tools & Accessories

All cables (aRGB, PWM) and controllers needed to use & control the pump, fan and aRGB lighting are included. The accessory package also includes
important tools like filling bottle, deburrer and pit saw. Thus, the construction of the custom loop can be started out-of-the-box immediately



Compatibility

Intel: 775 / 1056 / 1155 / 1150 / 1151 / 1200 / 1700 / 2011 / 2011-3 / 2066
AMD: AM2 / AM2+ / AM3 / AM3+ / FM1 / FM2 / FM2+ / AM4 / AM5

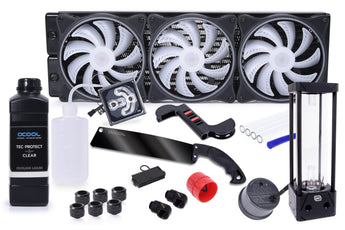

Scope of delivery

1x Eisblock XPX Aurora Edge CPU Cooler
6x Fitting Eiszapfen Pro 16mm G1/4
2x Fitting Eiszapfen L - Connector G1/4
1x Eisbecher Aurora D5 Acetal/Glas - 250mm
1x VPP Apex pump
1x aRGB Controller Aurora Eiscontrol
2x Digital RGB LED Y-splitter 3-times cable
1x PWM to 3x PWM connector cable
1x ATX 24-pin jumper plug
1x NexXxoS XT45 Full Copper 420mm Radiator V.2
3x Rise Aurora 140mm Fan (140x140x25mm)
1x HardTube Eisrohr 16/13mm PETG 60cm - 4pcs
1x Pit saw
1x Tubing Pipe Reamer
1x Double Bending Tool
1x Silicon Bending Insert 100cm
1x Liquid Clear 1000ml
1x Filling bottle

Technical data CPU cooler

Dimensions (L x W x H) 70 x 70 x 32,5mm
Material cooler nickel-plated copper
Material housing brass, acrylic
Threads 2 x G1/4â??
Illumination 3-Pin 5V, 15 digital aRGB LEDs
Max working temperature 60°C
Pressure tested 0,8 Bar

Technical data reservoir

Dimensions (L x W x H) 77 x 77 x 242mm
Capacity 250ml
Material housing Acetal
Material tube Glass
Material framing bar Aluminium
Threads 1x G1/4â?? IT IN | 4x G1/4â?? IT OUT
Illumination 5V digital addressable LEDâ??s (0,3A)
Max working temperature 60°C
Pressure tested 0,8 Bar

Technical data pump
Dimensions (L x W x H) 65 x 65 x 41mm
Material synthetic material, aluminium, ceramics
Threads 4Pin PWM I SATA
Rotational speed 2500 - 4500 RPM
Operating voltage 8-13V DC / 14W IP32
Starting voltage 12V DC
Maximum pumping head 4,25m
Maximum flow rate 340L/h
Max working temperature 60°C
Pressure tested 0,8 Bar

Technical data radiator

Dimensions (L x W x H) 455,5 x 144 x 45mm (+/- 3%)
Material cooling fins, pre-chambers & channels copper
Material threads brass
Material outer housing stainless steel
Threads 4x G1/4 IN/OUT & 1x Fill-/Drainport G1/4
Possible fan size 140mm
Possible fan assembly 3x one-sided / 6x both-sided
Fin density 12
Max working temperature 60°C
Pressure tested 0,8 Bar

Technical data fan

Dimensions (L x W x H) 140 x 140 x 25mm
Speed 0-2000 rpm (+/-10%)
Threads 4-Pin PWM
Voltage 12V DC
Current consumption 6,6 Watt (max)
Static pressure 2,20 mm/H2O
Max. air flow 154,1 m³/h
Noise max. 38,4 dB(A)
Speedometer signal yes
Auto-Restart yes
Illumination 3-Pin 5V, 24 digital aRGB LEDs, 3.5W

Technical data tube

Dimensions (outer/inner) 16/13mm
Material PETG
Length 4x 60cm
Color clear
Technical data 16/13mm G1/4 fittings
Material brass
Threads 1x G1/4 OT
Color black

Technical data coolant

Ingredients osmose water(93,8%), glysofor L (4,2%), RHOBA KLA (2%)
Boiling point 105°C
Freezing point -10°C
Packaging unit 1L bottle
Color clear (not UV-active)

Technical thermal grease

Viscosity (mPa. s) 3.000.000
Specific Gravity (g/cm³) 2,7
Thermal Conductivity (w/m-K) 16
Temperature Stability (Degree Celcius) -50 ~ 200
Color gray
