Alphacool Core Push Mounting 17mm M3/M4/UNC 6-32 Set 4x

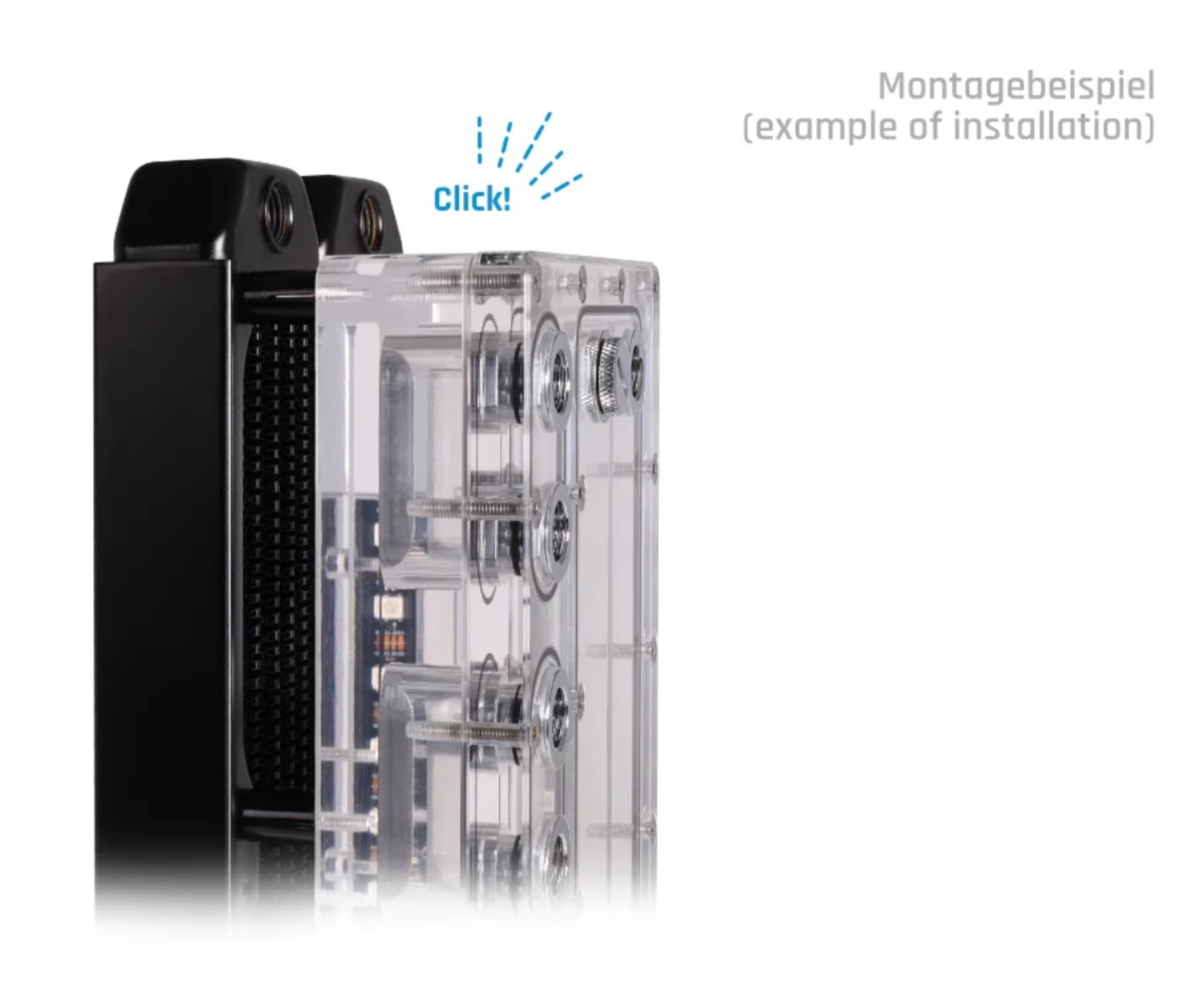

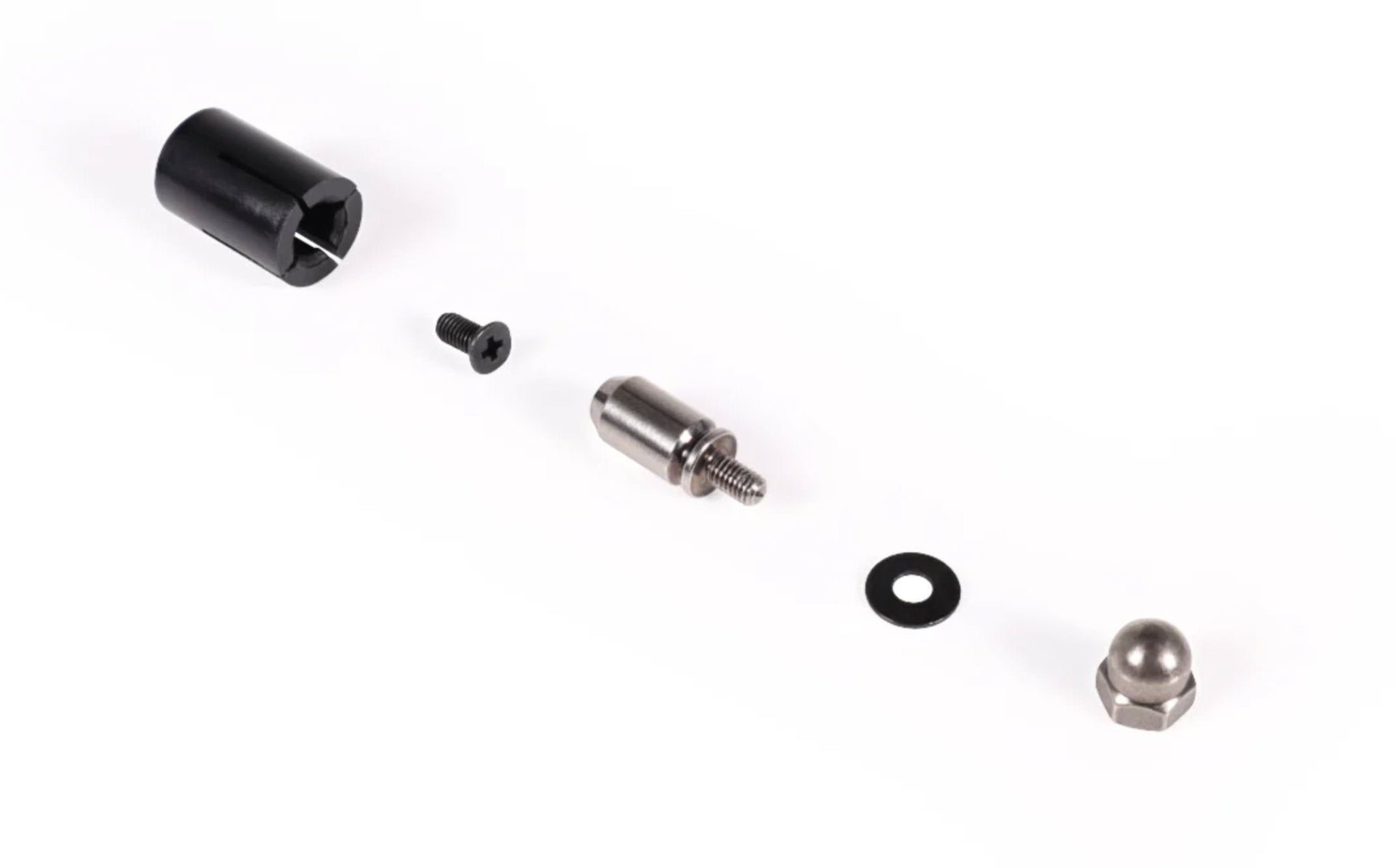

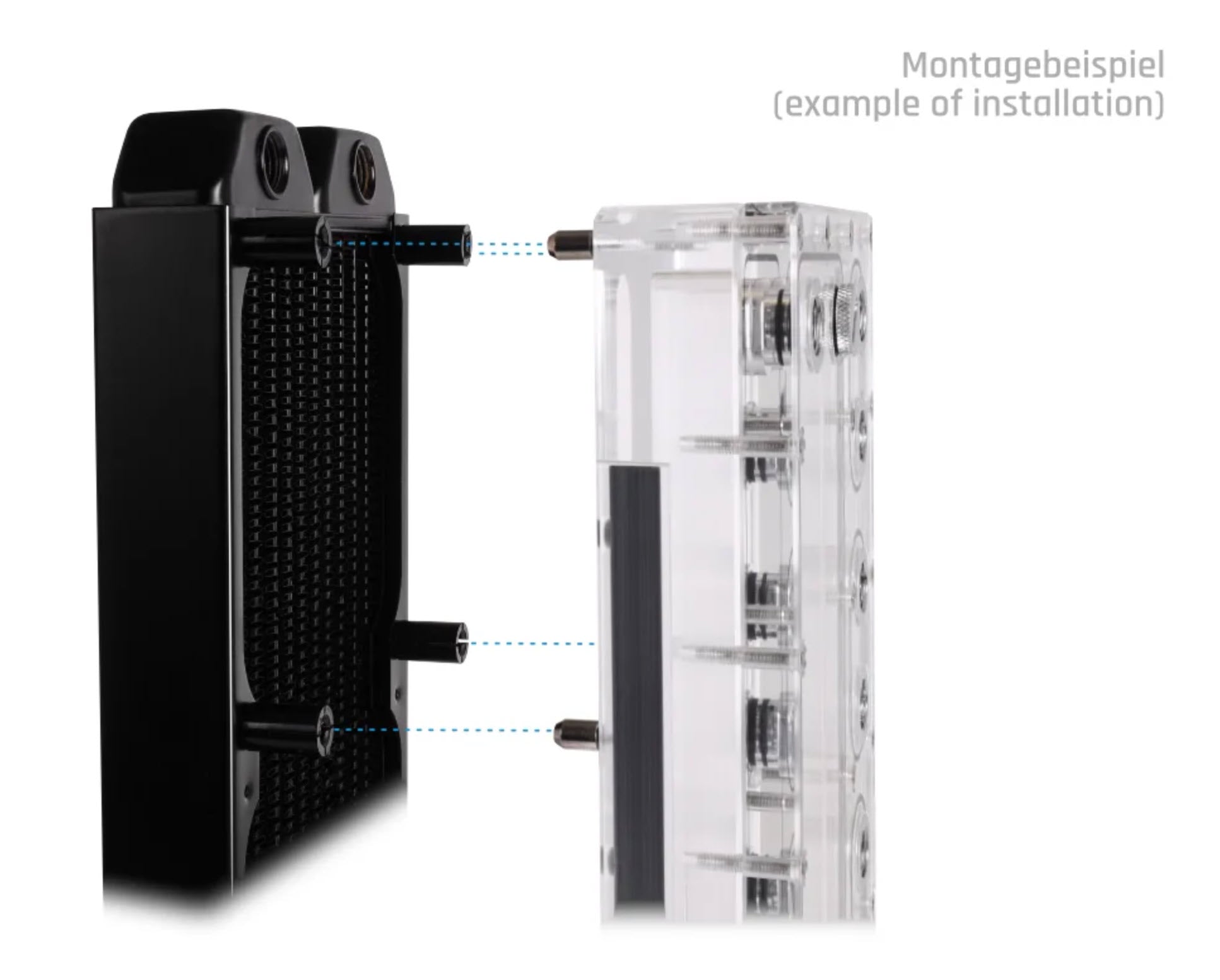

The Core Push Mounting Kit offers an easy and secure way to mount the Alphacool Distro Plate to a radiator or in a PC case. The metal pins are screwed to the Distro Plate and the matching sockets are attached to the radiator or PC case. The next mounting step is to plug the Distro Plate onto the pins without the need for tools. The Alphacool Core Push Mounting System enables a tight and stable fit of the Distro Plate.

Technical data
Total height	17mm
Diameter metal pins	11mm
Weight per metal pin	4g
Color	black/silver

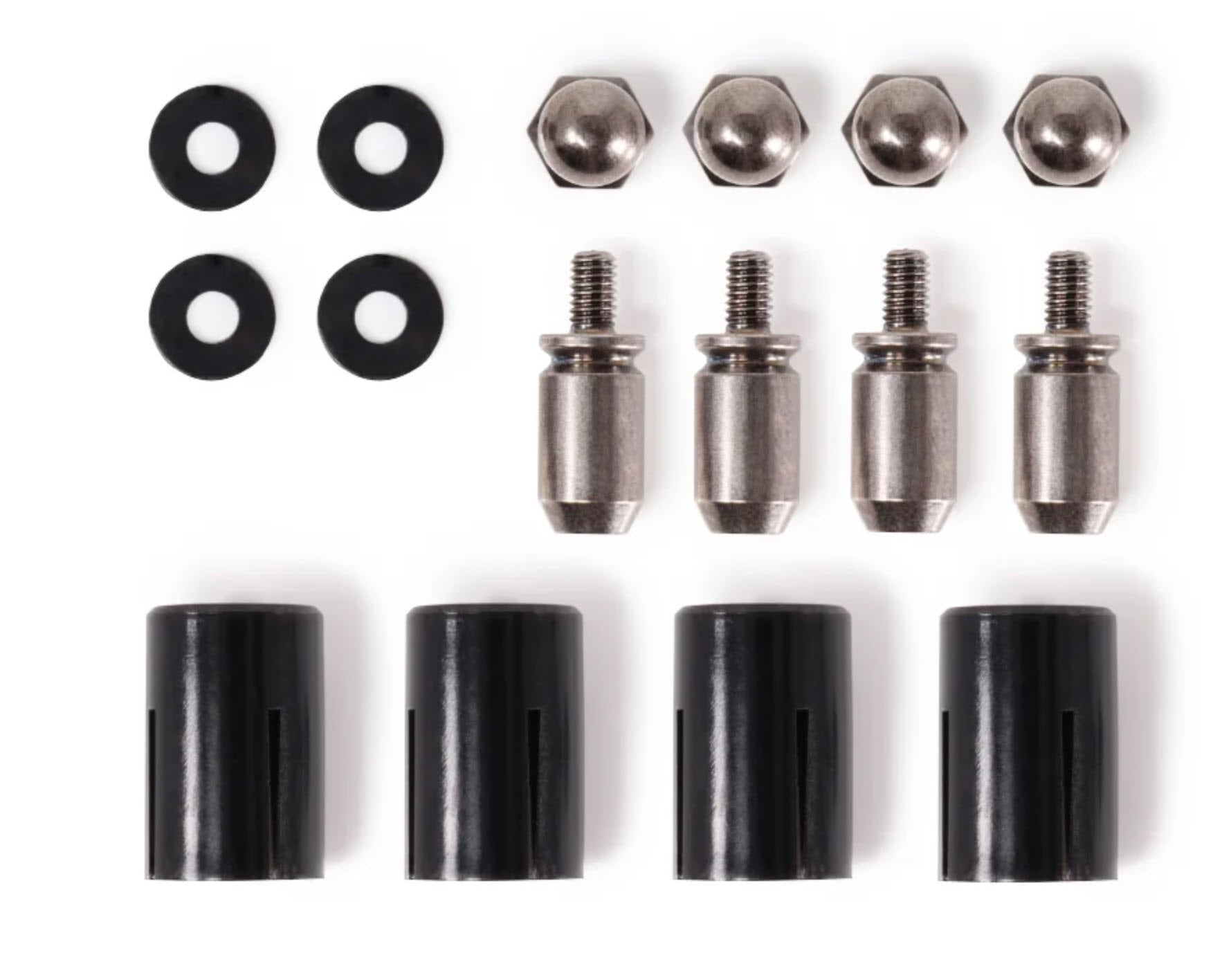

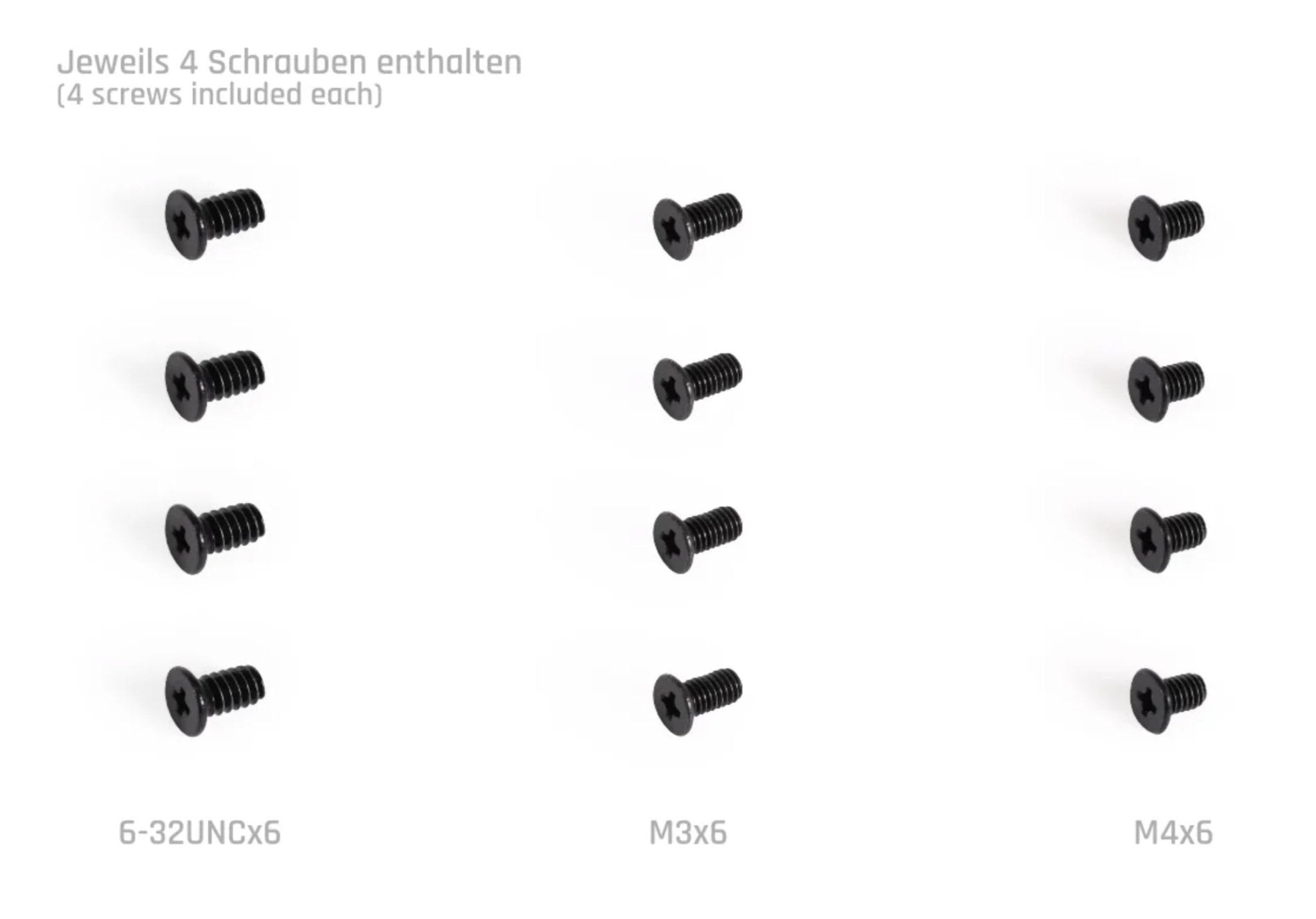

 Included screws for mounting:

• 4x M3x6 screw


• 4x M4x6 screw


• 4x UNC 6-32 x 6 screw
