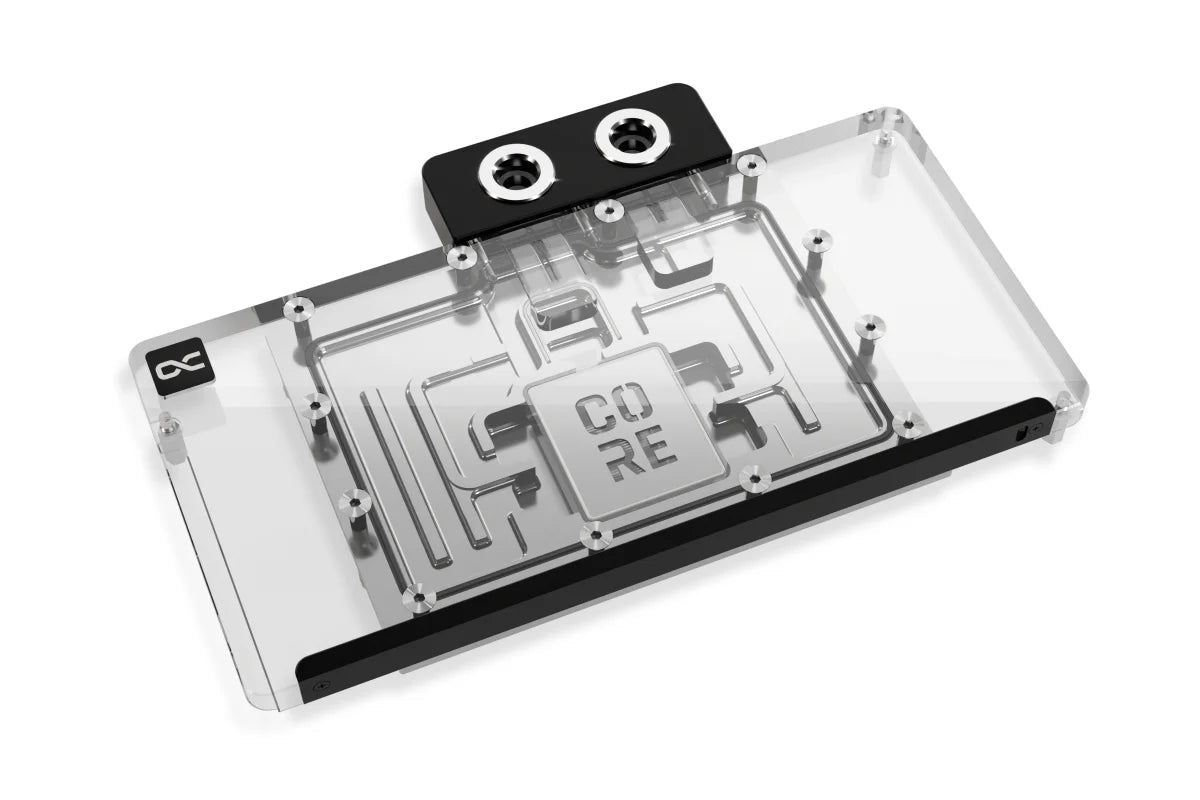

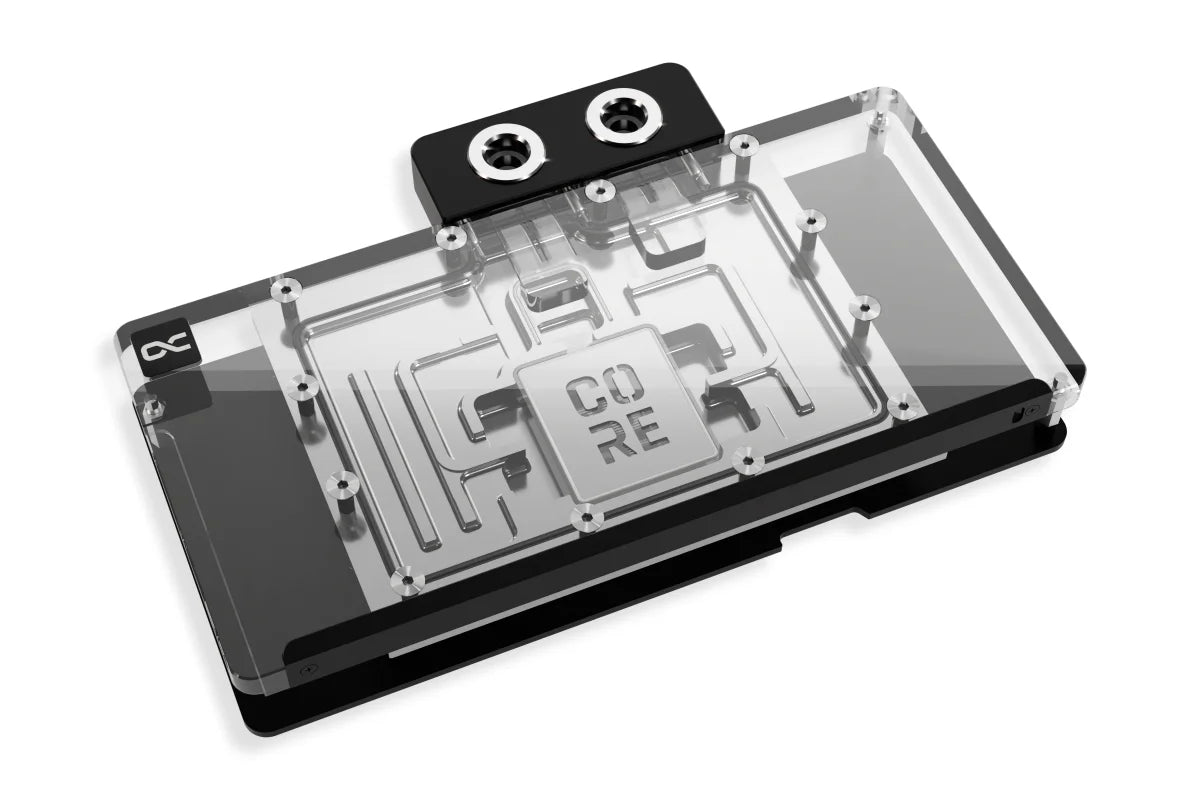

Alphacool Core RX 9070 XT Nitro+ with Backplate

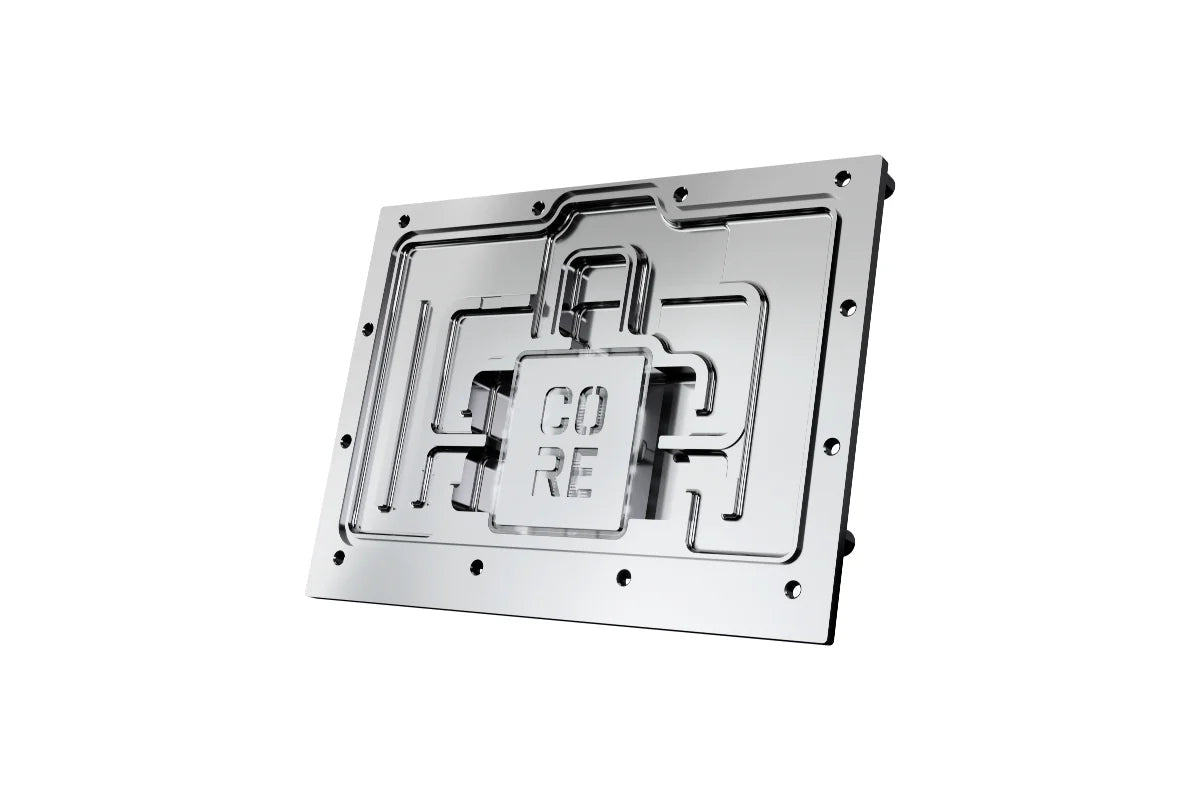

At the center of the cooler is the copper cooler milled from a single piece, complemented by a precisely machined brass connection terminal with a nylon cover. Chrome plating makes the copper cooler more durable and ensures a smoother and brighter surface than conventional nickel plating.

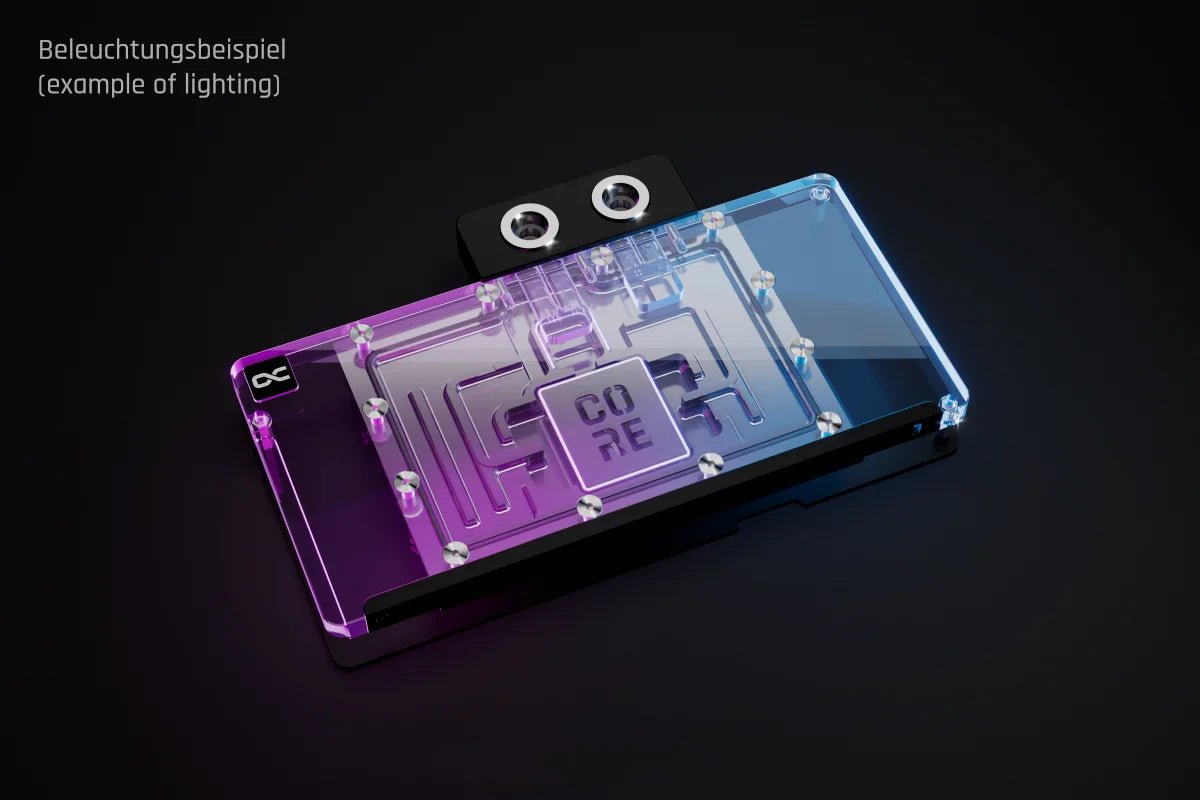

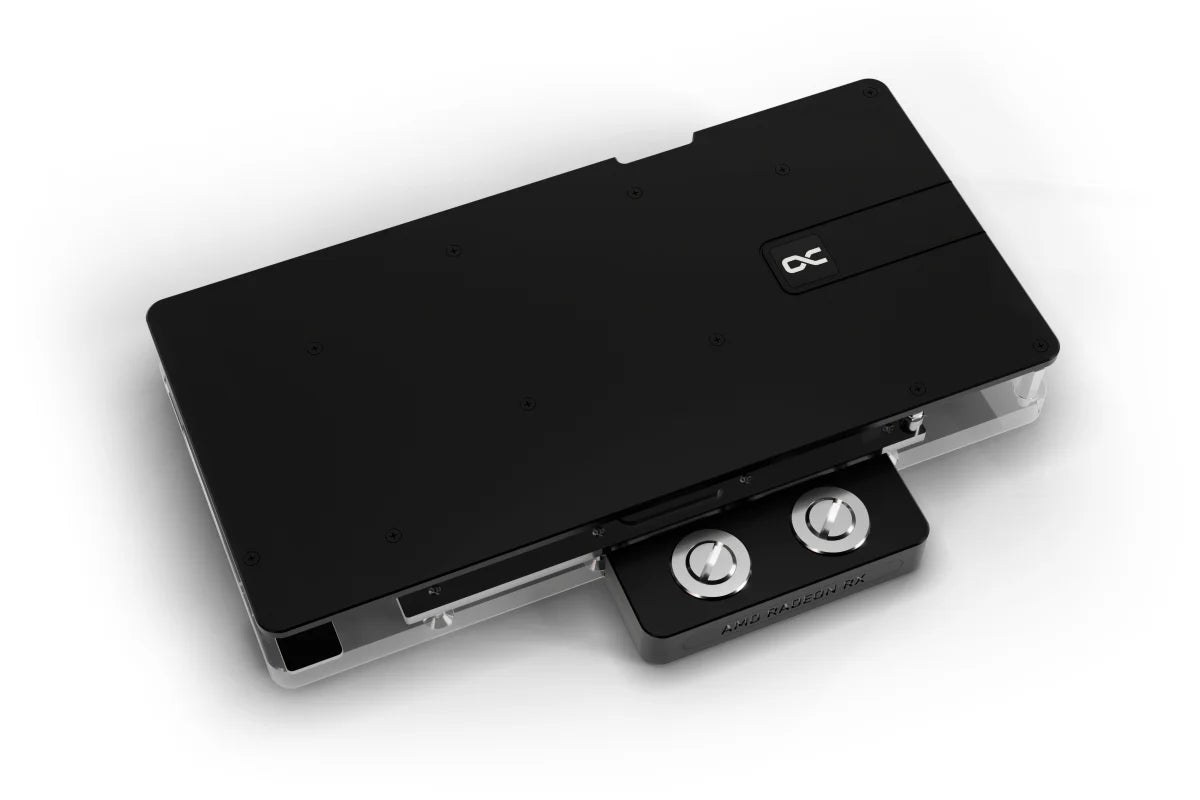

The visual design of the GPU water cooler has been only slightly changed. A special highlight is the newly added Core emblem above the jet plate, which underlines the affiliation with the Core series and visually enhances the design. The series continues to rely on high-quality brass connectors, guaranteeing optimal quality and safety. The specially adapted aluminum backplate covers the entire back of the copper cooler and ensures a clear and uniform appearance. The acrylic, in combination with the aRGB lighting, enables even and impressive illumination of the entire cooler.

Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new AMD Radeon RX generation.

Compatibility:
- Sapphire NITRO+ AMD Radeon™ RX 9070 GPU
- Sapphire NITRO+ AMD Radeon™ RX 9070 XT GPU



The visual design of the GPU water cooler has been only slightly changed. A special highlight is the newly added Core emblem above the jet plate, which underlines the affiliation with the Core series and visually enhances the design. The series continues to rely on high-quality brass connectors, guaranteeing optimal quality and safety. The specially adapted aluminum backplate covers the entire back of the copper cooler and ensures a clear and uniform appearance. The acrylic, in combination with the aRGB lighting, enables even and impressive illumination of the entire cooler.



Technically, the GPU water cooler has been completely redesigned. To optimize cooling performance, the gaps between the cooler and the PCB components were redefined and tested. The water flow was simulated using state-of-the-art software and verified in practical tests. These extensive tests enabled improvements to the cooler base and nozzle to ensure the best possible cooling performance for the new AMD Radeon RX generation.







Compatibility:

- Sapphire NITRO+ AMD Radeon™ RX 9070 GPU

- Sapphire NITRO+ AMD Radeon™ RX 9070 XT GPU

Technical data cooler
Complete dimensions (L x W x H)	222.20 x 137.97 x 33.52mm
Radiator base material	chrome-plated copper
Material radiator top	Acrylic
Material Terminal	nylon
Material connection thread	Brass
Maximum working temperature	60°C
Pressure tested	0.8 bar
Connections	4 x G1/4"
Thickness of radiator base	3.25mm
Thick cooling fins	0.4mm
Distance between cooling fins	0.4mm
lighting	digital aRGB LEDs
Power connection digital aRGB LEDs	3-pin JST
Voltage digital aRGB LEDs	5V
Number of digital aRGB LEDs	10
Color	transparent

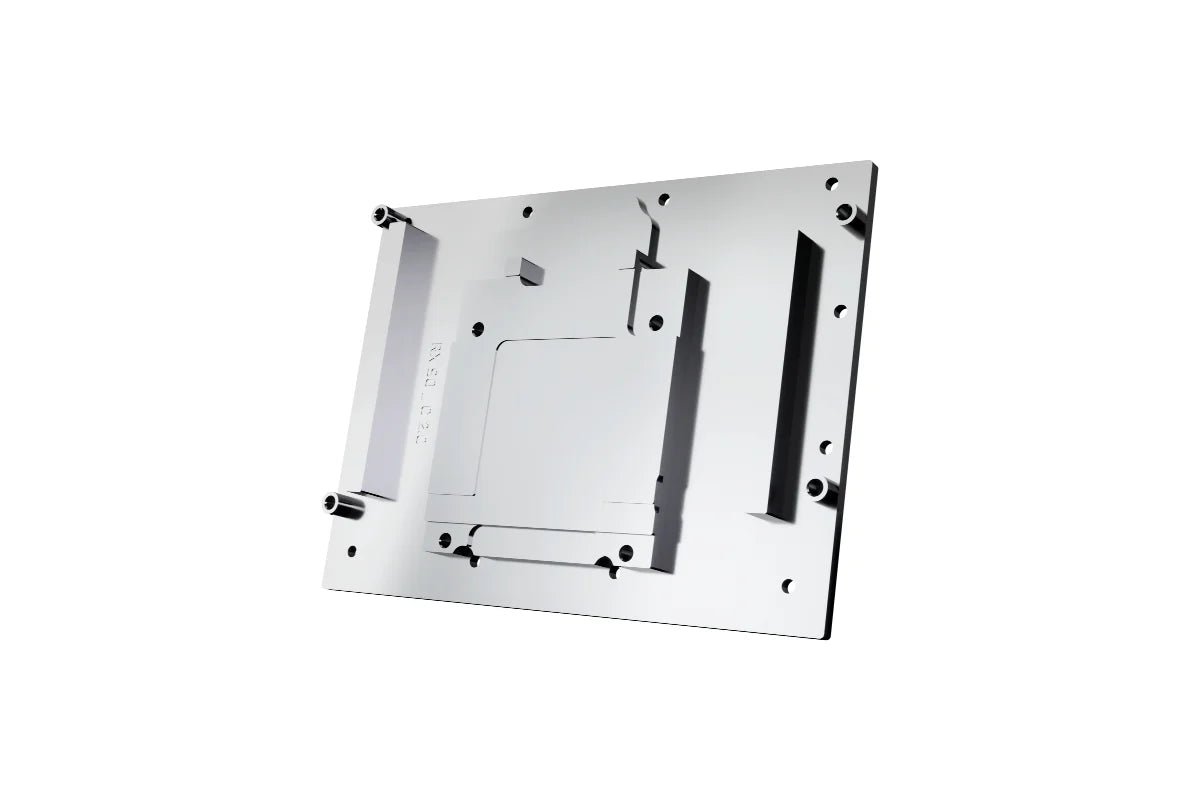

Technical data backplate
Dimensions (L x W x H)	222.20 x 109.40 x 6.00mm
Thick backplate without spacers	3mm
material	aluminum
