Alphacool Eisbaer Extreme liquid CPU cooler core 280 - black edition

Revolutionize your system with the Eisbaer Extreme Core, the foundation of your new watercooled PC. We believe that the Alphacool EIsbaer Extreme Core Radiator with pump is stronger, more beautiful and quieter than anything you've ever known in water cooling.

Pure Performance ? inc. Silent Wings powered by be quiet!

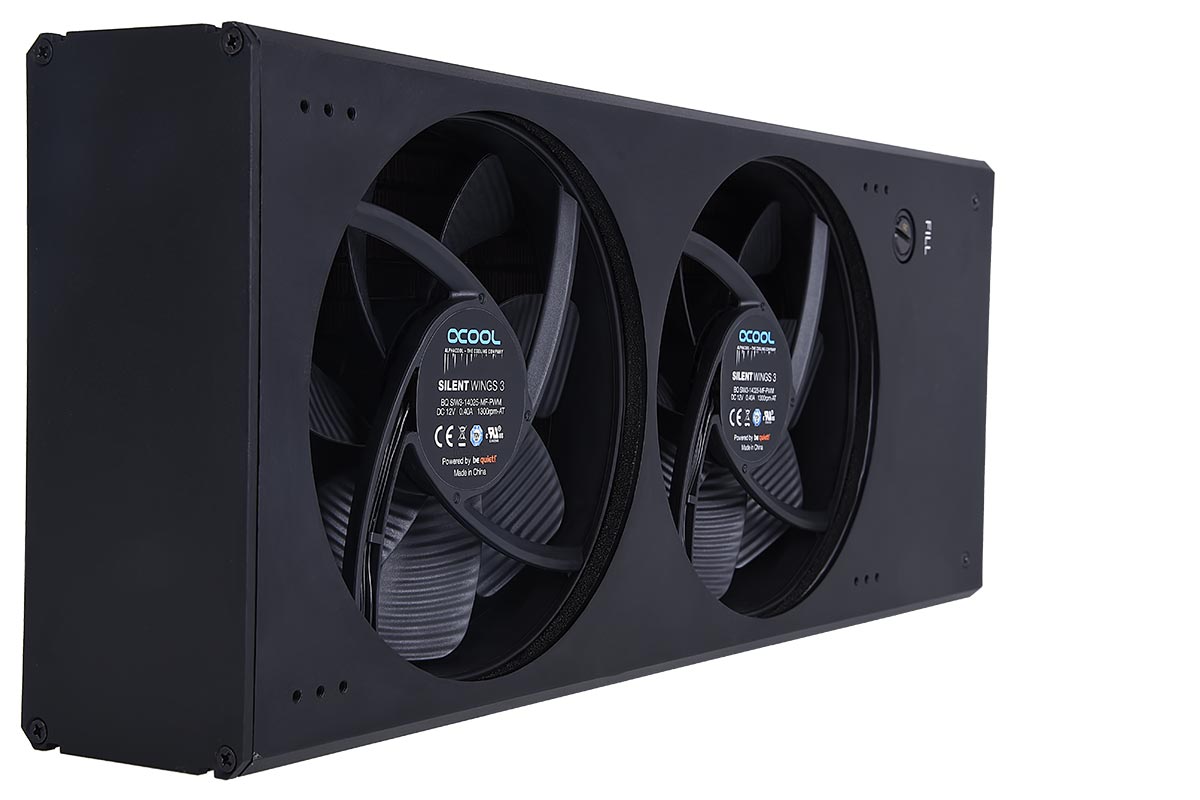

The Eisbaer Extreme is a brand new design for Alphacool. A high-quality housing encloses the radiator and fans as well as a patented pump/reservoir combination. In co-operation with the well-known manufacturer be quiet! the award winning Silent Wings 3 fans are alread installed on the Alphacool NexXxoS Radiator. With the Eisbaer Extreme you have the coolest cooling for your hardware.

Progress into a New Age
The redesigned, powerful VPP755 Eispump gives you the flow you need. Thanks to the ceramic axis and the external coils of the motor, the pump has a higher stability, which makes for smoother running. The connection options allow you to control your Eispump according to your wishes and needs.

Individual
With the Eisbaer Extreme Core, you decide how your system is structured. This radiator with pump can be expanded at any time with the CPU cooler of your choice or other components or converted and filled according to your wishes. Whether you install the Eisbaer Extreme Core horizontally or vertically, it's up to you how you put it in your case.

Technical details

• Dimensions (LxWxH): 385.5 x 156 x 64mm


• Housing material: Aluminium


• Large capacity reservoir(138ml)

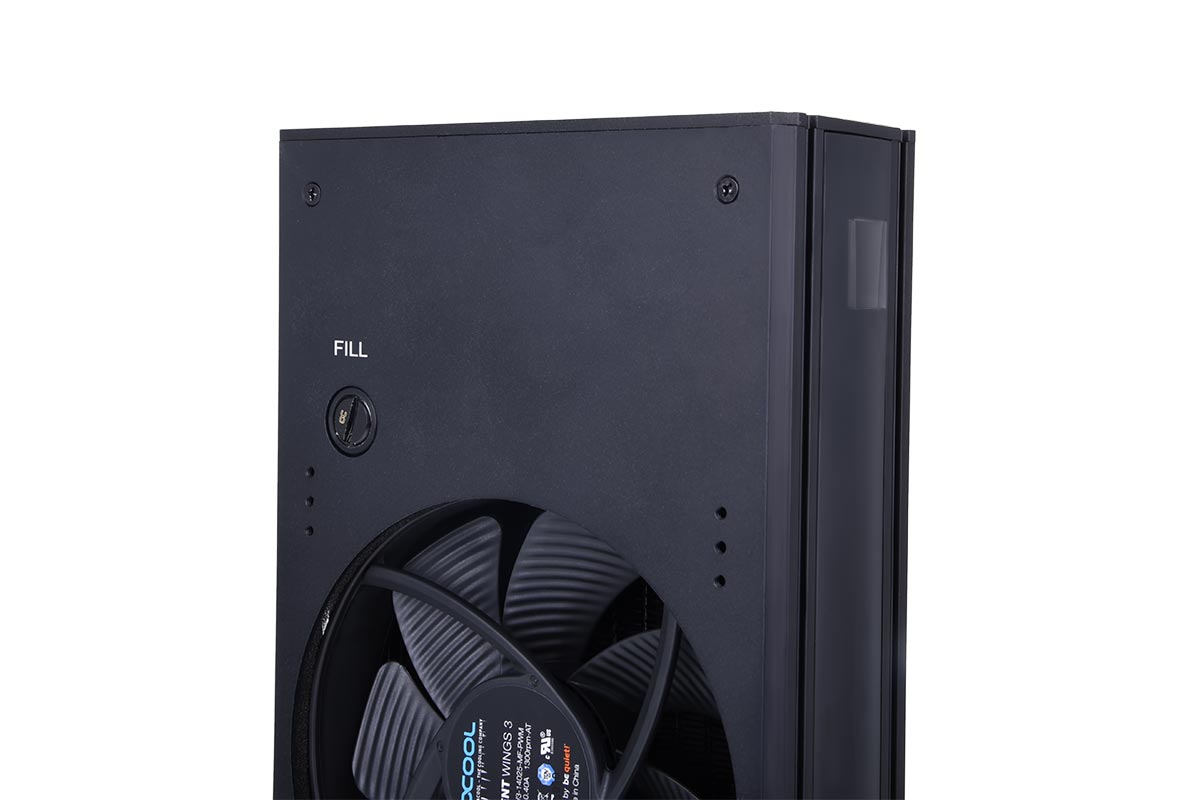

• Fillport with patented screw plug

Alphacool Eispumpe VPP755 V.3

• PWM Controlled Pump

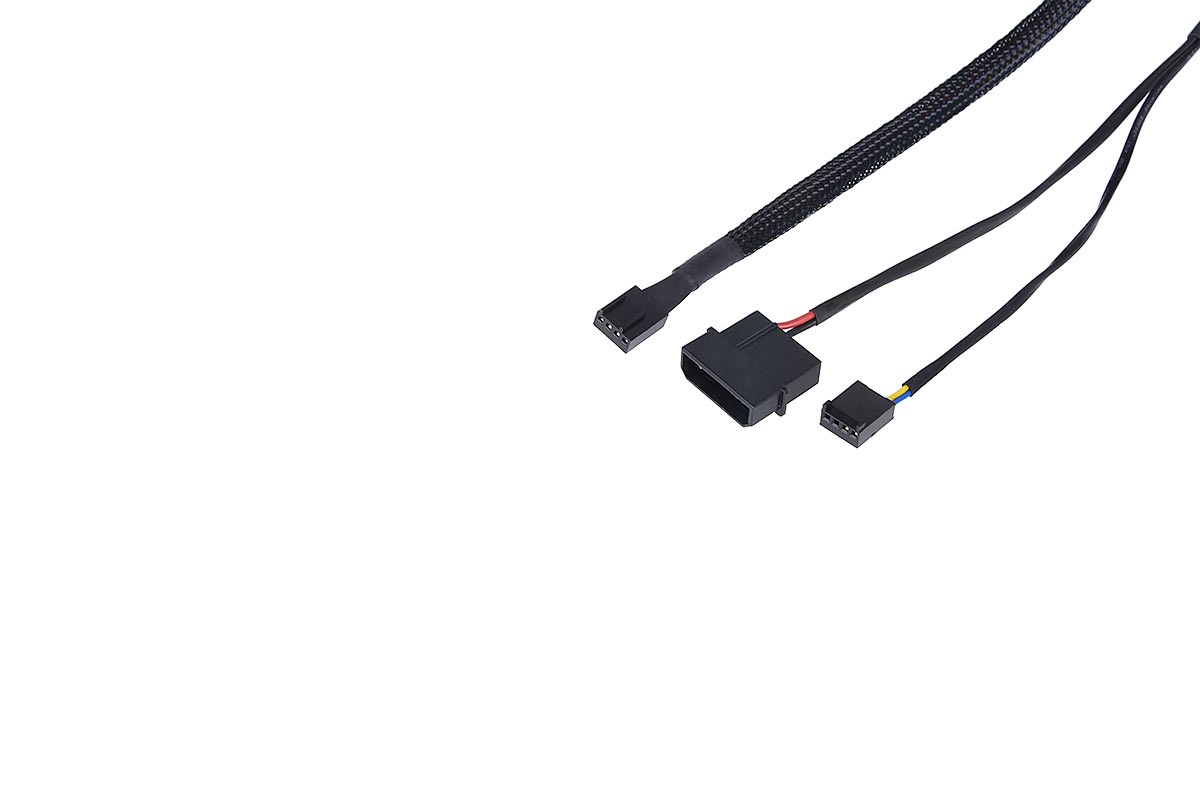

• Connection: 4 Pin PWM / 4 Pin Molex


• Start Boost Function


• Self-Venting


• Improved Software


• New Ceramic Axis Bearing


• 5 Adjustable Steps




• 1. 2100 rpm 120l/h


• 2. 2700 rpm 140l/h


• 3. 3330 rpm 280l/h


• 4. 3950 rpm 320l/h


• 5. 4350 rpm 340l/h




• Maximum Head Pressure: 4.25m

Fans: Silent Wings 3, powered by be quiet!

• Dimensions: 140 x 140 x 25mm


• Colour: Black


• Bearing: HDB


• Maximum speed: 1300rpm (+/-200)


• Starting voltage: 5V (at 25°C)


• Voltage: 5-12V


• Power Consumption: 4.8W (0.2 Amp)


• Conveying Capacity: 64.81 cfm


• Static Pressure: 1.84mm-H2O


• Noise emission: 31dBa (max)


• Service life: 50,000


• Connector: 4 Pin PWM

Scope of delivery

• Radiator/Pump/Reservoir Unit


• 2x Silent Wings 3 Fan


• Mounting material to mount the radiator
