Product Information

Technical Highlights
The fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

Chrome-plated copper

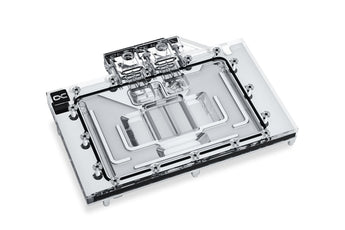

The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Design
The Aurora design of the Geforce RTX 4XXX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal paste & thermal pads
The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mk, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7W/mk. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3W/mk.

Compatibility:
- Nvidia Geforce RTX 4090 Reference Design
- INNO3D GeForce RTX 4090 X3 OC, 24GB GDDR6X, HDMI, 3x DP (N40903-246XX-18332989)
- INNO3D GeForce RTX 4090 iCHILL X3, 24GB GDDR6X, HDMI, 3x DP (C40903-246XX-1833VA47)
- INNO3D GeForce RTX 4090 iCHILL Frostbite, 24GB GDDR6X, HDMI, 3x DP (C4090-246XX-1833FB)
- INNO3D GeForce RTX 4090 iCHILL Black, 24GB GDDR6X, HDMI, 3x DP (C4090-246XX-18330005)
- PNY GeForce RTX 4090 XLR8 Gaming Verto Epic-X RGB Overclocked Triple Fan, 24GB GDDR6X, HDMI, 3x DP (VCG409024TFXXPB1-O) (*)
- PNY GeForce RTX 4090 XLR8 Gaming Verto Epic-X RGB Triple Fan, 24GB GDDR6X, HDMI, 3x DP (VCG409024TFXXPB1) (*)
(* The cooler is compatible with the GPU, but the rear part of the PCB is not covered. This has no negative effect on the cooling performance!)



Technical data cooler
L x W x H	198,60 x 144,29 x 35,89mm
Material cooler	chrome-plated copper
Material cooler top	acrylic
Threads	4 x G1/4
Thickness cooling fins	0,4mm
Distance cooling fins	0,4mm
Illumination	digital aRGB LEDs
Power connector digital aRGB LEDs	3-Pin JST
Power digital aRGB LEDs	5V
Number of digital aRGB LEDs	12

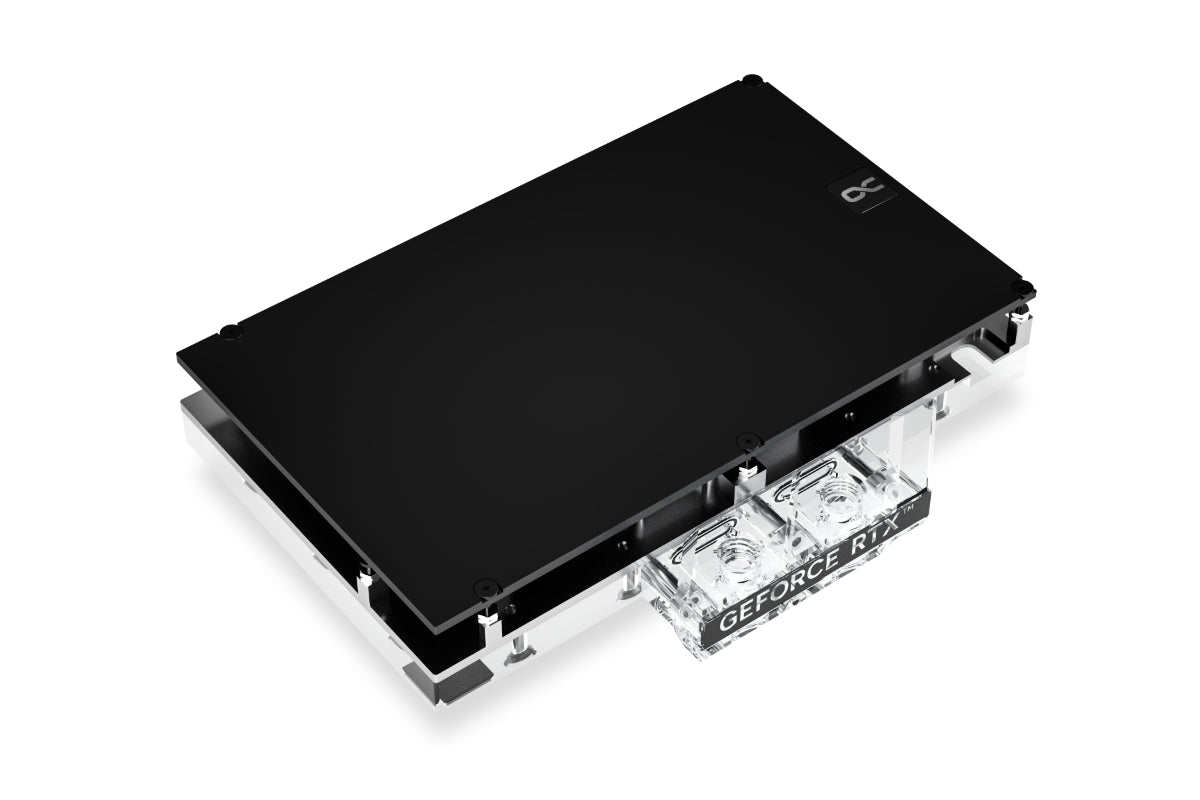

Technical data backplate
L x W x H	198,60 x 119,69 x 6mm
Material	aluminium
Color	black
