Alphacool Eisfach - Single Laing D5 incl. Alphacool Eispumpe VPP755

The step towards perfection
The new Alphacool AGB comes in three different models. You can either connect a Laing DDC, the Alphacool DC-LT or the Laing D5/Alphacool VPP755 at the backplate depending on the model which you use.

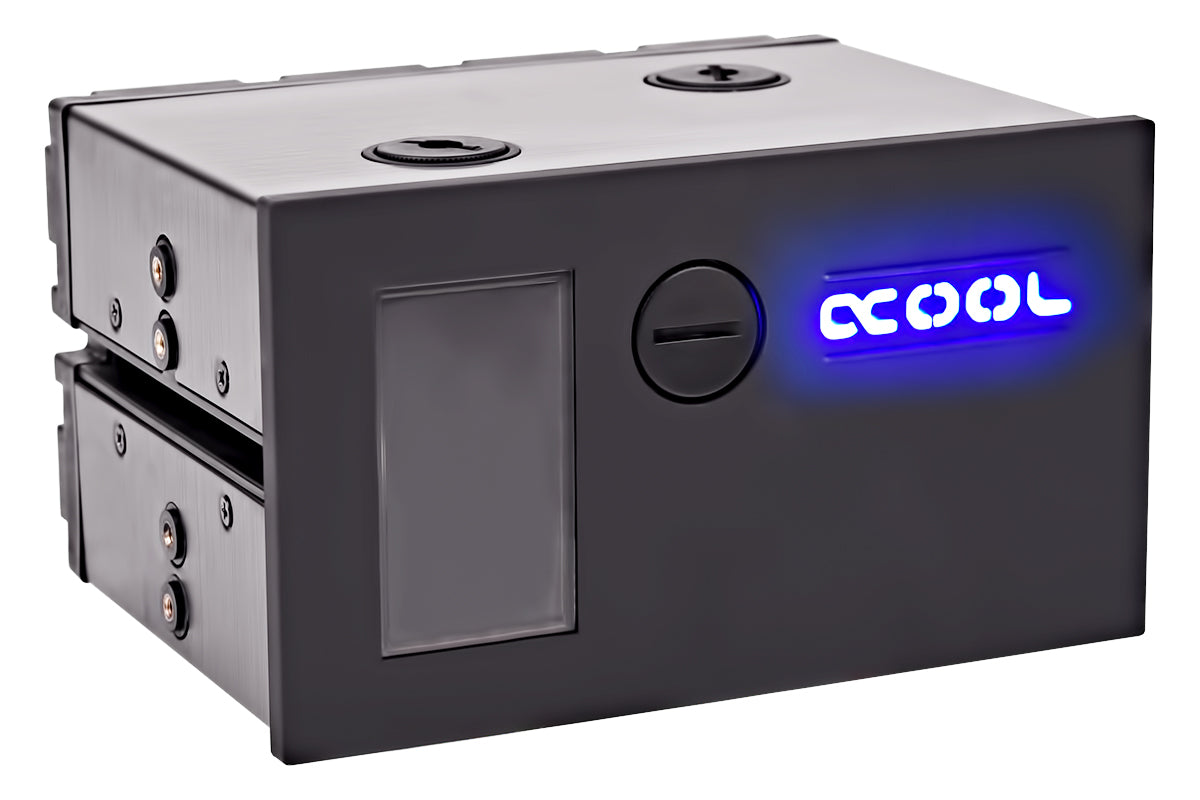

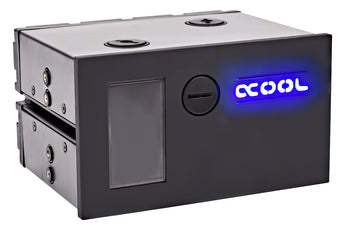

The brushed plate provides an optical finishing touch which is underlined by the high quality processing. The front consists of a scretch-secure soft-touch surface painted in black-matt.
The Eisfach is mounted in two of the front 5,25 bays which provides a good overview of the container and the fill level is easily being checked through the lighted window at the back. Additionally, the Alphacool logo in the front can be lighted by connecting the 3-pin connector with a power source.

A lot of details complement the first impression!
Two 1/4 holes at the top side are available for the first filling. To refill you can simply remove and extract the fillport in the front and two 1/4 holes at the bottom side facilitate the draining of the liquid. There are two lighting modules at the right hand side at the back of the container behind the window for 5mm LEDs. This provides a unique opportunity for personalised lighting and optic. Further two holes at the left hand side provide additional opportunities to fill or drain the liquid. The last two 1/4 threads are used to fill or drain the container. A Bubble Down module has been placed behind the inlet to prevent turbulences that could lead air into the watercircle.
