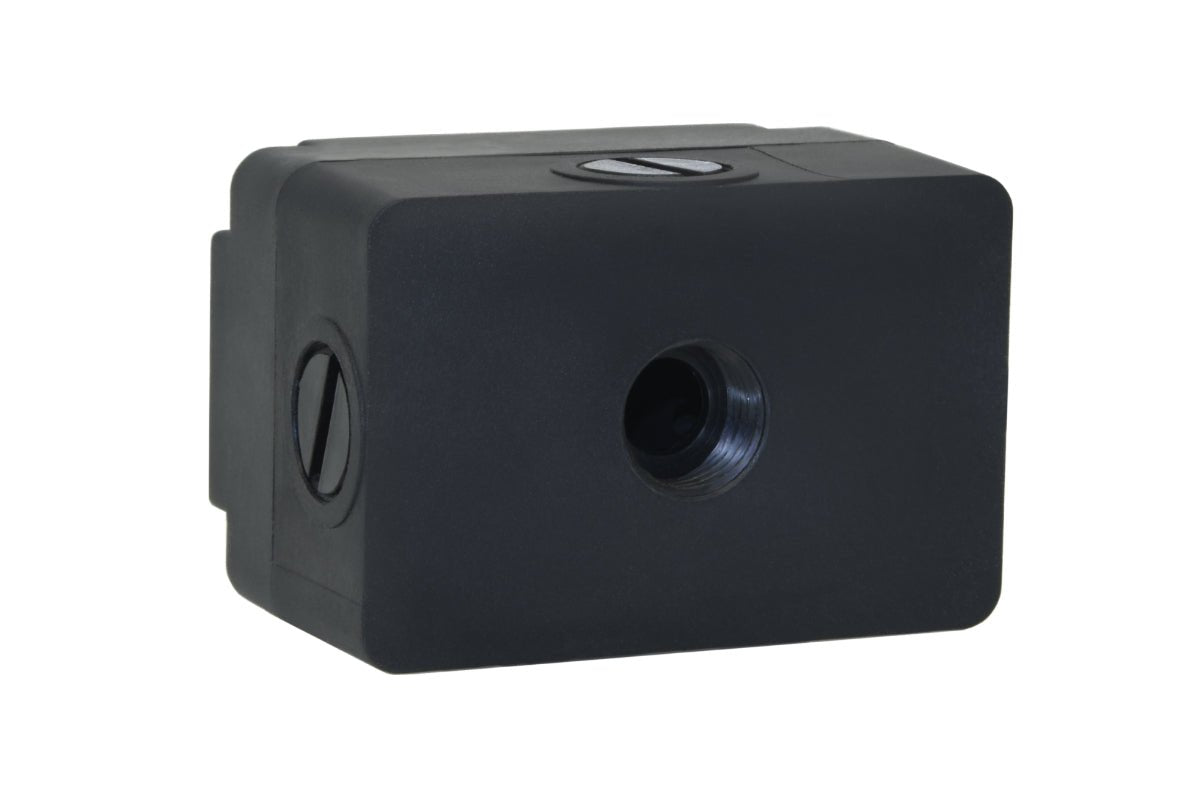

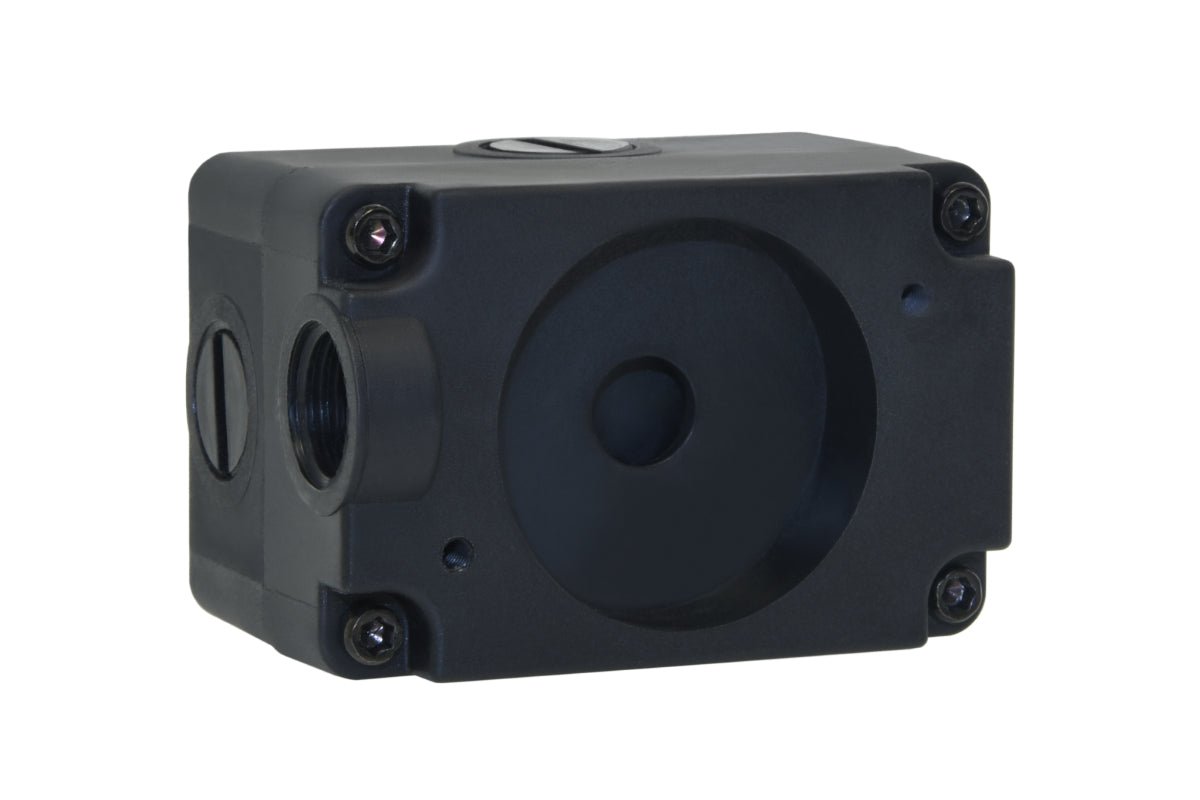

Alphacool Eisstation 40 DC-LT - reservoir

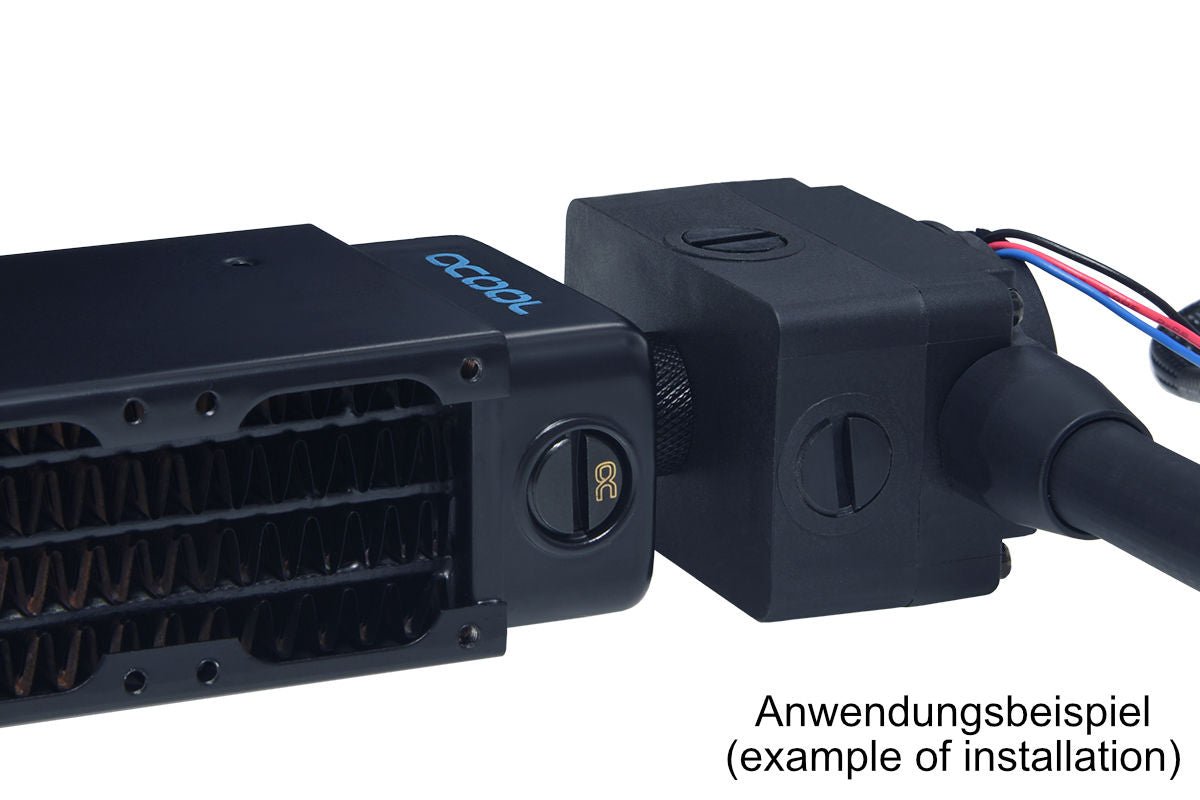

The Eisstation 40 DC-LT of the Enterprise Solutions series corresponds to the above Solo Top and is therefore also extremely compact. This however comes with a reservoir. It also fits into 1U server racks but can also be mounted directly on a radiator. Together the Solo Top and reservoir are only 6 cm long, 4 cm wide and 4.1 cm high. That's why it also fits on a 40 mm Alphacool X-Flow NexXxoS radiator. Despite its size, just under 30 ml of coolant still fits inside and since it can be connected directly to a radiator, it too acts as a reservoir. As with the Solo Top, the filter prevents air bubbles from entering the pump. The included double nipple allows the Eisstation to be connected directly to one of the four G1/4 threads at the side or front entrance of the radiator. The Eisstation, together with a NexXxoS 40 mm X-Flow radiator fits easily into a 1U server housing.

Eisstation 40 DC-LT

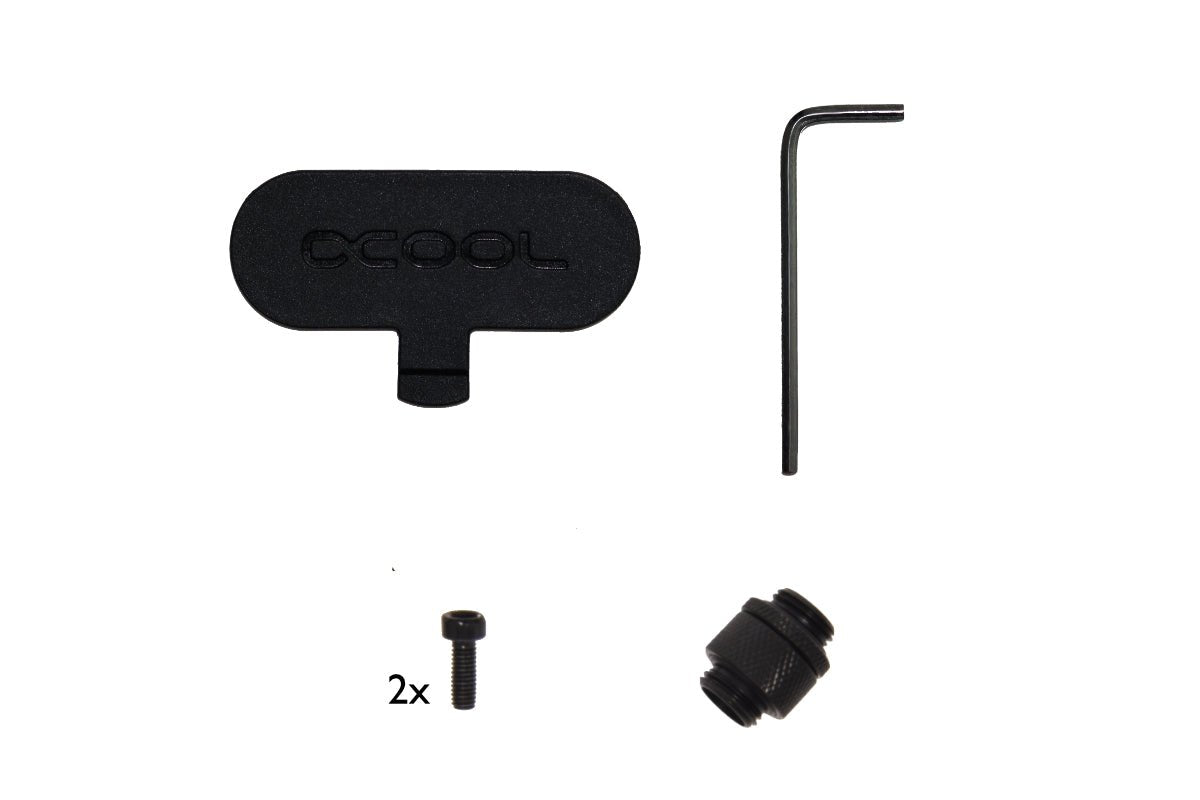

Scope of delivery:

• 1x Pump top


• 3x Stop Fitting


• 2x M3x8 screws


• 1x Stop Fitting - Tool


• 1x Hexagon key


• 1x Adapter (2x G1/4'' external thread, rotatable)

Technical Data:

• Dimensions: 60 x 40 x 40,48 mm (W x D x H)


• Net weight: 61 g


• Maximum working temperature: 60 °C


• Connections: 5x G1/4


• Pressure tested: 1.5 Bar


• Certificates: CE, FC, ROHS
