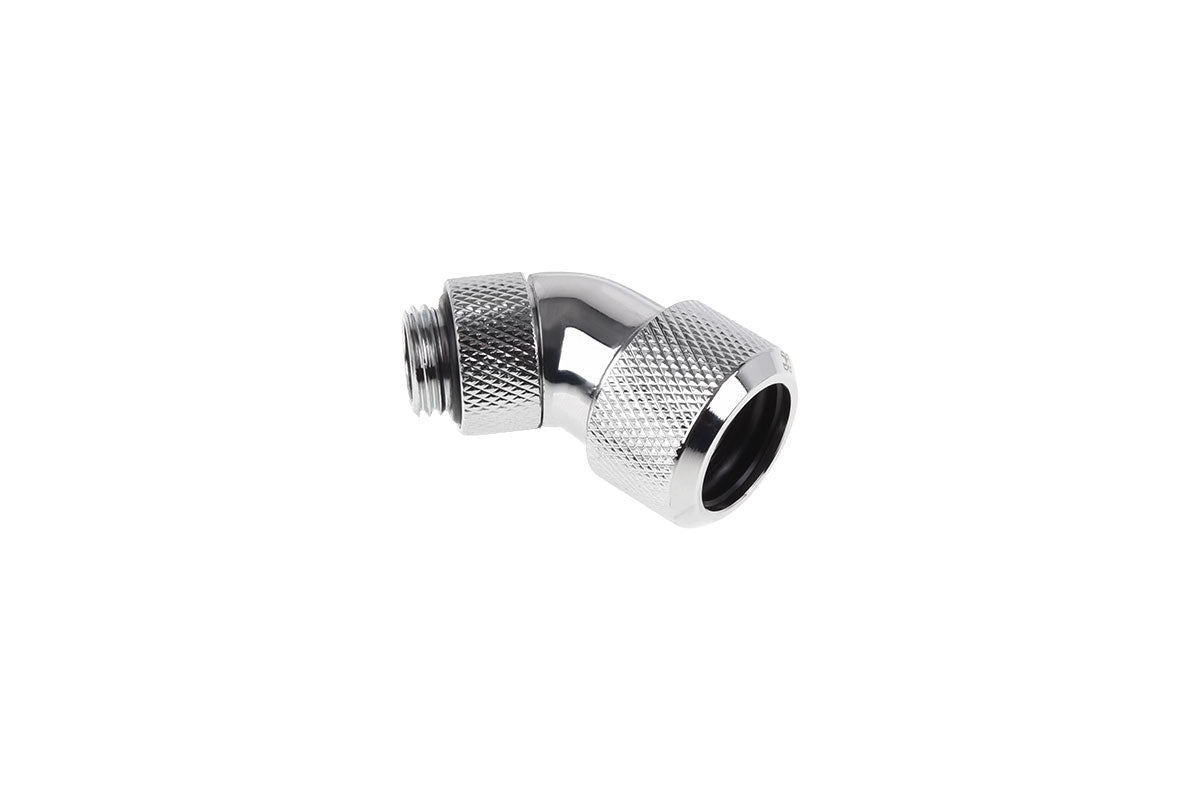

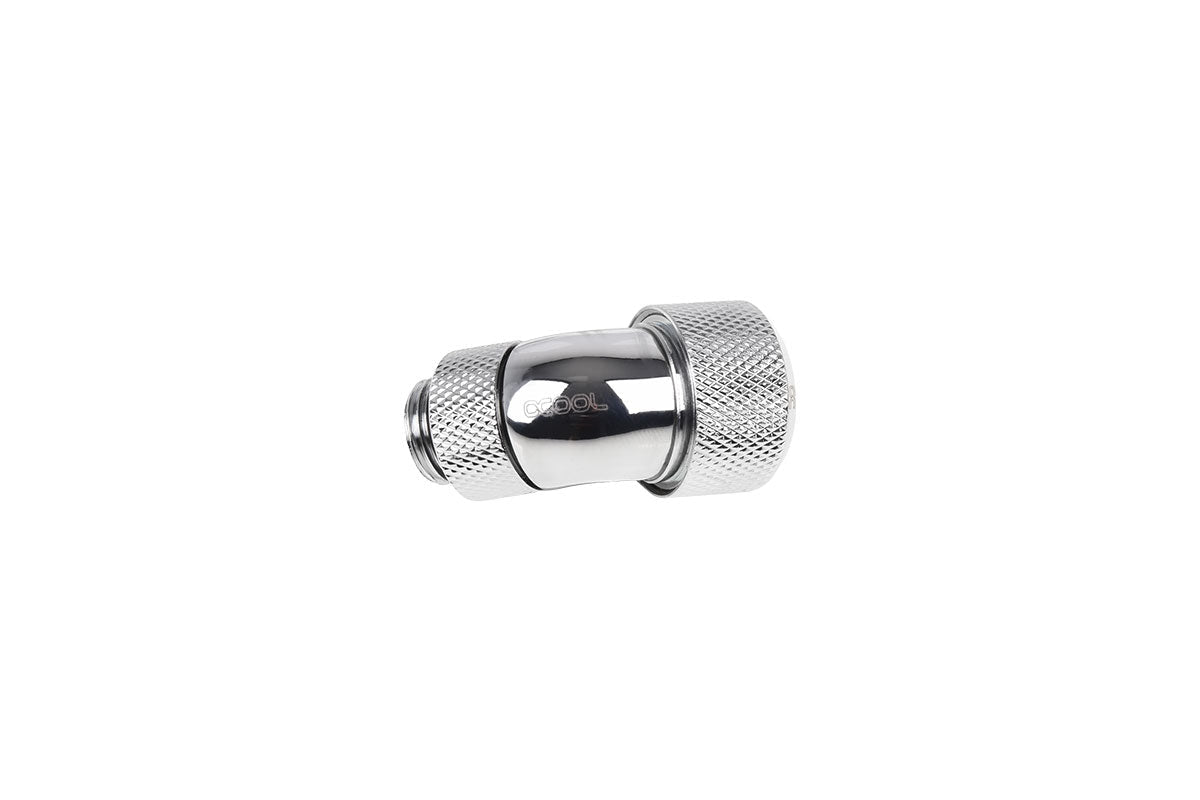

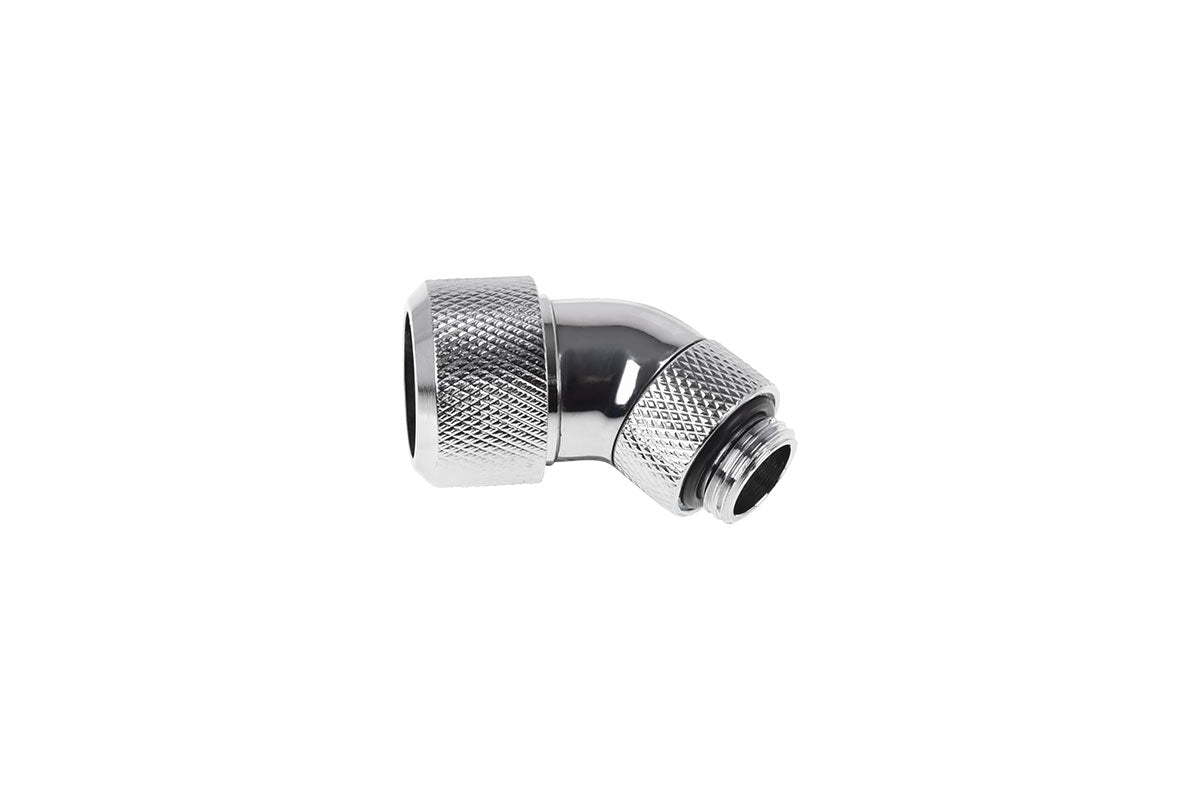

Alphacool Eiszapfen 16mm HardTube compression fitting 45° rotatable G1/4 for plexi- brass tubes (rigid or hard tubes) - knurled - chrome

Alphacool's Eiszapfen connector series is the high-end execution of these tried-and-true fittings!

Everything you want in a compression fitting is here: highflow, form, processing and colour. A refusal to compromise in development and production has made the Eiszapfen series into what it is. Fittings are available in brilliant chrome or a deep, matte black, which will fit excellently into any system.

A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector now has the Alphacool logo, which along with their distinctive shape makes them unmistakable!

The union nut's slanted corners allow the O-ring to be pressed firmly against the HardTube, ensuring it sits even more securely than before. This allows for greater safety in transport.

Model: 45° compression fitting 16mm
This fitting has a 1/4 thread on one side and is thereby compatible with 95% of components. The other side fits a 16mm acrylic or brass tube. This fitting is bent 45° in the middle to avoid complicated hose connections. The threaded side is rotatable for maximum flexibility.

1. Side:	16/10mm (ID 3/8 OD 5/8)
2. Side:	G1/4 outer thread
Color:	silver nickel
Compatibility:	Acrylic tubing, Brass Tube
Manufacturer:	Alphacool
Material:	Brass
Rotatable:	Yes (360°)
Specification:	Shape: 45° angled
Thread length:	5mm

Technical Specification

• Material: brass


• Colour: chrome

Dimensions

• Length: 46mm


• Width: 23mm

Scope of Delivery

• 1x Alphacool Eiszapfen 16mm HardTube compression fitting 45° rotatable G1/4 for plexi- brass tubes - chrome
