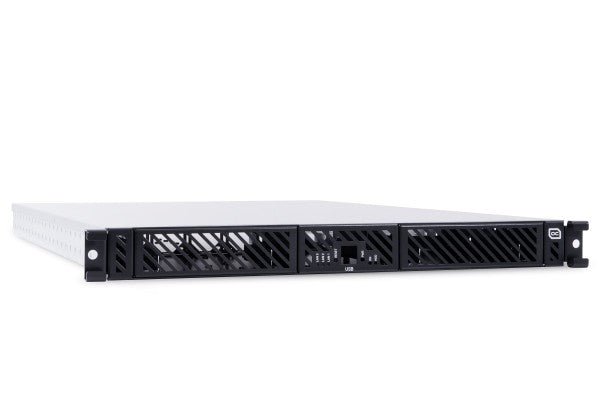

Alphacool ES 1U - 19" - ServerRack - Watercooling ready

The Alphacool ES 1U ServerRack has been specifically optimised to accommodate water cooling sets that can dissipate up to 490W of waste heat in this enclosure. For this purpose, the enclosure not only offers a mounting frame for a maximum of one 7x40mm full copper radiator of the Alphacool NexXxoS series. The optionally available Alphacool ES 40 mm fans with PWM control ensure optimum cooling performance.

Drives

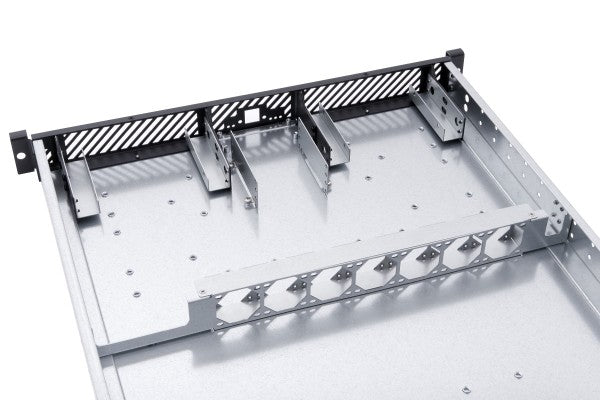

The 1U server rack offers mounting options for two 5.25 drives on the left and right side of the front. Each 5.25 bay offers the alternative of mounting two 3.5 drives. A holding frame for mounting up to four 2.5 drives is pre-mounted in the centre front. This holding frame can be mounted at five other positions in the enclosure.

Mainboard

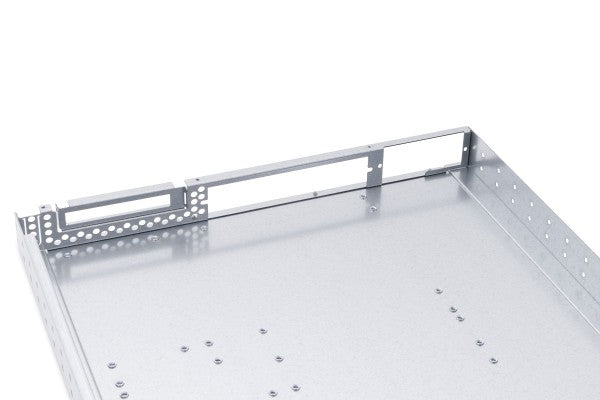

For mounting an SSI-EBB mainboard, all the usual screw connection options in the classic ATX format are available. This includes all mounting holes for Mini-ITX to EE-ATX. A graphics card in PCIe or 0.8 low-profile format can also be installed via a riser cable. A corresponding panel for 0.8 cards is pre-mounted in the case.

Water cooling for 490W waste heat

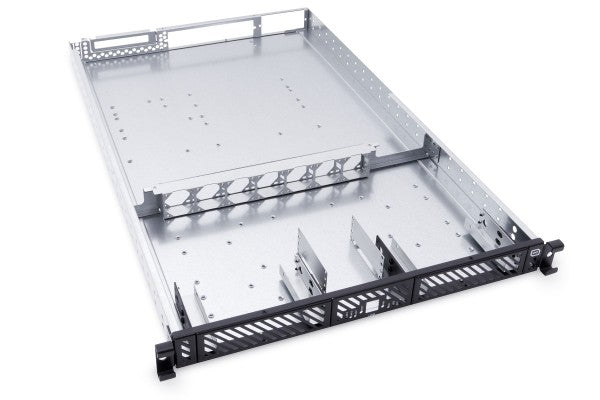

With an appropriate water cooling system, up to 490W of waste heat can be dissipated in this case. Alphacool offers special water cooling sets for this purpose, which can be individually configured and are delivered to the customer pre-filled. The mounting frame for the radiator and fans can be moved within the enclosure to suit any set-up.

Please note: The case comes without I/O panel. Alphacool offers a separate set of I/O panel and cable set under item number 1021066.

Overview of all compatible sets for this enclosure can be found here! (Attention: This link redirects you to the manufacturer's website www.alphacool.com)

Alphacool recommends the following compatible products for this case.

Radiators
1015753 - NexXxoS UT60 Full Copper X-Flow 40mm Dual (2 x 40mm)
1015717 - NexXxoS UT60 Full Copper X-Flow 40mm Triple (3 x 40mm)
1015718 - NexXxoS UT60 Full Copper X-Flow 40mm Quad (4 x 40mm)
1015719 - NexXxoS UT60 Full Copper X-Flow 40mm Penta (5 x 40mm)
1015720 - NexXxoS UT60 Full Copper X-Flow 40mm Hexa (6 x 40mm)
1015721 - NexXxoS UT60 Full Copper X-Flow 40mm Hepta (7 x 40mm)

Reservoir with integrated pump top
1016193 - Alphacool Eisstation 40 DC-LT (Empfohlene Pumpe: 49061)
1017717 - Alphacool ES Reservoir 1U â?? DDC (Empfohlene Pumpe: 1019539)

CPU Cooler
1016218 - Alphacool XPX 1U (AMD AM4, Intel LGA 1150, 1151, 1200, 2033, 2033-1, 2066)
1015815 - Alphacool XPX Pro 1U (AMD TR4, sTRX4, SP3, sWRX8, Intel LGA 2011, 2011,3, 2066, 3647)

Fans
1020163 - Alphacool ES 40mm 400-15.000rpm PWM (40x40x28mm)
1020160 - Alphacool ES 40mm 400-10.000rpm PWM (40x40x20mm)

Techncal data:

Form factor	1HE (2U)
Length	730,75 mm (28,77 Inch)
Width	478,50 mm (18,84 Inch)
Height	44,45 mm (1,75 Inch)
Weight	7,62 kg (16,80 lbs)
Material	Galvanised sheet steel
Materialdicke	1,2 mm
Colour Case	Grey
Colour Front	Black



Standard	Optional
2 x 5,25â?? Slots	Per Slot 1 x 3,5â??
4 x 2.5â?? HDD/SSD	Â
