Alphacool ES 2U - 19" - ServerRack - Watercooling ready

The Alphacool ES 2U ServerRack has been specifically optimised to accommodate water cooling sets that can dissipate up to 880W of waste heat in this enclosure. For this purpose, the enclosure not only offers a mounting frame for a maximum of one 4x80mm full copper radiator of the Alphacool NexXxoS series. The optionally available Alphacool ES 80 mm fans with PWM control ensure optimum cooling performance.

Drives

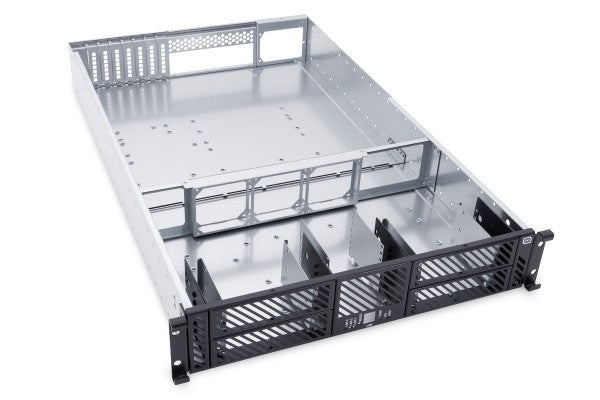

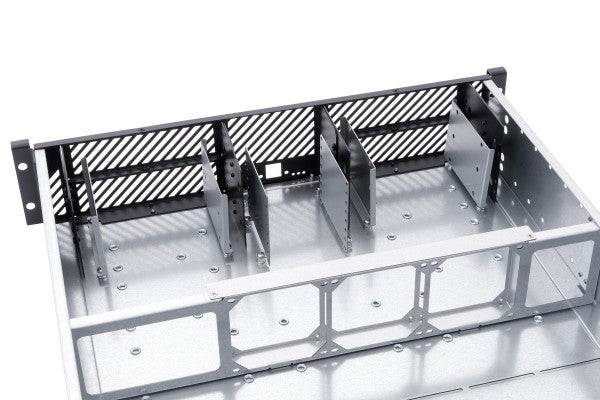

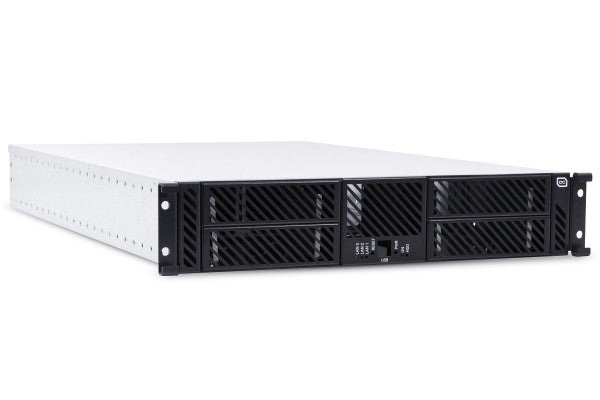

The 2U server rack offers mounting options for four 5.25 drives on the left and right side of the front. Alternatively, each 5.25 bay offers the option of mounting three 3.5 drives via an enclosed adapter. A mounting frame for mounting up to six 2.5 drives is possible in the centre front. The mounting frame for the 2.5 can also be mounted in other places in the case.

Mainboard

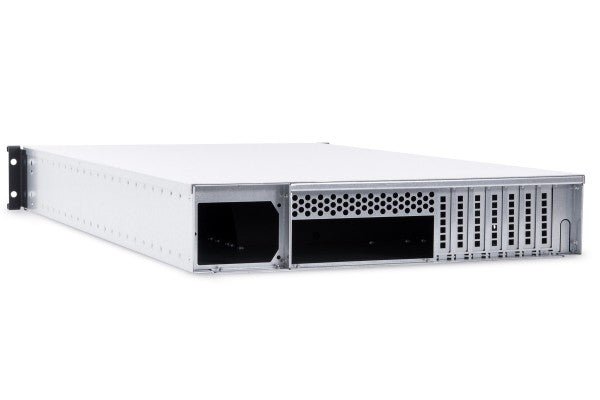

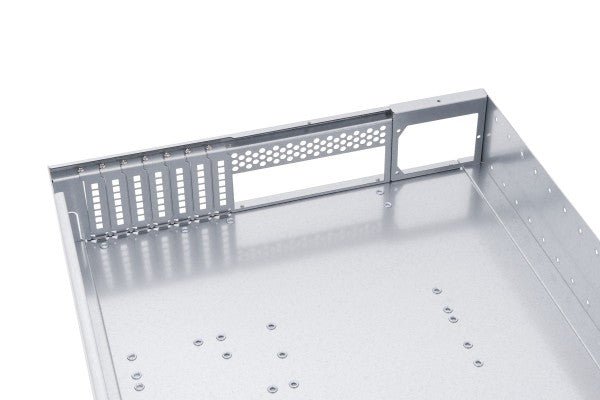

For mounting an SSI-EBB mainboard, all the usual screw connection options in the classic ATX format are available. This includes all mounting holes for Mini-ITX to EE-ATX. The case offers space for up to seven 0.8 low-profile cards.

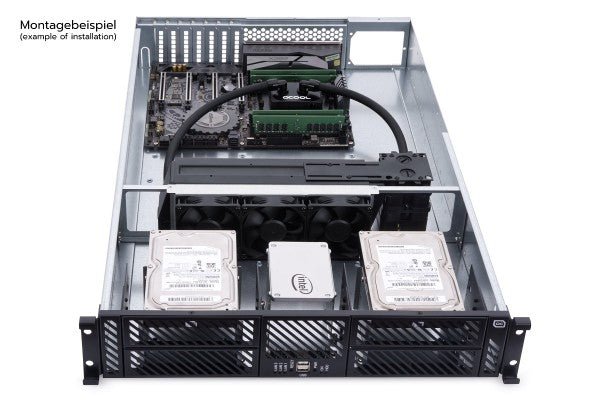

Water cooling for 880W waste heat

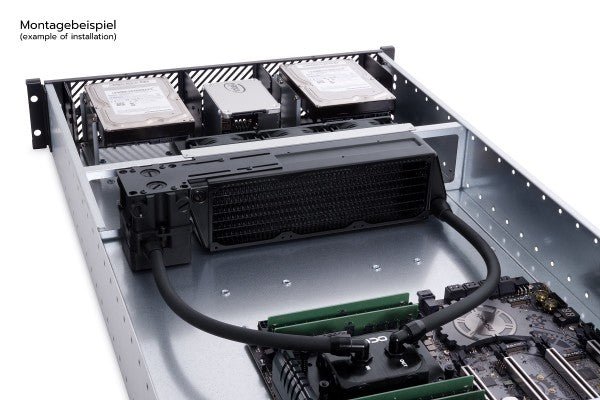

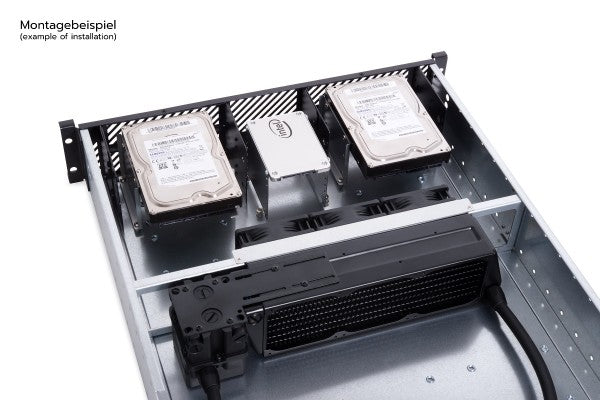

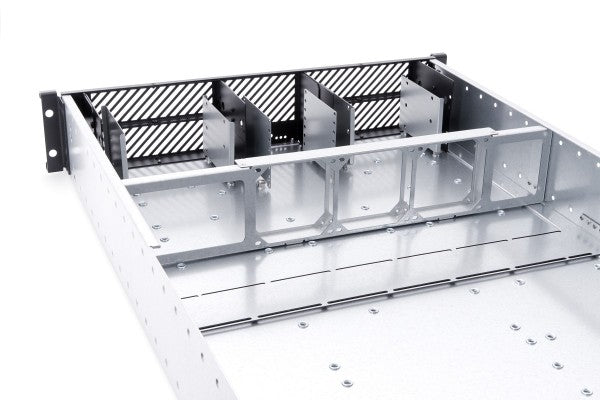

With an appropriate water cooling system, up to 880W of waste heat can be dissipated in this case. Alphacool offers special water cooling sets for this purpose, which can be individually configured and are delivered to the customer pre-filled. The mounting frame for the radiator and fans can be moved within the enclosure to suit any set-up.

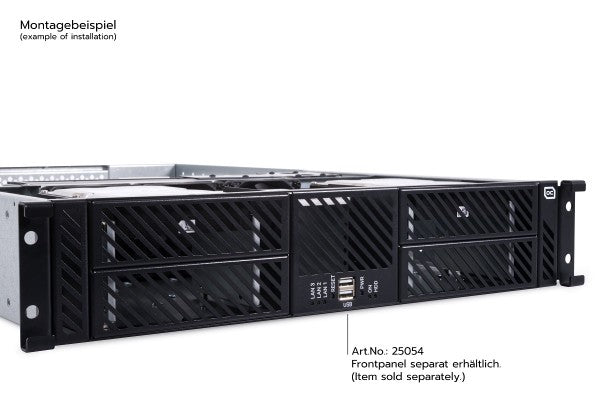

Please note: The case comes without I/O panel. Alphacool offers a separate set of I/O panel and cable harness under item number 1021066.

Overview of all compatible sets for this enclosure can be found here! (Attention: You will be redirected to the manufacturer's website www.alphacool.com)

Alphacool recommends the following compatible products for this enclosure.

Radiators
1015722 - Alphacool UT60 Full Copper X-Flow 80mm Single (1 x 80 mm)
1015723 - Alphacool UT60 Full Copper X-Flow 80mm Dual (2 x 80 mm)
1015724 - Alphacool UT60 Full Copper X-Flow 80mm Tripple (3 x 80 mm)

Reservor with integrated pump top
1016194 - Alphacool Eisstation 80 DC-LT (Recommended pump: 49061)
1017716 - Alphacool ES Reservoir 2U â?? DDC (Recommended pump: 1019539)

CPU Cooler
1016218 - Alphacool XPX 1U (AMD AM4, Intel LGA 1150, 1151, 1200, 2033, 2033-1, 2066)
1015815 - Alphacool XPX Pro 1U (AMD TR4, sTRX4, SP3, sWRX8, Intel LGA 2011, 2011,3, 2066, 3647)

Fans
1020166 - Alphacool ES 80mm 800-6000rpm PWM (80x80x25mm)

Technical data:

Form factor	2U
Length	730,75 mm (28,77 Inch)
Width	478,50 mm (18,84 Inch)
Height	88,90 mm (3,50 Inch)

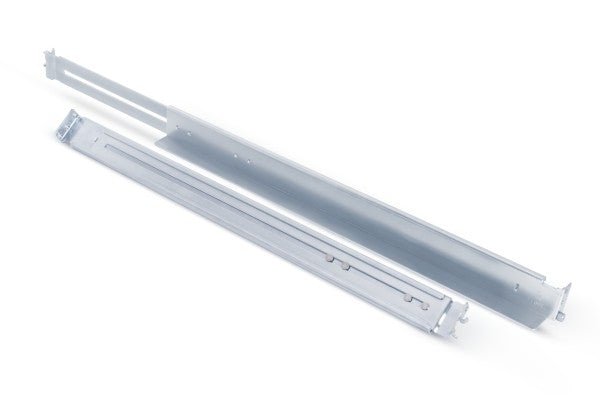

Weight (only housing without common rails)	13,18 kg (29,05 lbs)
Material	Galvanised sheet steel
Material thickness	1,2 mm
Colour case	Grey
Colour front	Black



Standard	Optional
4 x 5,25â?? Slots	3 x 3,5 Per double 5,25 Slot
8 x 2.5â?? HDD/SSD	Â
