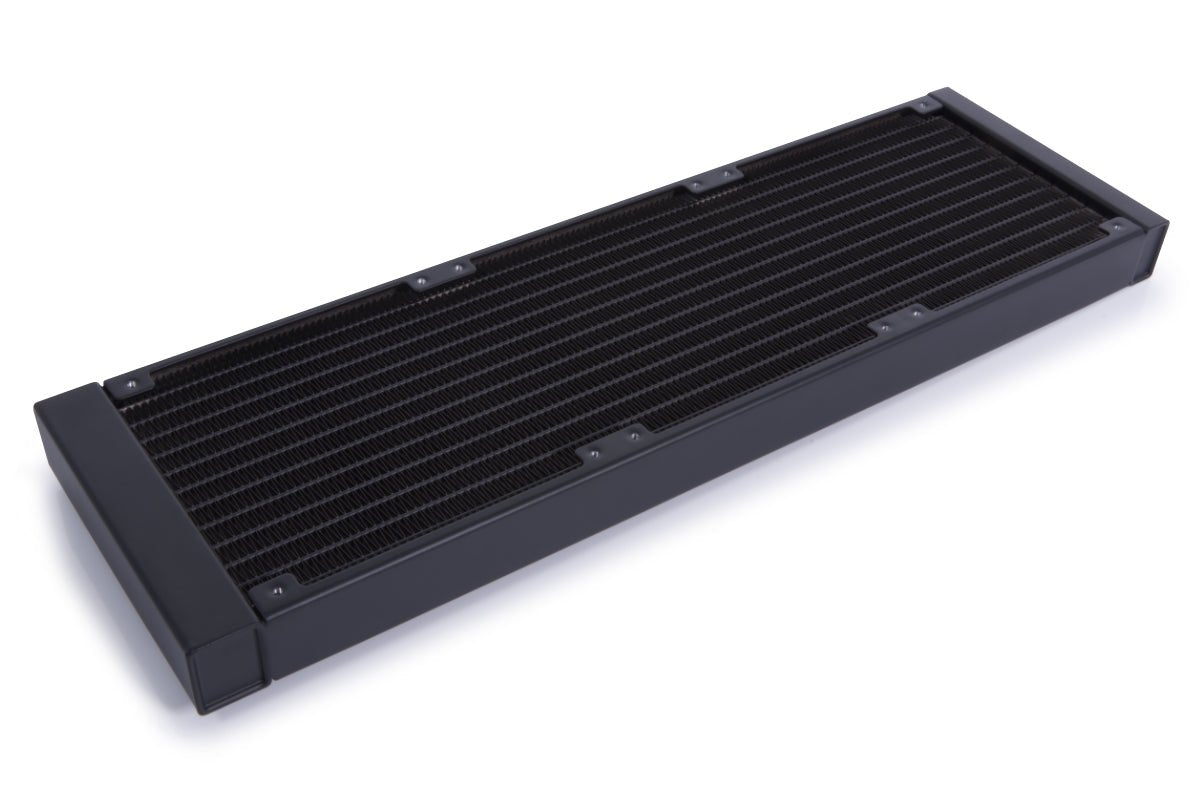

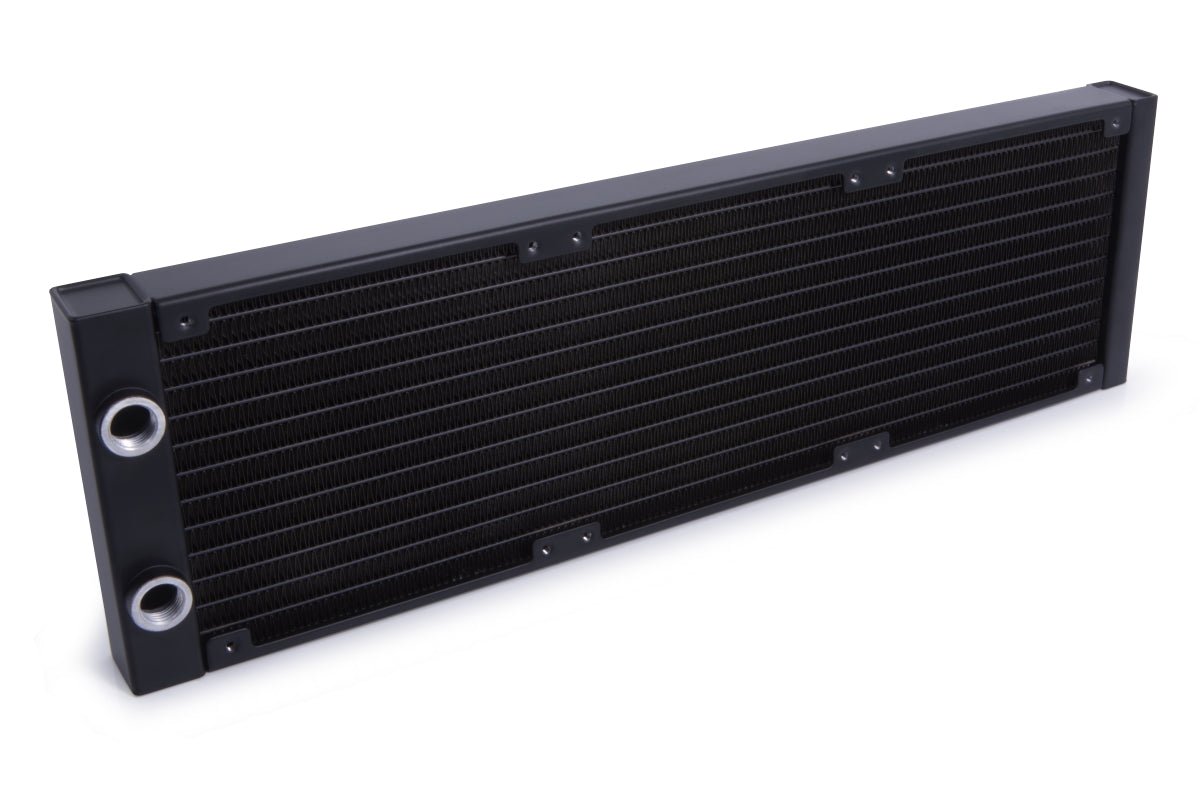

Alphacool ES Aluminium 360 mm T27 - (For Industry only)

The all-aluminium ES T27 and T38 radiators from Alphacool's ENTERPRISE SOLUTIONS series were specially developed for use in the industrial range. Due to the low construction height of 27mm or 38mm, they find space in the smallest of spaces and enable the water cooling of technical equipment in the automotive industry, in mechanical engineering or in the production of films and videos.

High Performance
Compared to Alphacool's full copper models, all ES T27 and T38 aluminium radiators have additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. The radiators have a high fin density and are particularly suitable for use with fans with high air pressure and air throughput. This achieves a significant increase in the performance of the water-cooled components.

Fitting and mounting options

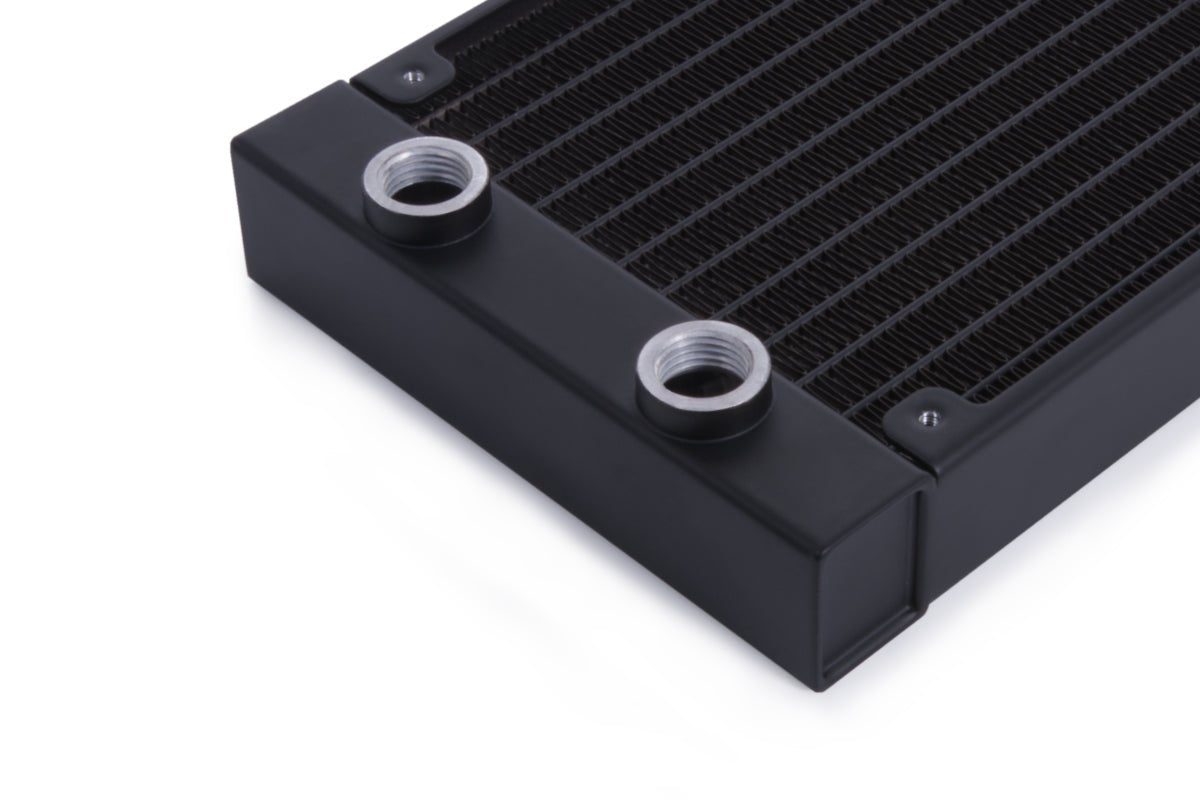

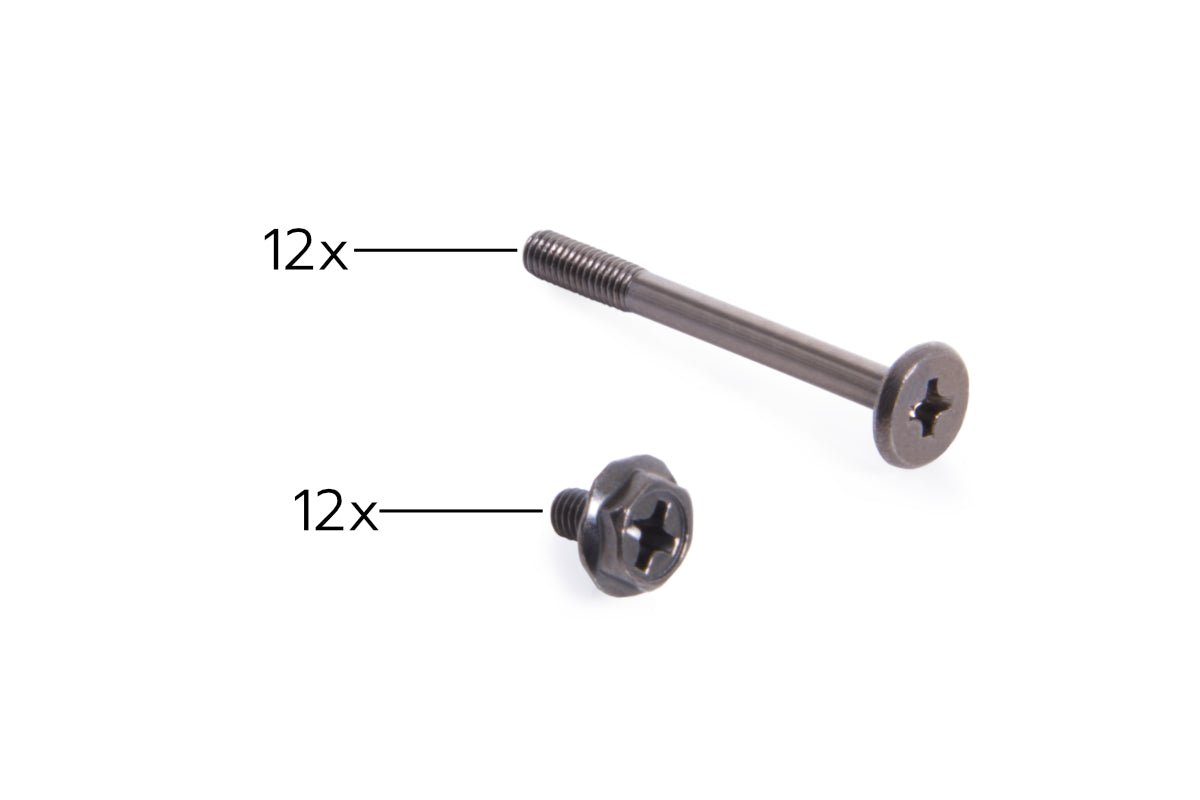

The radiator offers an inlet and outlet (IN/OUT) with G1/4 thread. Screws for case mounting (M3x5) and for fan mounting (M3x30) are included with the radiator. Additional screws are not required for single-sided fan mounting.

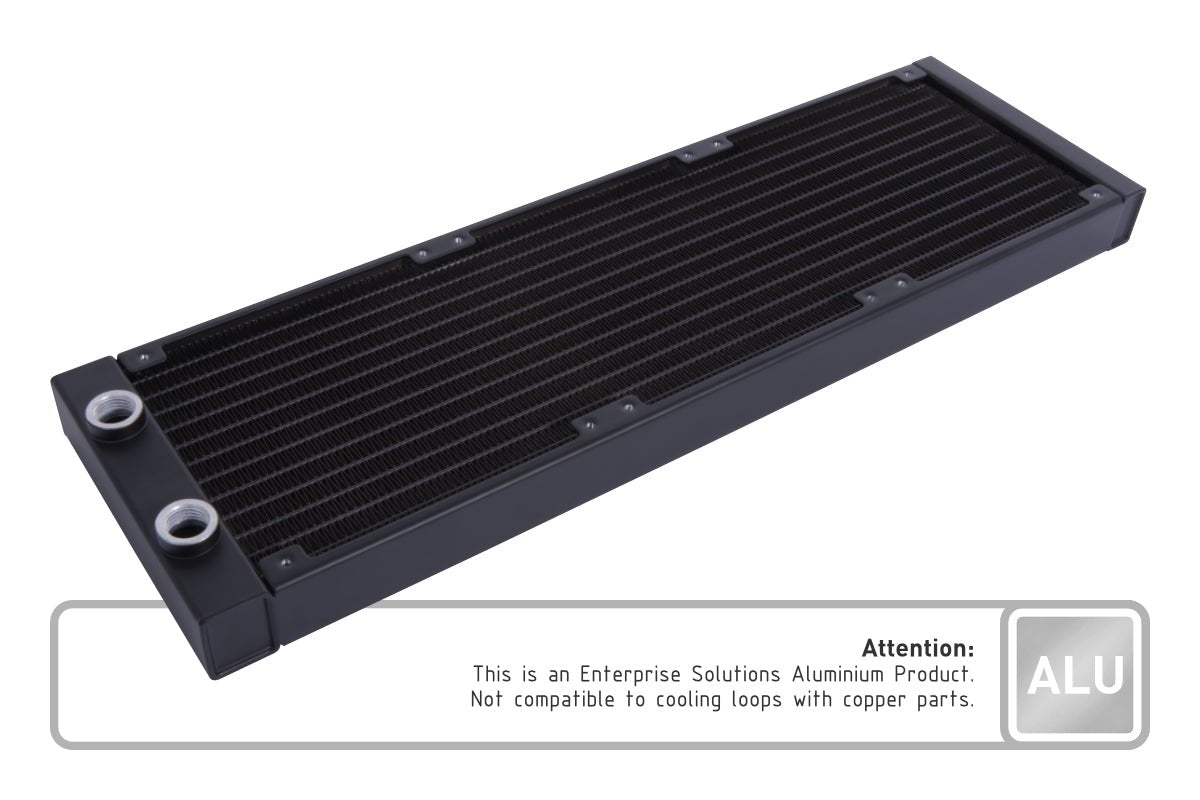

Important note
This is an Enterprise Solutions Aluminium product. The ES aluminium radiators must not be used together with copper water cooling products (radiators, fitting, etc.). Using aluminium & copper components together will cause severe damage to the liquid cooling loop.

Color:	black
Manufacturer:	Alphacool
Fan size:	120mm
Number of fans:	3, 6
Fan mounting thread:	M3
Radiator fins material:	Aluminium
Pressure tested:	2 Bar
Cooling channels:	Aluminium
Case:	Aluminium
Fins per inch:	19
Connector:	2x G1/4
Thickness:	0 - 29mm
Dimensions (L x B x H):	394 x 120 x 27mm



Technical data
L x W x H	394 x 120 x 27 mm
Material cooling fins, channels & prechamber	Aluminium
Material outer housing & threads	Aluminium
Fins per Inch	19
Threads	2x G1/4â??
Thread size fan mounting	M3
Fan size	120 mm
Fan slots	3 one-sided / 6 double-sided
Max working temperatureÂ	90 °C
Pressure tested	2,0 Bar
Weight	434 g
Color	Black
