Alphacool ES Distro Plate Parallel C5

AC-13024

The Alphacool ES Distro Plates provide order in the system and facilitate the exchange of components in conjunction with quick-release fasteners. They offer extensive mounting options and are the ideal foundation for any enterprise system that is to be equipped with water cooling.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
2 in stock
$70.95
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Alphacool ES Distro Plates provide order in the system and facilitate the exchange of components in conjunction with quick-release fasteners. They offer extensive mounting options and are the ideal foundation for any enterprise system that is to be equipped with water cooling.

Features

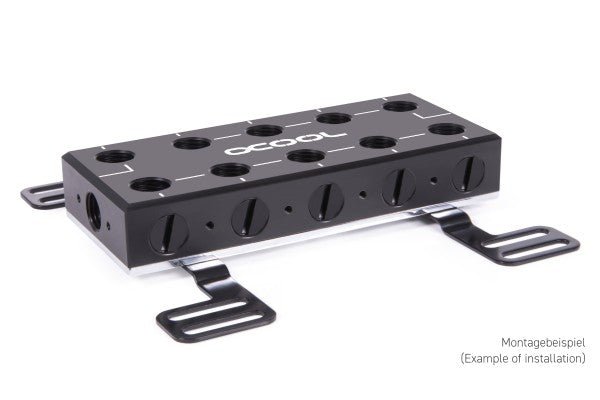

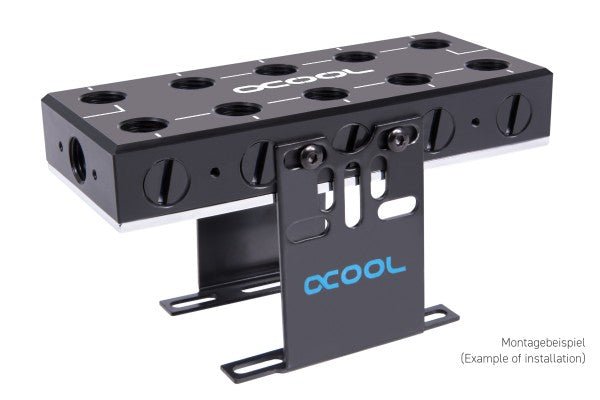

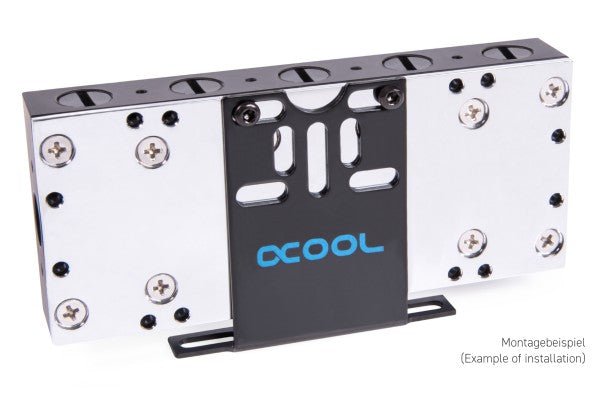

Mounting options

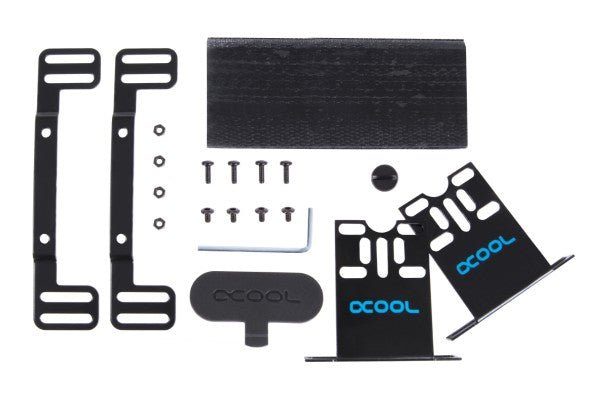

The Alphacool ES Distro Plate C1 is specially designed for mounting in Alphacool server racks. It can be in a number of ways and also in series. Alphacool offers special mounting brackets for this purpose in most server racks. The ES Distro Plate C1 is simply mounted with 2 screws. Several C1 Distro Plates can be connected together on the carrier. So you are almost free in the number of components you want to connect via the Distro Plate.

Connection possibilities
The ES Distro Plate C1 has a total of 4 G1/4 connections with 5mm deep threads. There are 2 connections at the front and one connection thread at each front side. Please refer to the enclosed instructions to connect the components correctly. Due to the various configuration options, all components in the loop can be connected to the Distro Plate very easily. Of course, several ES Distro Plates can be connected in series.

Why an ES Distro Plate?
In narrow server cases, it is essential to allow a clean setup of the water cooling loop. If you draw the cooling loop beforehand, you will quickly find the ideal place for the Distro Plate. An ideal place is when all hoses can be laid as straight as possible, bending tubing too tightly should be avoided where possible as it can restrict flow. If components are to be replaced, the use of Alphacool ES quick connectors with external thread is recommended. This way, all components in the loop can be mounted directly to the Distro Plate with quick connectors. This makes the replacement of, for example, one or more radiators very quickly possible. Additional or larger radiators can also be easily integrated or replaced.

Specifications







































Technical data
L x W x H 130 x 56 x 22,5mm
Material top acetal
Material bottom nickel plated copper
Threads 22 x G1/4 inner thread (max. 5mm thread length)
Maximum working temperature 60°C
Pressure tested 0,8 Bar
Weight 318g
Color black





Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
