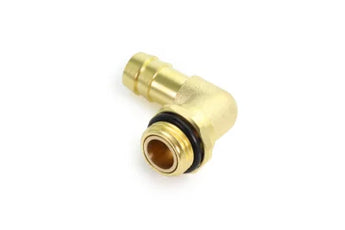

Alphacool ES G1/4 90° rotatable Fitting with Barbed Fitting for TPV Tubes 12.7/7.6mm

AC-14640


The Alphacool ES G1/4 90° rotatable Fitting with Barbed Fitting for TPV Tubes 12.7/7.6mm is part of Alphacool’s professional ES series and sets new standards in design, functionality, and reliability for water cooling systems in servers, workstations, and industrial applications.

Found a better price? Let us know and we'll try and match it!
Estimate shipping
3 in stock
$7.95
Shipping calculated at checkout.

Pickup available at Performance-PCs.com

Usually ready in 1 hour

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Details

The Alphacool ES G1/4 90° rotatable Fitting with Barbed Fitting for TPV Tubes 12.7/7.6mm is part of Alphacool’s professional ES series and sets new standards in design, functionality, and reliability for water cooling systems in servers, workstations, and industrial applications.

With its precisely machined barbed fitting and solid brass construction, this connector ensures a secure and leak-proof connection for 12.7/7.6mm tubing. The internal diameter is optimized for minimal flow resistance, supporting effective coolant circulation even in complex system configurations.

Hose barb fittings offer a compact and straightforward alternative to compression fittings, highlighting more of the tubing and saving space — especially useful in tight installations or specialized setups. Despite their minimal form factor, they provide secure hose grip and high flow capacity.

Thanks to the 90° rotatable design, tubing can be routed with exceptional flexibility. The fitting simplifies clean loop layout, reduces mechanical stress on the tubing, and enables space-saving installations — ideal for compact cases or densely packed rack systems.

ES Series – developed for professionals
Each component in Alphacool’s ES line is engineered for professional-grade reliability and performance. Whether in a high-performance workstation or industrial cooling setup, these fittings deliver consistent performance and robust build quality.

Features




With its precisely machined barbed fitting and solid brass construction, this connector ensures a secure and leak-proof connection for 12.7/7.6mm tubing. The internal diameter is optimized for minimal flow resistance, supporting effective coolant circulation even in complex system configurations.



Hose barb fittings offer a compact and straightforward alternative to compression fittings, highlighting more of the tubing and saving space — especially useful in tight installations or specialized setups. Despite their minimal form factor, they provide secure hose grip and high flow capacity.



Thanks to the 90° rotatable design, tubing can be routed with exceptional flexibility. The fitting simplifies clean loop layout, reduces mechanical stress on the tubing, and enables space-saving installations — ideal for compact cases or densely packed rack systems.



ES Series – developed for professionals

Each component in Alphacool’s ES line is engineered for professional-grade reliability and performance. Whether in a high-performance workstation or industrial cooling setup, these fittings deliver consistent performance and robust build quality.



Note:

For increased safety and optimal tube retention, we recommend using the ES wire tensioning clamp (Art. No. 10282) in combination with this fitting. It provides a more secure grip on the tubing – especially important under elevated pressure or temperature fluctuations.

Specifications





































































Technical data

Type:

90° rotatable fitting for low flow rates

Dimensions:

26,35 mm x 29,15 mm x 15,80 mm

Nominal diameter:

10,20 mm

Connection type:

barbed fitting for tube

Material:

Messing (CuZn39Pb3)

Seal material:

EPDM Shore A 70

Clamping spring material:

stainless steel (X10CrNi18-8)

Working pressure:

2bar

Burst pressure:

8bar

Working temperature:

-20℃ ~ +100℃

Recommended liquids:

water, deionized water, glycol water, propanediol water etc.

Thread type:

G1/4” 6 mm outer thread

Threaded fastening:

Open-end wrench width across flats 16 mm

Weight:

23g

Color:

brass, raw

















Note on application

Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.
