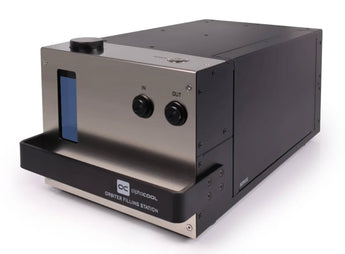

Alphacool ES Orbiter Filling Station

The ES Orbiter Filling Station from Alphacool allows for easy and effective filling of water cooling systems. With the help of the two powerful pumps, the system to be filled is quickly vented. A high-performance filter ensures that the coolant is cleaned, making the ES Filling Station also ideal for cleaning cooling loops.

Efficient venting and filtering
The two built-in pumps in the ES Filling Station not only ensure redundancy, but also enable fast and reliable venting of the system to be filled. The installed filter ensures that no impurities enter the cooling system. Thanks to the filter, the Filling Station is also ideal for cleaning existing cooling circuits.

Easy handling

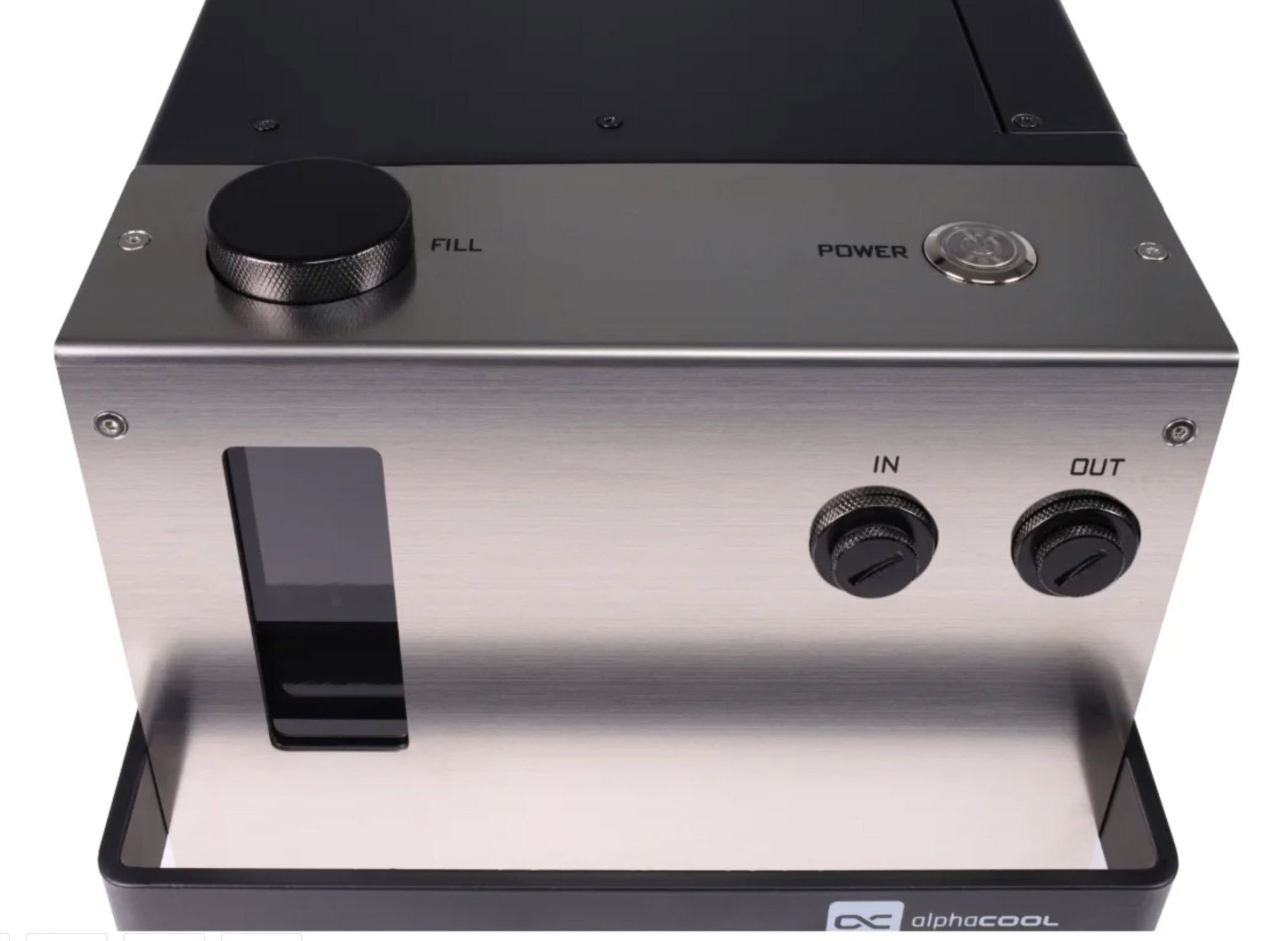

Filling the Alphacool ES Filling Station is effortless via the slightly raised G1 filling port. The illuminated inspection window allows easy monitoring of the fill level at any time and even in poorly lit environments. The integrated reservoir has a capacity of approx. 4500 ml. In addition, the Filling Station has a maintenance door for carrying out work such as changing filters.

Note on application
Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Technical data
Dimensions (L x W x H)	415,50 x 226,40 x 188,10mm
Material: Case	Metal
Material: Reservoir	Acrylic
Material: Tubes	TPV (EPDM)
Approved liquids	water, water/glycol mixture
Voltage	12V DC
Power consumption	39W
Approved water pressure	0,8bar
Max. pumping height	3,125m
Rate of flow	350l/h
Permitted operating temperature (industrial applications)	75°C
Water connections	2x G1/4â??
Diameter filling port	G1â??
Volume reservoir	approx. 4500ml
Color	black
