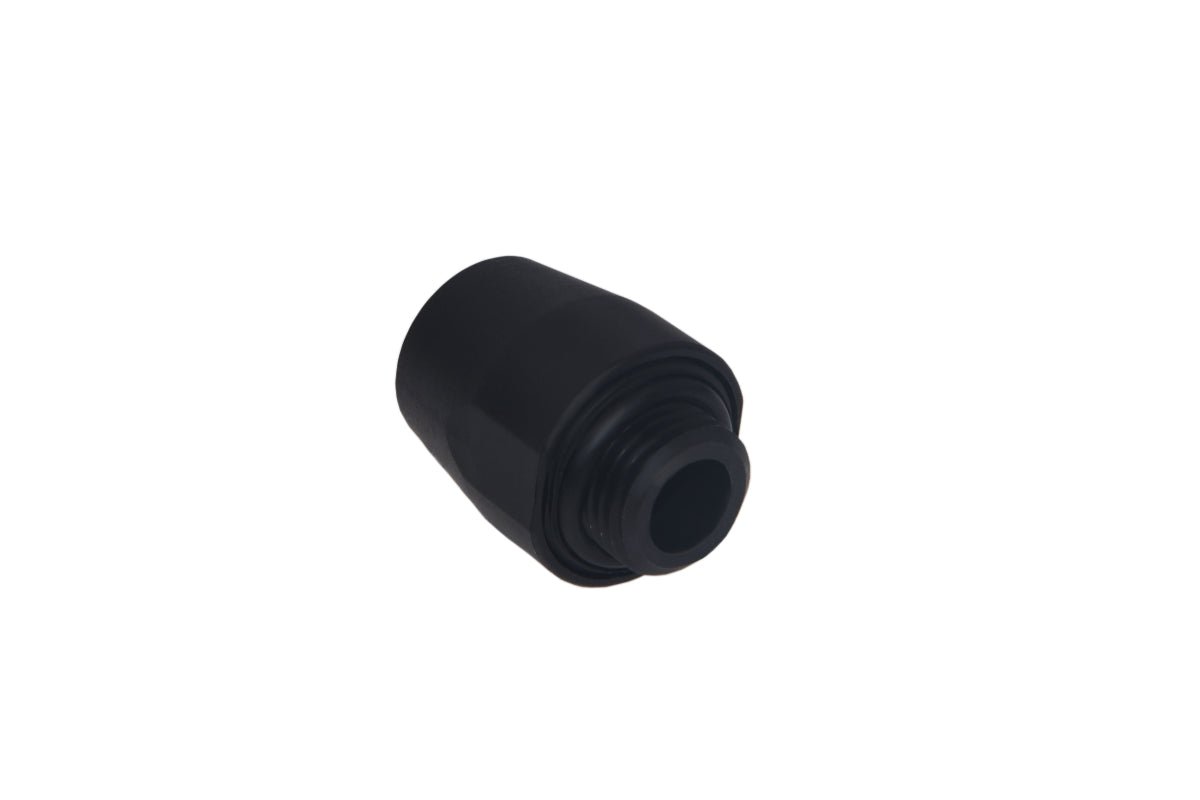

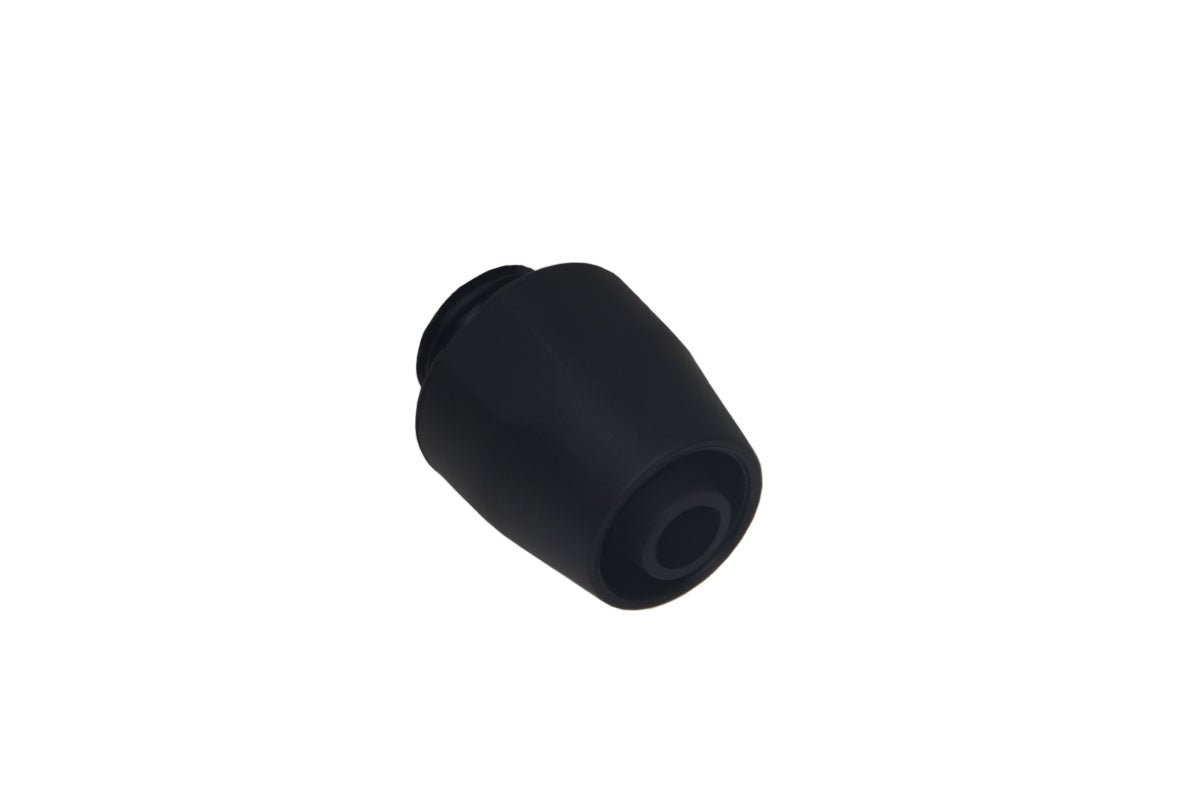

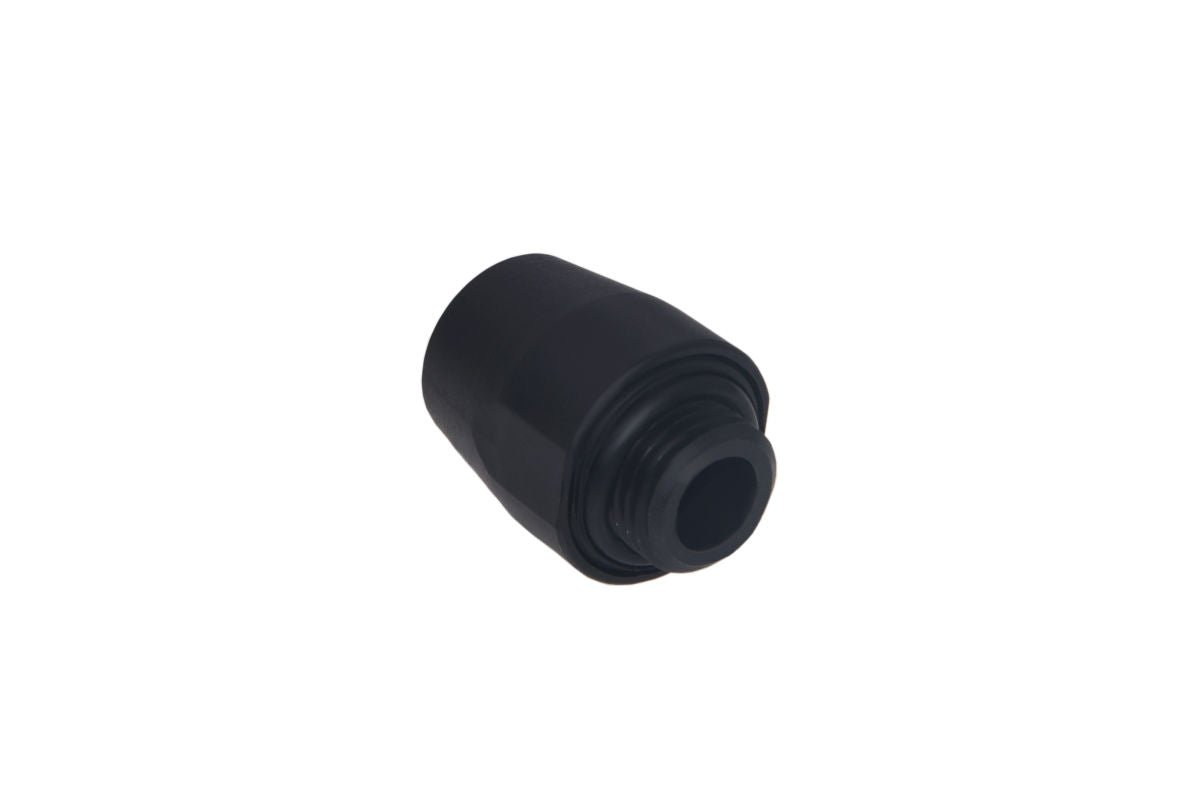

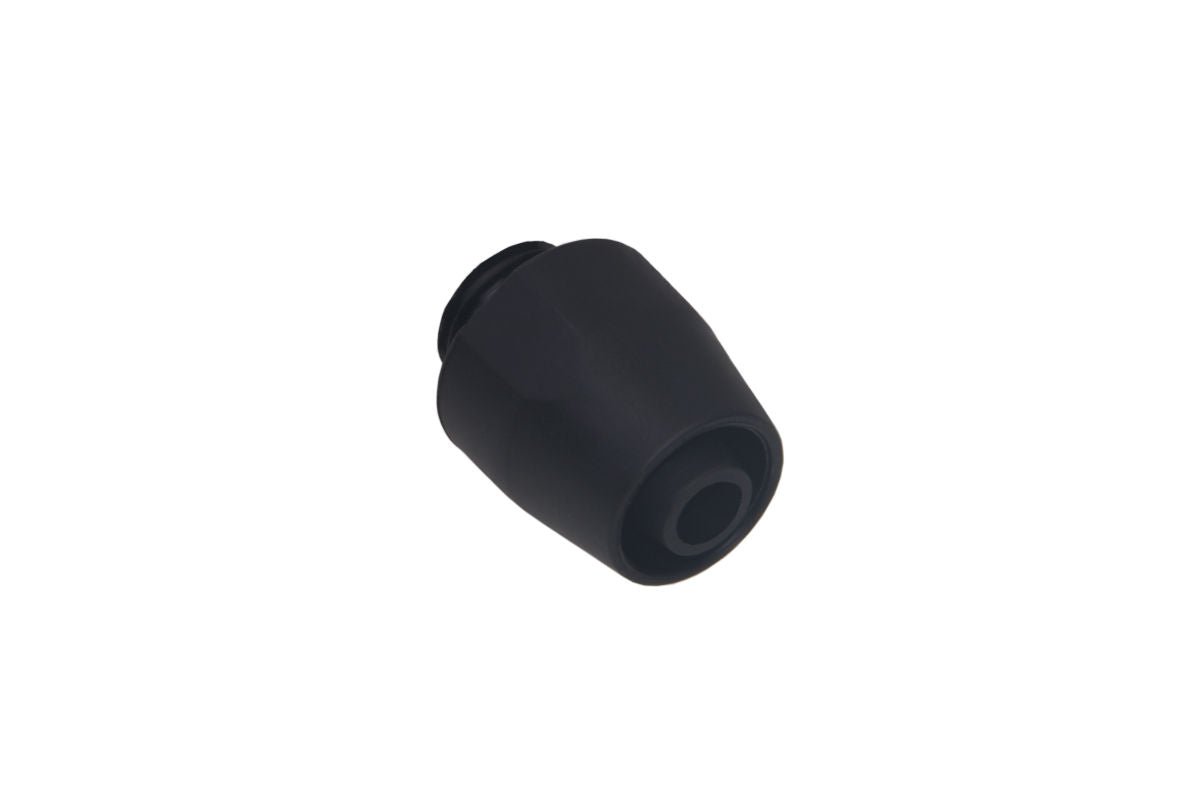

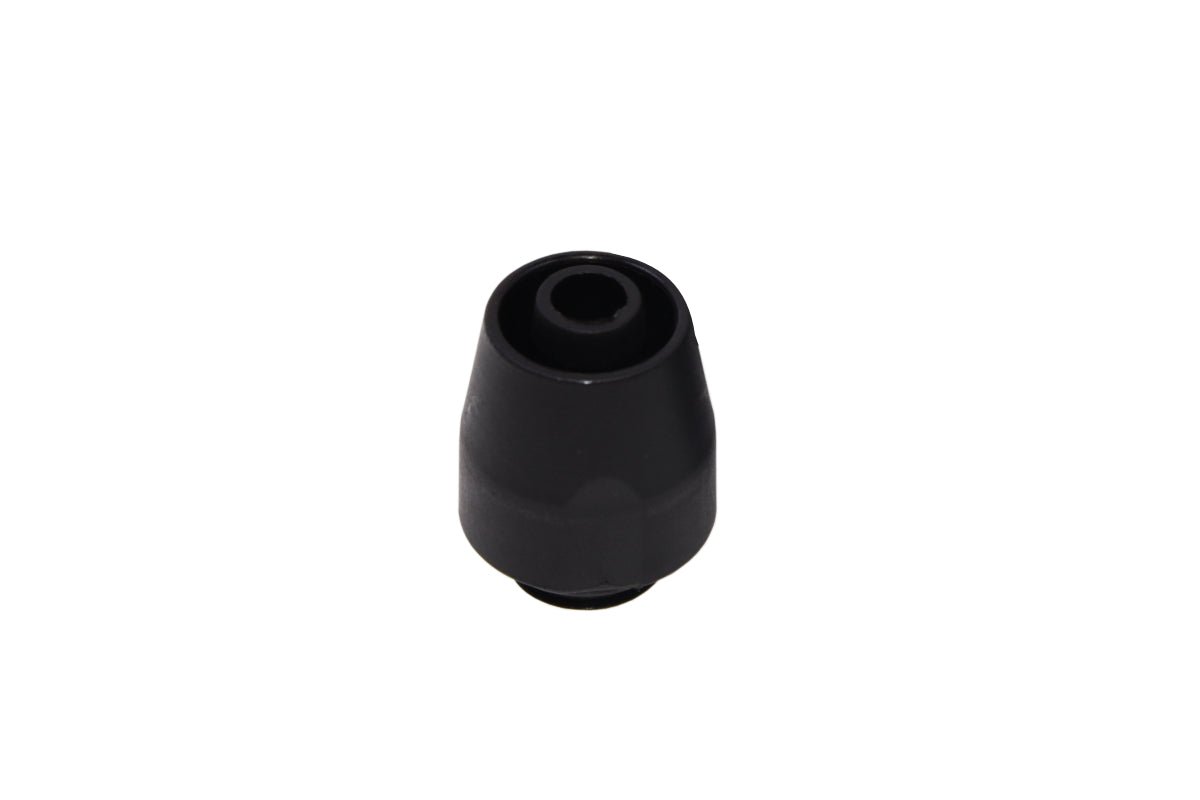

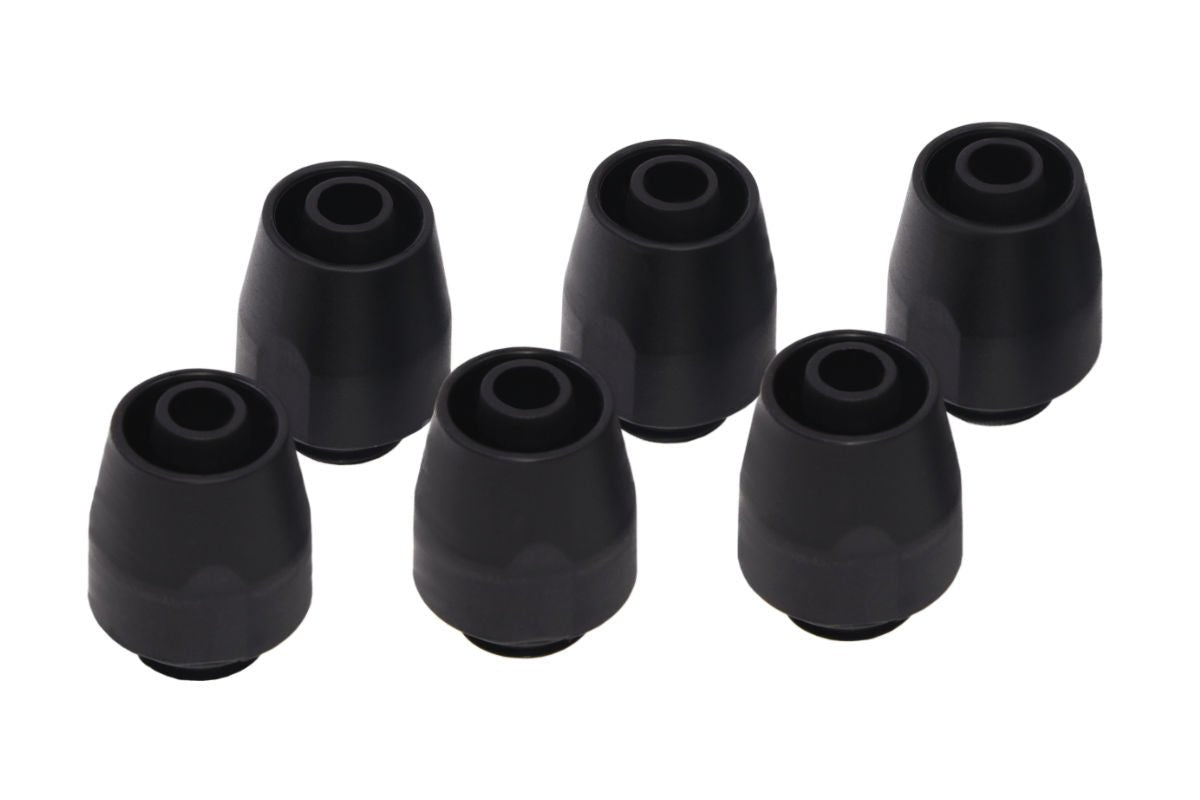

Alphacool HF screw-on sleeve TPV - 12.7/7.6mm straight - Black

Part of Alphacool's Enterprise Solutions line, the nylon TPV connector is specifically designed for use with TPV hoses. Together with the matching TPV hose, this connection ensures a remarkably high tensile strength.

Enterprise Solutions connection?

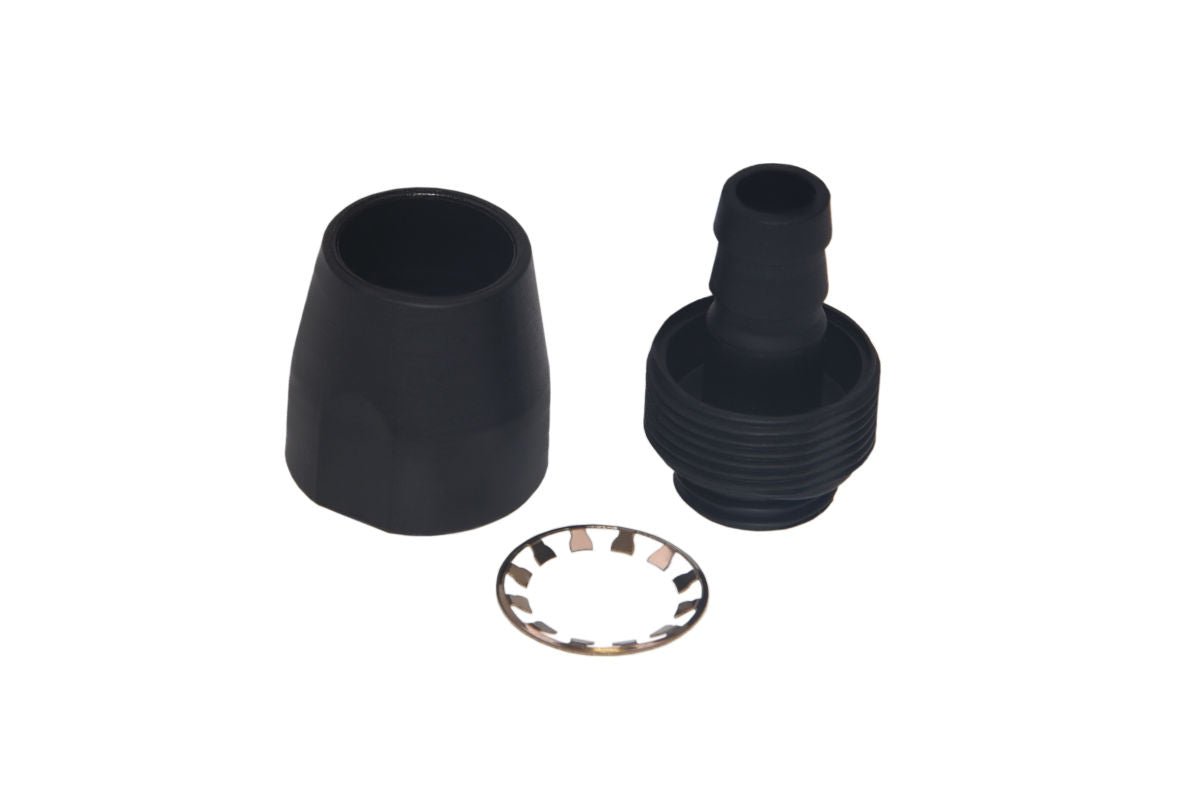

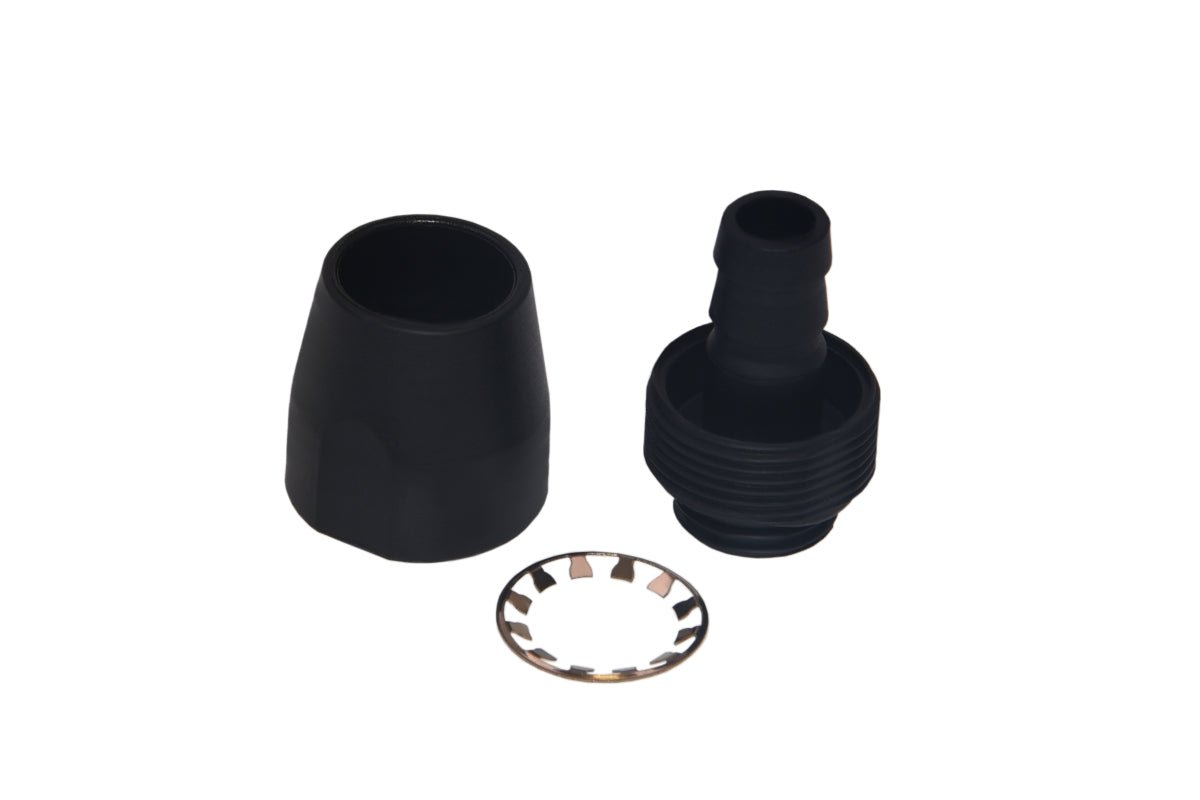

Until now, Alphacool's TPV water cooling connector has been used exclusively for servers and workstations where durability and security are of the utmost importance. To meet these requirements, the TPV straight fittings feature a locking collar that secures the hose. This collar consists of a metal ring inside the connector that claws onto the hose with hooks. Under normal conditions, it is no longer possible to pull the TPV hose out of the connection.

Nylon material
The connector is made of nylon to keep the weight as low as possible. Nylon is not only very resistant, but also extremely durable. In addition, nylon is compatible with copper and aluminum parts in the water circuit, nor does it react with other materials in the system.

Technical specifications
Dimensions (L x D)	28x20.5mm
material	nylon
thread	G1/4â??
thread length	5mm
hose size	12.7/7.6mm
Color	black

Material:	plastic
Rotatable:	No
thread length:	5mm
Manufacturer:	alphacool
Compatibility:	soft hoses (PVC, silicone, neoprene)
2. Page:	G1/4 external thread
Specification:	Shape: straight
Color:	Matt black
1 page:	12.7/7.6mm
