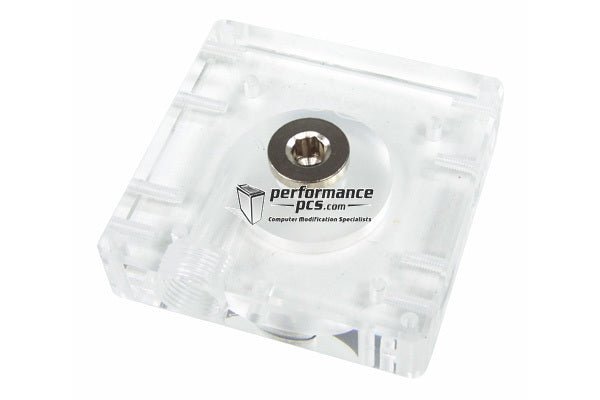

Alphacool Laing DDC Plexi Top HF 38 Version G3/8

The proven design of the Alphacool Laing top meets the future: Extreme highflow with 3/8 ? connection threads

This top replaces the black standard cover of the Laing DDC-1T and Laing DDC-1Plus pumps and adds many additional and very useful features. One of the most important is the use of 3/8 ? threads which makes you independent of the barbs on the original cover. The use of 3/8 ? threads, which have a much larger inner diameter than the common 1/4 ? threads on Laing covers, also makes this cover the ultimate choice for highflow applications.

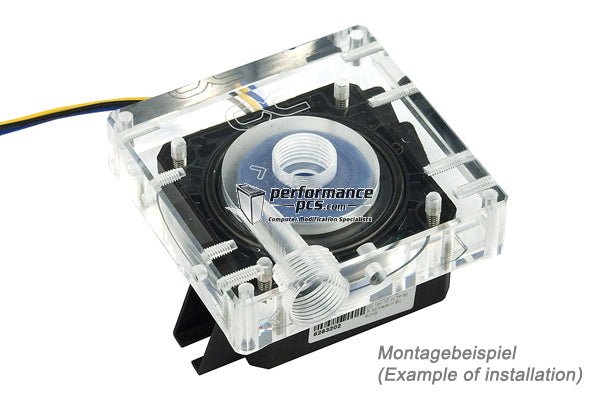

Rebuilding of the pump to use this cover is easy: Simply remove the 4 screws at the bottom of the pump and lift off the original cover. Then insert the 4 included screws instead of the original ones and put the cover on top of the pump. Simply tighten the screws and you are set to go!
To ensure a safe seal of the cover simply leave the original O-ring gasket in its place during installation.

Optionally this cover also offers the possibility for decoupled installation of the pump in a 3,5 ? drive bay. For use of this feature only one of our decoupling kits (Prod..No.: 13701) is required to allow quick, compact and decoupled installation of the pump.

This cover is also the basis for installation of a reservoir on this pump. The optional reservoir, available at the product number 13905, can simply be screwed onto the cover and the coling loop comes to life!

Technical specifications:

• Dimensions (LxWxH): 80 x 80 x 20â?¨


• Material: Röhm Plexiglas GS


• Connection thread size: 2x 3/8Â?


• Side mounting threads: 4x M4â?¨â?¨

Extent of delivery: â?¨

• 1x Plexi top HF 38â?¨


• 4x Stainless steel screw M4x25mmâ?¨


• 1x Screw plug G3/8Â?â?¨


• 1x Allen key 2.5mm

Note regarding mounting: After mounting a small gap remains between pump and top. The fit is tight as the O-ring ensures a safe seal. Hence do not over-tighten the screws, as it may result in damages to the top.
