Alphacool Lighttower All-in-One Reservoir - Black

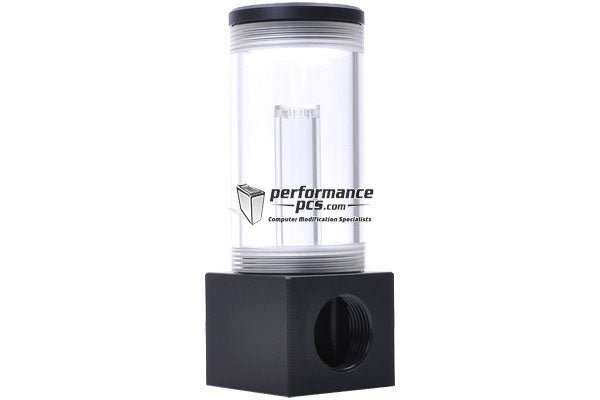

The Alphacool ?Lighttower ? reservoir leads to a new way of design and function. Though most reservoirs are only compatible with one or few pumps, this reservoir can be used with multiple pumps or be used even without a pump. This maximum of flexibility comes from the intelligent construction. If the reservoir needs to be fixed with screws, there are already 4 M4 threads available in the bottom of the reservoir (screws must be ordered separately)

The inlet:

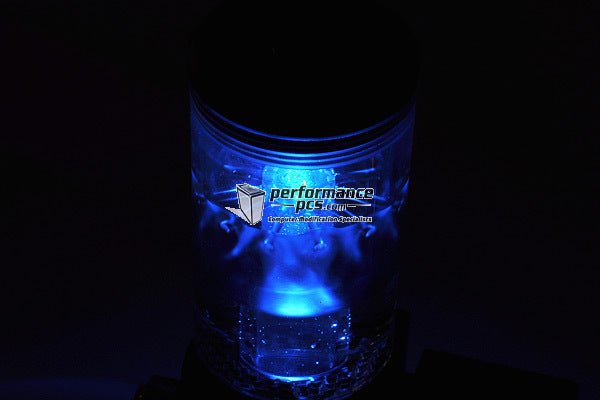

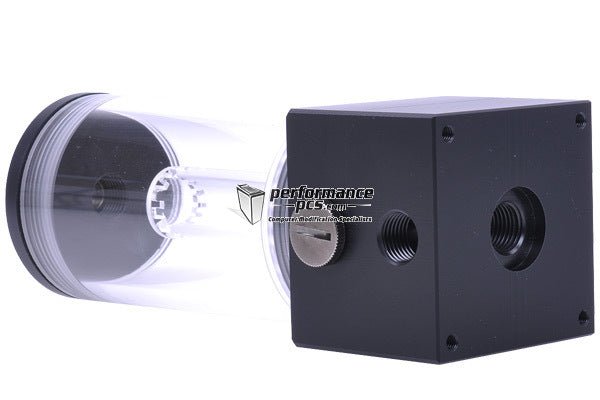

In the image you can see 2 threads on the right side. The lower one is the inlet. From there the water flows into the inside tube, then to the top of it and from there with multiple small spots to the inside wall of the big outside tube to run down to the water basin. With the intelligent construction (LED light coming from the bottom of the reservoir),  you can achieve a new modding highlight looking like a lighttower inside. The lightning module you need in the botton is already included (LEDs must be ordered separately)

The in-outlet:
If you do not want to use this function you can use one thread above as inlet, so that the water runs into the reservoir from the bottom. Furthermore you can use that thread as outlet (for example if you do not want to use it with a pump and you want to have inlet and outlet at the same side of the reservoir) or use it for additional LED lightning or temperature sensors.

The outlet:

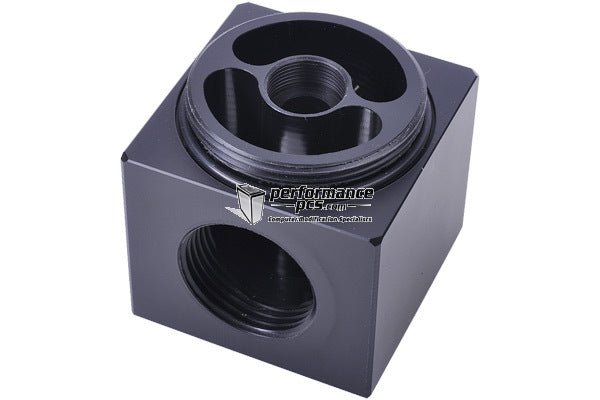

The fluid is collected in the bottom of the reservoir and due to the multiple hole plate the air goes out of the water very fast and the any cyclone or vortex is avoided. Under the hole plate is an additional basin where the water is stored and sucked from the pump. There is a big G1Â? thread in which multiple pump adaptors can be screwed.

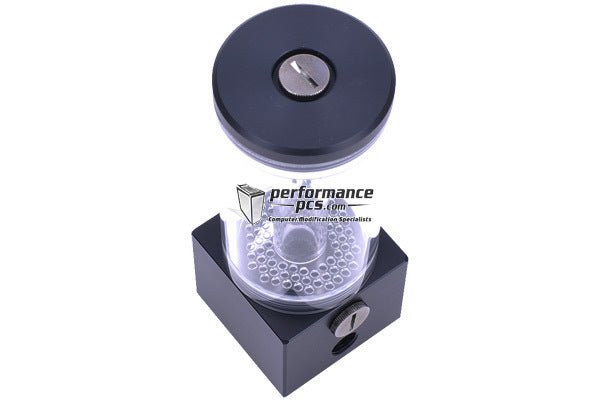

The top:
The top can be unmounted for filling and refilling or the top can be connected with a fillport (fillport not included). This allows an easy and fast filling of the water cooling system.

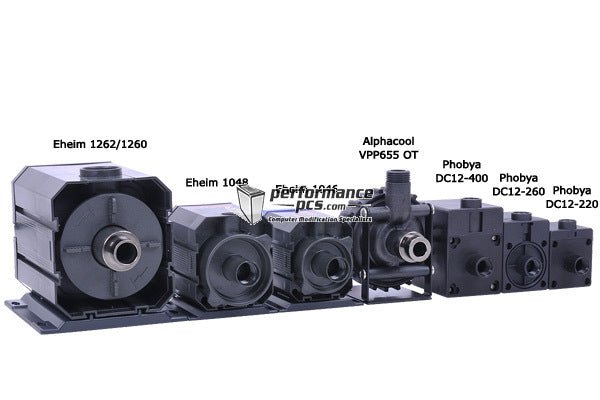

List of pump compatibility:

• Already included are 3 adaptors, so that this reservoir can be used with the following pumps:


• Phobya DC-12-220/260


• Phobya DC12-400


• Eheim 1046/1048 and Aquastream, Alphacool 1046

Additionally you can order these adaptors separately:

• Alphacool Lighttower adaptor for G1/4 (Art. 15049)


• Alphacool Lighttower adaptor for Eheim 1260 (Art. 15050)


• Alphacool Lighttower adaptor for Alphacool VPP655 / Laing D5 (Art. 15052)

Technical data:

• Type of reservoir: Tube reservoir


• Pump compatibility: Phobya DC-12-220/260 Phobya DC12-400 Eheim 1046/1048


• Measurements: 60x60x165mm


• Material: POM / Plexi


• Color: black / transparent


• Thread: G1/4


• Volume: app. 250ml

Content of delivery:

• 1x Lighttower reservoir


• 2x Screw plug G1/4


• 1x Lightning module for 5mm LED


• 3x pump adaptor
