Alphacool NexXxoS HPE-60 Full Copper X-Flow 80mm Triple Radiator

Alphacool is uncompromising in its choice of materials and is the only manufacturer in the world that uses only copper for all water-bearing parts in the radiator. The pre-chambers, cooling fins and cooling channels are made of pure copper. Only the fitting threads (made of brass) and the outer casing of the radiator (made of sheet steel) are made of other materials.

High Performance
Compared to Alphacool's full copper models, all ES T27 and T38 aluminium radiators have additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. The radiators have a high fin density and are particularly suitable for use with fans with high air pressure and air throughput. This achieves a significant increase in the performance of the water-cooled components.

Fitting and mounting options

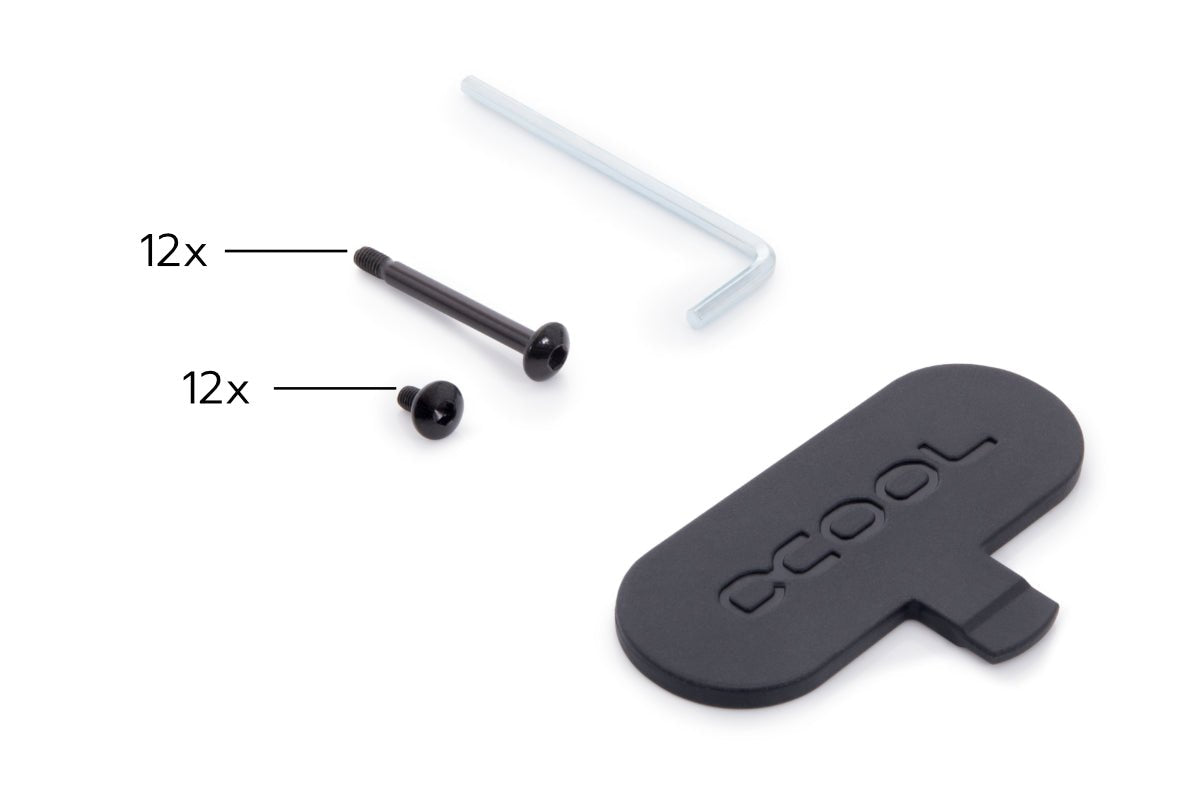

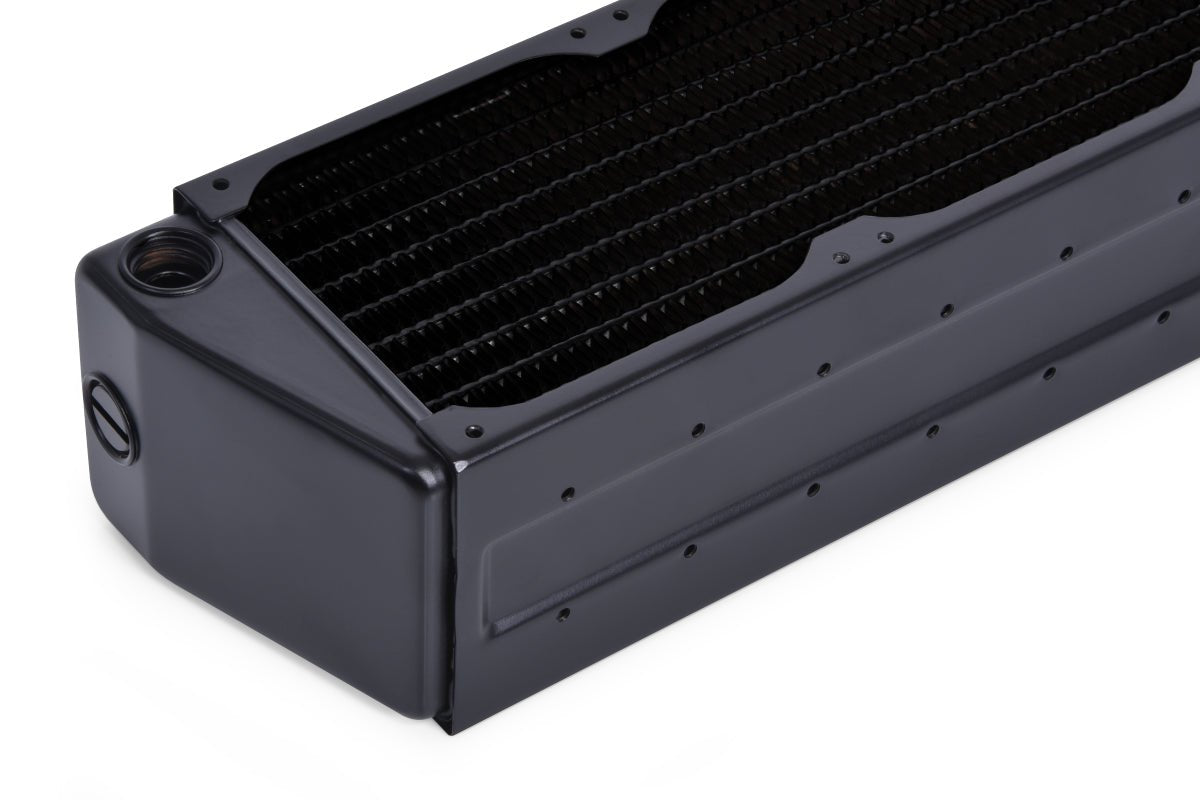

The radiator offers an inlet and outlet (IN/OUT) with G1/4 thread. Screws for case mounting (M3x5) and for fan mounting (M3x30) are included with the radiator. Additional screws are not required for single-sided fan mounting.

Important note
This is an Enterprise Solutions Aluminium product. The ES aluminium radiators must not be used together with copper water cooling products (radiators, fitting, etc.). Using aluminium & copper components together will cause severe damage to the liquid cooling loop.

Technical data
L x W x H	456 x 140 x 38 mm
Material cooling fins, channels & prechamber	Aluminium
Material outer housing & threads	Aluminium
Fins per Inch	20
Threads	2x G1/4â??
Thread size fan mounting	M3
Fan size	140 mm
Fan slots	3 one-sided / 6 double-sided
Max working temperatureÂ	90 °C
Pressure tested	2,0 Bar
Weight	842 g
Color	Black
