Alphacool Repack Dual Bayres 5.25" - Rev.2

Based on the development of the Alphacool Repack Dual 5.25 Bay Station, this Bay reservoir also brings its advantages to the table: Easy mounting, compact dimensions and appealing design! All of these features and many more are implemented in the Alphacool Repack Single Bayres. But Alphacool would not be Alphacool, if this new product would not also have some extremely interesting new features, which were not available until now!

The Alphacool Repack Dual Bayres 5,25" - Rev.2 is designed for installation in the front of an enclosure. Two vacant 5.25” drive bays are needed. By default, the connection of in- and Outlet can be achieved via ¼” threaded openings. Additionally Alphacool offers the possibility to use 3/8” threads for reduced flow resistance. Of course all four openings can also be used parallel, e.g. to allow installation of a second cooling loop.

New technologies implemented in the Alphacool Repack Dual Bayres:
So far everything sounds like a standard reservoir, but the developers have integrated some great features to improve the reservoir and its functionality:

Anti Cyclone:

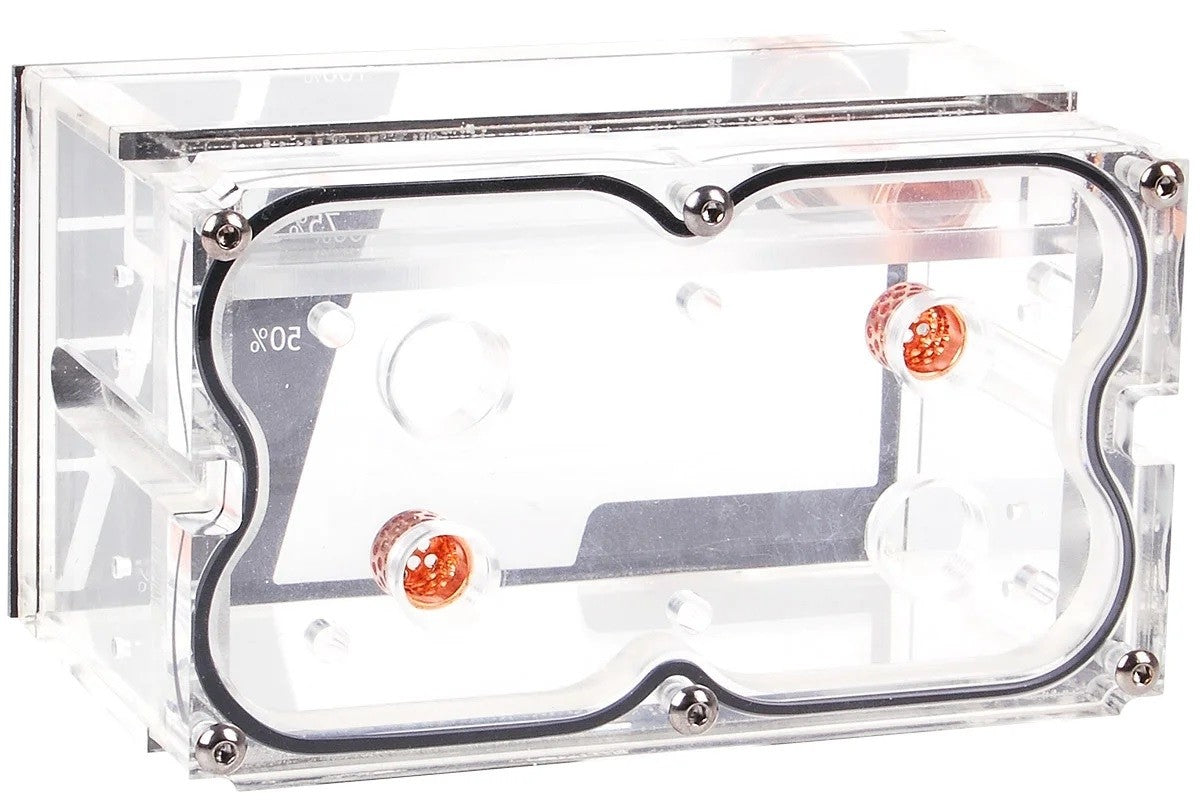

Unlike most reservoirs, where the coolant is sent around multiple corners, still leaving micro-bubbles in the coolant, this reservoir utilizes a new technology: Both In- and Outlet openings are equipped with a special filter which eliminates even the smallest bubbles in the coolant!

Filling:
Filling has always been a hassle with standard slot-in reservoirs: Unscrew, pull out, fill, push in and tighten screws again. Enough of this! The front of this reservoir has a filling straw which can be taken out by unscrewing it. As it is hollow, it can now be used for filling of the reservoir. We recommend using a filling bottle or funnel from our portfolio.

Design:

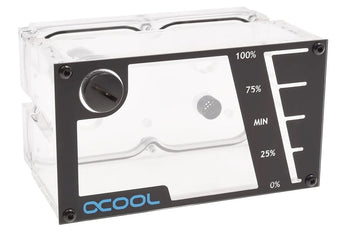

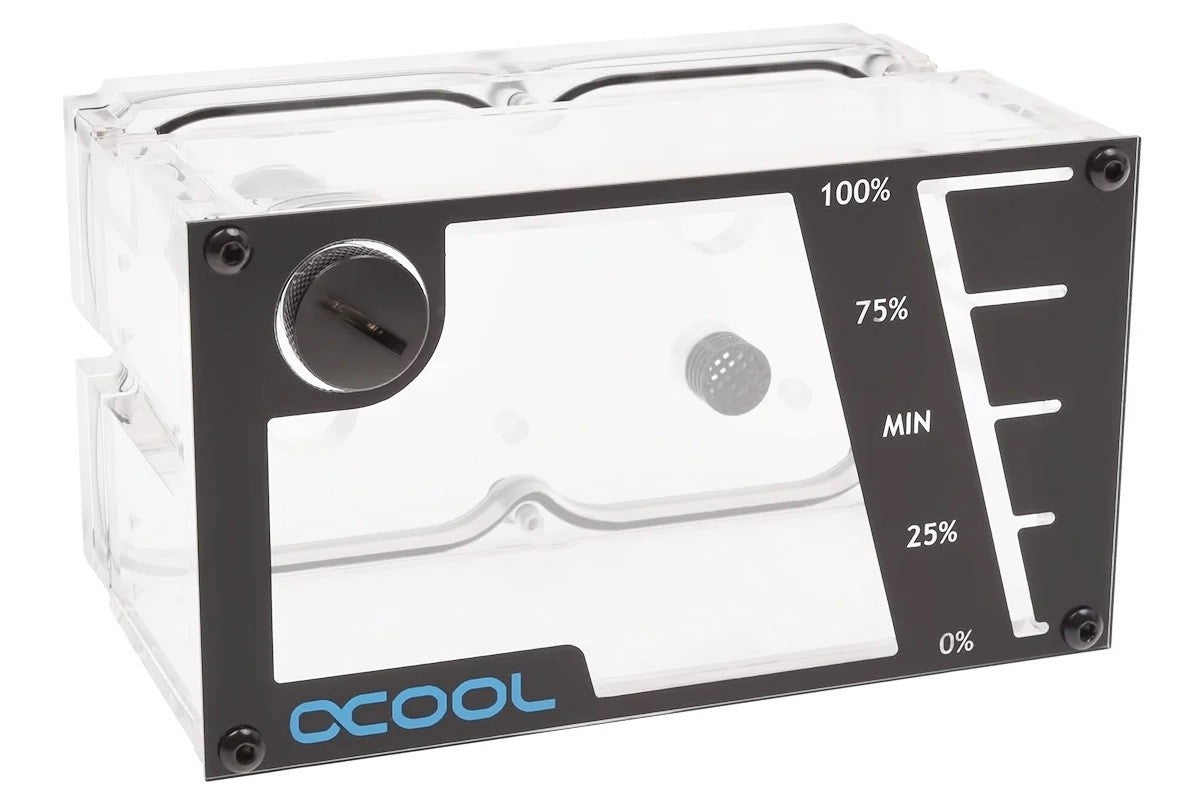

The front of the reservoir, the component which mainly remains visible after installation, is just beautiful to look at: Plexi, Acetal and a fill level indicator in combination with the typical Alphacool copper create a truly elegant design. Lighting is the next step towards a perfect system: At the rear of the reservoir, up to six 5mm LEDs can be inserted.
Highlight: From the top a 10cm long cold light cathode can be inserted! This is the ultimate lighting source four your reservoir. In combination with the LEDs it is even possible to have different colors inside of the reservoir. Especially with a Heatmaster as a controller, the possibilities are endless!

More power, better looks, easy handling and high quality: This is truly a First-class reservoir for your system!

Technical specifications:

• Material: Plexiglas/Acetal, brass

• Color: Transparent/black/copper

• Connection threads: 2x ¼“ and 2x 3/8”

• Dimensions (L x W x H): 91 x 148 x 84mm

• Pre-drilled holes for 6x 5mm LEDs

• Mount for 10cm CCFL

Conforms with ROHS

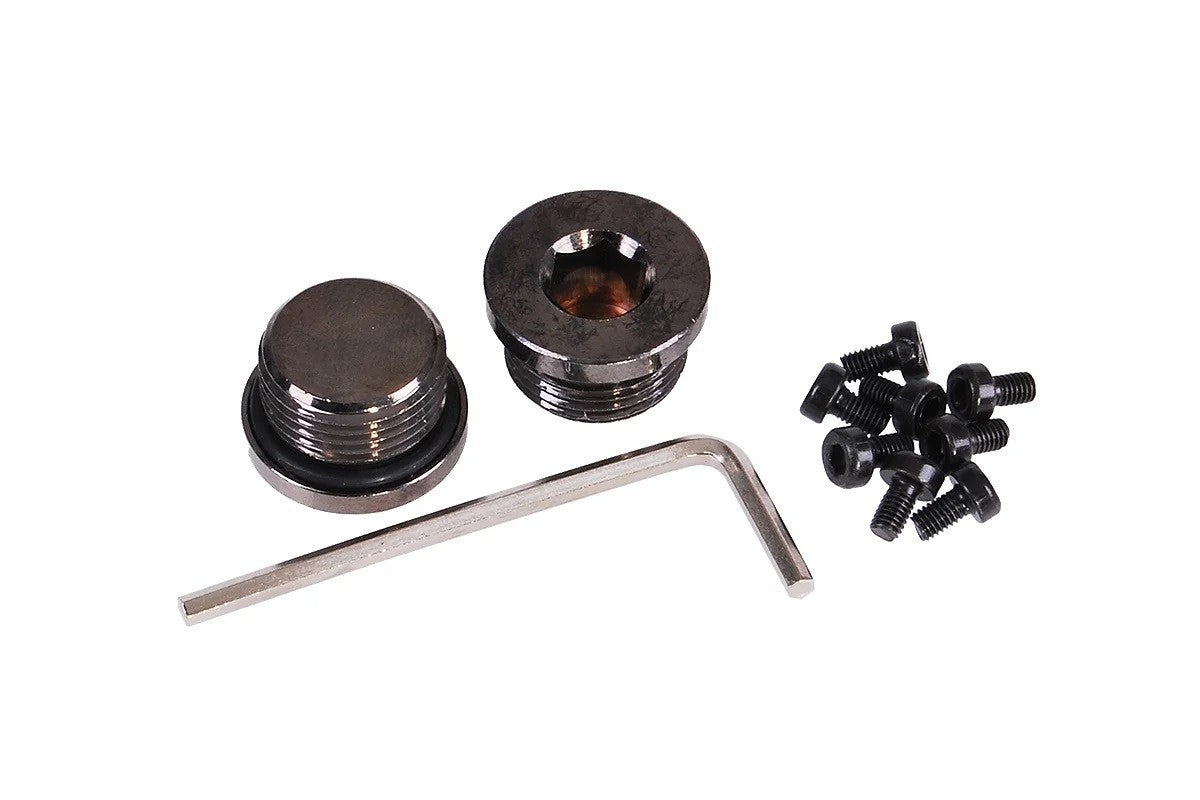

Extent of delivery:

• 1x Alphacool Repack Dual Bayres 5,25" - Rev.2

• 6x Mounting screws

• 2x 3/8” screw plugs

• Allen key
