Compact design, flexible use

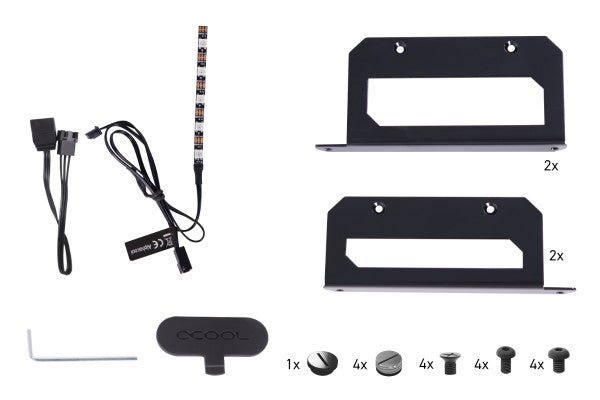

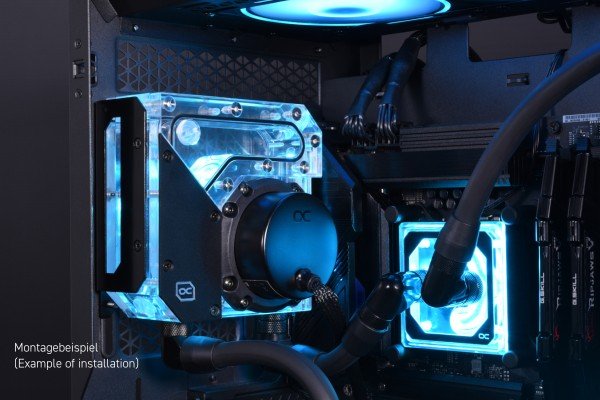

Due to the flat, compact design and the high number of connections, the Rise Flat reservoir can be used flexibly and can also be installed in the tightest of spaces. With the help of the mounting kit included in the scope of delivery, the reservoir can be mounted free-standing in the case, on a radiator or at free fan positions (see mounting example).
Connection options
The Rise Flat expansion tank has a total of 5 inputs and one output. All connections use a G1/4 thread. The 5 inlets are perfectly placed over the entire expansion tank. This allows for easy filling and draining and facilitates maintenance of the entire water circuit.
Brilliant lighting
On the side of the expansion tank, 5 digitally addressable 5V RGB LEDs can be installed, which create a unique, very noble-looking illumination. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (e.g. Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.
Maintenance
The acrylic reservoir allows visual control of the water cooling level. A total of 5 G1/4 inlets allow easy filling, draining and venting of the water circuit.
Compatibility
The Rise Flat AGB has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the scope of delivery.
Pump
The flat design of the Laing DDC310 pump saves space. This results in a very powerful pump that can also be used in the tightest of spaces. With a delivery head of 2.44m, the DDC310 variant offers enough power to operate an extensive water circuit. Power is supplied via a 4-pin Molex connection, and the speed can be read out via a 3-pin Molex connection. This is usually done via the 3-pin fan connector on the mainboard or via a corresponding fan controller.
