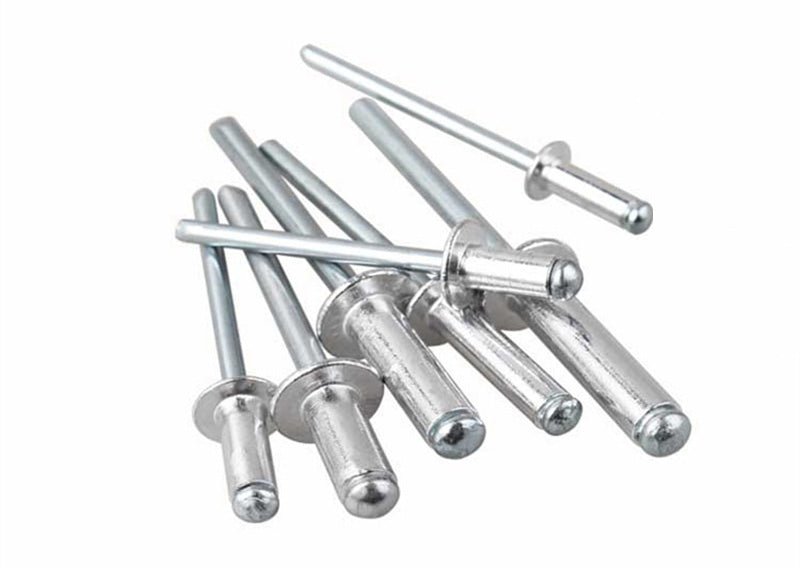

Aluminum Rivets - M2.4-M4-M4 x 10mm

These Aluminum Rivets are great for any product coming in Multiple size as small as M2.4x6mm all the way up to M4x16mm.

							Unitï¼?mm
Nominal diameter d			dk		k      max	d1      max	L1
d	max	min	max	min
2.4	2.48	2.25	5	4.2	1	1.55	25
3	3.08	2.85	6.3	5.4	1.3	2
3.2	3.28	3.05	6.7	5.8	1.3	2
4	4.08	3.85	8.4	6.9	1.7	2.45	27
4.8	4.88	4.65	10.1	8.3	2	2.95
5	5.08	4.85	10.5	8.7	2.1	2.95
6	6.08	5.85	12.6	10.8	2.5	3.4
6.4	6.48	6.25	13.4	11.6	2.7	3.9
