Splitter for RGBpx lighting control and ARGB components with external power supply.

This splitter can be used to connect up to 12 lighting components to a single RGBpx or ARGB output. In this case, all twelve outputs are connected in parallel, which means that all connected components are controlled identically. In order not to overload the connected RGBpx or ARGB output by the high number of connected LEDs, the power supply for all outputs is done via a SATA power supply connector. The digital RGB control signal is amplified for safe control of the connected components on the board.

Input signal

The input signal can be fed in either via an RGBpx connector or a mainboard-type connector. A suitable RGBpx connector cable as well as an adapter for connection to many mainboards and third-party controllers is included.



Outputs

A total of twelve outputs are available, all of which can be used simultaneously:

- four RGBpx connectors

- four mainboard-typical ARGB connectors

- four connectors for ARGB lighting on fans from the manufacturer Corsair (QL, LL, HD, ML series)



A maximum of 4.5 amps is available for the connected LEDs. This corresponds to the maximum allowable current at 5 volts via a SATA power connector. The current consumption of ARGB products varies depending on LED types and displayed colors, as a guideline, no more than a total of 200 LEDs should be connected.

Technical Details:



Type: lighting, adapter (RGB converter).

Consisting of: 1x adapter, 1x connection cable (50cm, RGBpx)

Connections: 1x proprietary (RGBpx), 1x 3-pin ARGB (+5V/DATA/GND)

Connections: 4x 3-pin ARGB (+5V/DATA/GND), 4x proprietary (4-pin Corsair), 4x proprietary (RGBpx)

Power supply: power supply via 1x 15-pin SATA

color: black

Compatibility: universal

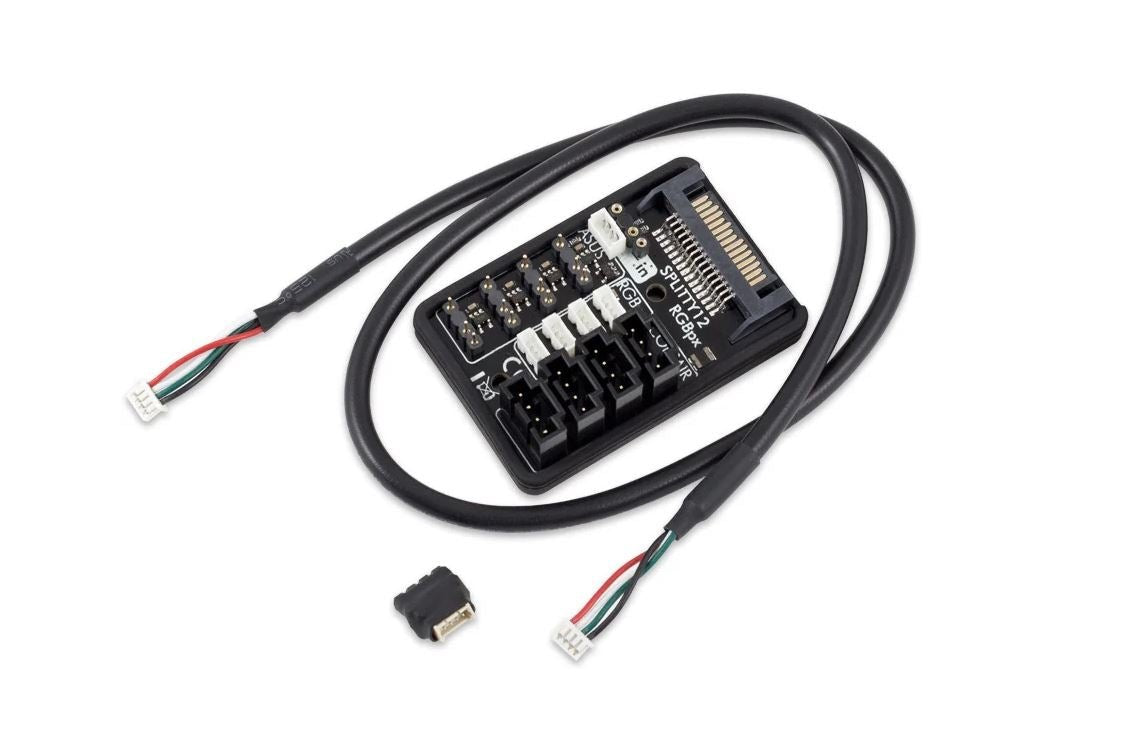

Scope of delivery:

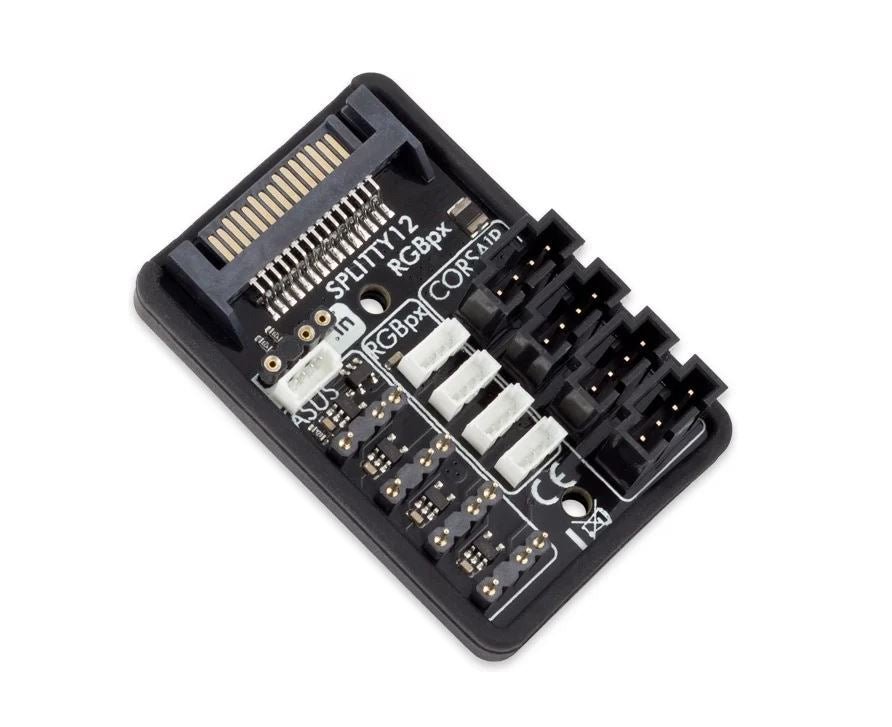

 RGBpx Splitty12 board

RGBpx connection cable, approx. 50 cm

RGBpx adapter plug for mainboard connection

Self-adhesive velcro tape

Mounting material
