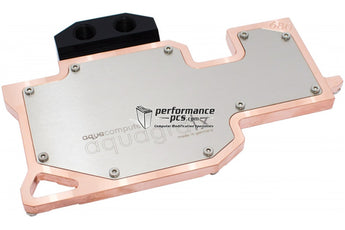

Aquacomputer AquagraFX for GTX 680 Type 2 G1/4

Combined GPU/RAM/VRM water block for graphics card of the GeForce GTX680 series with 2048MB of VRAM in reference design.

This water block combines the functionality of a GPU water block as well as RAM and VRM waterblock in one elegant and thin waterblock.

The aquagraFX for GTX 680 boasts exceptional performance in regard to both cooling and flow rates. To pay tribute to the more and more complicated graphics card designs, we have now integrated spacers on all threads for maximum safety and ease of installation.

The contact surface for GPU and RAM is polished to a mirror finish for optimum contact and heat transfer. The VRM thermal pads are now new with improved performance for even better performance.

The water block is equipped with the connection terminal known from the aquagraFX for GTX480 and GTX470. The terminal is fixated with three mounting screws from the side and offers the possibility of fitting connection from both sides of the water block. To seal the unused threads, 2 screw plugs are included with the water block. The connection thread is G1/4 in size. This connection system can be replaced with twinConnect direct connection kits for SLI operation (Item No. 17110 respectively 17117, not included).

Materials:

• Cooling plate: Copper


• Top plate: Stainless steel


• Connection terminal: Delrin

Extent of delivery:

• Water block without fittings (G1/4 threads)


• Mounting material incl. thermal pad


• Two screw plugs


• Torx screwdriver (for removal of the original heatsink)

Please note: Graphics card is not included! The water block requires fittings for operation, please order fittings separately if needed. The connection threads are 1/4 in size.
Additional thermal compound is needed for installation of the water block.
