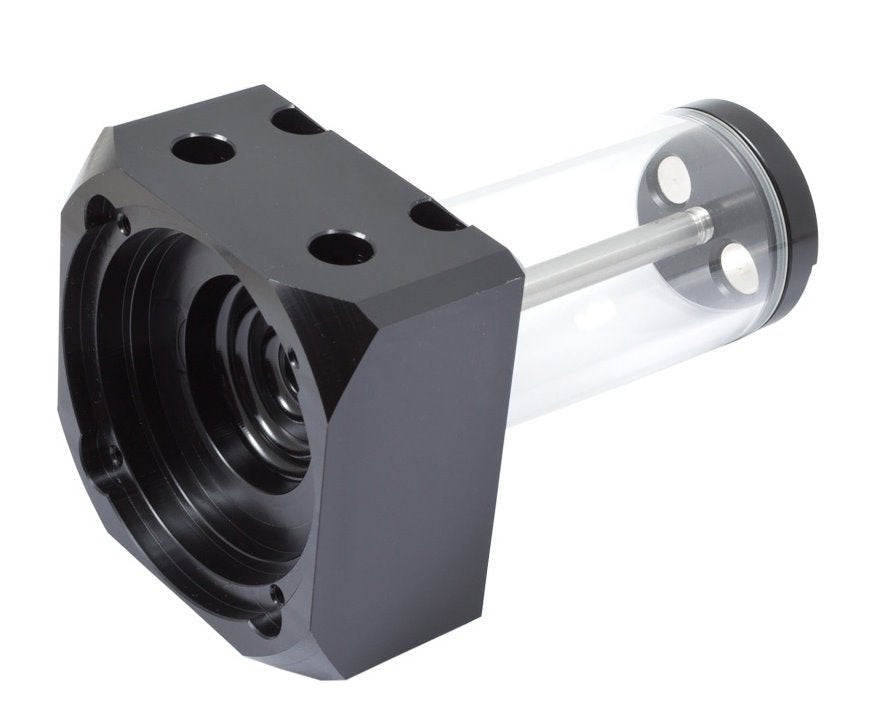

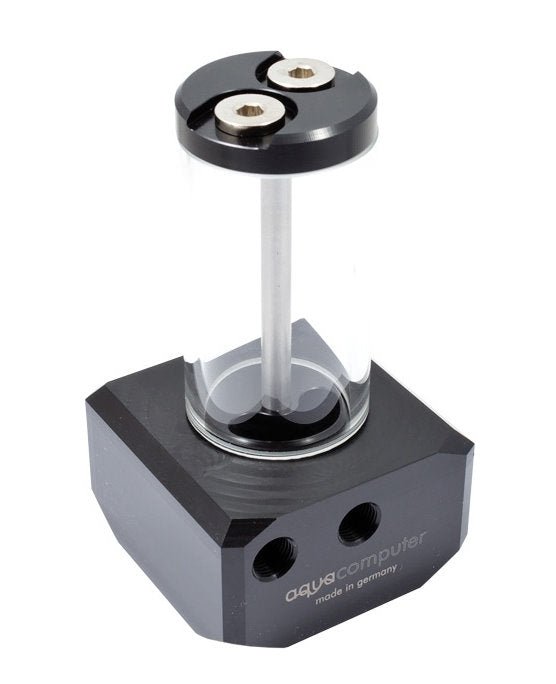

Aquacomputer Aqualis D5 100 ml, G1/4

All reservoirs of the aqualis series are equipped with a borosilicate glass tube. In contrast to acrylic glass, which is often used for tube reservoirs, borosilicate glass is extremele hard and scratch-resistant, features superb thermal and chemical resistance and a very low thermal expansion. The glass tubes of the 100 ml and 150 ml variants have an outer diameter of 50 mm and a wall thickness of 5 mm. Base and top of the aqualis reservoirs are made from Delrin and connected by a stainless steel rod.

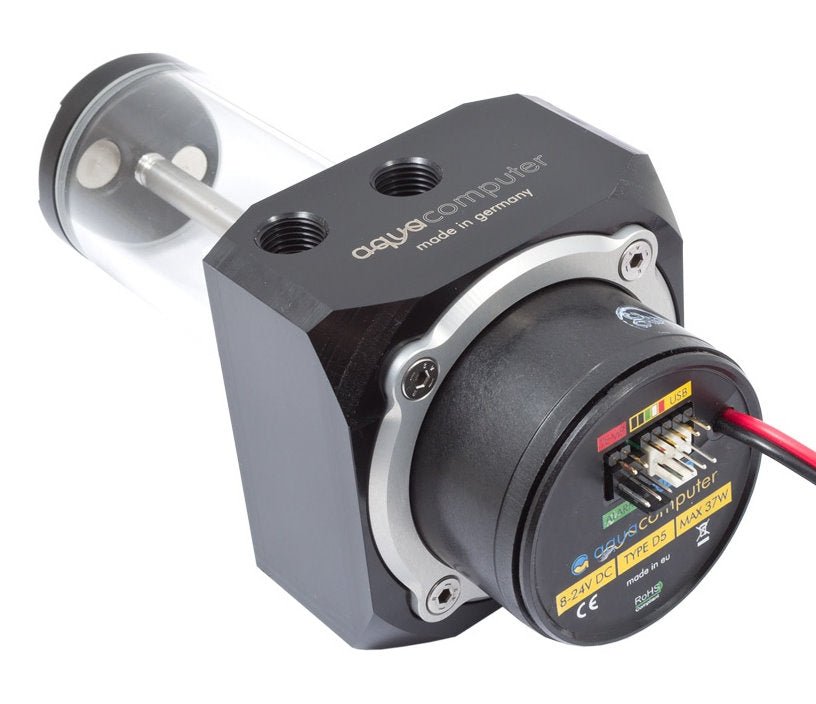

The aqualis D5 100/150 ml variants are designed to be mounted directly to a Laing D5 pump. Four rubber decouplers (art. no. 41092) can be installed in the rear of the reservoir's base part.

All 100 ml and 150 ml variants are also available with a nano coating that will cause water to roll off the inner surface of the borosilicate glass tube.

• Dimensions without pump: approx. 80 x 80 x 185 mm


• Dimensions with pump (not included in delivery): approx. 80 x 80 x 220 mm


• Filling volume: approx. 100 ml


• Connection threads: G1/4

Scope of delivery:

• One Reservoir


• Two sealing screws G1/4 (preinstalled)


• Clamping ring and four screws (to attach the pump to the resevoir)

Technical details:

Color:	Black
Connector:	G1/4 inner thread
Fillport:	G1/4 inner thread
LED hole:	Not available
Material:	Borosilikatglas
Model of reservoir:	Aqualis reservoir
Number of connections:	2
Preinstalled pump:	No
Pump compatibility:	For flow pumps

Please note: Fittings are not included in delivery, please order seperately. Laing D5 pump and rubber decouplers are not included in delivery!
