Aquacomputer Aqualis Level Measurement Kit for Aqualis PRO 450/880

This upgrade set contains all parts needed to equip a reservoir of the aqualis PRO series with an electronic fill level sensor. The electronic fill level sensor features an USB and aquabus interface, a programmable alarm output and an external temperature sensor input. For monitoring and configuration, the aquasuite software can be downloaded free of charge. In addition to the USB interface, the 4-pin aquabus interface can be used to directly connect the fill level sensor to an aquaero 5 controller (not included in delivery). The alarm output can be configured to be used as a rpm signal to be connected to a fan connector with fault detection (for example motherboard fan headers) or to be used as a switched output for example to connect a LED. Fill level and external temperature sensor input can be configured to raise an alarm. The external temperature sensor input is compatible with all Aqua Computer temperature sensors.

Please note: If used together with the fountain effect, an aqualis replacement top with four connection threads (not included in delivery) is required to install the pressure equalisation membrane!

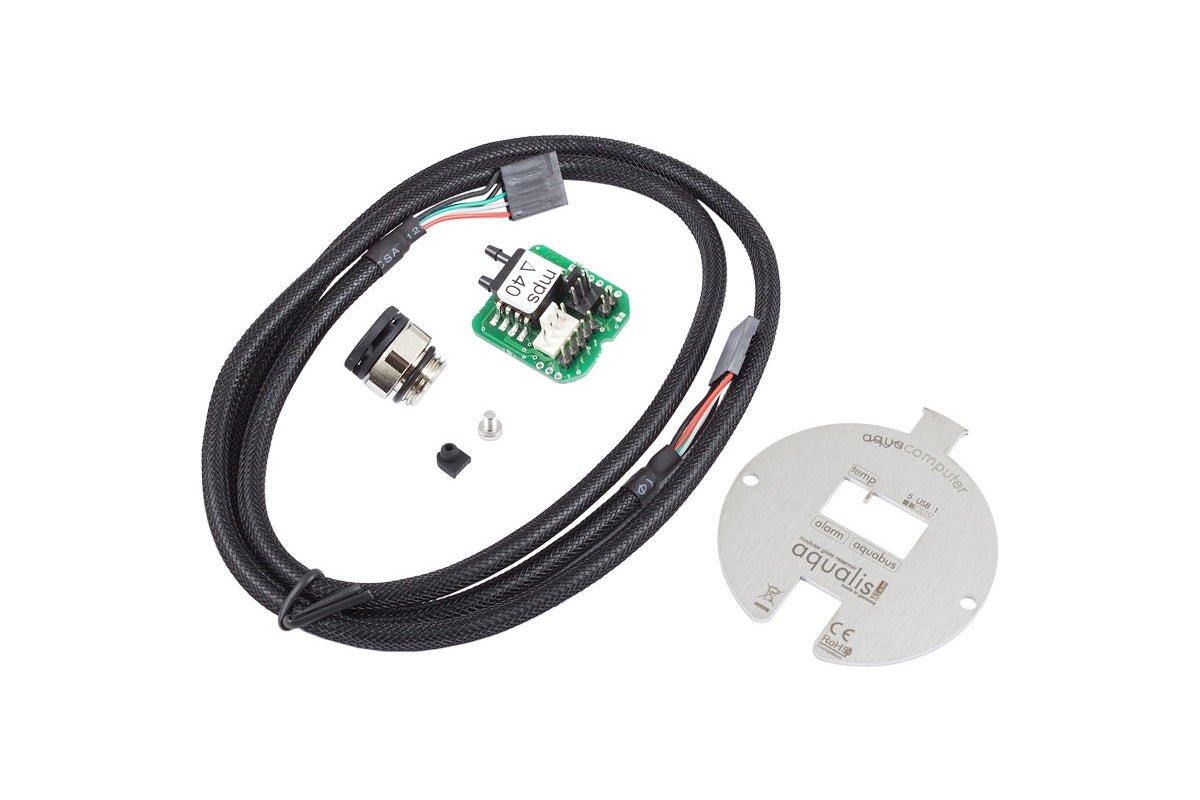

Scope of delivery:

• One Pressure sensor PCB


• One engraved stainless steel cover


• One pressure equalisation membrane G1/4


• One internal USB connection cable


• Monting material
