Aquacomputer cuplex kryos NEXT 1700, nickel/nickel

Details

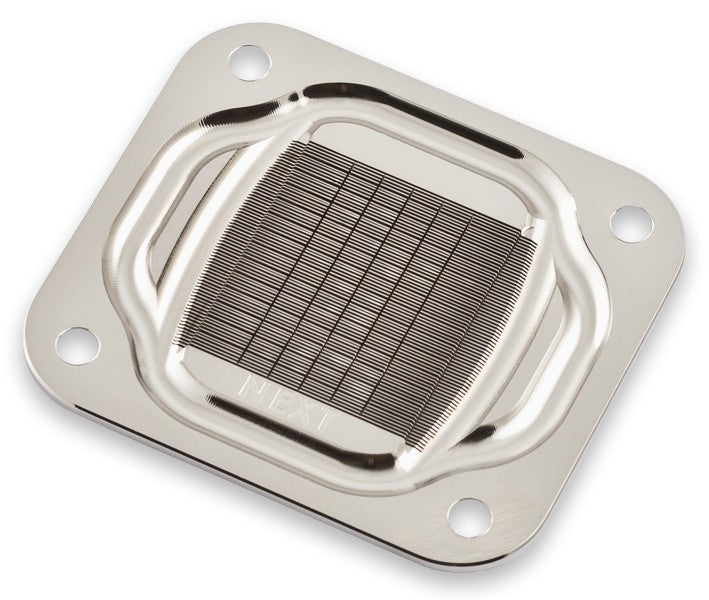

Radiator base with microstructure
The radiator base of the cuplex kryos NEXT is equipped with an extremely fine microstructure, the structure width is less than 200 µm. The coolant flows through a flat nozzle integrated in the cooler housing onto the center of the microstructure and is discharged from there in two directions. Depending on the cooler variant, the cooler base is made of copper, nickel-plated copper or .925 sterling silver.

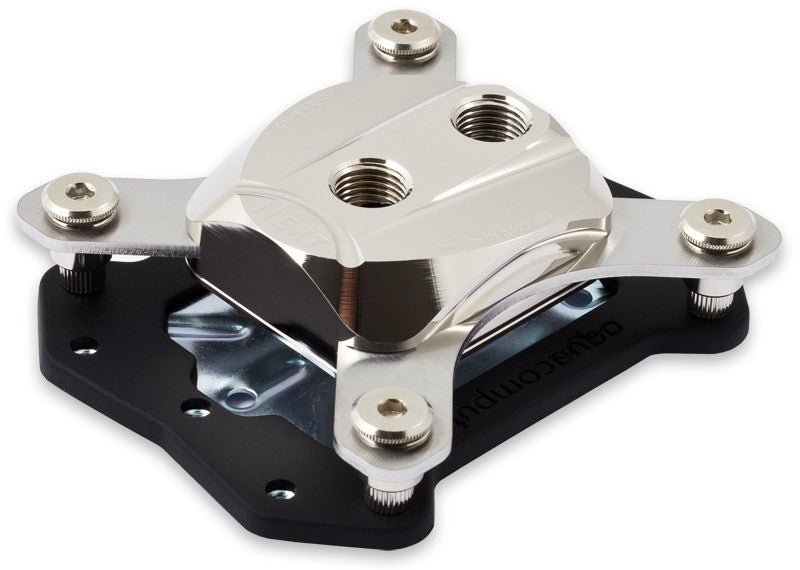

mounting system
The mounting system of the cuplex kryos NEXT consists of solid stainless steel sheets with a material thickness of 2.5 mm, into which nickel-plated spring cups are pressed. Knurled screws and springs attach the cooler to the mainboard. When installed, the holding system looks very tidy due to the spring cup and the low overall height. All bracket variants have a defined stop for optimal contact pressure and force distribution. The knurled screws can be fitted by hand, and an Allen key also allows for easy installation.
The cooler variants for socket 1700 are equipped with a backplate with a rubber cover, which additionally stabilizes the mainboard.
For optimal performance, each cuplex kryos NEXT comes with 0.5 grams of excellent thermal paste, which is packed in a syringe for easy use. A plastic spatula is also included for application. The paste has a high thermal conductivity and, thanks to its low viscosity, is distributed very well between the CPU and the water cooler during assembly. The supplied quantity is sufficient for approx. five assemblies of the cooler.

Color variants

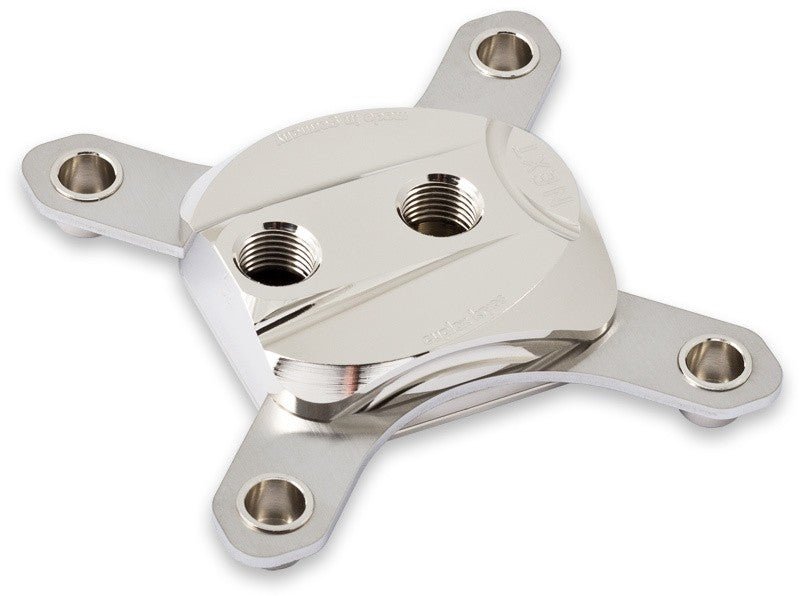

The cooler housing is available in various materials and coatings
: Black acetal: Glossy black high-performance
plastic Acrylic glass: Transparent housing with lighting option
Copper: Shiny red
Brass, nickel-plated: Bright metallic shine
Brass PVD coated: High-quality multi-layer coating with a dark metallic sheen

Material
combination nickel/nickel: Nickel-plated brass housing, nickel-plated copper cooler base

echnical data
Dimensions:
Base 1700: 94 x 94 x 22 mm (screws and backplate not included)
Connection thread: G1/4
distance connection thread : 28 mm Scope of

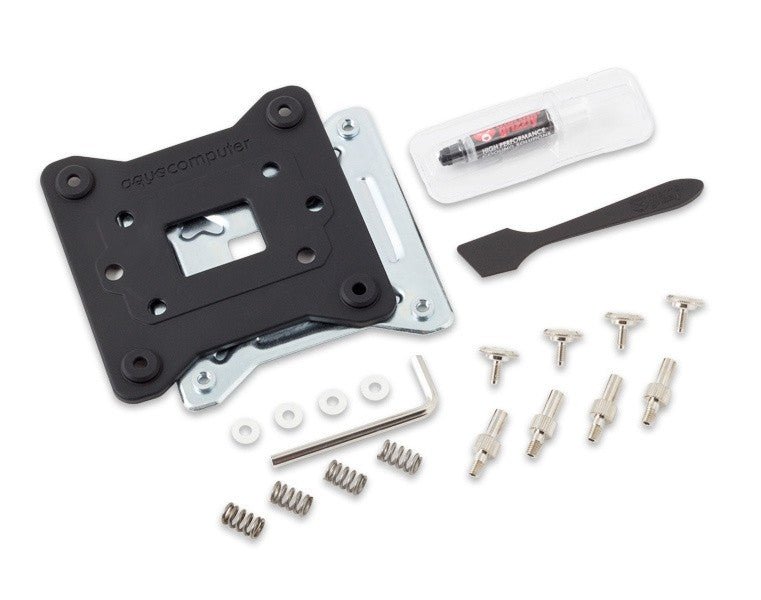

delivery
- Assembled cooler
- Mounting kit (screws, springs, etc.)
- Thermal paste, approx. 0.5 grams in a syringe
- Plastic spatula
- Assembly instructions

Manufacturer	Aquacomputer
Overall Dimensions	Socket 1700: 94 x 94 x 22 mm (screws and backplate not included)
Cooling Plate Material	Nickel Plated Copper
Top Cover Material	Nickel Plated Brass
Socket Type	Intel 1700
Number of Ports	2x G1/4
Color	Chrome
Included	1x Water block 1x Mounting materials (screws, springs, etc.) 1x Thermal compound Thermal Grizzly Kryonaut, approx. 0.5 grams in syringe 1x Plastic spatula 1x Instruction manual
Material	Nickel Plated Copper
