Aquacomputer D5 Next RGB

The D5 NEXT made by Aqua Computer is coolant pump with outstanding functionality, based on the renowned Laing D5 pump. The detachable controller unit is equipped with an OLED display and a powerful fan output. Additionally, it features an RGBpx effect controller for 64 addressable LEDs.

• Laing D5 ceramic bearing motor for optimum durability and smoothness

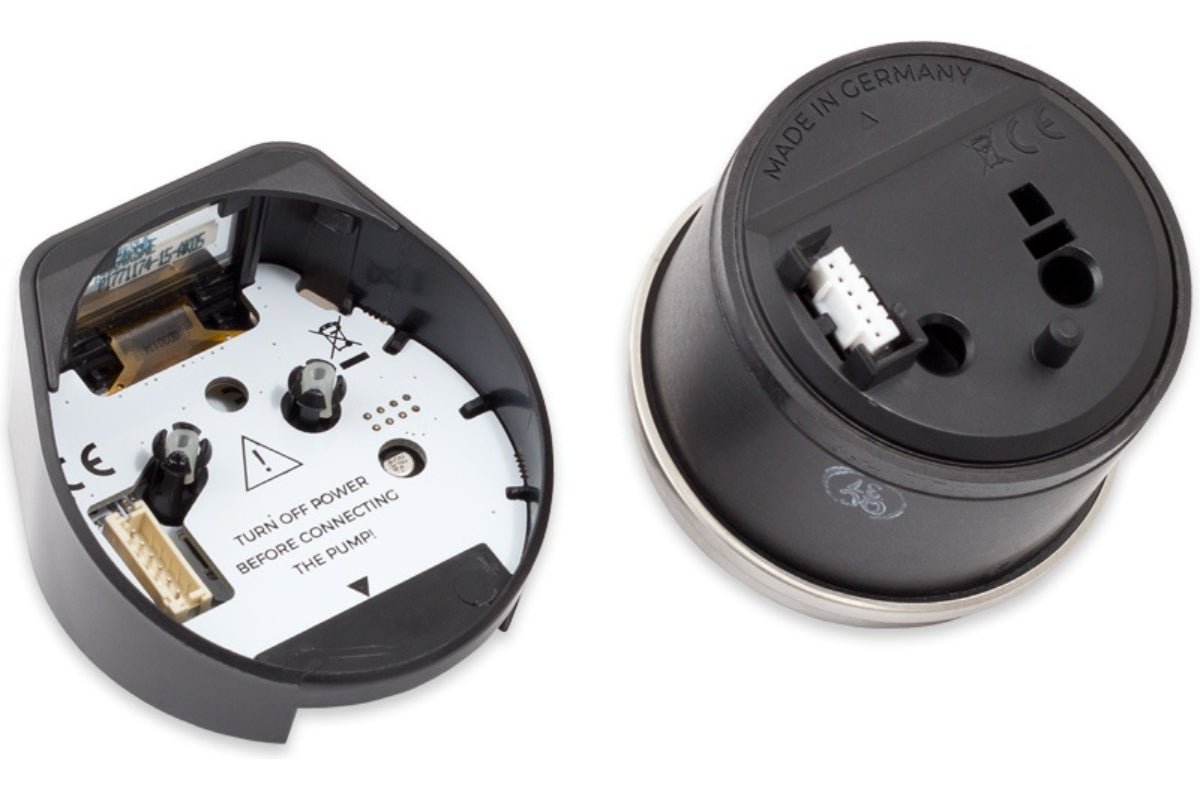

• Detachable controller unit for easy access to the electrical connectors

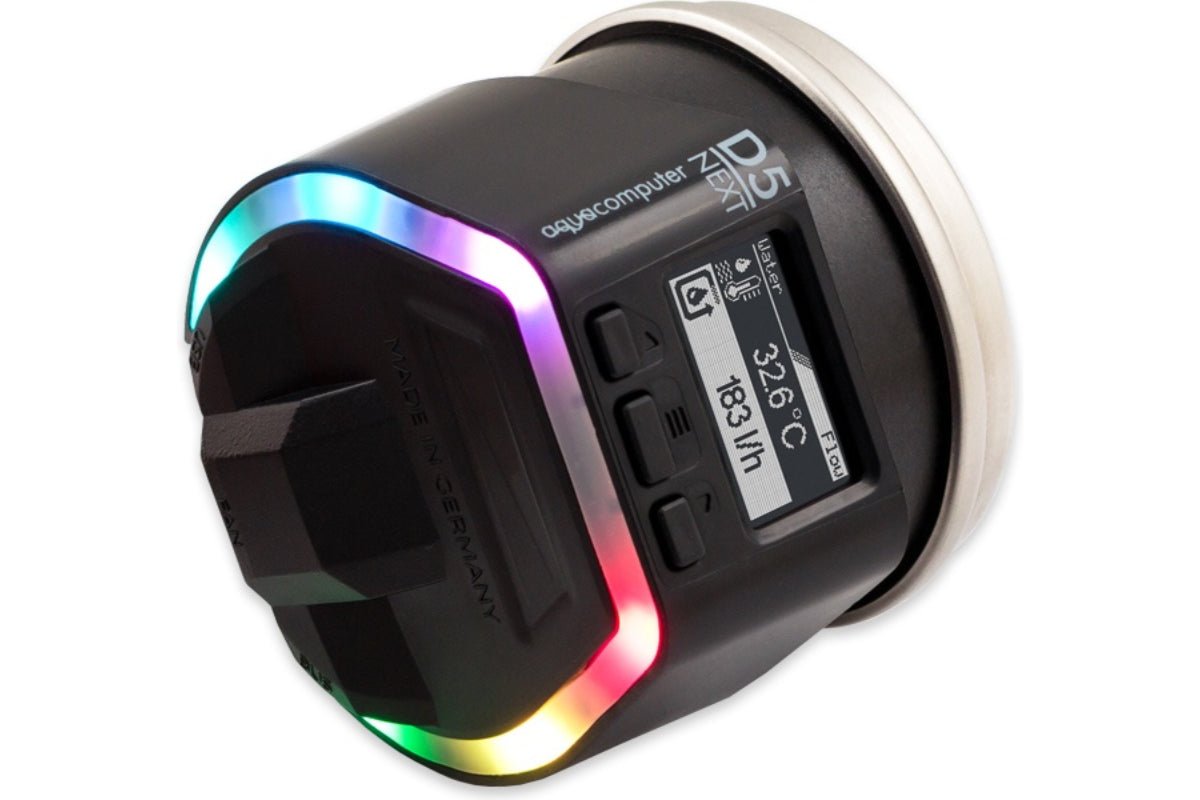

• High resolution OLED display and integrated buttons for operation even without a PC


• Integrated RGBpx illumination for light effects and alarm indication


• Integrated water temperature sensor


• PWM fan output with up to 25 Watts of power and speed monitoring


• Fan output can alternatively be used as a flow sensor input


• Versatile control options


• Eight further values can be transferred from the PC to the D5 NEXT using the aquasuite software


• RGBpx LED output for LED strips and fans with individually controllable LEDs


• RGBpx LED output can alternatively be configured as aquabus interface for connection to an aquaero 5/6


• Alarm buzzer for acoustic alarm indication


• Power supply via SATA connector


• USB 2.0 interface


• Firmware can be updated via USB


• aquasuite software for a comfortable setup, evaluation and visualization of all sensor data

Color:	black
Manufacturer:	Aquacomputer
Approved fluids:	Water, Water/ glycol mixture
Max. System temperature:	60° C
Max. Discharge head:	Good (2 to 4m), 3,7m
Max. Flow:	Extreme (more than 1400l/h), 1500l/h
Voltage:	12V DC
Water inlet:	Not available
Water outlet:	Not available
Material:	Plastic, ceramic
Power input:	23W
Dimensions:	66 x 57 mm
Power connector:	SATA-Stecker

Technical details

• Dimensions without attached cables, without decoupling: ca. 66 x 65 x 75 mm


• Dimensions without attached cables, with decoupling: ca. 66 x 65 x 78 mm


• Supply voltage: 5V, 12V


• Maximum power consumption: 65 W (including fan and RGBpx output)


• Maximum fan output power: 25 watts


• Maximum pump head: 3,7 m / 370 mbar

Scope of delivery

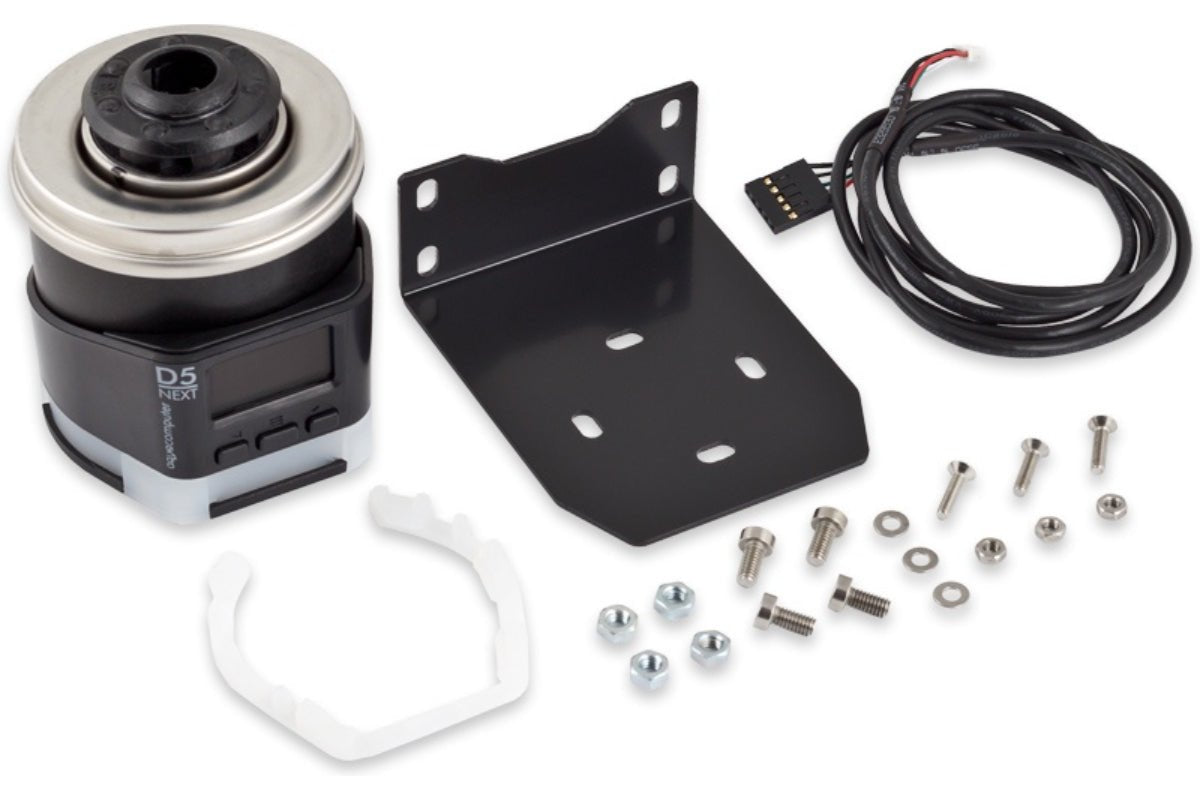

• D5 NEXT pump motor with controller unit, decoupler and mounting plate


• one internal USB cable, length approx. 100 cm


• mounting bracket with black coating
