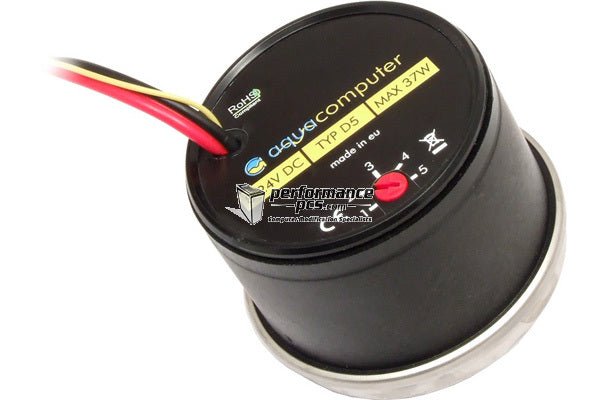

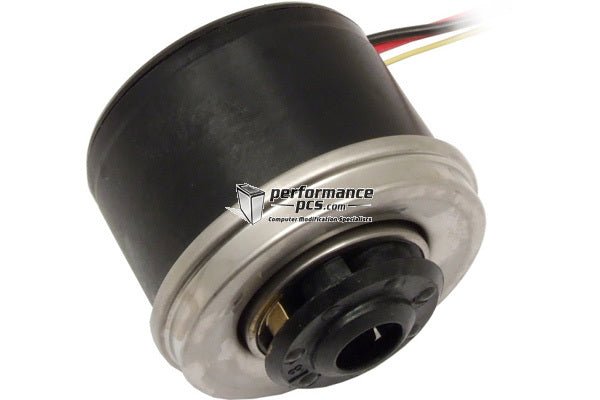

Aquacomputer D5 Pump Mechanics with RPM Signal

AQ-41091



The D5 pump body is the basis for an extremely powerful pump, it just needs to be completed with a suitable enclosure to be used. An electronically commutated ball motor is the basis of this pump and ensires quiet and smooth operation throughout the whole lifespan of the unit.
Speed and hence flow rate can be set via a turning knob or via the input voltage. A speed signal for monitoring of the pump's functionality is also available for your needs.



Found a better price? Let us know and we'll try and match it!
Title
Estimate shipping
$107.95 Sold out
Shipping calculated at checkout.

Pickup currently unavailable at Performance-PCs.com

  • 99% of orders ship same day M-F!
  • FREE Shipping Possible!
  • All-Star CS Team
  • 30-Day Hassle Free Returns
Title
Details

The D5 pump body is the basis for an extremely powerful pump, it just needs to be completed with a suitable enclosure to be used. An electronically commutated ball motor is the basis of this pump and ensires quiet and smooth operation throughout the whole lifespan of the unit.
Speed and hence flow rate can be set via a turning knob or via the input voltage. A speed signal for monitoring of the pump's functionality is also available for your needs.

Please note:
For operation a suitable pump enclosure is needed. The pump electronics are not watertight, they must not come in contact with water under any circumstances - submerged operation is not possible!

Specifications

Technical specifications:
Dimensions (Diameter x height): 66x57mm (Without connection cable)
Operating voltage: 8-24V DC
Power consumption: 23W at 12V
Pressure head at 12V: 3.7m H2O
Power supply via 4-Pin Molex power connector, speed signal via separate 3-Pin fan connector


Extent of delivery:
1x Aquacomputer D5 pump body
