Aquacomputer Kryoconnect for Kryographics, Width 5 Slots for 2 or 3 Graphic Cards

The kryoconnect direct connection kit allows to directly connect two or three graphics card water blocks (kryographics series) and can be used for SLI or Crossfire systems.
The kit comes with a connection block made of Delrin which replaces the connection blocks of the individual water blocks. If this set is used to connect two water blocks, the graphics card may have a spacing of two or four slots (meaning one or three slots remain unused between the graphics cards). Alternatively, the set can be used to connect three water blocks with one empty slot between the graphics cards. If used with two water blocks, the unused connection can be sealed with a stainless steel plates which is included in delivery. Sealing screws are also supplied and can be used to determine whether the waterblocks are connected in parallel or in series.

Suitable for the following waterblocks:
kryographics for GTX Titan (art. 12670, 12673, 12684, 12685)

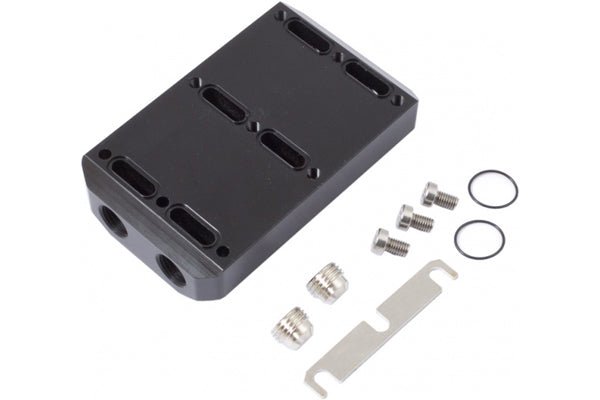

Scope of delivery:
1 connection block made of Delrin
1 sealing plates made of stainles steel
2 gaskets
3 screws
2 sealing screws

Please note:
Water blocks, graphics cards and fittings are not included in delivery, please order separately. Threads are G 1/4. SLI/Crossfire operation is also possible without this conversion kit using bent fittings.
