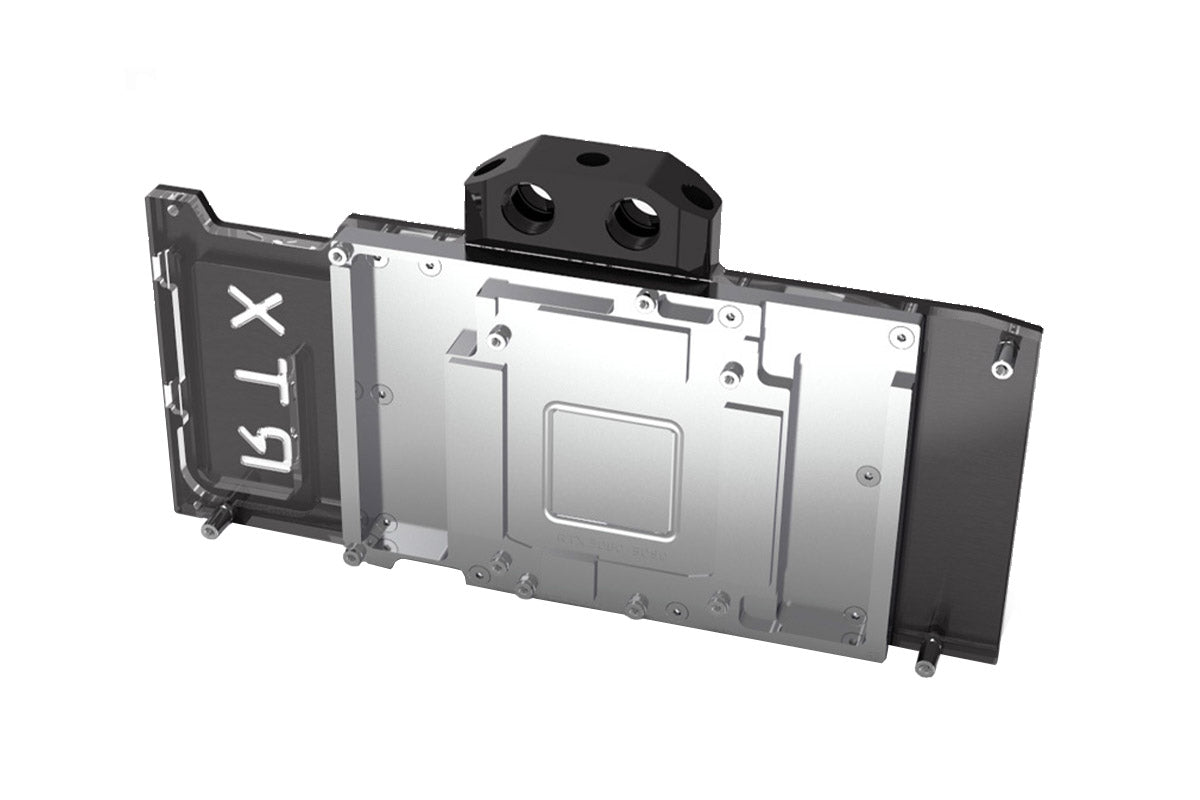

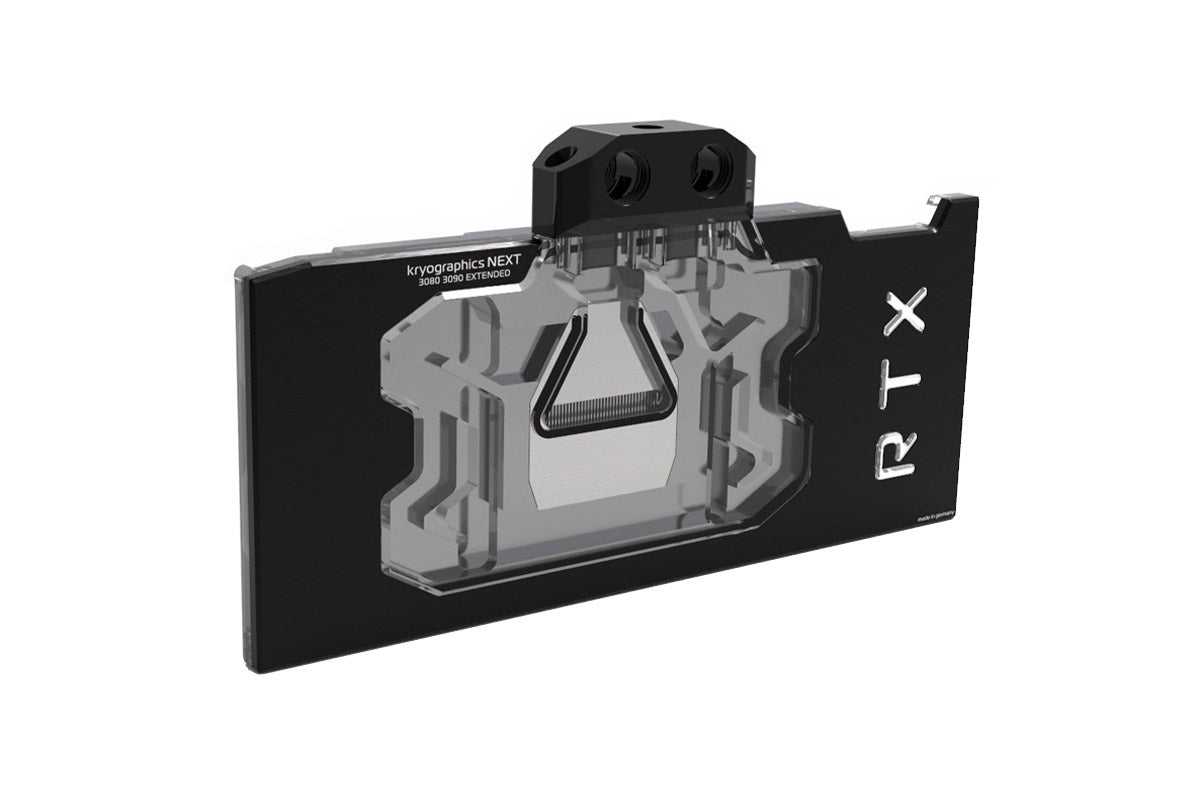

Aquacomputer kryographics NEXT RTX 3080 Extended / RTX 3090 Extended nickel-plated version

Full cover water block for NVIDIA RTX 3080 and RTX 3090 graphics cards according to reference design with wider PCB dimensions.

Manufactured from a massive block of copper, the base of the water block covers all relevant heat sources. In the GPU area, a jet plate made from stainless steel assures maximum cooling performance, while wide coolant channels in other areas guarantee minimum flow resistance.
The top is manufactured from acrylic glass, reinforced by a black anodized aluminum frame. Fifteen individually addressable RGBpx LEDs are integrated into the water block and can be connected to an Aqua Computer device with RGBpx output or to a motherboard with a compatible output.

• Mirror finish for relevant contact areas.


• Direct contact to GPU and RAM, high quality thermal pad included for further components such as voltage regulators.


• All mounting threads are equipped with metal spacers for easy installation.


• Inlet and outlets ports with G1/4 thread, can be used from both sides. Two sealing screws included.


• Interchangeable connection terminal.


• Full compatibility to kryographics connection terminals with VISION module and kryoconnect SLI connectors.

Compatible products for integrated RGBpx illumination:

• All Aqua Computer products with RGBpx output


• Various motherboards with connector for addressable RGB LEDs

Materials:

• Base part: Copper, nickel plated


• Top cover: Acrylic glass


• Frame: Aluminum, anodized


• Jet plate: Stainless steel


• Terminal: Acetal

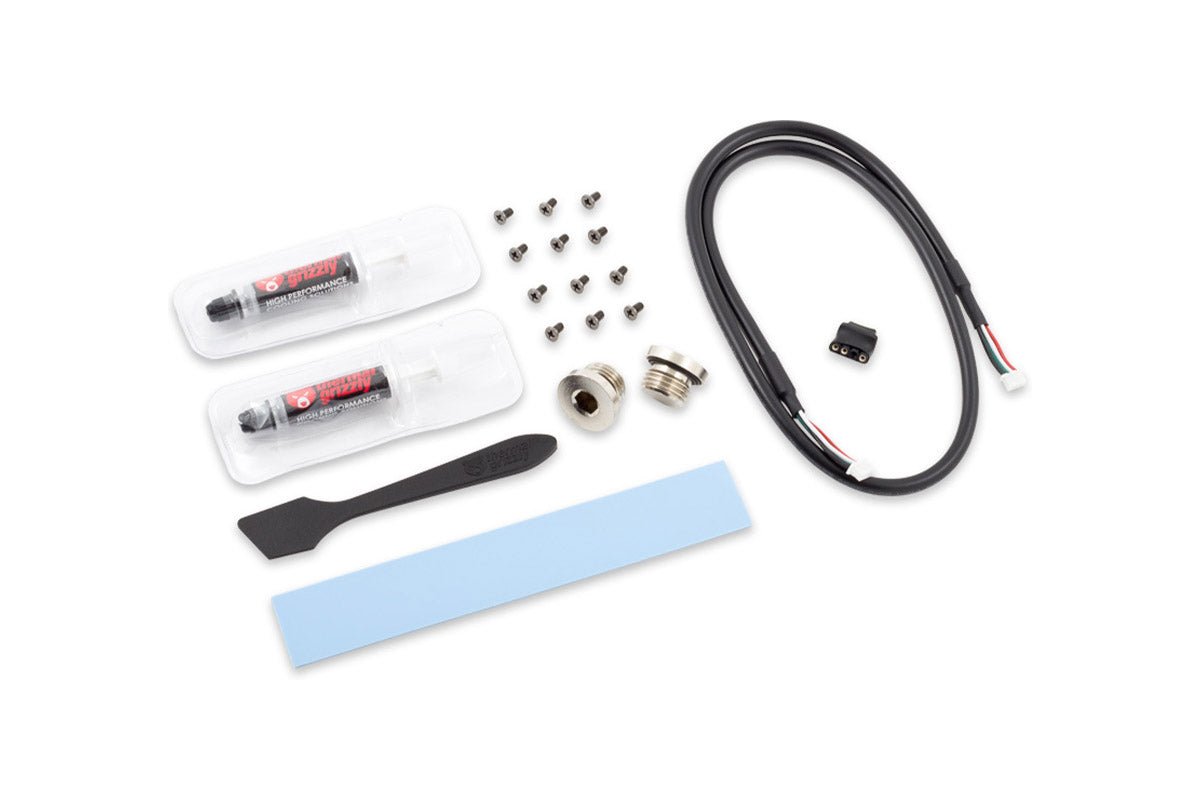

Scope of delivery:

• Water block without hose connectors (threads G1/4)


• Two G1/4 sealing screws


• Thermal compound Thermal Grizzly Kryonaut, approx. 1 gram in syringe


• Plastic spatula


• Thermally conductive pad


• Mounting material


• RGBpx connection cable 50 cm


• RGBpx adapter
